PRESSURE SWITCH HYDROPHORE PUMP SWITCH BRIO SK-13 CONTROLLER GZ 1"
PRESSURE SWITCH HYDROPHORE PUMP SWITCH BRIO SK-13 CONTROLLER GZ 1" Manufacturer code BRIO SK-13
PRESSURE SWITCH HYDROPHORE PUMP SWITCH BRIO SK-13 CONTROLLER GZ 1" Brand no brand
Paslinkite virš paveikslėlio, kad priartintumėte Spustelėkite paveikslėlį, kad priartintumėte
PRESSURE SWITCH HYDROPHORE PUMP SWITCH BRIO SK-13 CONTROLLER GZ 1"PRESSURE SWITCH HYDROPHORE PUMP SWITCH BRIO SK-13 CONTROLLER GZ 1" Manufacturer code BRIO SK-13PRESSURE SWITCH HYDROPHORE PUMP SWITCH BRIO SK-13 CONTROLLER GZ 1" Brand no brand

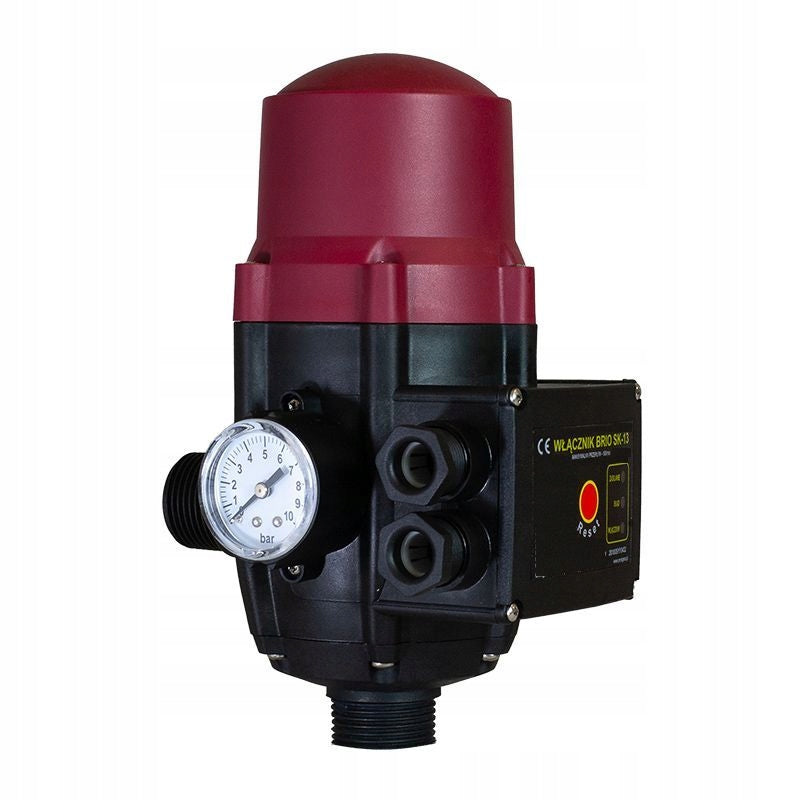

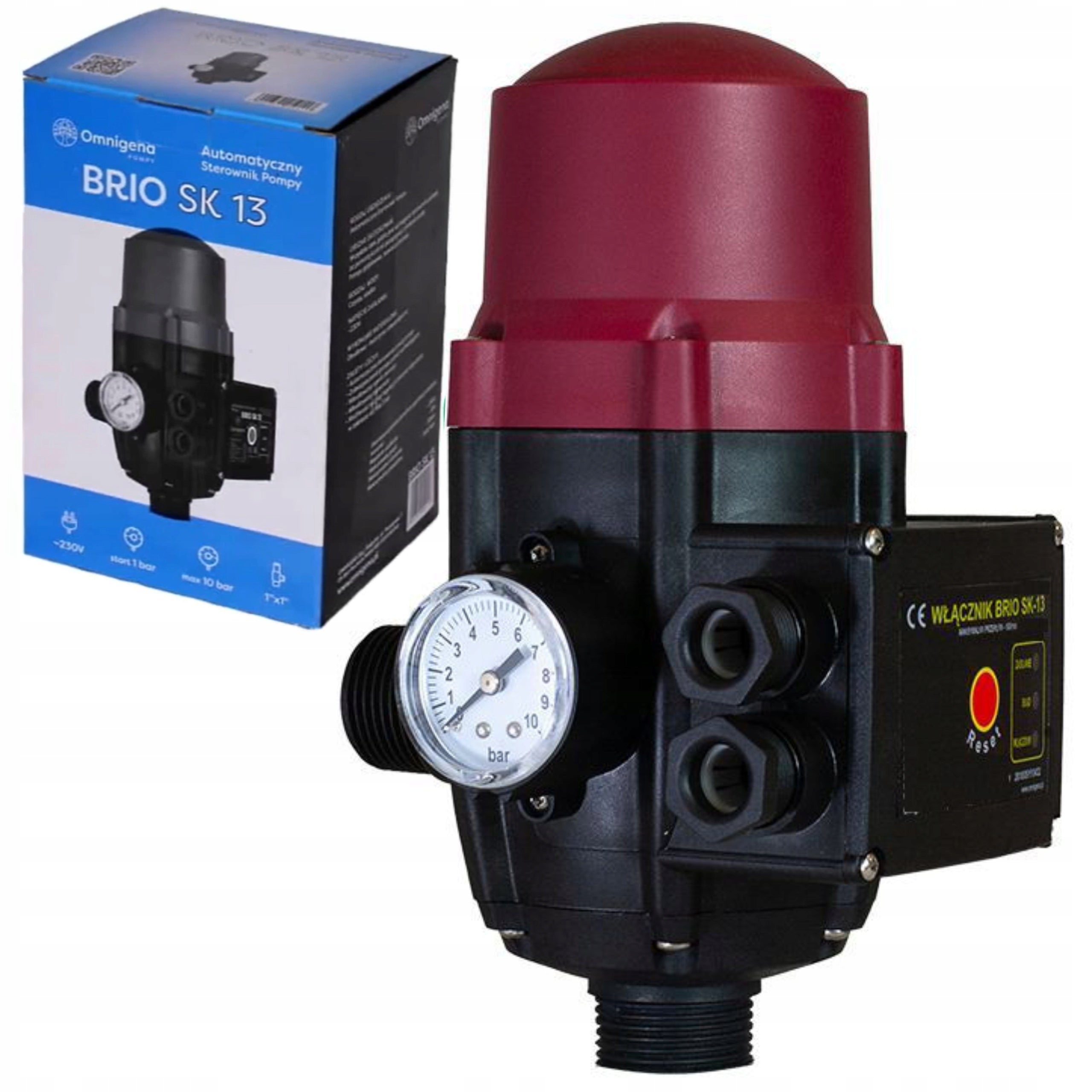

Slėgio jungiklis vandens siurbliui BRIO SK-13, GZ 1

Kaina:
€50,51
Sandėlys:
Yra sandėlyje

Aprašymas

Trumpai apie prekę

Prekė: Slėgio jungiklis vandens siurbliui BRIO SK-13, GZ 1. Kategorija: Elektrinių įrankių rinkiniai.

  • Gamintojas: no brand
  • Modelis: BRIO SK-13

OMNIGENA BRIO SK13

BRIO SK-13 automatically turns on the pump in the event of a pressure drop in the hydraulic system and turns it off in the event of a water flow stop and after obtaining the maximum pressure that the pump reaches.

The BRIO SK-13 has the ability to adjust the switching pressure.

BRIO SK-13 are designed for applications wherever their technical parameters are appropriate and in accordance with the user's expectations.

APPLICATION: The BRIO SK-13 automatically switches on and stops the pump in case of pressure drop and flow stop, respectively. In addition, the BRIO SK-13 stops the pump in the absence of water, protecting it from damage during dry running. The BRIO SK-13 device does not have the ability to adjust the shutdown pressure, so in working conditions the pump will turn off after obtaining the maximum parameters (pressure).

Technical data:

  • Power supply voltage: 230 V
  • Rated frequency: 50/60 Hz.
  • Maximum current: 10 A
  • Maximum allowable pressure: 10 Bar
  • Maximum liquid temperature: 55ºC
  • Maximum flow rate: 2,66l/s ; 160l/min ; 9,6m³/h
  • Diameter of connection connectors: 1"
  • Protection rating: IP 65

Material execution:

  • Housing: fracture-proof plastic

Features / Advantages

  • Automatic pump on and off
  • Protection of the controlled pump against dry running
  • Communicating the operating status with a diode
  • Easy operation
  • Available versions with different configurations of electrical cables:
  • - with one cable with plug. In this configuration, there is an outlet on the controller housing for connecting the electric controller to the pump.
  • - with two cables. One terminated with a plug for network connection and the other terminated with an outlet for connecting the controller to the pump.
  • - with one cable for connecting the controller to the pump)
  • - without cable

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand no brand
Parametry Product weight with unit packaging 1.3 kg
Parametry Manufacturer code BRIO SK-13
Parametry EAN (GTIN) 634065132033
Parametry Customs tariff code 84672980
Parametry Batteries included no
