Šliuzas TUYA ZigBee, Matter, Thread, Bluetooth BLE, Sigmesh, PoE, WiFi 2.4/5GHz

Trumpai apie prekę

Prekė: Šliuzas TUYA ZigBee, Matter, Thread, Bluetooth BLE, Sigmesh, PoE, WiFi 2.4/5GHz. Kategorija: Centriniai blokai.

• Gamintojas: Tuya
• Modelis: T714

ZigBee 3.0 | Thread | BLE (Bluetooth Low Energy)

USB-C | PoE | Ethernet (RJ45) / LAN | WiFi 2.4/5 GHz

• ✅ Up to 128 ZigBee devices.

• ✅ Up to 200 SigMesh devices.

• ✅ Up to 32 Matter over Thread devices.

Manage your entire home from one device that combines ZigBee, Thread and Bluetooth technologies.

▶ 3 Roles in One Device

• Bridge: Connects ZigBee and Bluetooth devices to the Matter standard.

• Border Router: Integrates the Thread network with the Wi-Fi / LAN network.

• Controller: Provides instant, local automation management.

▶ Full compatibility (Ecosystem Matter)

• Cooperation: Support for Apple Home / Homekit, Google Home, Amazon Alexa and Samsung SmartThings.

• Ecosystem: Full compatibility with the Tuya Smart / Smart Life application.

• Flexibility: You can share devices between different platforms without restrictions.

▶ Strong range

• ZigBee: ≥ 200 meters

• Bluetooth: ≥ 150 meters

• Thread: ≥ 140 meters

▶ Installation on your terms

• Effortless migration: Replace your gateway with a new one without having to reconfigure all your devices.

• Power Supply: Choose convenience from DC 5V/2A (USB-C) or professionalism PoE (Power over Ethernet) using the Ethernet (RJ45) twisted pair.

• Assembly: The device can stand on a table or be mounted on a wall/ceiling.

Supported ecosystems:

• Tuya / Smart Life

• Apple Homekit

• Google Home

• Amazon Alexa

• Samsung SmartThings

Supported standards:

• Matter

• Thread

• ZigBee 3.0

• BLE (Bluetooth Low Energy)

• Bluetooth Mesh / Sigmesh

Parent Communications:

• Wi-Fi Dual-Band: 2.4 GHz and 5 GHz

• Ethernet: RJ45 (LAN) port

• Optional: Support external 4G LTE module/adapter

Maximum number of connected devices:

• ZigBee: up to 128 devices

• SigMesh (Bluetooth): up to 200 devices

• Matter over Thread: up to 32 devices

Wireless range

(in open space, without obstacles or disturbances):

• ZigBee range: ≥ 200 m

• Thread range: ≥ 140 m

• Bluetooth range: ≥ 150 m

Power Methods (Dual Power):

• Standard: DC 5V/2A (via USB-C port)

• Professional: PoE (Power over Ethernet) – power supply directly via RJ45 network cable

Method of installation:

• Freestanding

• Wall

• Ceiling

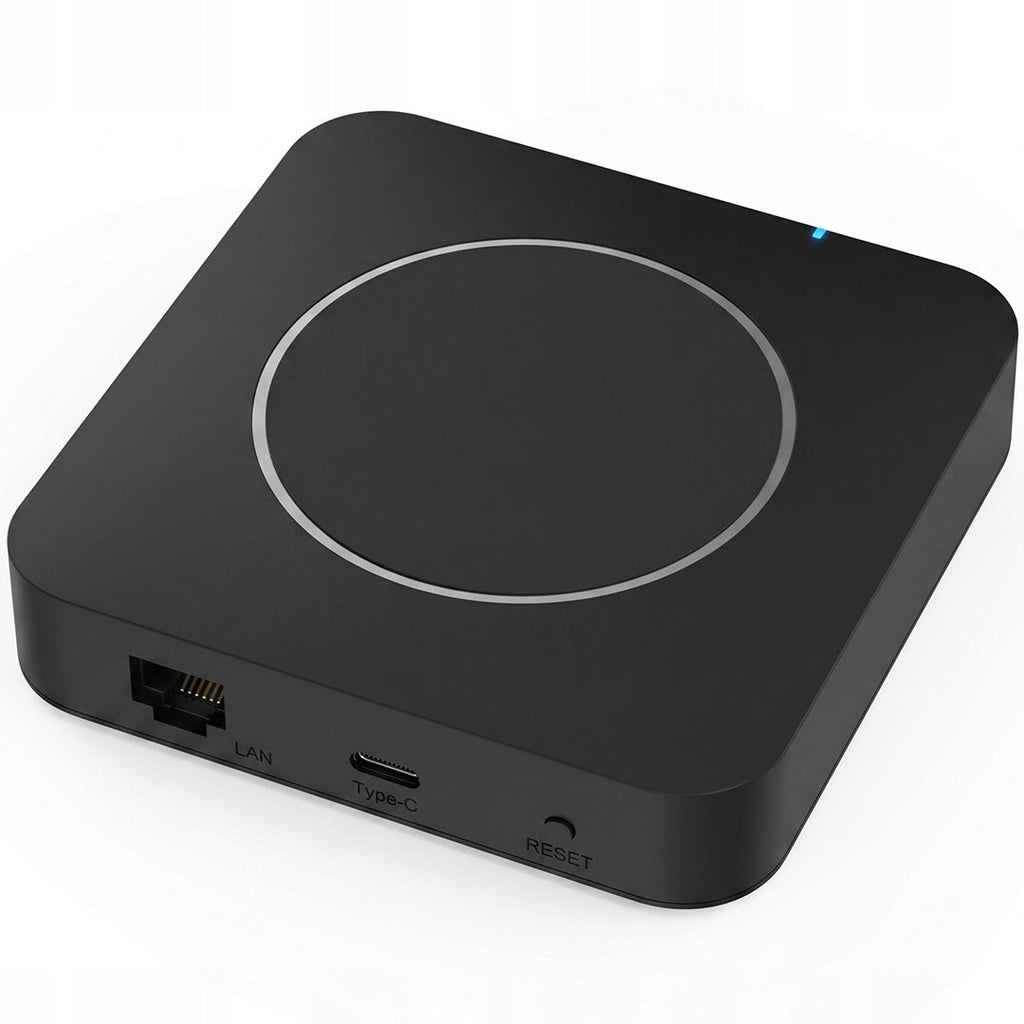

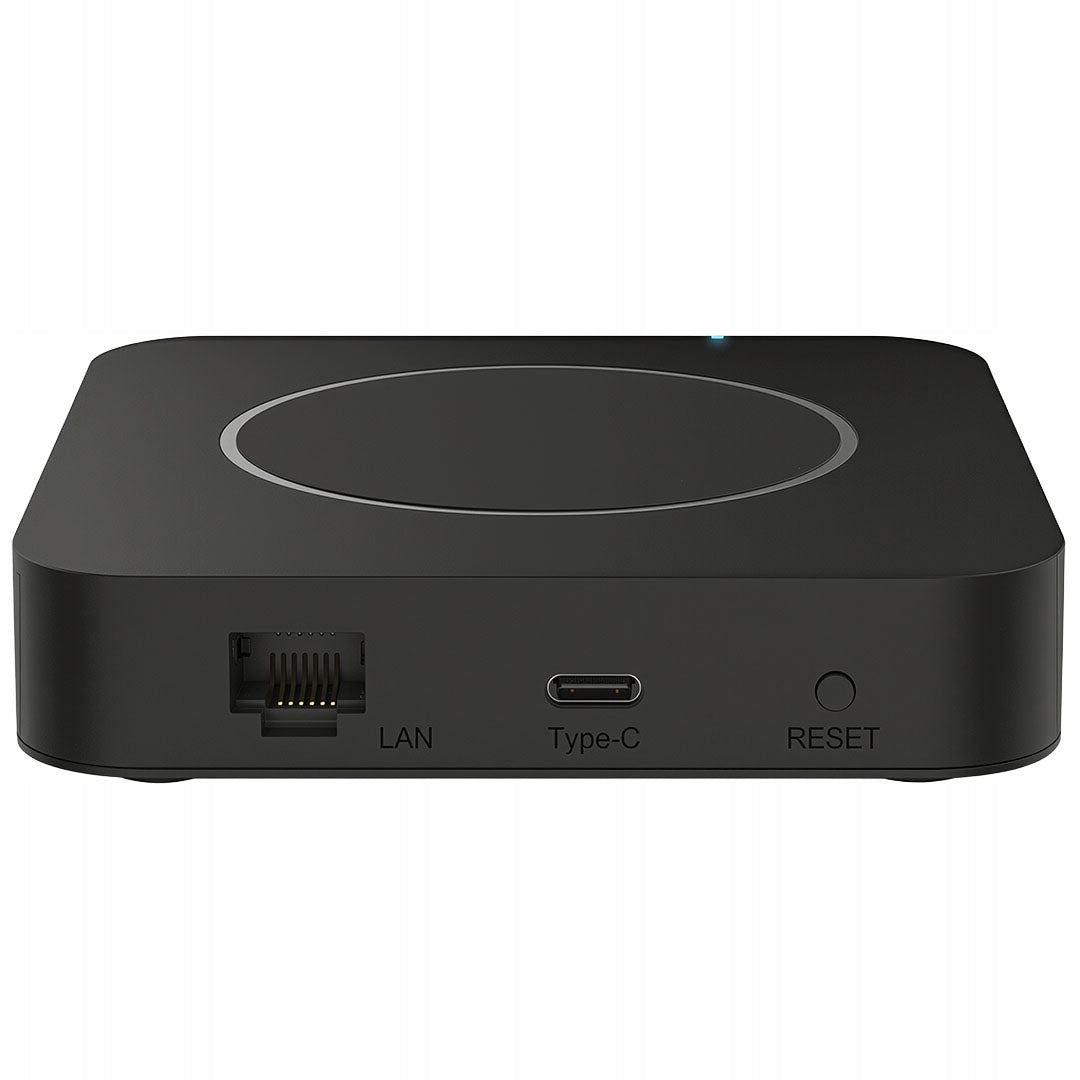

Physical interface:

• 1x Ethernet Port (RJ45)

• 1x USB Type-C Port

• 1x USB Type-A to 4G LTE Adapter Port (Optional / Not Included)

• 1x Reset Button

• LED status light

Working conditions:

• Working temperature: from 0°C to 40°C

• Working humidity: 10% – 90% RH (non-condensing)

Additional Features

• Effortless migration: The ability to move existing smart home automation to a new gateway without having to reconfigure all devices from scratch.

Included:

• Multi-gate

• Power cable

• User manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Tuya
Parametry	Series	PSMART
Parametry	Kind	control switchboard
Parametry	Power supply	mains
Parametry	Communication	ZigBee
Parametry	Additional features	WiFi connection
Parametry	Manufacturer code	T714
Parametry	EAN (GTIN)	5906203626007
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
