Smėlio filtras baseinui arba baseino siurbliui, 7900 l/h komplektas

Trumpai apie prekę

Prekė: Smėlio filtras baseinui arba baseino siurbliui, 7900 l/h komplektas. Kategorija: Siurbliai ir filtrai.

• Gamintojas: T.I.P.
• Modelis: 30307

T.I.P. Technische Industrie Produkte GmbH

TIP . SPF 180 is a compact and efficient filtration set designed to keep swimming pool water clean.

✅ Unrivaled for effective pool water filtration thanks to the perfect match of the high-performance pump to the capacity of the filter material tank resistant to corrosion and chlorinated water.

✅ Made according to the highest quality standards confirmed by the independent German research institute TÜV Rheinland (GS certificate).

✅ Fully intuitive and easy to use:

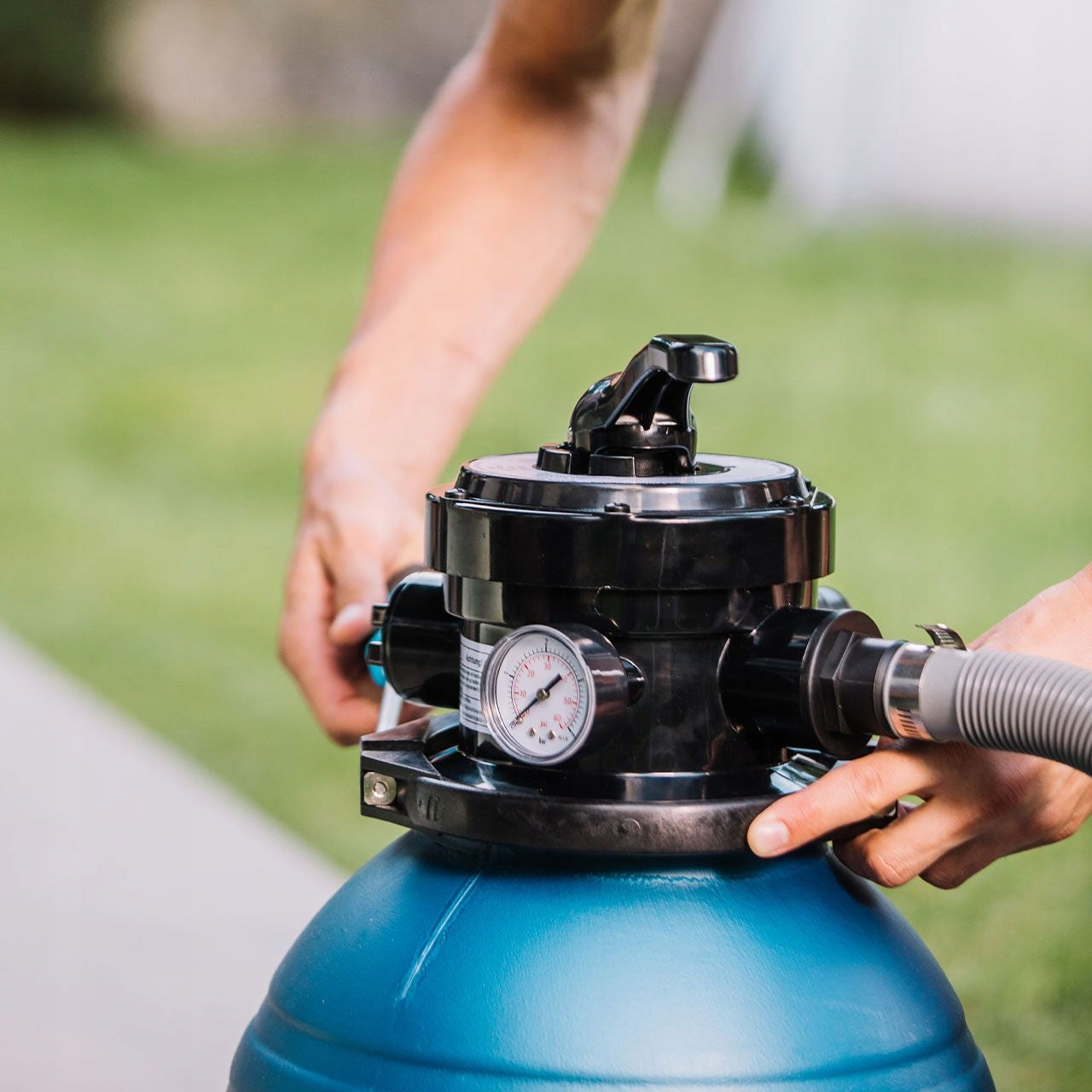

• Equipped with a multi-way valve enabling convenient control of all functions, along with a clear pressure indicator that allows for ongoing monitoring of the contamination level.

• It has a collar clamp with 360 degree adjustment. degrees to facilitate individual installation and assembly.

✅ Compatible with most pools frame and expansion joints available on the market, with connections for the most popular pool hose diameters: 32 mm and 38 mm .

Usage and functionality advantages:

✅Effective filtration: A complete set designed for mechanical water purification, ensuring its clarity in pools up to 20 m³.

✅High-quality drive unit: The pump is equipped with a motor with copper winding, which guarantees higher durability, better heat dissipation and energy-saving operation.

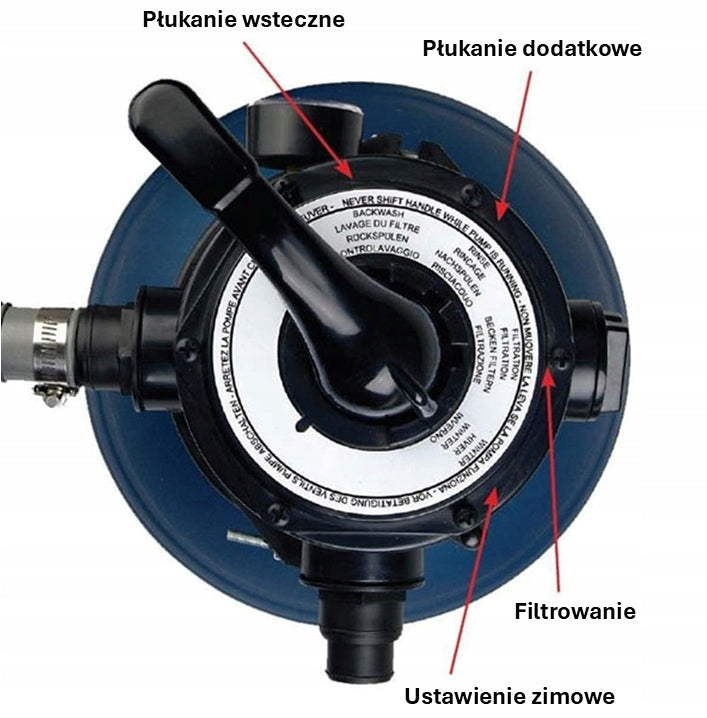

✅ 4-way valve: Intuitive control of the system with a single lever. Supports key operating modes:

• Filtering: Standard water purification.
• Reverse flush: Effective cleaning of the filter bed without the need to disassemble the device.
• Additional rinsing: Removing dirt residue from the filter material after backwashing.
• Winter mode: Special setting to relieve gaskets during off-season storage, which prolongs the life of components.

✅Universality: Filter system adapted to work with traditional quartz sand and modern filter balls.

Filter parameters:

• Maximum pump capacity: 7.900 l/h
• Maximum filter capacity: 4.500 l/h
• Maximum pressure: 0,6 bar
• Rated Power: 250 W
• Supply voltage: 230V~50Hz
• Maximum liquid temperature: 40⁰C
• Maximum pool capacity: 20 m3
• Sand tank capacity: 13 kg or 400 g BEASAN filter balls
• Granulation of filter sand: 0,5-1,2 mm
• Hose connection size: 32 mm, 38 mm

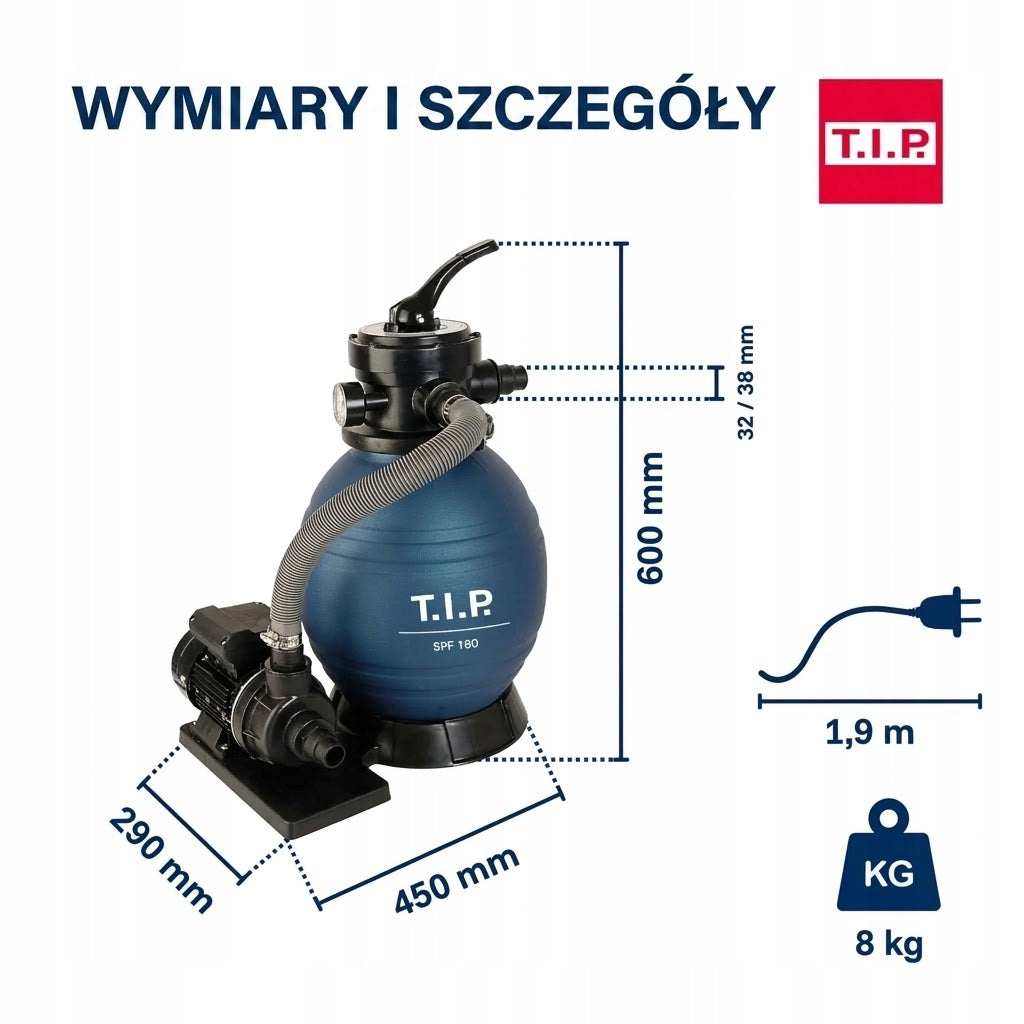

• Filter size: 38 x 40 x 62 cm
• Warranty: 24 months
• Additional information / certificates: CE / GS TÜV
• Gross weight: 10,2 kg

✅ Filter material:

• quartz sand granulated: 0,5 - 1,2 mm (13 kg)

✅ Alternatively:

• 1 pack of BEASAN filter balls (400 g) reusable

BEASAN balls are machine washable. After drying, they are suitable for reuse.

✅ Optimal filter selection:

Depending on the intensity of use of the pool and the degree of water contamination, we recommend filtering (optimally 1-2 per week) in 2 cycles. Duration of 1 rinse cycle is 8-9 hours. Below we present a simple way to determine the appropriate filter performance for your pool.

Assuming that your pool has a capacity of 20 m3 is:

20 m3 x 2 (rinse cycles) = 40 m3

40 m3 : 9 hours = approx. 4,5 m3/h

Thus, a filter for a swimming pool with a capacity of 20 m3 should have a capacity of at least 4500 l/h

◆ Over 40 years of experience: You choose a brand with traditions that has specialized in pumping technology for decades.

◆ Own, supervised production: We are not only a distributor – we create our own devices, taking care of every design detail.

◆ Durability confirmed by the quality of components: We use only proven, high-quality materials, which guarantees exceptional service life and efficiency for many seasons even under intensive use.

◆ Intelligent savings and safety: Our pumps are designed to maximize efficiency with minimal power consumption, protecting your wallet and home installation.

◆ Support that does not expire: We ensure the availability of spare parts for 10 years after purchase, making your purchase a safe investment for years to come.

◆ Authorized service: Access to the manufacturer’s authorized service workshop reduces the time of possible repairs and provides direct technical support.
