Sodo laistymo valdiklis RTX TUYA WiFi, 8 zonų, laikmatis ir oro sąlygų stebėjimas

Trumpai apie prekę

Prekė: Sodo laistymo valdiklis RTX TUYA WiFi, 8 zonų, laikmatis ir oro sąlygų stebėjimas. Kategorija: Automatizavimo moduliai.

• Gamintojas: RTX
• Modelis: WSG+

Branded Tuya WiFi Garden Irrigation Controller

A smart home is not enough - it's time for a smart garden!

• Remote or automatic control from any location in the world with the TUYA or SMART LIFE application
• Control up to 8 irrigation zones
• Cooperation with popular and easily accessible electrovalves 24V
• Master output for main valve control
• Possibility to connect precipitation sensor
• Temporary watering deferral function at 24/48/72H relative to weather
• Cyclic schedule - watering each zone once a day
• Sequential schedule- watering each zone several times a day
• Quick hydration -disposable time irrigation on request
• History of completed irrigation cycles
• Calendar with weather forecast and irrigation plan
• Control remote smartphone or local touch buttons on the controller
• Status indication withLED
• Clear panel of in Polish
• Convenient terminal connector on the back of the case
• Safe power supply 24V AC (power supply included)

To operate the devices, it is necessary to have a 2,4GHz Wi-Fi router with Internet access.

New for the 2025 season

Compared to the previous model enjoying unflagging popularity since 2021r, the new version introduces modernizations suggested in user reviews

• Additional sequential schedule- now watering of selected zones can be carried out several times a day
• New, unique and transparent design of the panel of the controller -reserved in UP due to numerous copies of our product
• Stronger LED lights for better visualization of device status
• Modernized panel application fully in Polish

Visualization of irrigation progress

• Displaying the name and photo of the zone currently being irrigated
• Time remaining until the irrigation of the zone is completed
• Information about the date and time of the previous irrigation cycle
• Date and time of scheduled next irrigation (if schedule is set)

Two types of schedules - cyclical and sequential

Watering control according to a week-long cyclical schedule:

• Selected zones are watered periodically during the day
• Irrigation plan for week, even/odd days, every other day, every few hours
• Defined time and duration of irrigation for each zone

Watering control according to sequential schedule:

• In the set time window, selected zones are started sequentially for the set time, and then for the set time they are turned off
• Weekly irrigation plan

Regardless of the selected schedule, irrigation is carried out according to the plan, even if there is no access to the Internet

Immediate start function of irrigation

• If necessary , the user can remotely or locally activate instant irrigation for the selected zone.
• The ability to remotely turn on irrigation of several zones one by one with individually set irrigation time for each zone
• For start locally from touch panel irrigation time is 10minutes
• Visual information in the application about the remaining watering time
• Possibility to enable the function defer irrigation depending on the weather forecast Google for a given location
• If the precipitation sensor is connected (not included), watering is depending on moisture detection

Weather calendar

In the application panel there is a calendar with forecasted weather and marked days of planned irrigation.

The nearest irrigation date is also displayed.

There is also a function of deferring irrigation in a situation where there is rainfall on the day of planned irrigation.

Intelligent irrigation

If the necessary data has been entered - such as sunlight, type of plantings, soil type -sthe controller can realize intelligent irrigation of selected zones.

This functionality requires an ongoing internet connection

Personalization of the control panel in the application

The user has the ability to individually customize the names and photos of individual irrigation sections

• 8 zones , which can be assigned any name
• for each zone you can add a thumbnail with a photo

You can set watering restrictions because of the low temperature, too large wind or temporarily stop irrigation. It is possible to adjust the temperature and wind speed units, as well as turn off/on the operation of the optional precipitation sensor.

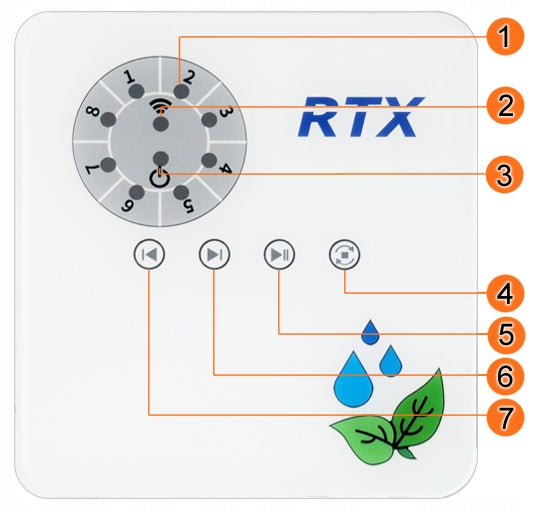

Clear and easy-to-use touch control panel

1. Indicator of the currently enabled irrigation channel
2. Communication indicator WiFi / network pairing
3. Power Indicator
4. Stop irrigation for a given zone
5. Pause/resume irrigation
6. Starting another zone
7. Starting the previous zone

Wire connection terminal with quick installation

1. Power supply (24VAC)
2. Optional rain sensor (NC)
3. Master output for main solenoid valve
4. Electrovalve control outputs

Tuya Smart Life is the most popular smart home management app.

• integration of more than 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10000 manufacturers of smart devices
• develops new functions and supported devices every day
• available for free for Android and iOS

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.

Wherever you are, you can control the safety of your property!

Technical specification:

• WiFi connectivity: 2,4GHz
• Antenna type: built-in
• Net weight: 350g
• Status indicator: LED
• Power Supply: 24V AC(Power Supply Included)
• Sprinkler power supply voltage: 24V AC
• Maximum load: 1A
• Working temperature range: -20 +60°C
• Working humidity range: 0% -100% RH
• Dimensions: 16x16x3cm
• Application: Tuya or Smart Life

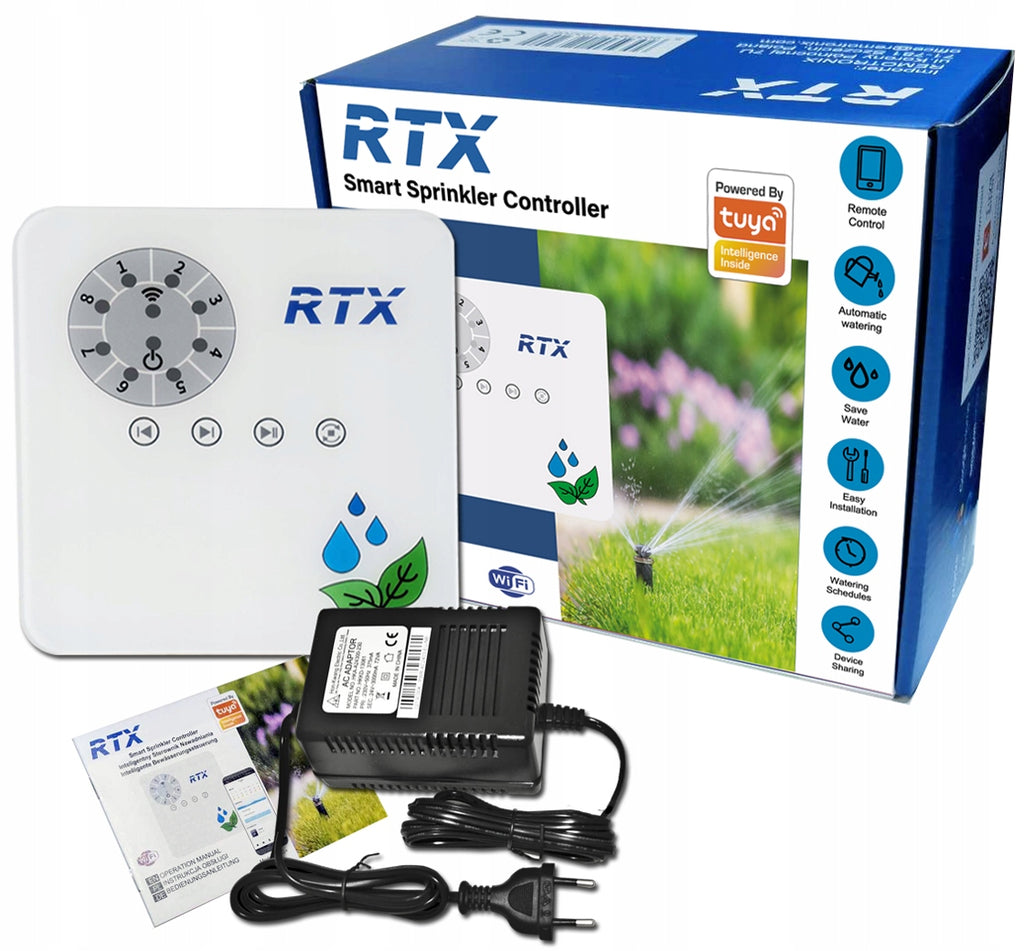

Set Contents:

• RTX WSG+ driver
• 24VAC/1A power supply
• Mounting Template+ Pins
• User manual in Polish
