Sodo transportavimo vežimėlis su 2 tentinėmis įdėklomis ir pirštinėmis

Trumpai apie prekę

Prekė: Sodo transportavimo vežimėlis su 2 tentinėmis įdėklomis ir pirštinėmis. Kategorija: Karutai ir sodo vežimėliai.

• Gamintojas: Sillar
• Modelis: SIL950
• Talpa: 200 l

SILLAR GARDEN TROLLEY WITH A LOAD CAPACITY OF UP TO 350KG AND A CAPACITY OF 200L

The Sillar set includes:

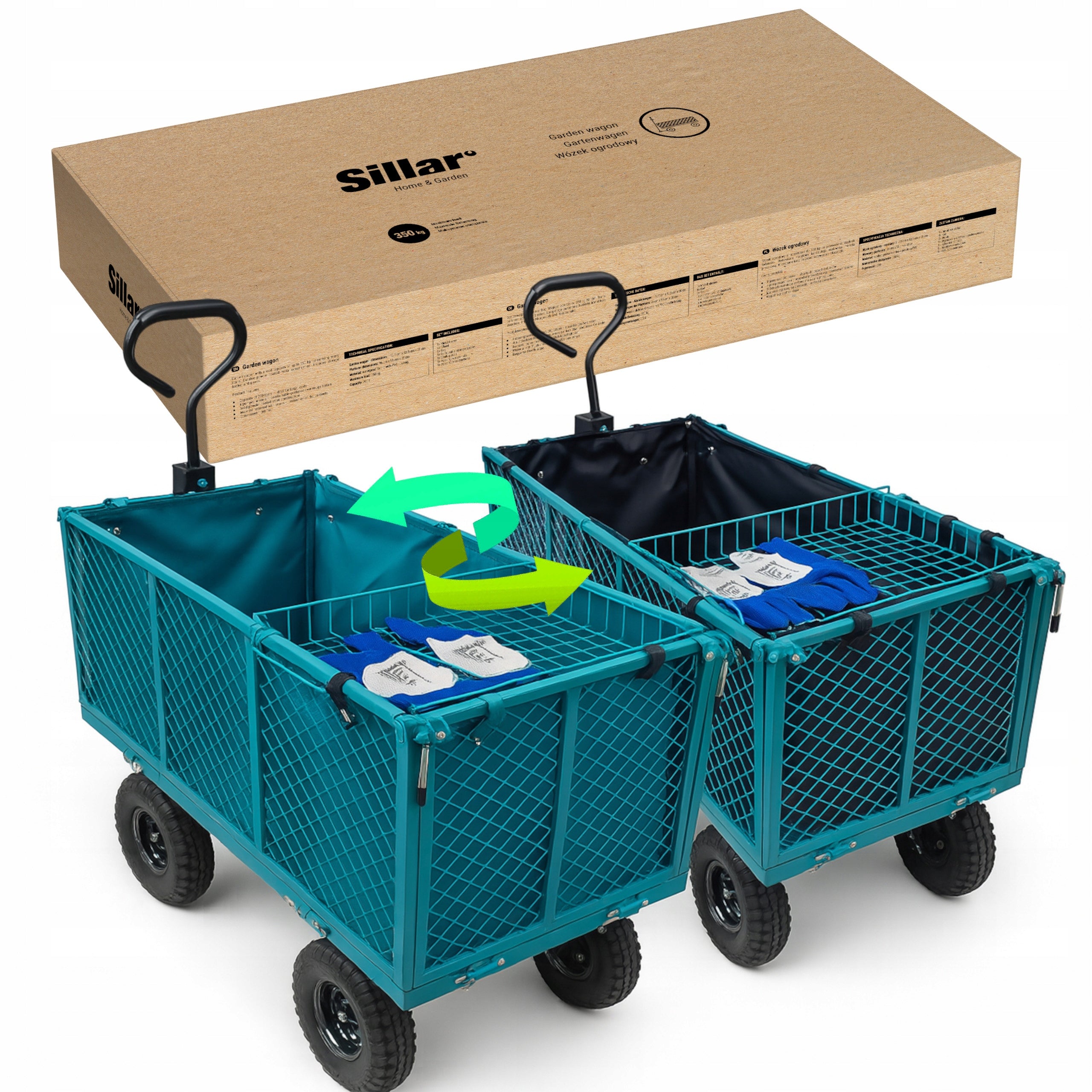

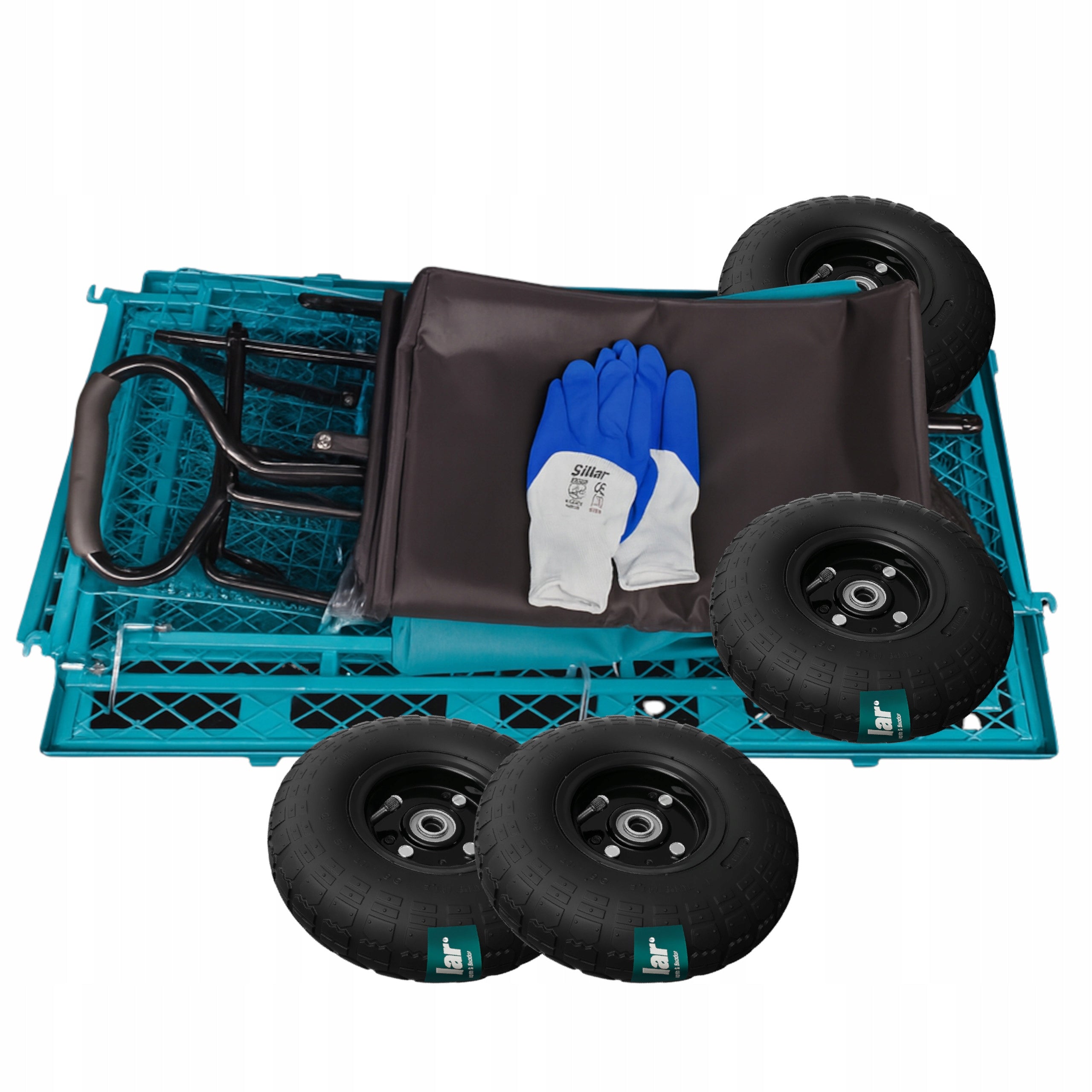

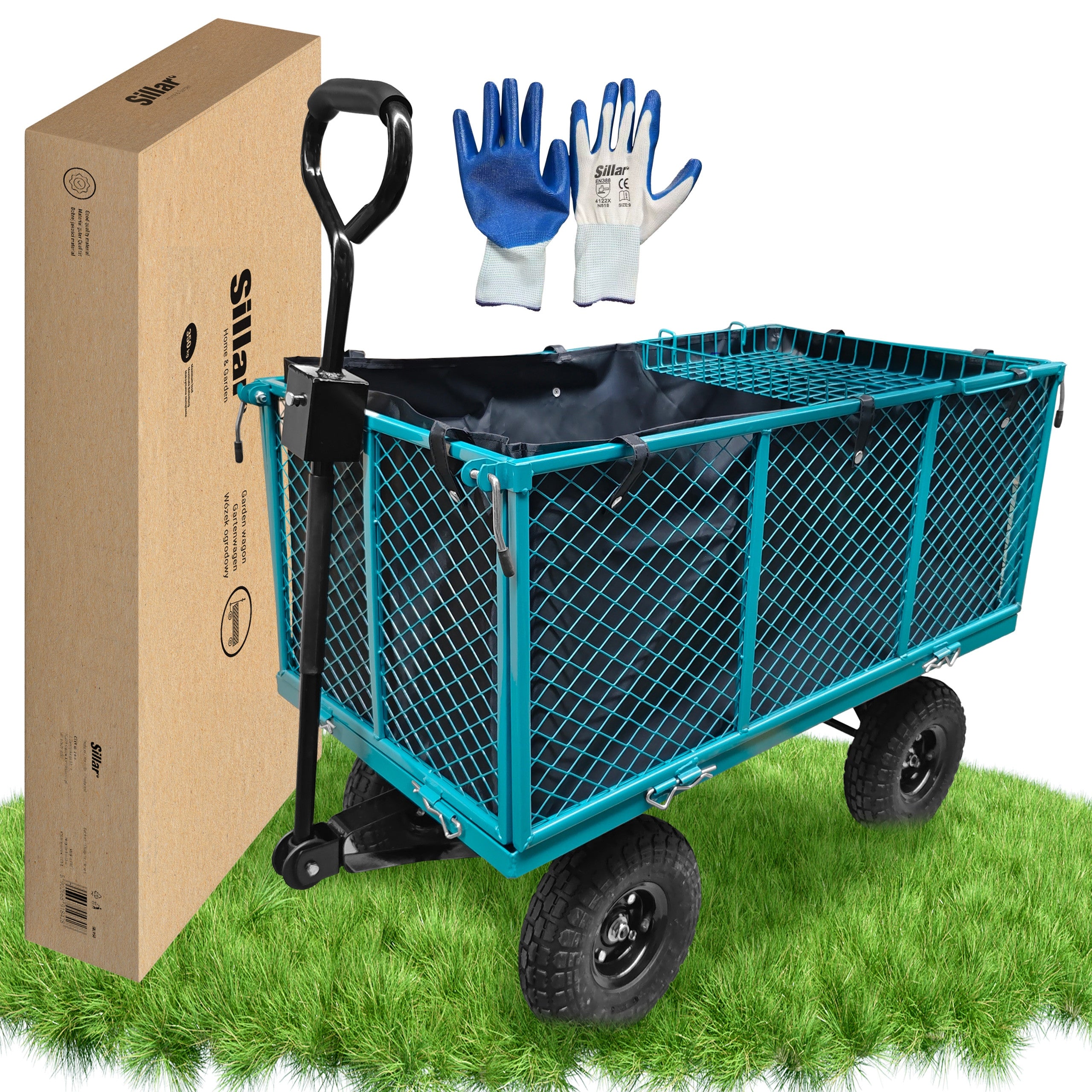

✅ Complete garden trolley + tarpaulin (insert) 2pcs + smaller basket + garden gloves

➡ Manufacturer: Sillar

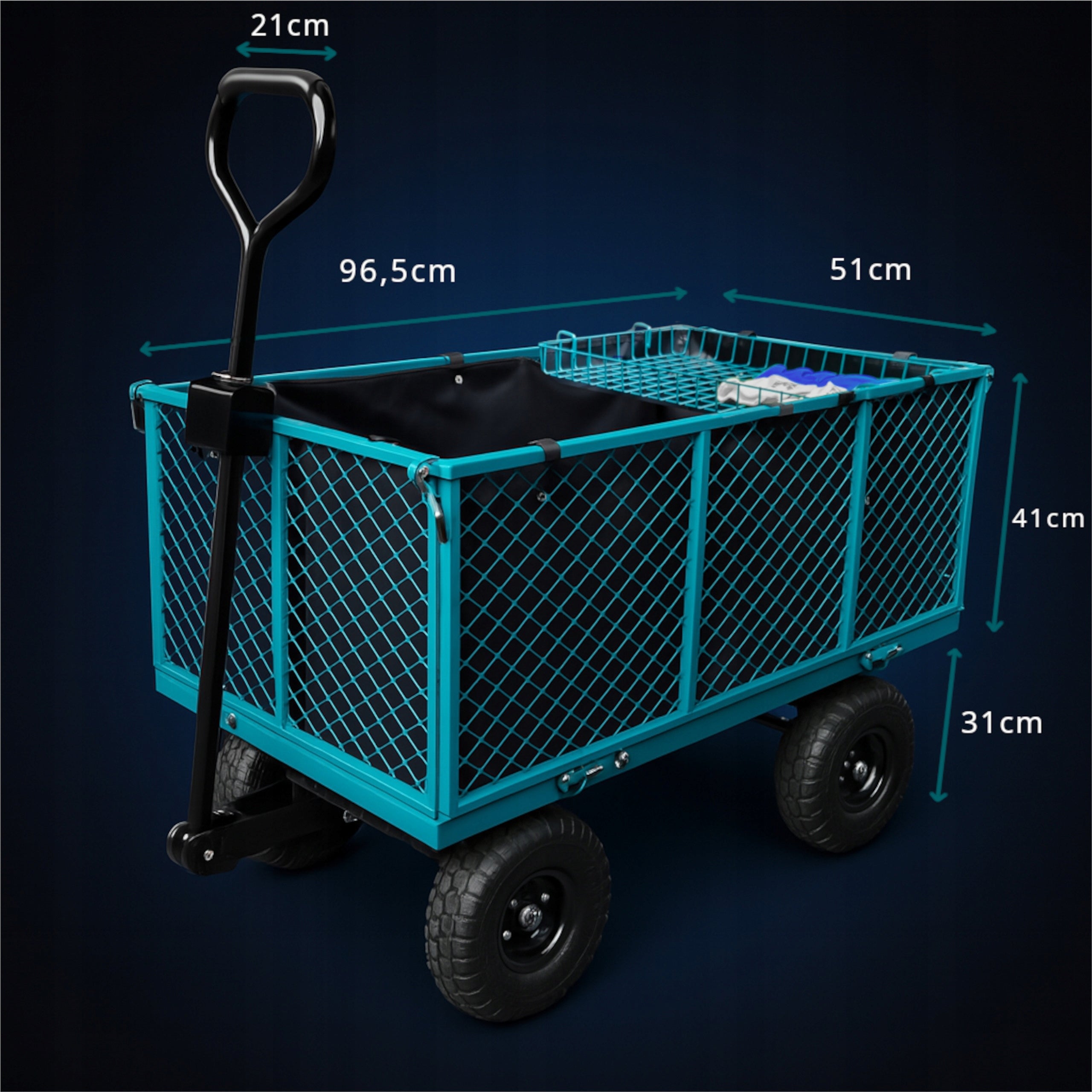

➡ Side height: 41 cm

➡ Height of trolley (measured from the ground to the end of the folded side): 72 cm

➡ Width of trolley: 51 cm

➡ Length of trolley: 96,5 cm

➡ Trolley capacity: 200 L

➡ Load capacity of trolley: up to 350 kg ⚖

THE COMPLETE GARDEN CART SET INCLUDES:

✅ METAL FRAME (CHASSIS)

➡ Made of a strong steel frame that connects the axial system to all four wheels.

➡ The frame supports the basket (sides) and allows the weight to be evenly distributed over all wheels.

➡ Wheels are mounted on the axle, which ensures high strength and stability, especially under higher load.

✅ HANDLE:

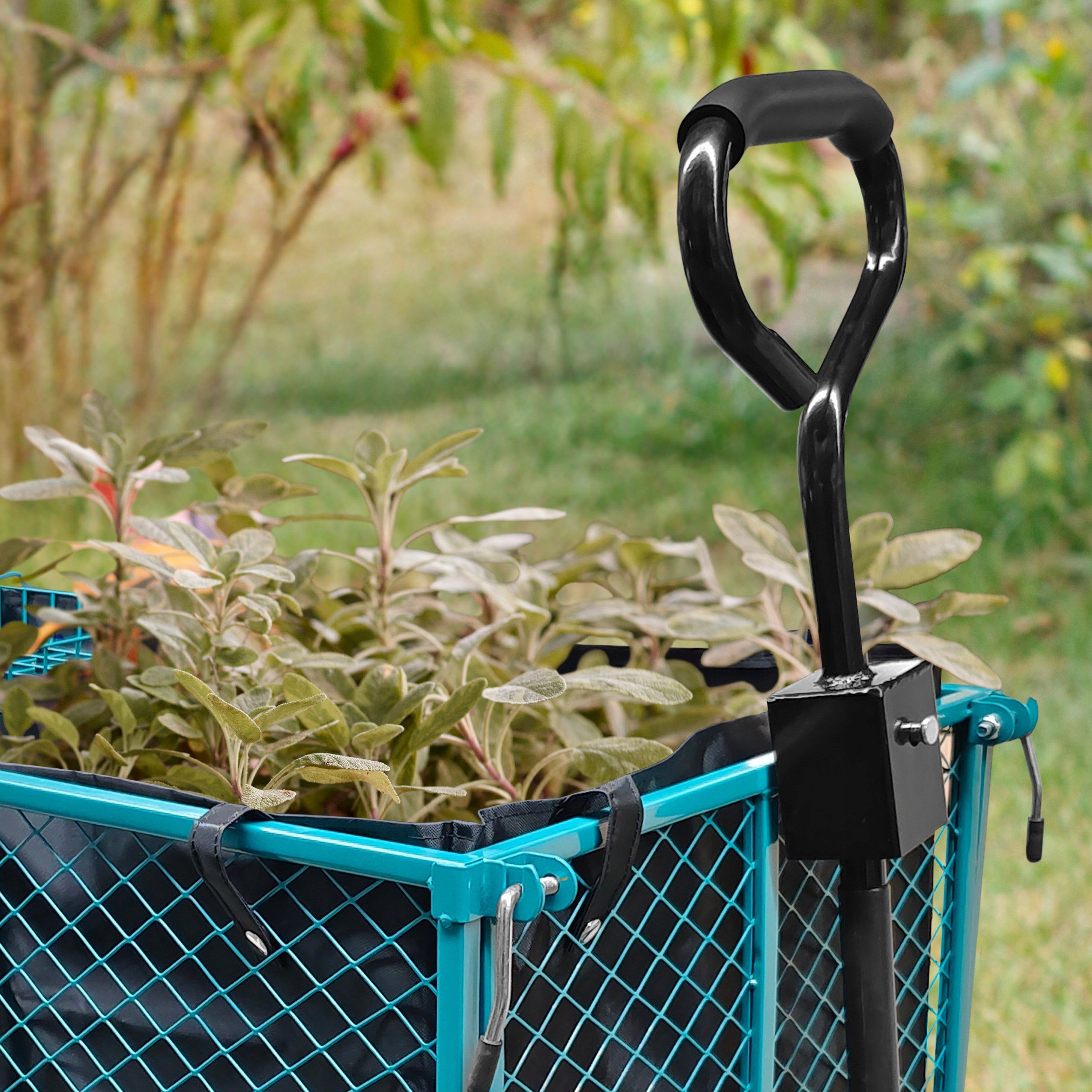

➡ There is a long movable handle at the front to pull the stroller, finished with an ergonomic D-shaped handle, covered with black soft plastic for comfort and to prevent fingerprints from forming on the hand.

✅ TORSIONAL SYSTEM

➡ The trolley has a front steering axle, thanks to which it can be easily maneuvered.

➡ The handle is connected to the steering mechanism - when moving it, the front wheels turn in the intended direction.

➡ The hinged attachment point of the handle to the axle provides a large turning angle, making it easy to navigate even in narrow spaces.

✅ SIDES 🔹 4pcs.

➡ The trolley has four sides made of metal mesh with small eyelets. Sides attached to the steel frame with spring pins with the possibility of unfastening and spreading the sides.

✅ TARPAULIN (BLACK CARTRIDGE) 🔹 1pc.

✅ TARPAULIN (TURQUOISE CARTRIDGE) 🔹 1pc.

➡ Water-resistant fabric with PVC coating attach to the upper edge of the sides with belts and buckles. Tarpaulin protects the contents from dirt or falling out of small items. The set of this offer includes two tarpaulins!

✅ BASKET 🔹 1pcs.

➡ Applied to the sides of the trolley, for storing or transporting smaller accessories.

✅ COMPLETE INNER TUBE WHEELS 🔹 4PCS.

➡ The trolley stands on four pumped wheels with a clear tread, which allows you to drive on uneven terrain.

🟡 Wheel specification:

➡ Bearing inner diameter: 1,6 cm

➡ Axle hole length: 5 cm

➡ Tyre diameter: 25 cm

➡ Rim diameter: 12,5 cm

➡ Tyre width: 8,2 cm

➡ Max pressure: 2,07 bar / 30 psi

📣 FREE: Garden Work Gloves - Size 9 (L)

An example of the use of the Sillar auxiliary trolley is, among others. transport, e.g.

👉 Torfu, grass.

👉 Opal, e.g. wood.

👉 Feed or hay for animals.

👉 Debris, sand.

👉 Bricks, mortar bags.

👉 Tui, small seedlings, shrubs, dry leaves.

👉 Garden tools.

👉 Auto Parts or Service Tools.

👉 Gas cylinders, chairs or picnic equipment.

👉 Luggage, larger purchases.

👨 🌾 Multifunctional trolley Sillar, can also be used to transport transporters with animals, containers with green waste.

It will also be useful even as a helper in stable work, moving, cleaning the garage or garden.

✔ You don’t have to do many courses!

A garden trolley with a load capacity of up to 350 kg and a capacity of up to 200 l enables the transport of large quantities of material at once, which significantly speeds up garden, construction and cleaning work.

↩ Twisted front axle, pull handle ↪

Thanks to the swivel front axle and ergonomic handle maneuvering the trolley is smooth and easy, even at maximum load.

✨Solid steel construction!

Sturdy powder coated steel frame resistant, e.g. on rust, moisture, mechanical damage. The trolley will serve for many years with intensive work.

🔓 Opening sides!

Opening sides allow for fast and convenient loading and unloading of even large, irregular items.

📎 Material fastened with snaps!

PVC fabric basket does not absorb moisture and dries very quickly. Protects transported materials from spillage. Latches provide a stable attachment during transport.

🛡 Durable powder coated metal construction!

🟦 ONE TROLLEY - TWO WATER-RESISTANT TARPAULINS ⬛

User manual for garden trolley:

https://pliki.csvk.pl/storage/wideo/SIL950.mp4

🟡 Frame assembly:

1 Place the main pltform (GC99-1) in the center.

2 Attach the sides (GC99-2) to the longer sides of the main platform.

3 Mount the front (GC99-3) and rear (GC99-4) to form a full frame.

4 Use quick couplers (GC99-16) to attach each wall to the platform.

5 At the connection points, use nuts with 8 mm lock (GC99-17) to ensure the stability of the structure.

🟡 Rear axle mounting:

1 Attach the rear axle bracket (GC99-6) to the underside of the frame at the rear.

2 Attach the left (GC99-7) and right (GC99-8) arm to the bracket.

3 Slide the axle over your shoulders and mount the two wheels (GC99-5) on the sides.

4 Use washers (GC99-20), wheel washers (GC99-24), then secure everything with screws (GC99-25) and nuts with 12 mm lock (GC99-21).

5 If necessary, use additional 12 mm nuts with lock (GC99-23) to strengthen the wheel attachment.

🟡 Assembly of front axle and steering mechanism:

1 Attach the front bracket (GC99-9) to the front of the platform.

2 Mount the central axle bracket (GC99-10) to it.

3 Under the axle brackets, use 10 mm front axle bracket washers (GC99-28), then tighten with 10 mm nut with lock (GC99-22).

4 Attach the yoke (GC99-11) and connect it to the steering wheel connector (GC99-12).

5 Install the clutch (GC99-13) at the end of the yoke axis.

6 Attach the handle (GC9-14) and coupling unit (GC99-15) to the clutch.

7 Connect the handle to the axle with the lock handle (GC99-19), locking screw (GC99-29), locking rail (GC99-26) and secure with a pin (GC99-27).

8 Attach steering rods (GC99-18) with wheel connectors (GC99-30) to the yoke – one on the left, one on the right.

9 Mount the front wheels (GC99-5) using washers (GC99-20), wheel washers (GC99-24), bolts (GC99-25), and nuts with 12 mm lock (GC99-21)

🔟 Strengthen connection points with additional locking nuts (GC99-23) and washers if needed

🟡 Installation of handle and steering mechanism:

1 Install the clutch (GC99-13) at the end of the yoke axis.

2 Insert the handle (GC99-14) into the coupling unit (GC99-15).

3 Connect to the axle via (GC99-19) lock handle and secure with appropriate screws.
