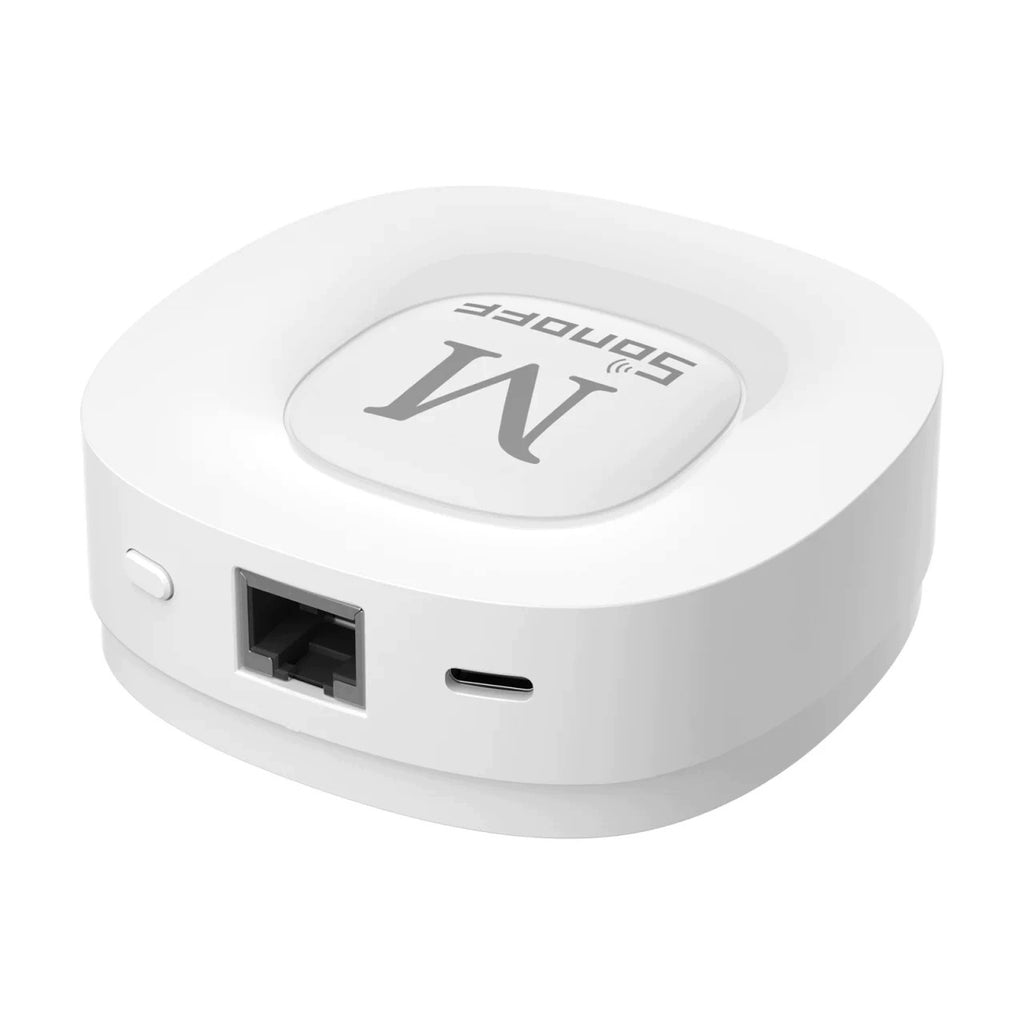

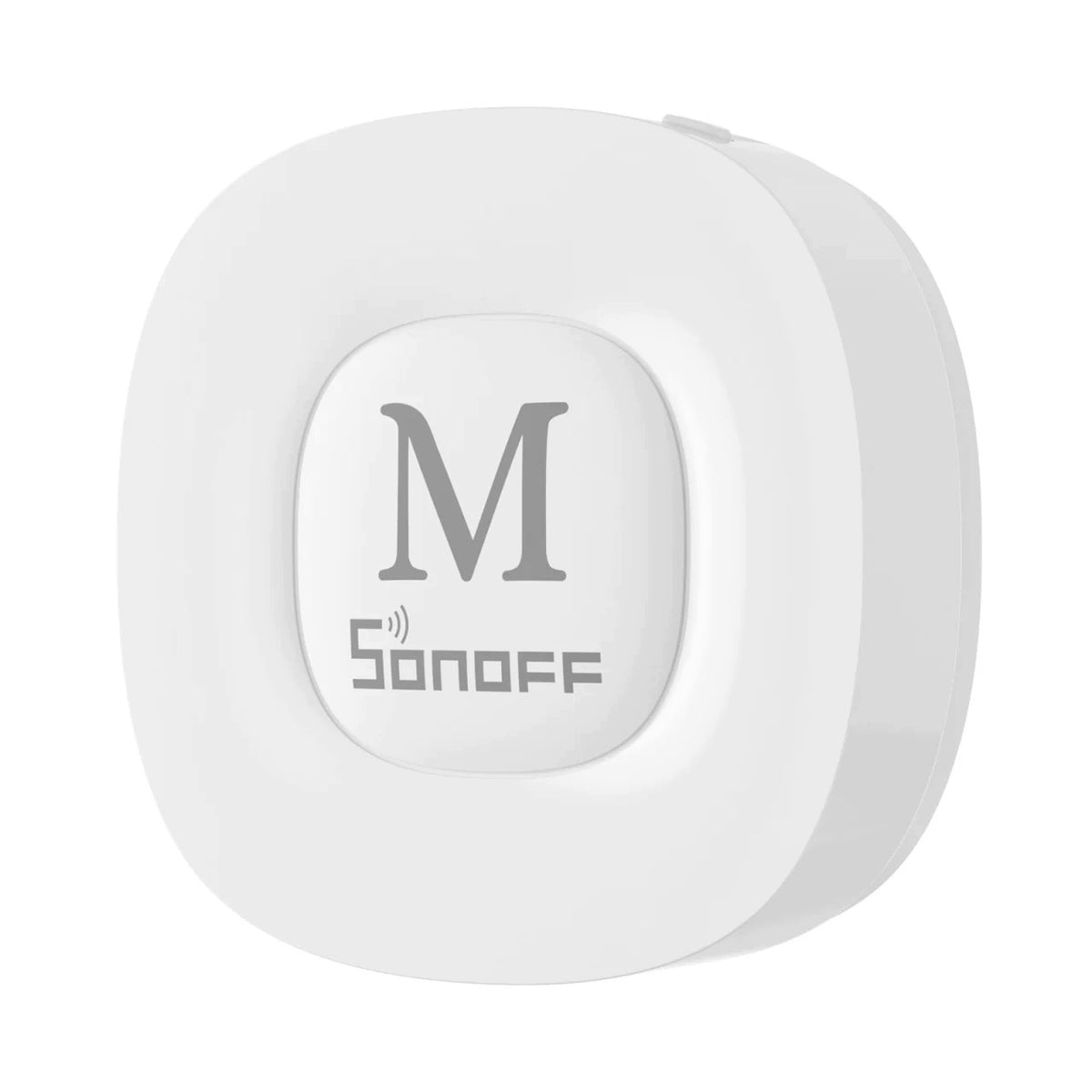

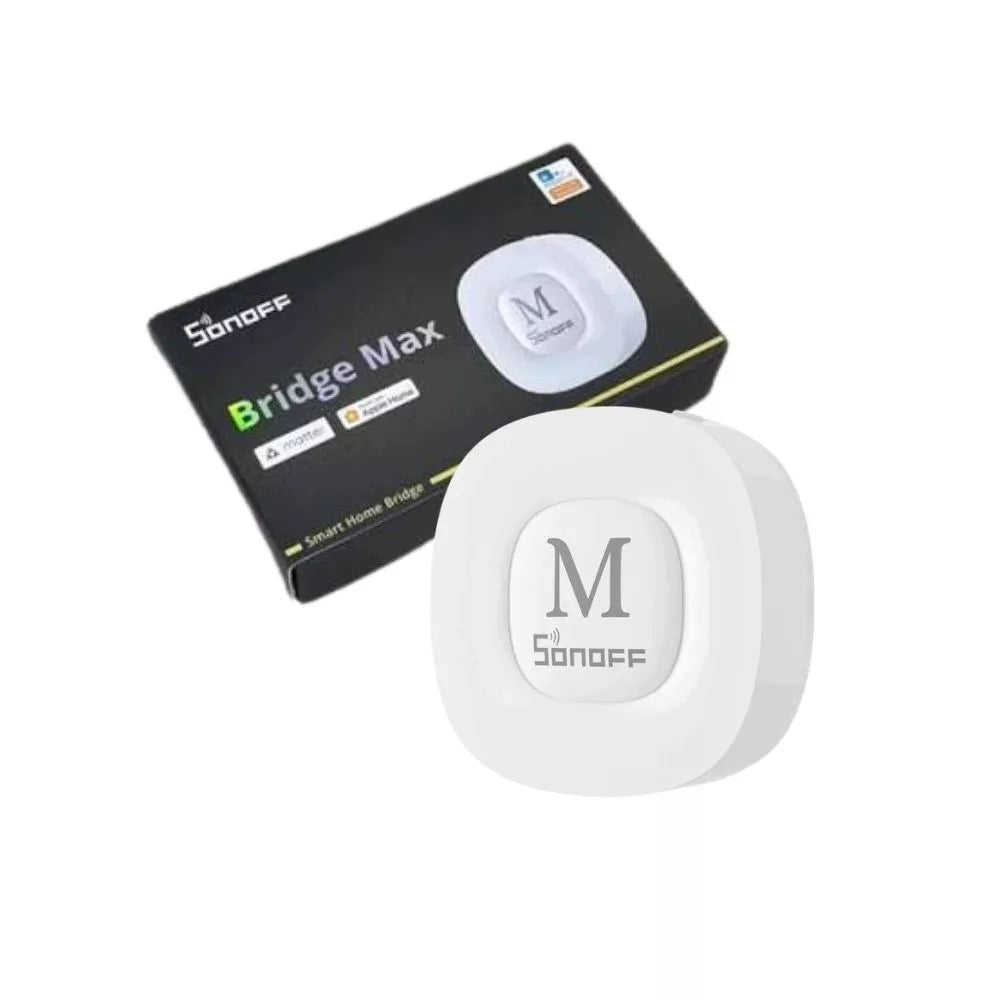

Sonoff Bridge-M belaidis ir Ethernet tinklo išmanusis tiltas

Trumpai apie prekę

Prekė: Sonoff Bridge-M belaidis ir Ethernet tinklo išmanusis tiltas. Kategorija: Centriniai blokai.

• Gamintojas: Sonoff
• Modelis: Bridge-M

⭐Smart Home Center

SONOFF Bridge-M Bridge Max is a modern, multifunctional smart home gateway that connects Zigbee devices to the eWeLink app and popular smart home ecosystems.

The device can work as:

• Zigbee goal 3.0,
• the Matter Bridge,
• local gateway for smart home systems,
• Zigbee device automation center,
• communication interface for Home Assistant.

Bridge-M supports up to 128 Zigbee devices, so it can be the centerpiece of both a small home installation and an extensive automation system.

⭐Wi-Fi or Ethernet

SONOFF Bridge-M gives you the option to choose how to connect to the network:

• wirelessly via Wi-Fi,
• Wired via RJ45 Ethernet.

The Ethernet connection ensures stable communication and can be particularly useful in places where reliability matters, e.g. for alarm systems, local automation or installations with a large number of devices.

The gateway supports 2,4 GHz and 5 GHz Wi-Fi networks, and the RJ45 port operates at 10/100 Mbps.

⭐Local automation

Bridge-M is designed for fast and stable automation support. Scenarios between compatible Zigbee devices can be implemented locally through the gateway.

Examples of applications:

• turning on the light when motion is detected,
• automatic control of heating based on temperature,
• switching off the devices after opening the door,
• triggering the alarm when the window is opened,
• control of roller shutters at a specific time,
• turning on the fan after exceeding the humidity.

On-premises automation execution can reduce latency and increase operational reliability. However, depending on the specific scenario and configuration, some features may require a connection to the parent service or platform.

⭐Built-in buzzer

The gate has a built-in buzzer that can be used as a sounder.

It can be used, among other things, to:

• signalling the detection of motion,
• alarm after opening the door or window,
• notification of an event in the system,
• bell or local beacon function.

⭐ ZigBee protocol

What distinguishes ZigBee from classic WiFi is a sufficiently long working time of battery-powered devices (unattainable with the classic WiFi protocol) and signal transmission through accessories powered by 230V.

In addition, selected ZigBee devices (230V mains powered) become part of the Mesh network. This means that if a module is unable to connect directly to the ZigBee gateway, it communicates with it through another closest accessory of this system. The repater in the ZigBee ecosystem are devices powered by 230V, such as PSMART, Aqara, OXT Zigbee relay, Sonoff ZigBee, TUYA, 230V sockets or bulbs.

Thanks to this, you can create an extensive network that can operate over much longer distances than classic WiFi.

⭐Matter – the new Smart Home standard

Matter is a universal communication standard that makes smart home devices from different manufacturers work together in one network. Matter provides reliability, security, and on-premises device control without the need for the cloud.

The most important features of Matter:

• Universality: Collaboration of devices of different brands in one ecosystem.
• Security: End-to-end encryption protects your data.
• Integration: Compatible with Amazon Alexa, Google Home, Apple HomeKit, and Samsung SmartThings.
• Ease of configuration: Quick pairing via QR code or NFC.
• Local control: Most functions work even without an internet connection.

The perfect choice for a modern and comfortable smart home!

⚙ Specification

• Manufacturer: SONOFF
• Model: Bridge-M / Bridge Max
• Device type: Smart home gateway / Zigbee Gateway / Matter Bridge
• Zigbee protocol: Zigbee 3.0
• Maximum number of Zigbee devices: Up to 128
• Wi-Fi: 2,4 GHz and 5 GHz
• Wi-Fi standard: IEEE 802.11 b/g/n/ac/ax
• Ethernet: RJ45, 10/100 Mbps
• Matter Bridge: Yes
• Home Assistant support: Yes
• Supported platforms: eWeLink, Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant
• Built-in buzzer: Yes
• Power supply: 5 V DC / 1 A
• Power connector: USB-C
• Color: White
• Housing material: PC plastic
• Working temperature: from -10°C to 40°C
• Dimensions: according to manufacturer's specifications
• Wired connectivity: Ethernet RJ45
• Wireless connectivity: Wi-Fi, Zigbee

Note: 5V/1A USB AC adapter is not included and must be purchased separately
