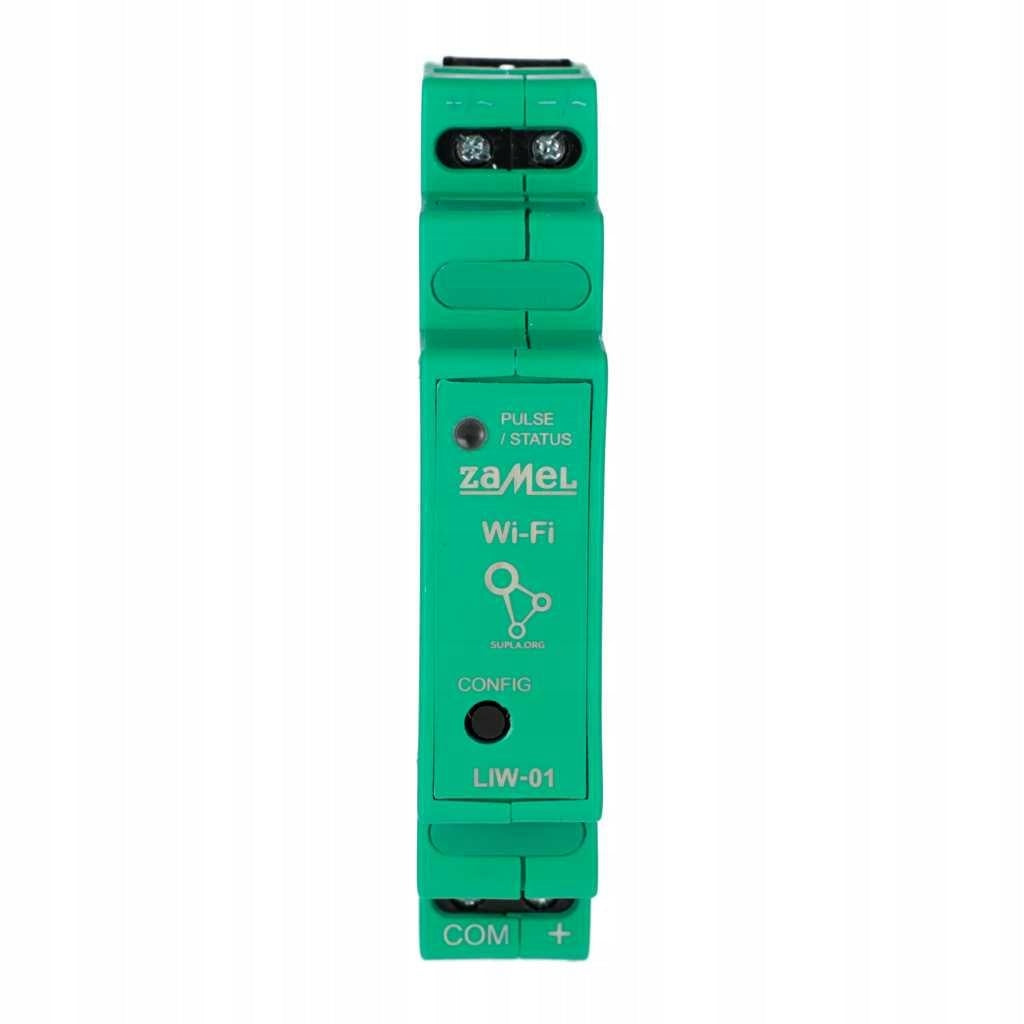

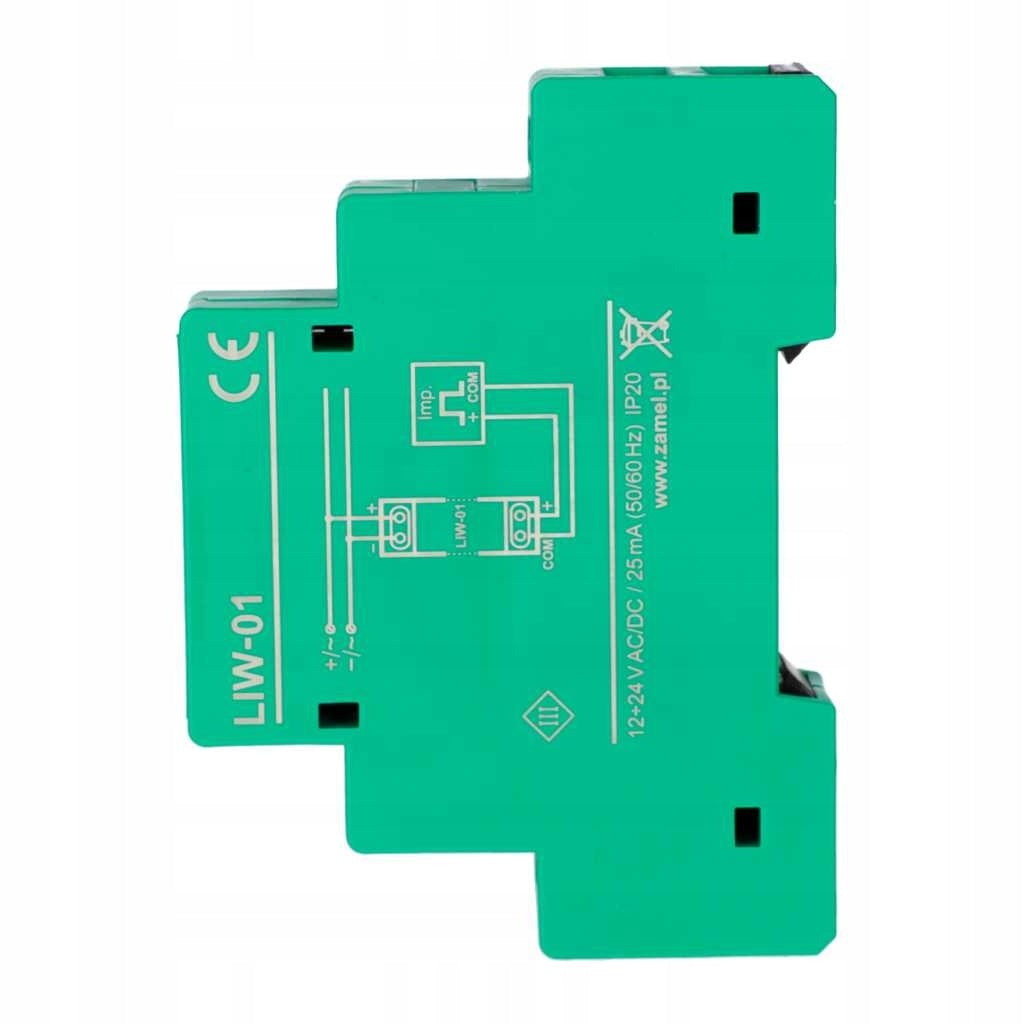

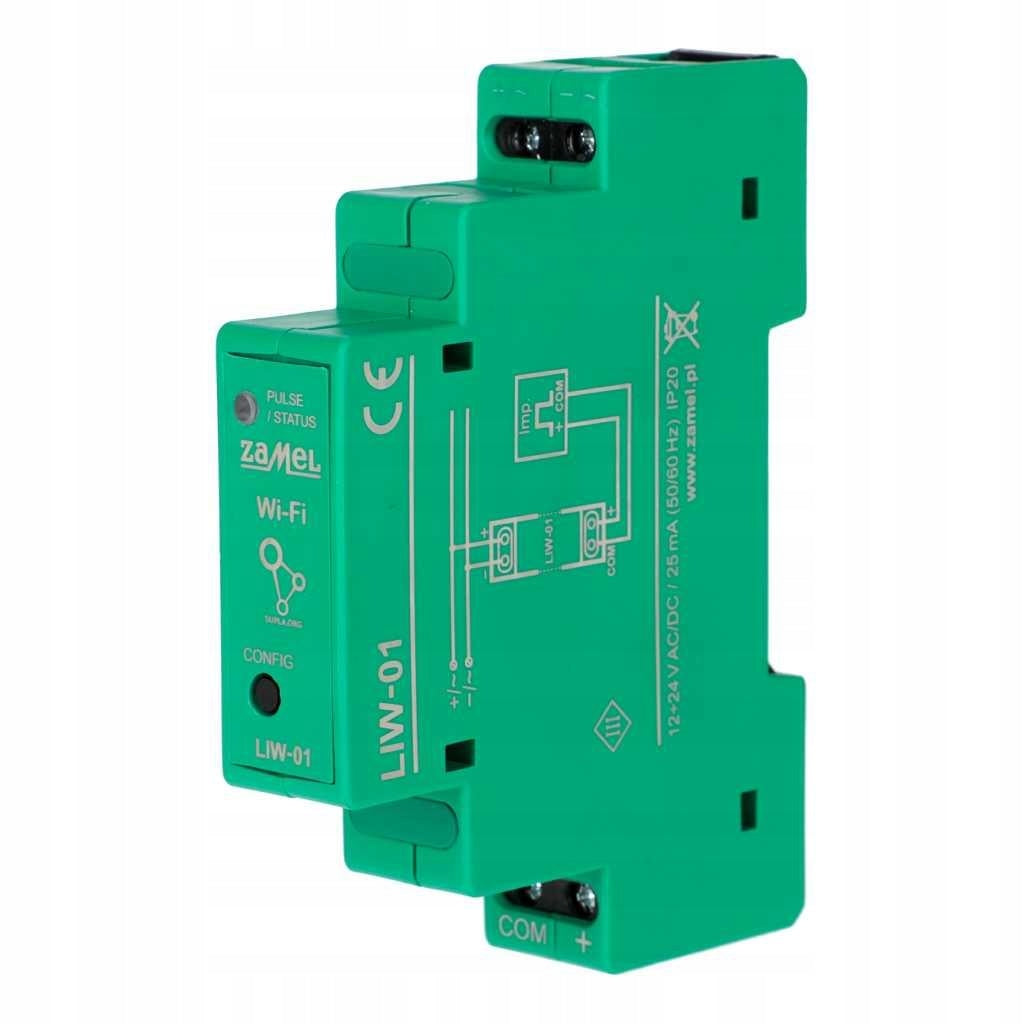

Srovės impulso skaitiklis ZAMEL LIW-01 WiFi SUPLA

Trumpai apie prekę

Prekė: Srovės impulso skaitiklis ZAMEL LIW-01 WiFi SUPLA. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: SPL10000026

The LIW-01 pulse counter is a device that allows you to count electrical impulses. It allows you to measure consumption from energy, water and gas meters. The LIW-01 counts pulses from outputs or pulse overlays in counters. It is easily installed in the electrical switchboard on the TH35 rail (DIN). Thanks to its small size, it occupies the width of only one module. The LIW-01 pulse counter is a device powered by a voltage of 12-24 V AC/DC.

Measurement data is stored on the side of the Supla cloud, from which we can later download them.

The device must be connected in accordance with applicable standards and regulations. The method of connection is specified in the instruction manual. Activities related to: installation, connection and adjustment should be performed by a person with appropriate qualifications who has read the instruction manual and functions of the device.

Universal electric pulse counter with impulse input for measuring energy, water and gas consumption

Data on electricity consumption and measured network parameters (also in the form of charts) presented in the Supla application

Counts pulses from outputs or pulse overlays in counters

Transferring and accessing measurement data in the cloud

Wi-Fi - all SUPLA products communicate over a wireless network. This way, you don’t have to invest in expensive building automation controllers. Wi-Fi can connect to devices from anywhere in the world. No need to worry about bringing additional communication wires to your devices

Powered by 12÷24V AC/DC

Transferring and accessing measurement data in the cloud. Download electricity consumption reports to Excel file. Additionally, they are made available through the REST API, where they can be used in external applications

Parameters:

• Degree of protection (IP): IP20
• Mounting method: Assembly on DIN rail (TH35)
• Power supply: 12-24 V AC / DC
• Wi-Fi transmission: Wi-Fi 2.4GHz 802.11 b/g/n
• Frequency: 50 / 60 Hz
• Operating temperature range: from -10°C to 55°C
• Optical power signaling: LED
• Environmental resistance: IP20
• Number of connection terminals: 4 (wires up to 2,5 mm²)
• Dimensions: 90 x 17,5 x 66 mm
• Weight: 0,050 kg
