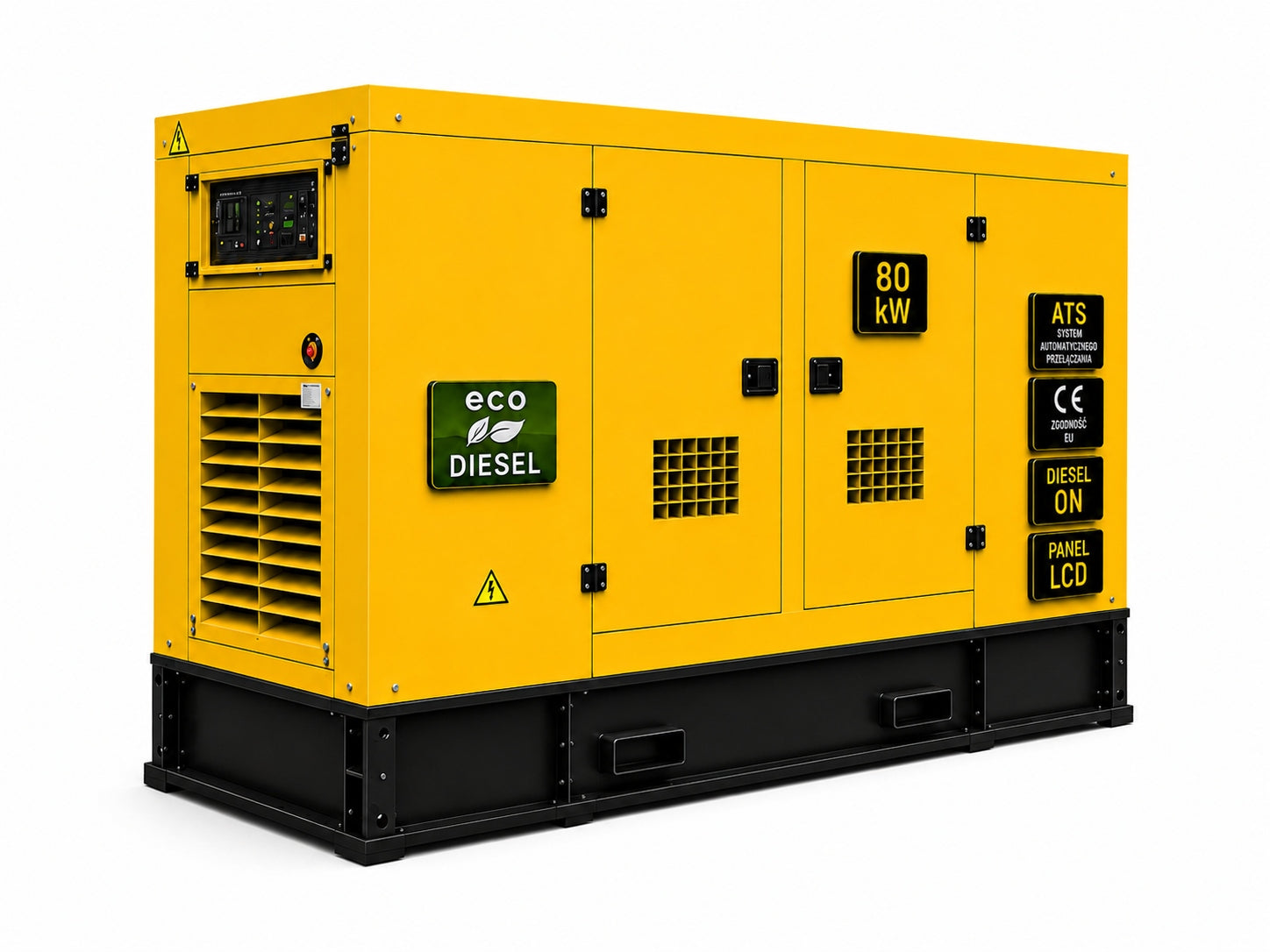

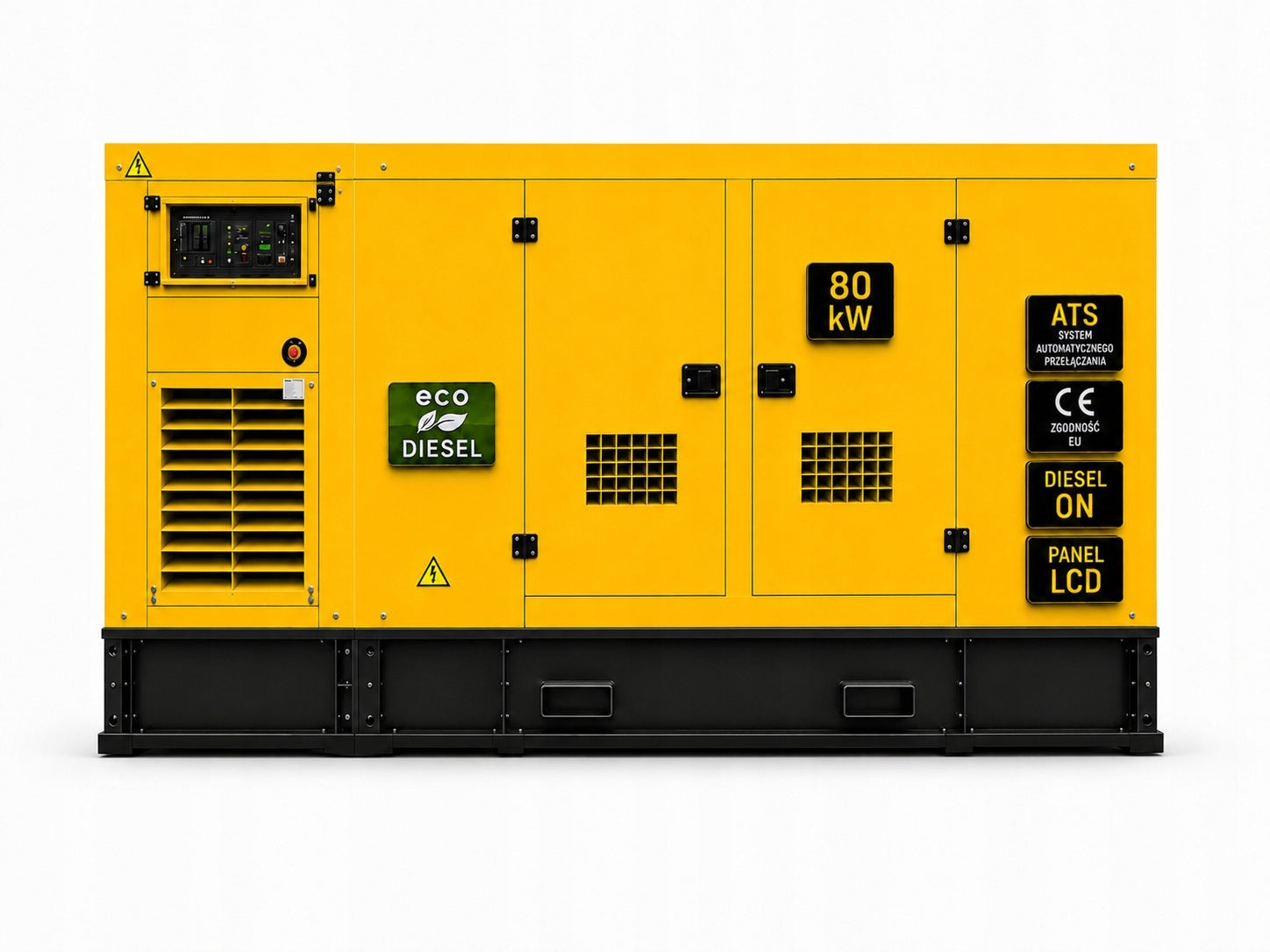

Stacionarus trijų fazių generatorius Genezo 80 kW / 100 kVA su ATS/SZR

Trumpai apie prekę

Prekė: Stacionarus trijų fazių generatorius Genezo 80 kW / 100 kVA su ATS/SZR. Kategorija: Elektros generatoriai.

• Gamintojas: Genezo
• Modelis: AN-53/100
• Įtampa: 400 V

ADAPTED TO CONTINUOUS OPERATION

Generator set GF2-80KW aggregate parameters:

• Maximum power:80 KW 100kVA / 1500 rpm
• Output voltage: 400V/230V
• Power per 1 - phase: 33 kVA
• Frequency: 50Hz
• Weight of generator: 311kg
• Engine weight: 490kg
• Weight of the unit: 1500kg
• Fuel: Diesel
• Rotary rotation: 1500 rpm
• Diesel engine power: 105 KW
• Engine capacity: 4.752 L
• Prądnica: self-excited COPPER
• AVR: Voltage stabilization under variable load
• Dimensions (Width x D. x H ): 2500x1100x1600mm
• Capacity of fuel tank: 200 L
• Fuel consumption: 245 g/kWh

The aggregate motor operates at a speed of 1500 rpm and thanks to a four-field AC generator provides an output voltage of 400V and 230V at a frequency of 50 Hz.

Reducing the nominal engine speed to 1500 rpm reduces fuel consumption, increases the durability of the machine and reduces the noise level of operation.

The generator is adapted to work in two modes:

MODE I - manual (turn the generator on and off manually)

MODE II - auto (turning the generator on and off via built-in ATS automation)

The kit includes a built-in ATS (SZR)

Generator set GF2-80KW engine parameters:

• 4-cylinder in-line engine
• Engine model: YC4A140L-D25
• Engine power 140HP/1500rpm
• engine displacement 4.752 L
• liquid cooling of the engine
• type of fuel ON
• fuel consumption approximately 245 g/ kWh
• start of the electric motor
• 24 V motor electrical installation
• 2 x 100Ah 12 V batteries. During operation as a standby function under ATS, the batteries are recharged.
• engine weight 490 kg
• direct injection into the combustion chamber

The engine is equipped with a heater for heating both engine oil and coolant at low temperatures.

The motor is mounted on a flexible primer that reduces system vibration during operation

Remote monitoring, GPS and MODBUS

Remote monitoring and management of the device is carried out via the Internet. To use the full functionality, a dedicated mobile application and an active SIM card with data transmission are required.

The GPS module allows you to track the location of the device on an ongoing basis, and the application allows you to view operating parameters and remote supervision in real time.

The device also supports MODBUS communication, which is an industrial standard for data exchange between the aggregate and external systems such as BMS, monitoring systems or industrial automation. MODBUS enables the transmission of selected operating parameters, alarms and device states to the master system.

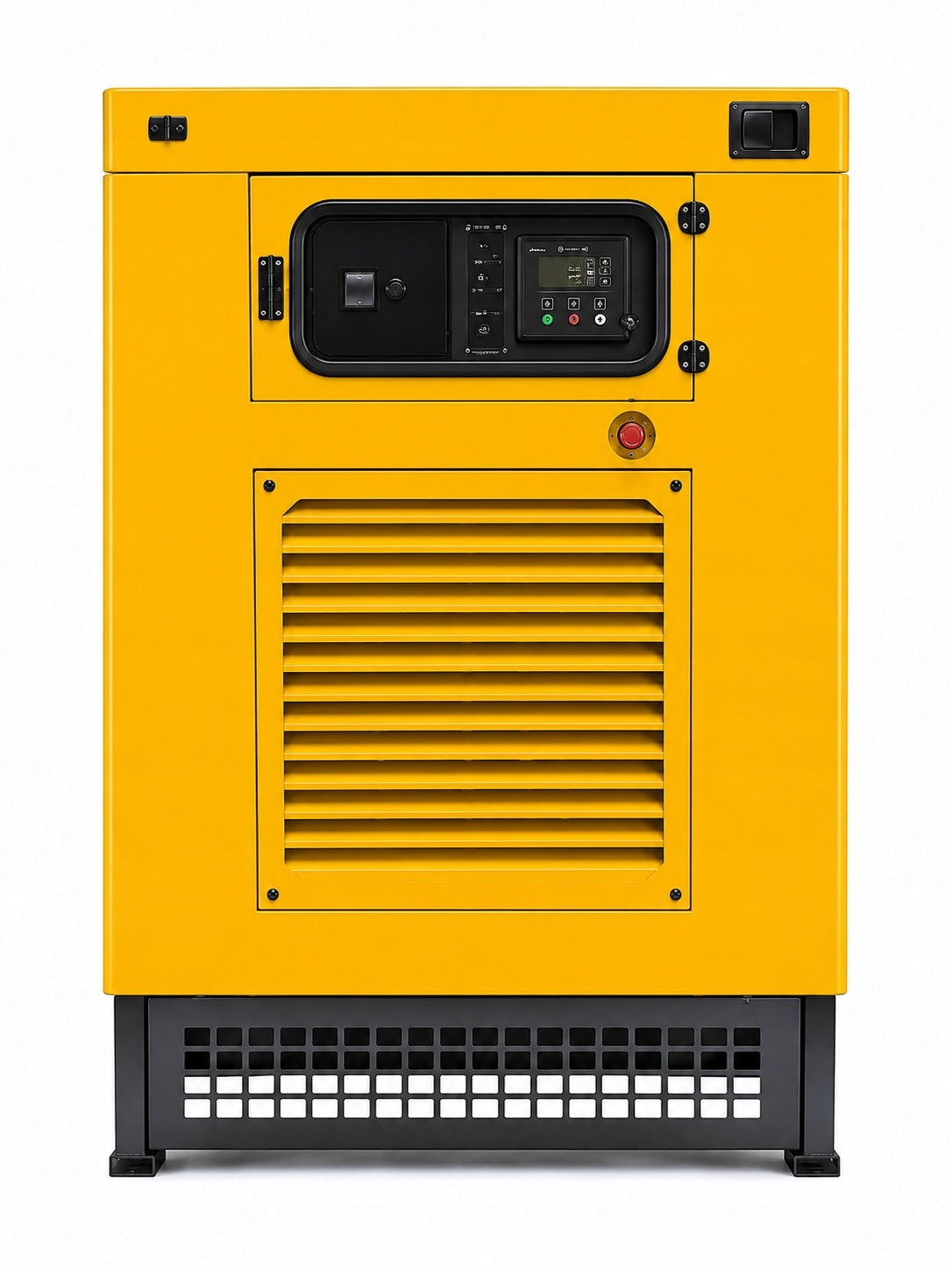

The unit is equipped with a multifunctional display (in Polish), which shows the most important parameters.

Temperature: °C/°F

Oil pressure: kPa/psi/bar

Fuel level in the tank: %

Rotation speed: rpm

Battery Voltage: V

Battery Charging Voltage: V

Motor Hour Counter: MTH

Number of starts

Shows current electrical parameters

Operating parameters of the generator

Single-phase voltages: V

Interfacial Voltages: V

Frequency: Hz

Current load of individual phases: A

Active power consumption: kW

Reactive power consumption: kVAr

Apparent power consumption: kVA

The first start-up is made and a detailed diagnosis of the engine and the operating parameters of the unit is carried out.

There are many parameters that determine the selection of the right unit (power demand, operating time, types of connected devices and many others). We use high quality consumables and factory spare parts.

Remote monitoring, GPS, GSM, MODBUS, Ethernet, RS485

The unit can be equipped with a system of remote monitoring and management of the device via the Internet. To use the full functionality, a dedicated mobile application and an active SIM card with data transmission are required.

The GSM module allows the device to communicate with the application and remote surveillance system. Thanks to this, the user can control the operation of the unit without the need for constant presence at the device.

The GPS module enables ongoing tracking of the location of the unit, which is particularly useful when working in the field, on construction sites, when renting equipment and during the transport of the device.

The mobile application allows you to view operating parameters and remote supervision in real time.

The device also supports MODBUS communication, which is an industrial standard for data exchange between the aggregate and external systems such as BMS, monitoring systems or industrial automation.

MODBUS enables the transmission of selected operating parameters, alarms and device states to the master system, which allows the integration of the unit with technical installations used in industrial, service, warehouse and energy facilities.

The availability of individual functions depends on the configuration of the controller, communication module and the supervision system used.
