Staklės gręžimo staklės PROMA 450 W 230 V

Trumpai apie prekę

Prekė: Staklės gręžimo staklės PROMA 450 W 230 V. Kategorija: Gręžimo staklės.

• Gamintojas: Proma
• Modelis: 25333520
• Galia: up to 550 W

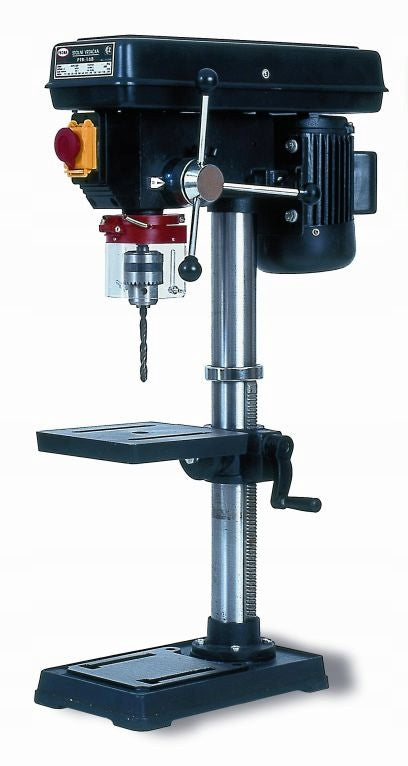

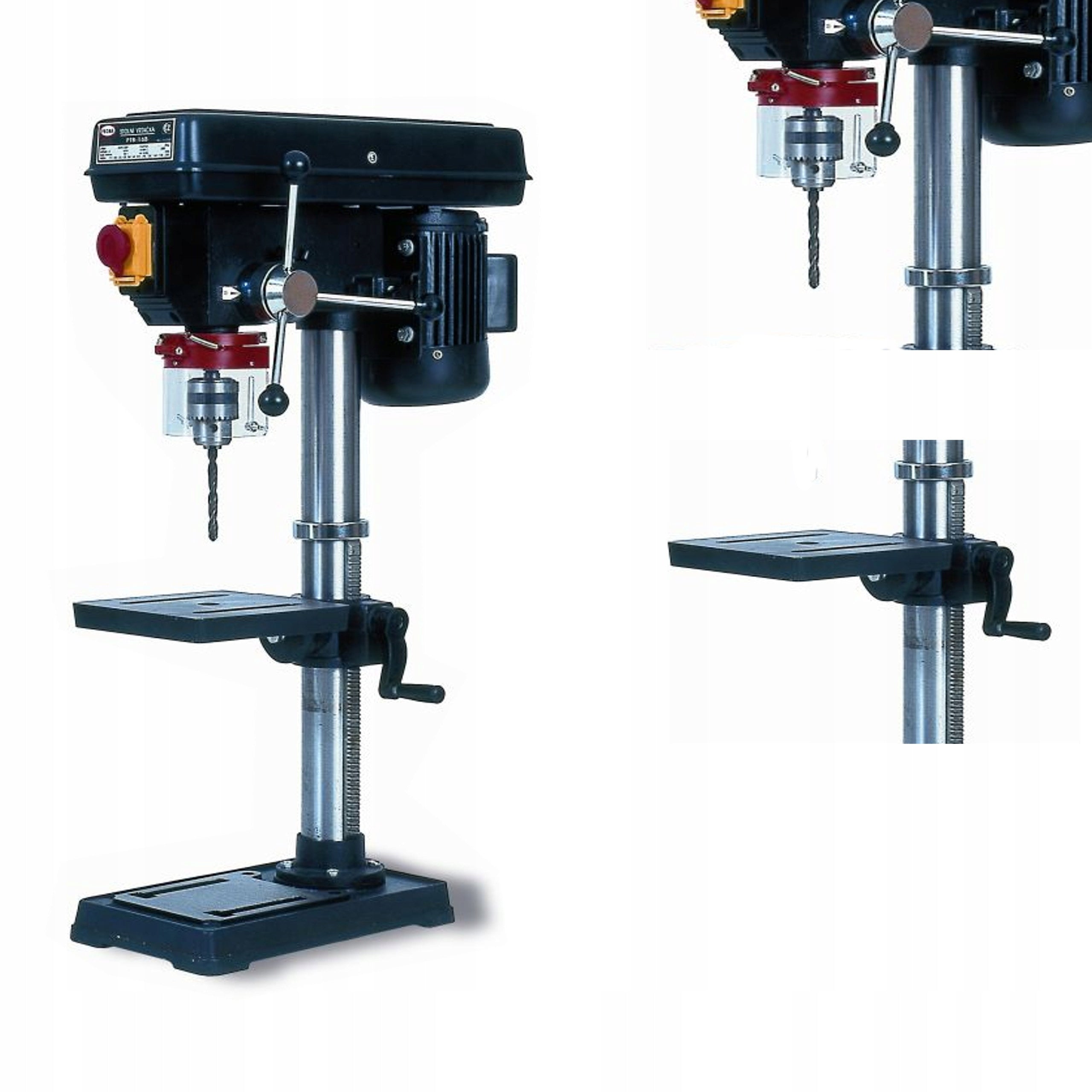

TABLE DRILLING MACHINE PROMA 450W PTB-16B/230

The drill is designed for drilling, recessing, and cutting holes in a variety of materials

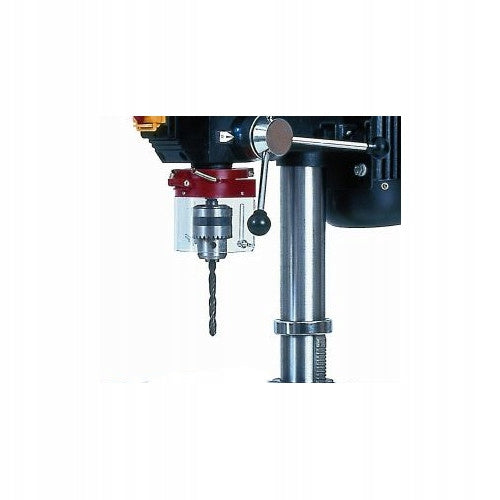

The spindle with ball bearings is embedded with a Mk II cone, to which the drilling head or other tools can be attached

The working table can be rotated 360° with a swivel pin and tilted +/-45°, allowing drilling holes at different angles

TECHNICAL DATA:

• Total height 840 mm
• Head-handle 3 - 16 mm
• Number of degrees of rotation adjustment 12 degrees
• Maximum spindle distance from base 540 mm
• Maximum spindle distance from the table 420 mm
• Maximum drilling diameter 16 mm
• Net / gross weight 32 / 34 kg
• Connection power 450 W
• Voltage 230 V
• Spindle feed 60 mm
• Table size 198 x 198 mm
• Package Dimensions 760 x 490 x 260 mm
• Base dimensions 340 x 210 mm
• Spindle reach (spindle distance from column) 127 mm
• Speed range 210 / 280, 320 / 420, 500 / 540, 830 / 1,290, 1,350 / 1,580, 2,180 / 2,580 rpm /min.
• Column diameter 60 mm
• "T" table grooves 14 mm
