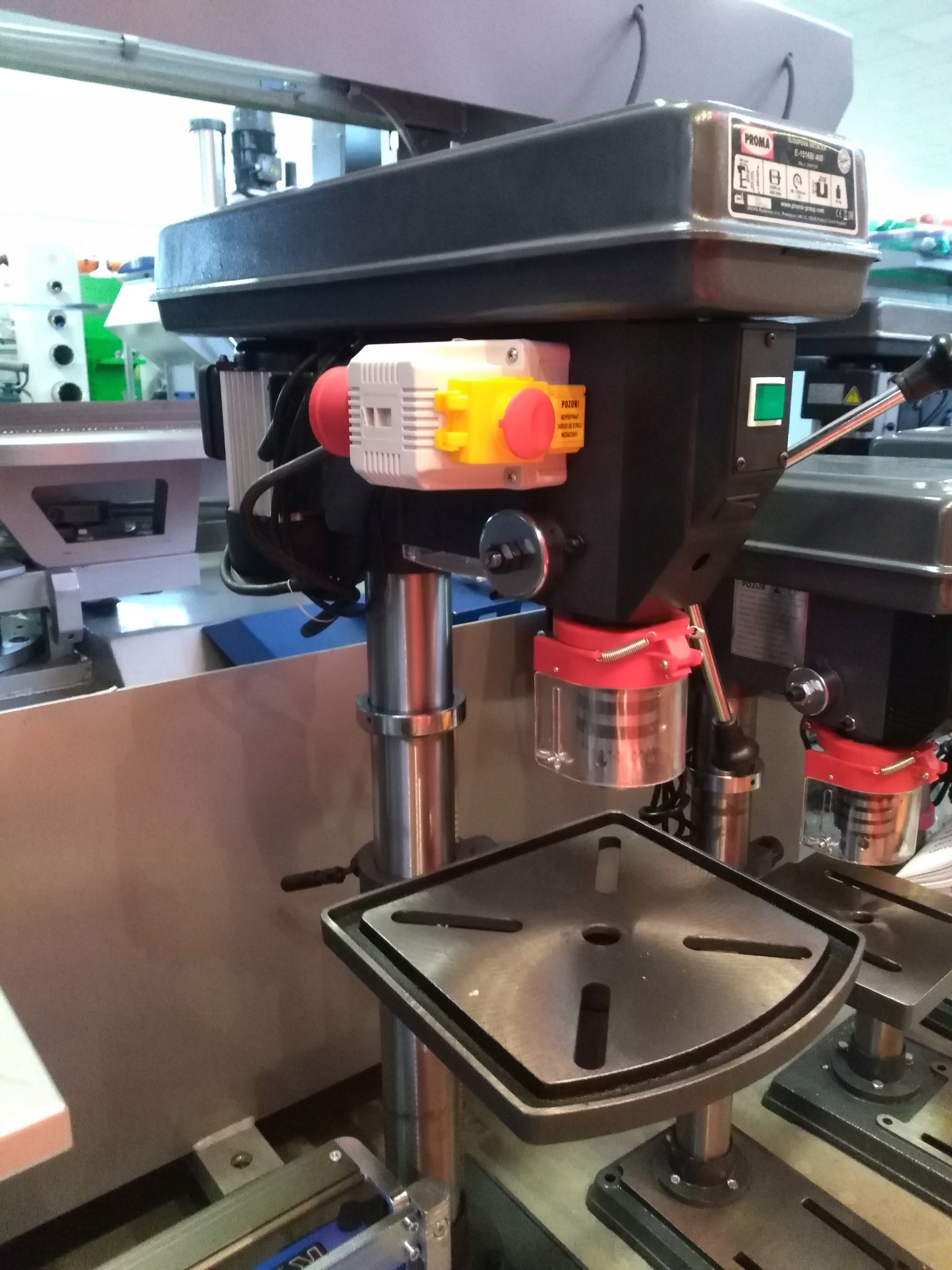

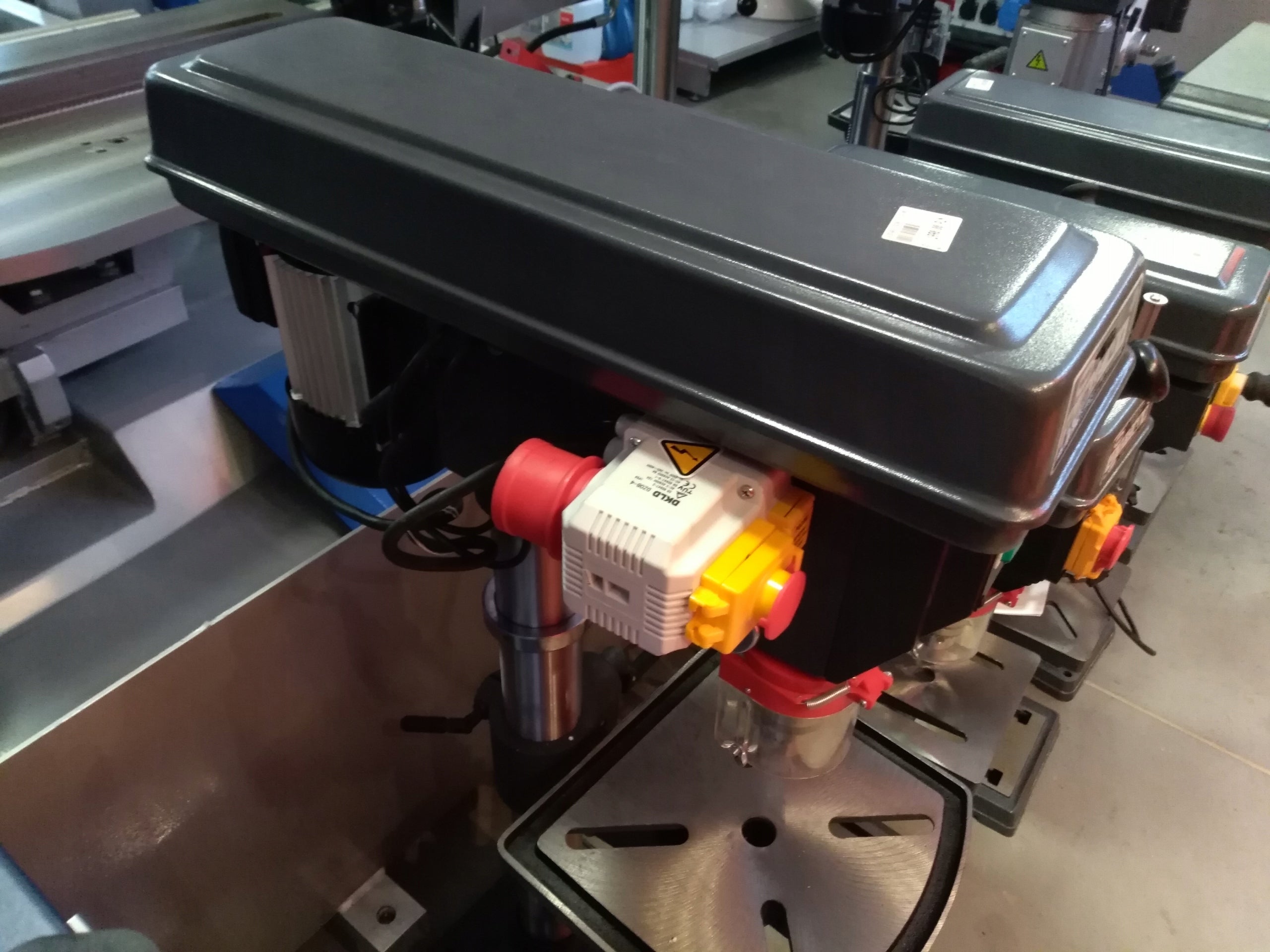

Stalinė gręžimo mašina PROMA E-1516B 230V

Trumpai apie prekę

Prekė: Stalinė gręžimo mašina PROMA E-1516B 230V. Kategorija: Gręžimo staklės.

• Gamintojas: Proma
• Modelis: 25231501
• Galia: 551-850 W

PROMA E-1516B belt-driven bench drill

----------------------------------------------------------------------------------------------------------------

• "T" grooves: 16 mm
• Spindle reach (distance from spindle to column): 195 mm
• Head-handle: 1 - 16 mm
• Maximum distance between spindle and table: 350 mm
• Maximum distance from the spindle to the base: 600 mm
• Column diameter: 73 mm
• Overall height: 1,065 mm
• Number of speed adjustment levels: 12 levels
• Speed range: 180 / 250, 300 / 400, 480 / 580, 970 / 1,280, 1,410 / 1,540, 2,270 / 2,740 rpm /min.
• Net/gross weight: 61/66 kg
• Base size: 500 x 285 mm
• Spindle feed: 80 mm
• Max drilling diameter: 20 mm
• Table size: 300 x 300 mm
• Voltage: 230 V
• Package dimensions: 895 x 490 x 290
• Connected power: 750 W

The drill is designed for drilling, recessing, and cutting holes in a variety of materials

The spindle with ball bearings is embedded with a Mk II cone, to which the drilling head or other tools can be attached

The working table can be rotated 360° with a swivel pin and tilted +/-45°, allowing drilling holes at different angles

The drill is equipped with work surface lighting (recommended bulb E27 60W is not included in the standard equipment)

The device does not have the option to choose the direction of rotation left / right
