Stalinė gręžimo staklės CORMAK WS32BC, 230V

Trumpai apie prekę

Prekė: Stalinė gręžimo staklės CORMAK WS32BC, 230V. Kategorija: Gręžimo staklės.

• Gamintojas: Cormak
• Modelis: WS32BC/230

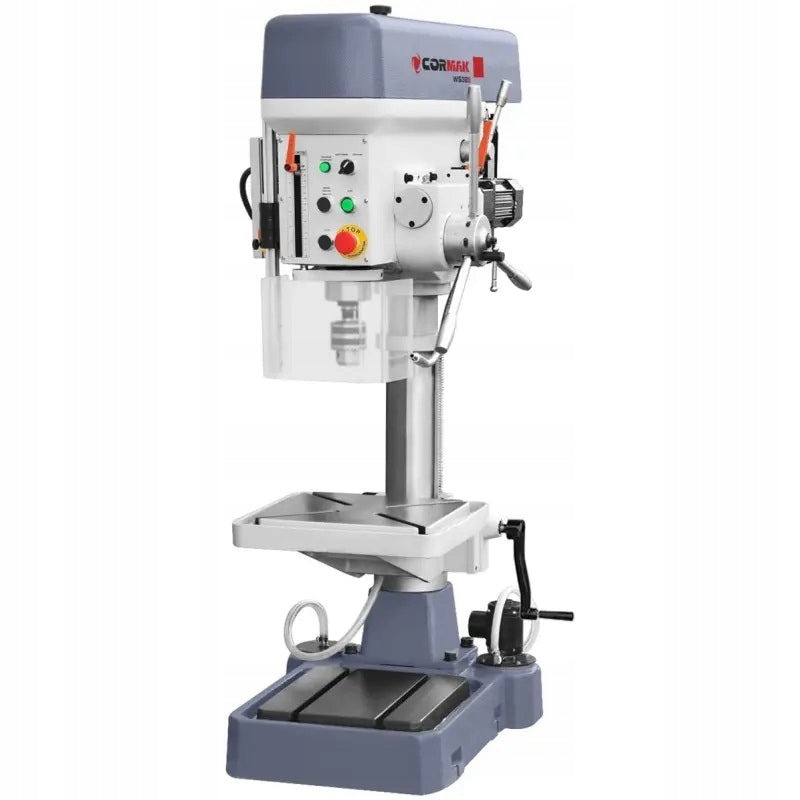

The CORMAK WS32BC/230V table drilling machine is a precision metal pole drilling machine equipped with spindle feed and cooling system, designed for demanding drilling and tapping operations. With its 8-speed transmission, stable design, and extensive equipment, it is suitable for heavy-duty industrial use.

The main advantages of the machine

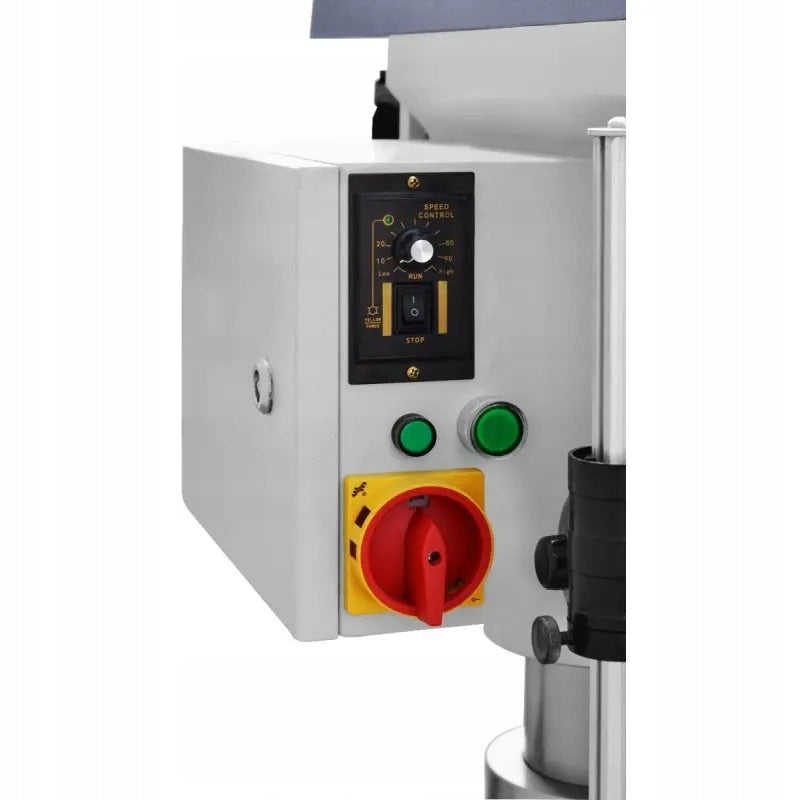

• Spindle feed with adjustable speed up to 110 mm/min – facilitates operation and increases repeatability of operations.
• Cooling system – protects tools from overheating and improves the quality of processing.
• Threading function – automatic change of rotation direction allows effective threading up to M24.
• High rigidity of the structure – a column with a diameter of 100 mm and a massive base eliminate vibrations.
• Spindle stroke 150 mm – allows deep drilling without interrupting the cycle.
• 8 gear ratios – range 140 – 1960 rpm allows for precise adjustment of parameters.

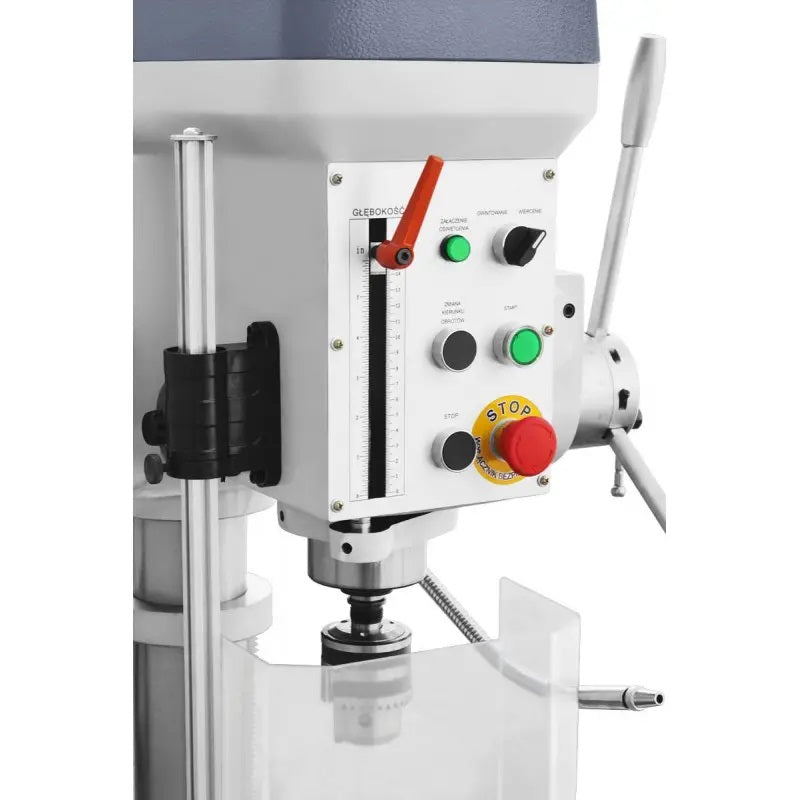

• Occupational safety – spindle and drive belt covers with limit switches compliant with CE.

Construction and technology

The CORMAK WS32BC/230V table drilling machine is constructed from seasoned, machined cast iron castings. The spindle and gear shafts are made of hardened steel, which increases durability and resistance to wear. The Morse MK3 cone allows you to quickly retool your machine and use a wide range of working tools. A stable table with 360° rotation makes it easy to process details of various shapes.

Precision and efficiency of work

Thanks to the use of self-feeding and cooling, the WS32BC/230V metal table drill guarantees high quality holes and significantly reduces cycle time. The powerful 1,1 kW 230V main motor and 0,12 kW feed drive ensure efficient operation even under heavy loads. Ideal for drilling, reaming and tapping in steel, cast iron and alloy materials.

The set does not include the cross table shown in the photo.

Application

The CORMAK WS32BC self-feeding drill is the perfect solution for:

• tools and locksmith workshops,
• maintenance departments,
• production facilities,
• technical schools and training centres.

Standard equipment

• Drill chuck with key
• Wedge for breaking the cone
• Cooling system
• U-type spindle guard with limit switch
• Belt transmission cover with safety end

Technical data

• Parameter: Value
• Maximum drilling diameter (steel): 32 mm
• Maximum threading diameter (steel): M24
• Column diameter: 100 mm
• Column wall thickness: 12,7 mm
• Spindle stroke: 150 mm
• Feed speed: 0 – 110 mm/min
• Spindle-column distance: 265 mm
• Spindle-table distance: 390 mm
• Spindle-base distance: 745 mm
• Spindle Cone: MK3
• Rotary speed range: 140, 250, 380, 500, 580, 850, 1250, 1960 rpm
• Number of speeds: 8
• Table dimensions: 380 × 400 mm
• Base dimensions: 645 × 470 mm
• Machine height: 1370 mm
• Main motor power: 1,1 kW
• Feeding motor power: 0,12 kW
• Power supply: 400 V
• Net weight: 230 kg
• Machine dimensions: 900 × 500 × 1400 mm
