Stalinė gręžimo staklės, MK2, 16 mm

Trumpai apie prekę

Prekė: Stalinė gręžimo staklės, MK2, 16 mm. Kategorija: Gręžimo staklės.

• Gamintojas: T4ALL
• Modelis: WMT16B-VS
• Galia: up to 550 W

Professional supplier of industrial machinery and equipment offers:

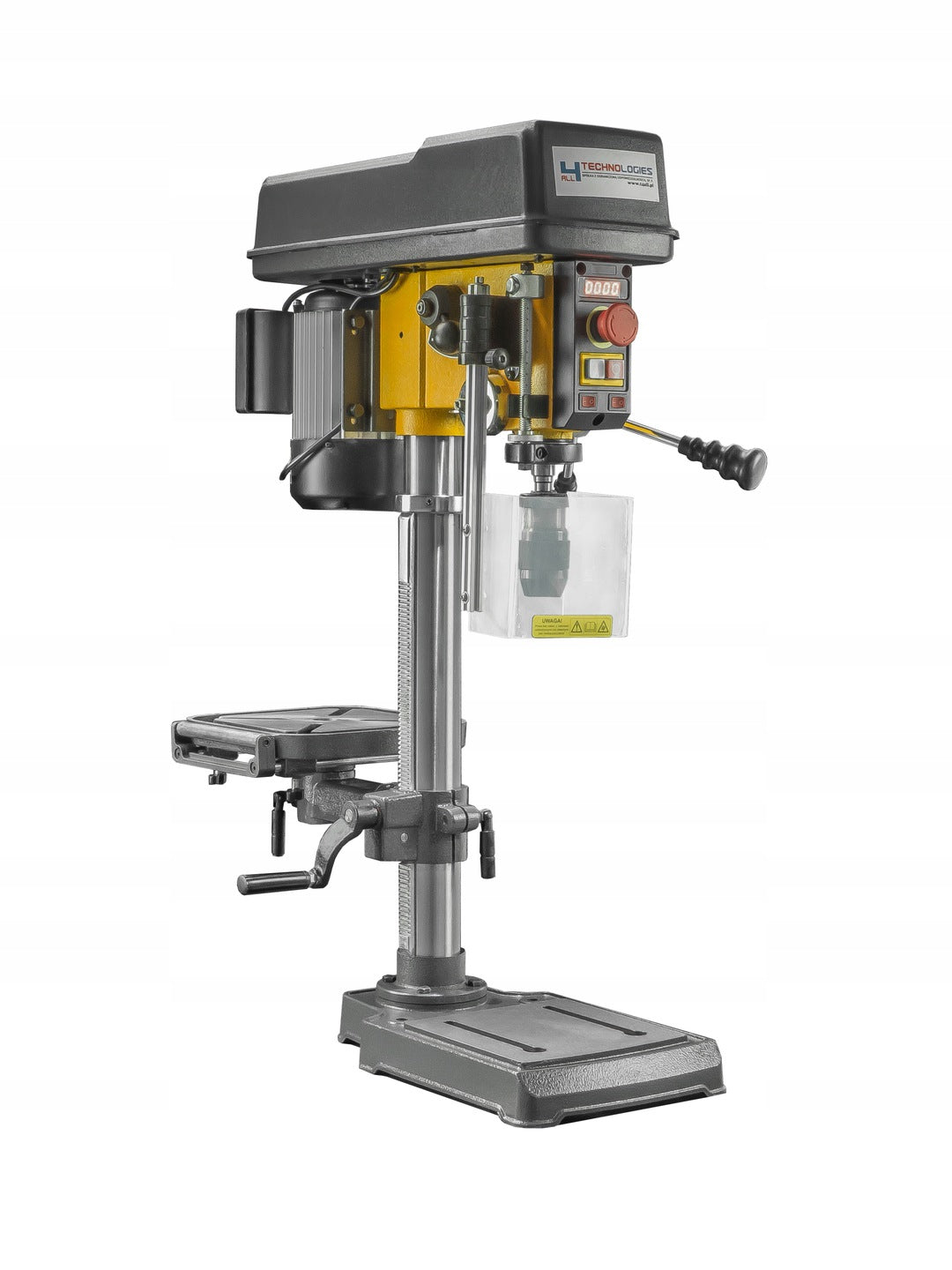

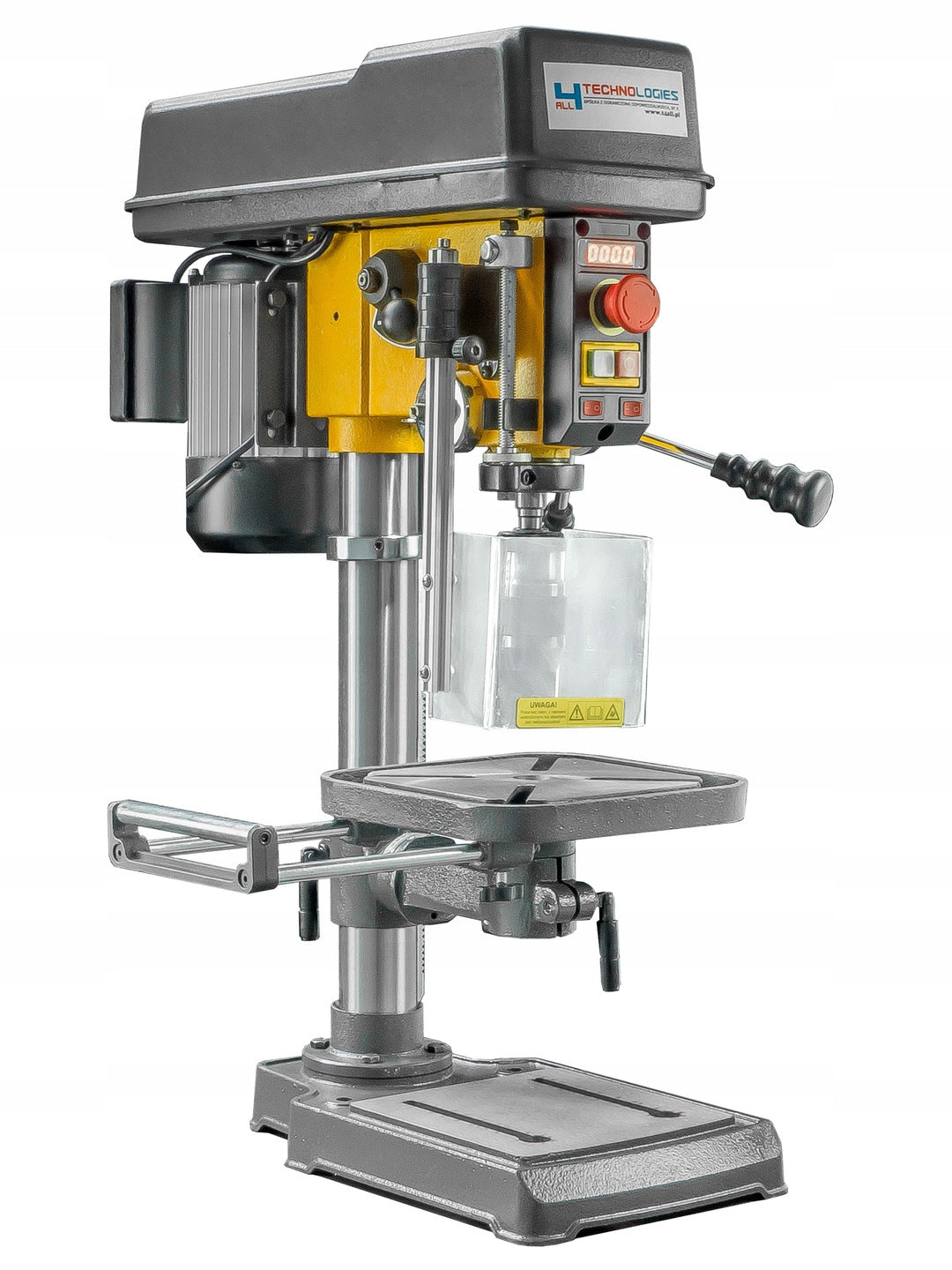

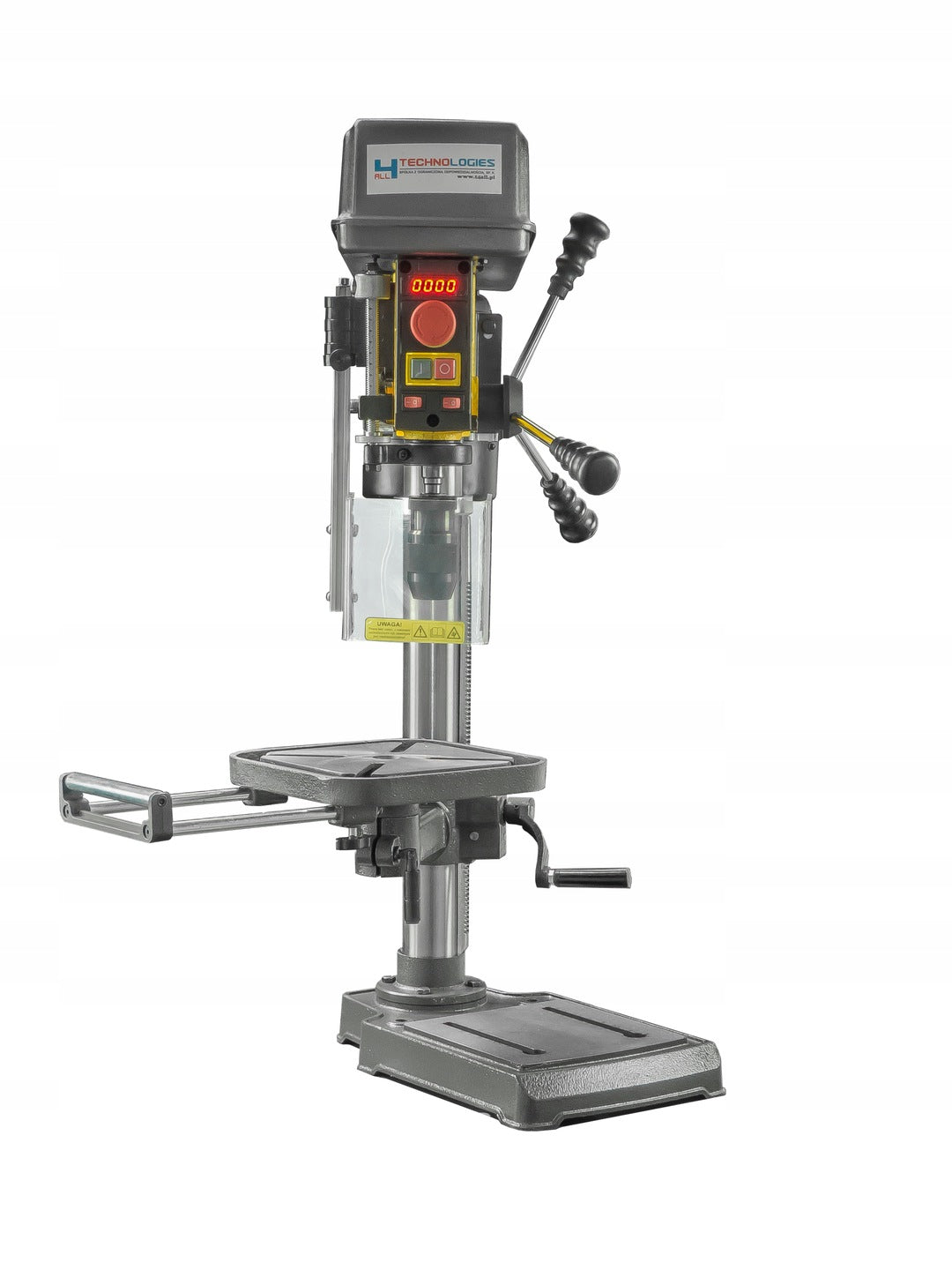

COLUMN POLE TABLE DRILLING MACHINE WITH LASER POSITIONER / CONE: MK-2

FACTORY NEW PRODUCT

MAXIMUM DRILLING DIAMETER IN STEEL: 16 [mm]

Model: WMT16B-VS™

Device with smooth spindle rotation adjustment!!!

It has a built-in LED workshop lamp!!!

The product manufactured in accordance with EU standards has the CE mark, EC declarations of conformity. Control panel and security in accordance with health and safety requirements.

Has appropriate safety guards with micro-switches allowing the device for legal industrial applications!!!

The ideal solution for:

Workshops: professional or home, maintenance departments on production lines in factories / companies, carpenters, locksmiths, craftsmen.

The design is based on the standardized Morse Cone type MK-2, characterized by easy availability of all tools, drills, heads, tips and sockets of the UNIVERSAL type available all over the world!

Rigid drill design ensures high quality drilling. A wide range of material processing allows adjustable height and angle (rotating) tilting intermediate drill table. The drill has an accurate drilling depth indicator and an electronic spindle rotation indicator.

• Professional, solid workmanship (rigid construction)
• Large Spindle Pitch
• Motor drive transmitted by belt transmissions
• Spindle on ball bearings
• It has spindle extension adjustments
• Safety switch in class IP54
• Quiet and efficient electric motor
• Built-in workshop lamp and functional laser positioner + electronic drilling speed indicator
• Easy-to-use three-arm lever

• Spindle Cone: MK2
• Max drilling diameter [mm]: 16
• Spindle rotation (smooth rotation adjustment): 300-2300 rpm /min.
• Spindle stroke [mm]: 90
• Spindle distance from column [mm]: 150
• Spindle distance from base [mm]: 500
• Dimensions of intermediate drill table [mm]: 240 x 240
• Base dimensions (bottom drill table) [mm]: 400 x 232
• Table height adjustment range on column [mm]: 335
• Spindle distance from table [mm]: 360
• Power [kW] / [KM]: 0,55 / 0,75
• Voltage [V]: 230
• Max. general dimensions [mm]: length: 600 / width: 340 / height: 910
• Max. column diameter [mm]: 60
• Weight [kg]: 44

• High-end self-clamping drill chuck 3-16 [mm]
• Drill Chuck Mandrel
• Handheld tools
• User manual for the device DTR / PL
