Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę
Prekė: Stalinė pjovimo staklės FORMAT su pjaustytuvu lentoms, mobilios GMM. Kategorija: Staliniai pjūklai.
- Gamintojas: GoodMajster
- Modelis: GMM-BJS2705
- Įtampa: 230 V
Technical data
- ⏩Model: GMM-BJS2705
- ⏩Number of motors / power supply: 3 / 220-230V 50Hz
- ⏩Main saw motor power: 2300W | 4500rpm
- ⏩Cutting saw motor power: 1100W | 8500rpm
- ⏩Fan motor power (dust collector): 1100W | 21000rpm
- ⏩Main disc dimensions: 205mm x 2,6mm x 25,4mm - 60Z
- ⏩Dimensions of the cutting disc: 115mm x 2,25mm x 20mm - 24Z

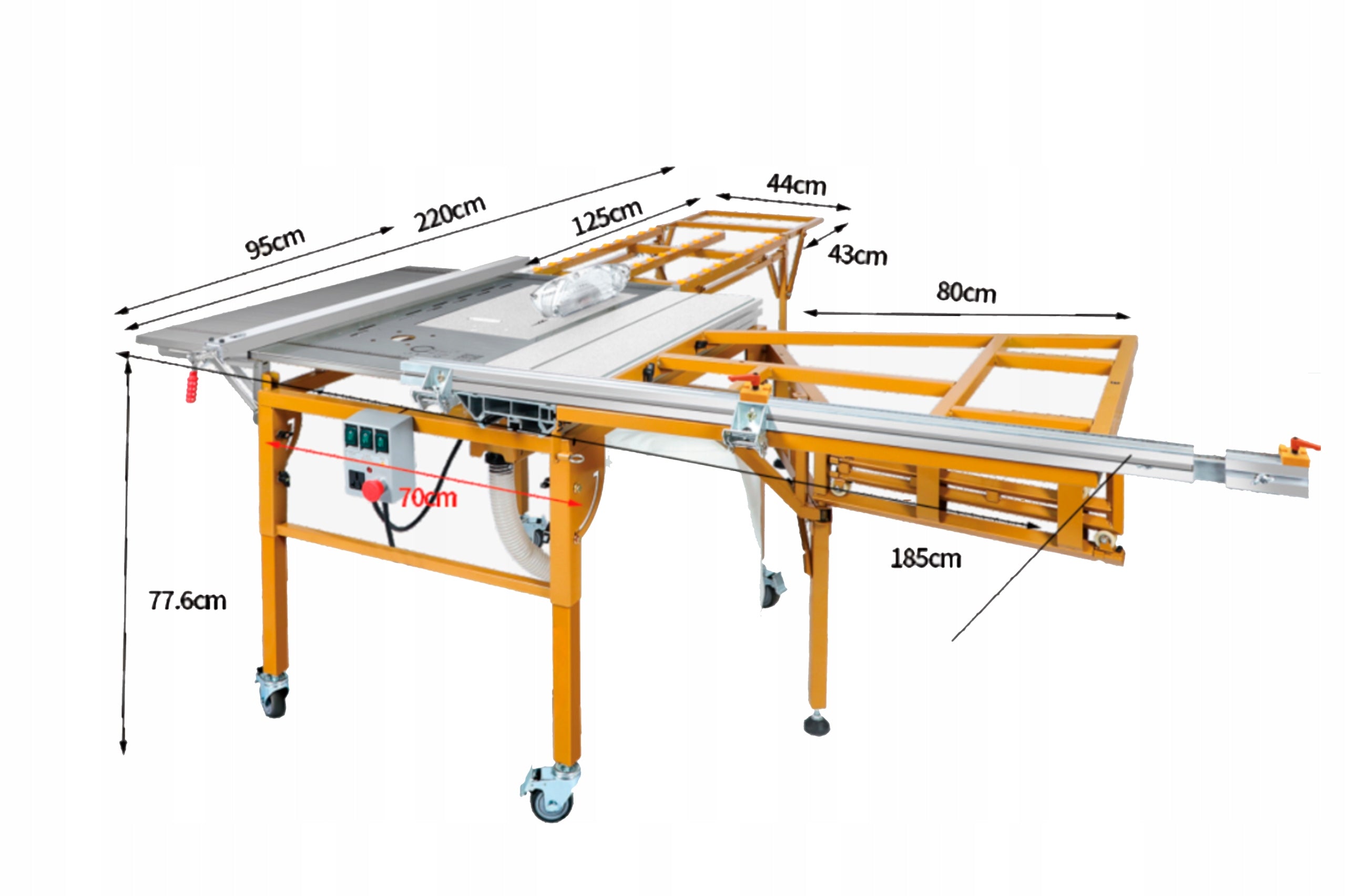

- ⏩Overall dimensions (folded): 2221x1853x776mm
- ⏩Dimensions of the folded machine: 958x828x378mm
- ⏩Main worktop (sliding): 950x450mm
- ⏩Tabletop extension: 950x350mm
- ⏩Additional table top: 790x880mm
- ⏩Package dimensions: 990x880x490mm
- ⏩Weight of the device: ~64kg
- ⏩Weight with packaging: 90kg
- ⏩Milling machine included: yes + 12 cutters
- ⏩Model milling machine: 3612BR
- ⏩Milling machine power: 1800W | 220-230V 50Hz
- ⏩Rotation of milling machine: 23000rpm
- ⏩Weight of milling machine: 6kg
Composition of the set:
- ✅ Format table saw - GoodMajster Machinery GMM-BJS2705
- ✅Table
- ✅Worktable magnifying pad with movable control arm
- ✅Extension with roller conveyor
- ✅ Shield cover
- ✅2 cutting discs mounted on the saw
- ✅ Dust extraction hose
- ✅ Dust bag
- ✅Parallel Guide
- ✅Slanted Guide
- ✅Transport wheels
- ✅Milling machine 3612BR
- ✅Set of 12 wood cutters!

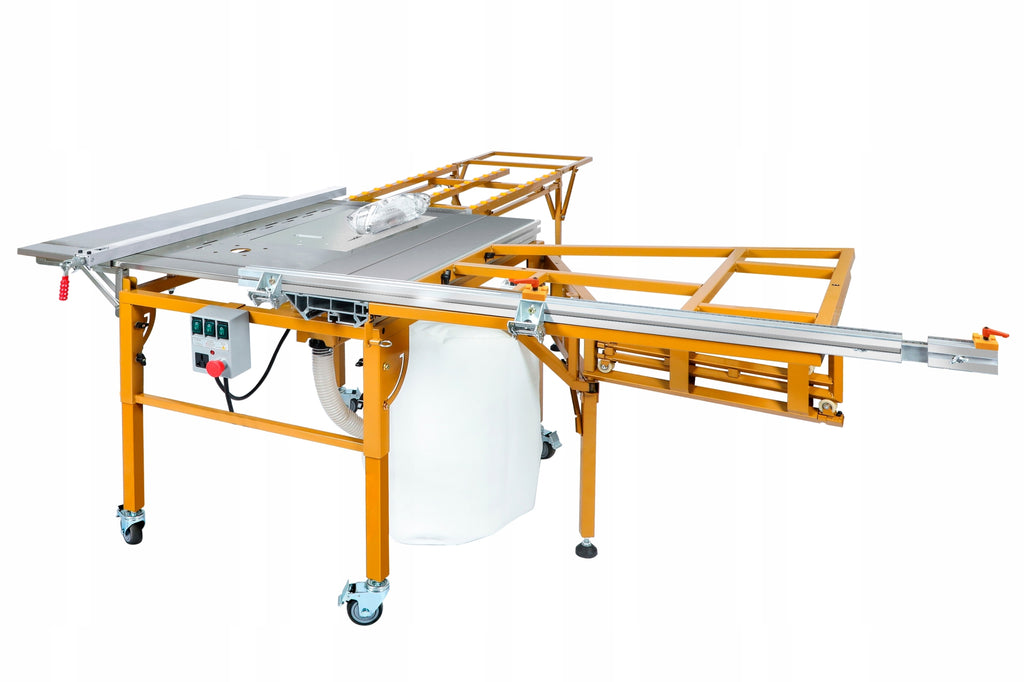

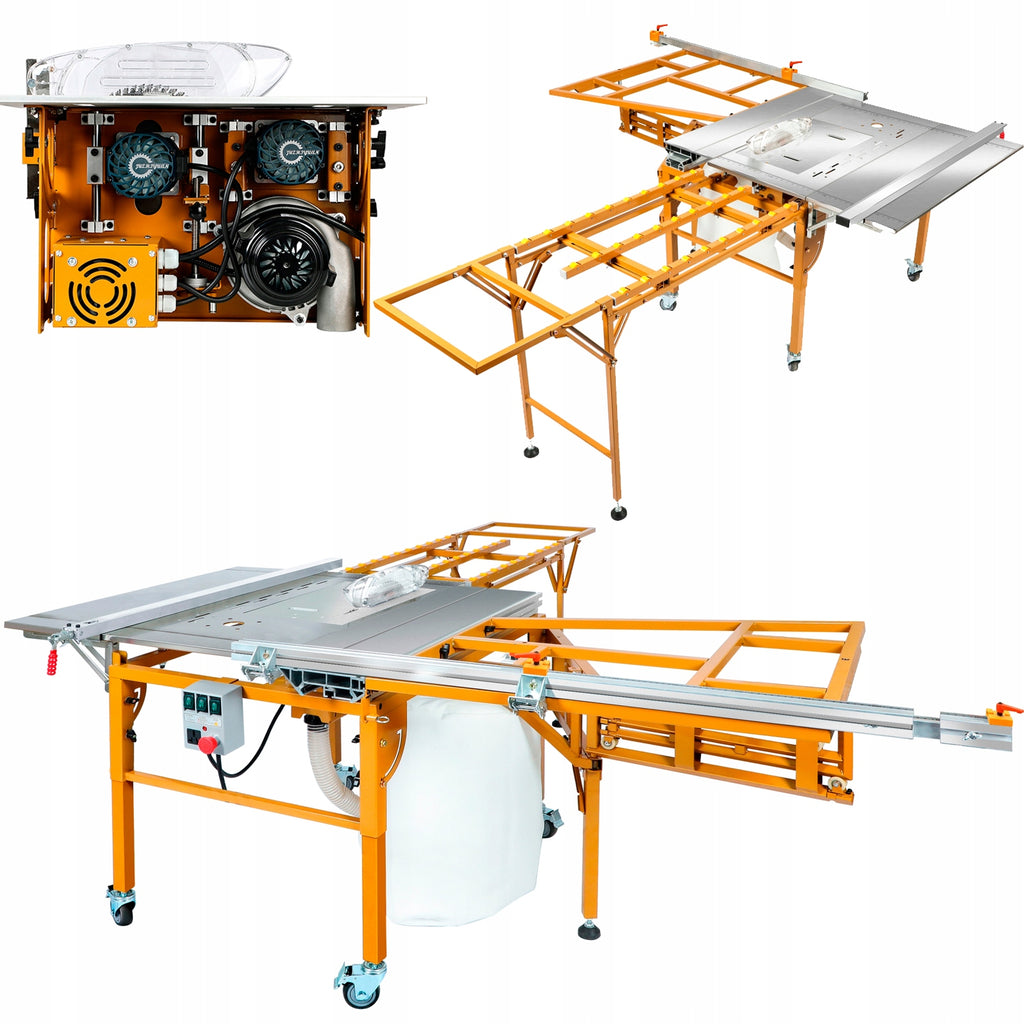

The GoodMajster Machinery GMM-BJS2705 format saw is a formatter with a cutter, sawdust extraction and milling machine.
Format table saw with sawdust cutter and extraction ⭐GoodMajster Machinery GMM-BJS2705⭐ is a modern product, a proven and recognized Polish brand!
Formatówka is designed for professionals for cutting ✅longitudinal and ✅cross large furniture boards.
The format saw has a tilting dial, so it can cut at an angle of up to 45 degrees.
It is equipped with ⏩⏩⏩main disc with brushless motor with power ✔ 2300W, ⏩⏩cutting disc so-called. cutter to prevent edge fraying with brushless motor ✔ 1100W, and in ⏩cutter extraction with motor ✔ 1100W, cable and bag included!
The GoodMajster Machinery GMM-BJS2705 format saw also comes with a ✅spindle milling machine✅ with a power of 1800W ⭐mounted on a working table⭐ and 12 cutters.
Its mobile design is ⏩innovative and ⏩unique, because it can be folded and transported by car to the place of assembly of furniture joinery. Unfolding takes about 15 minutes, and the foldable design allows you to carry it through one person!
The GoodMajster Machinery brand has been using the company's experience since ⭐1999⭐ and is ⭐Polish Brand⭐, guaranteeing professional advice, fast service, and the highest quality of its products, which is why the ✔ Format saw GMM-BJS2705 is delivered to the customer after EXECUTION OF THE TEST EACH EXAMPLE ✔
Precision format saw GoodMajster Machinery GMM-BJS2705 has modern ✅BRUSHLESS MOTORS from a reputable brand:Juzhiyuan Machinery developed in a modern formula ✅BRUSHLESS TECHNOLOGY,with copper winding and aluminum alloy housing,ensuring low noise level and the highest quality and SOFT START system (slow start),which does not burden the electrical network during engine start-up.
The motor has a fully copper winding - ⏩COOPER ⏩WIRED ⏩TECHNOLOGY, which is much more efficient, resistant to overheating, and damage! Buy machines only with motors that have a copper winding, because aluminum can make a short circuit and cause a fire!
Thanks to the brushless motor from the renowned brand Juzhiyuan Machinery ,it can be described as the most efficient format saw in its class. The ✅BRUSHLESS✅ motor provides up to 50% more efficiency than similar machines, guarantees the highest performance, and reliability due to the fact that it has more power and greater efficiency, and does not heat up like a brush motor, and thanks to thermal protection HIGHTEMP will turn off when overheating occurs.
GoodMajster Machinery is a brand whose company has existed since ⭐1999, which is why it has extensive experience in the subject of construction machinery. GoodMajster Machinery is not compared to cheap models of splitters, and its main goal is to offer machines:
- ⏩ failure-free
- ⏩of high quality
- ⏩with high durability
- ⏩with superior performance
- ⏩on the best components of recognized manufacturers.
The machine is addressed to ✅demanding customers, carpentry companies, furniture companies and fitters✅, which is why each piece undergoes a detailed quality control at every stage of production: from checking the quality of welds, through checking the efficiency of the engine, ending with checking the operation of the finished equipment.
Table saw for large formats with the highest quality workmanship.
- ⏩The whole design is compact, has a ✅small size when folded, which provides convenience when carrying.
- ⏩Innovative, developed by us ✅precision sliding rail made of aviation aluminum alloy ensures high precision, smooth movement of the rail.
- ⏩✅The scale has been laser engraved to ensure accurate positioning, and resistance to fading and abrasion.
- ⏩Specially developed arm design with swing arm, which when moving, does not change the working position.
- ⏩It has an extended work table so that only one person can easily cut large wooden slabs, even in very large formats.
- ⏩The working table has a ✅hole for the milling machine, and the mounting diameter is 16cm, which makes it universal for most milling machines available on the market. The maximum milling radius is up to 70cm. ✅The milling machine with a set of 12 cutters is included!
Innovative work table extension system.
The GMM-BJS2705 has a ✅extended back table with rollers ✅extended on the left side ✅ and on the right side with a sliding system. As one of the few manufacturers of GoodMajster Machinery has a side extension, which is moving together with a guide rail.
- SWING ARM - using the principle of operation of a large precision format saw for woodworking TABLE EXTENSION is mounted on the so-called. SWING ARM, which ensures smooth and stable movement of the furniture board together with the guide. The swing arm is foldable, so it does not need to be disassembled.
- TABLE EXPANSION - folds segmentally, which makes it quick and easy.
- INCREASED SUPPORT POINTS - the machine has as many as 5 support legs to ensure greater stability of the saw table.
- MOBILITY - All legs are component, providing a compact and modular design.
Developed by GoodMajster Machinery, the ✔ MWS (Maximum Workin Surface)✔ system allows you to customize the machine to your needs.
With MWS we can:
- ⏩cut long elements
- ⏩cut wide elements
Main frame - a guarantee of comfort and precision!
The main frame material is ⭐square profile with sheet thickness of 1,2mm. All bent leg elements have been made of 3mm sheet metal to support the machine stably, and the 90 degree bending process is carried out on laser controlled machines to ensure the highest accuracy.
The construction of the main table top and hinged folding table top has been ⭐made of sheet metal with a thickness of 3mm,which guarantees the stability of the worktop.
The transport wheels have a ⭐size of up to 3-inchi and are equipped with a lock function.
⭐The frame is powder coated in a 5-step process, to ensure the highest corrosion resistance.
Painting steps: ✔ 1-Grease cleaning | ✔ 2. Overvulcanization |✔ 3. Powder coating | ✔ 4. Phosphating | ✔ 5. Heating in the oven
Main table top made of stainless steel!
The tabletop material is ✅STAINLESS STEEL 201✅ with a thickness of 1,0mm (according to the standard)
It has ✅bent edges on all sides, welds are sanded, corners rounded to prevent scratching.
The main table has a hole for the milling machine. The diameter of the milling machine housing is 16cm, so it is compatible with most models on the market. The positioning gap is located on the side of the milling machine mounting hole, and the ✅maximum working radius is 70cm. The milling machine is included in the set of format saw with undercutter!
The upper frame of the main table top is ✅fixed with screws that can adjust the leveling of the main table top✅, and precisely adjust the level to the movement.
PRECISION GUIDE RAIL MADE OF ALUMINIUM ALLOY
Innovative, developed by us, ⭐precision guide made of aviation aluminum alloy⭐, ensuring high precision, resistance to damage, easy and light travel.
The surface is anodized, resistant to scratches and corrosion, which makes the ⭐format saw is precise⭐ even during many years of work.
The inner side of the ball-rail contact position is lined with a high-strength steel rod:
- ⏩improves bearing rolling,
- ⏩increases wear resistance,
- ⏩ provides longer service life
- ⏩ guarantees lightness of movement
Both ends of the guide are equipped with ⭐self-cleaning devices for the guide track,⭐ to prevent the adhesion of impurities, dust during operation and ensure easy, light, smooth operation and precise handling.
EXTENSION OF THE TABLE WITH ROLLER TRANSPORTER
✅Innovatively designed folding format saw table with extended plate stand with ✅adjustable guide rollers.
The length of the wooden board up to 2200mm (carried by rollers) is operated by the machine thanks to the ✅roller transporter fixed on the extension of the working table. Rollers with guides ⭐can be extended to increase the working width.
The frame material is 25mm x 25mm square profile with 1,2mm sheet thickness
⏩The movable, foldable frame does not take up much space, and thanks to it the machine is mobile and can be easily transported to the construction or assembly site of furniture.
The hinge bracket uses 3mm thick thickened steel plate forming embossing, and the ⏩reinforced construction ensures stability.
With a non-slip base, the legs of the saw table can be adjusted to the surface as needed.
Longitudinal, transverse cutting, and full disc adjustment!
The formatter has a tilting disc, thanks to which it can cut at an angle in the range of ⭐0-45st⭐ This is especially important during carpentry work, because the table saw can perform the processing of boards and furniture boards, and cut edges at a given angle. With its tilting blade, the saw can be used to:
- ✅preparing boards for furniture
- ✅machining of furniture boards
- ✅cuts of OSB and MDF
- ✅furniture production
- ✅performing carpentry machining
- ✅production and processing of roof truss
- ✅and many other carpentry, carpentry and roofing works.
The table saw has a maximum cutting height of ✅50mm, which means that it can cut most sizes of furniture boards.
The height of the disc is ⭐smoothly adjustable⭐, which makes the cuts accurate.
The adjustment is with a convenient crank handle.
Additional accessories give the possibility of ✅longitudinal and ✅ transverse cutting.
Side guide makes it easy to cut furniture boards to a given width.
The work table has been equipped with a parallel guide, and the guide itself with a convenient quick-clamp ⏩⏩QUICKLOCK! It involves on tightening the sliding rail to lock the side guide, or loosening to move the guide. ⏩⏩QUICKLOCK guarantees stability that the side guide will not move during operation and will not change dimension!
BRUSHLESS MOTORS Guarantee reliable operation at high performance!
THE MAIN SAW AND UNDERCUTTING SAW ARE A SET OF TWO CUTTING BLADES THAT ROTATE IN ✅ OPPOSITE DIRECTIONS. Before a large saw cuts through the material, a small saw blade cuts a shallow groove on the back of the cut material. Only then is it completely cut off with a 205mm blade. Because the two blades of the saw cut in different directions so-called. The ✅ undercutting saw prevents the material from breaking before the final cut. Using a cutting saw otherwise known as a ✅cutter makes cutting more precise, even, and smooth.
The format saw with undercutter ensures that even varnished and lamellated furniture boards will not be torn out during cutting!
The large main saw motor and small undercutting saw motor are made in ⏩brushless ⏩BRUSHLESS technology and have a Starting the engine from pure ⏩⏩copper 100%.
Die-cast ⭐aluminum alloy housing guarantees ⭐fast heat dissipation, low failure rate, long service life, low noise.
The integrated design of the pressure plate, saw blade and motor shaft reduces the measurement error between the pressure plate and the shaft, and further improves the stability and accuracy of the saw blade cutting.
Bold, precision chrome drive shaft with a diameter of 12 mm with oil-free plain bearing. Guarantees: smooth adjustment without gap, blade operation without vibration, provides excellent cutting accuracy.
✅Juzhiyuan Machinery✅ motors are precision-crafted motors that are found only in professional carpentry machines. Their best ⏩quality, ⏩power and ⏩low noise guarantee trouble-free operation. Therefore, ⭐GoodMajster Machinery does not hide⭐ engine manufacturer in its machines because it uses only THE BEST ENGINE MANUFACTURERS!
Safety and ergonomics of GoodMajster Machinery.
The format table saw ✅GoodMajster Machinery GMM-BJS2705✅ has a certified switch with overload protection and a socket for connecting the power cord. The switch is made in IP44 protection class, which allows you to work in dust and with average air humidity.
GMM-BJS2705 ✅format saw for furniture boards is equipped with ✅ sawdust removal system, so that the work does not harm health and ensures order in the workshop. ⏩FORMATÓWKA WITH SAWDUST EXTRACTION increases comfort and safety of use.
Thanks to the integrated ⭐drain for sawdust in the format saw, it is enough to press the appropriate button on the control panel and the fan with ⭐21000rpm will start the sawdust extraction system into the bag, which is included in the set.
You no longer need an additional dust collector or sawdust extraction. The format saw with dust collector has a complete suction system:
- ✅with fan
- ✅with pipe
- ✅with bag
Thanks to the involvement of Polish engineers in the design, the machine has a large number of warning pictograms to remind the user about the correct operation and health and safety rules. The cutting disc cover is also made of high-quality plastic to effectively protect the operator from debris and chips.
The cutting disc used in the saw is the original product of GoodMajster Machinery. It is ✅hardened and ✅has a widie to ensure the cutting of soft and hard wood.
Convenient and ergonomic transport system allows you to quickly change the working place of the machine. Two metal folding handles and durable wheels guarantee safe movement of the machine.
The transport system can be used by one person to efficiently move the machine Just:
- ✅Turn off the machine.
- ✅Assembly the swing arm
- ✅Remove roller transporter
- ✅Assemble the legs of the format saw
- ✅Transport the machine.
- ✅Tilt the machine forward and put.
Highest quality machines GoodMajster Machinery!
What distinguishes the GoodMajster Machinery brand? High quality at an affordable price.
The GoodMajster Machinery table saw comes in original and safe cardboard packaging.
GoodMajster Machinery as a fully POLISH brand ⭐takes care of safety therefore, GMM-BJS2705 has LASER ENGRAVED INSTRUCTIONS ⭐warning, instruction manual fully in Polish, developed by Polish engineers to be understandable and clarify most doubts.
The table saw was produced for the ⭐⭐ Polish⭐⭐ market, which is why it has an instruction manual in Polish, a carton with inscriptions in Polish, and service and spare parts are located in Poland!
The user manual is also available for download in the downloads tab in case of loss.
The GoodMajster Machinery GMM-BJS2705 format saw also comes with a ✅spindle milling machine✅ with a power of 1800W ⭐mounted on a working table⭐ and 12 cutters.
Composition of the set:
- ✅ Format table saw - GoodMajster Machinery GMM-BJS2705
- ✅Table
- ✅Worktable magnifying pad with movable control arm
- ✅Extension with roller conveyor
- ✅ Shield cover
- ✅2 cutting discs mounted on the saw
- ✅ Dust extraction hose
- ✅ Dust bag
- ✅Parallel Guide
- ✅Slanted Guide
- ✅Transport wheels
- ✅Milling machine 3612BR
- ✅Set of 12 wood cutters!
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | GoodMajster |
| Parametry | Manufacturer code | GMM-BJS2705 |
| Parametry | EAN (GTIN) | 5906660939726 |
| Parametry | Series | PROFESSIONAL |
| Parametry | Batteries included | no |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Supply voltage | 230 V |
| Parametry | Maximum power | 4500 W |
| Parametry | Saw bore diameter | 25.4 mm |
| Parametry | Rotational speed | 8500 rpm |
| Parametry | Disc diameter | 205 mm |
| Parametry | Maximum cutting height | 50 mm |
| Parametry | Device weight | 70 kg |
| Parametry | Product weight with unit packaging | 90 kg |
