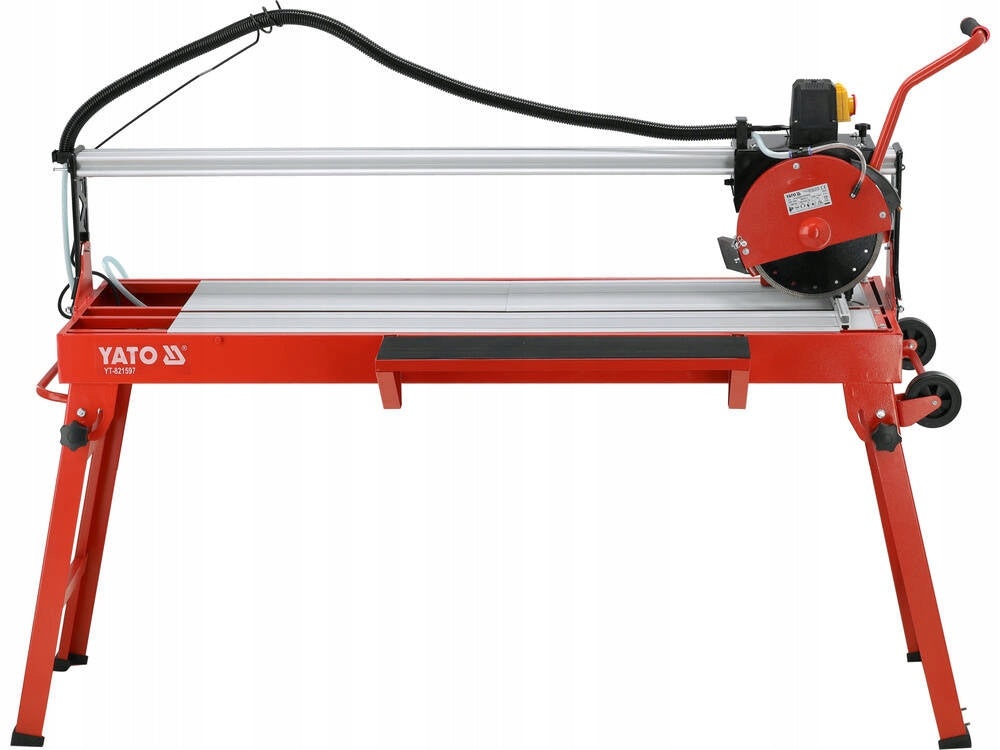

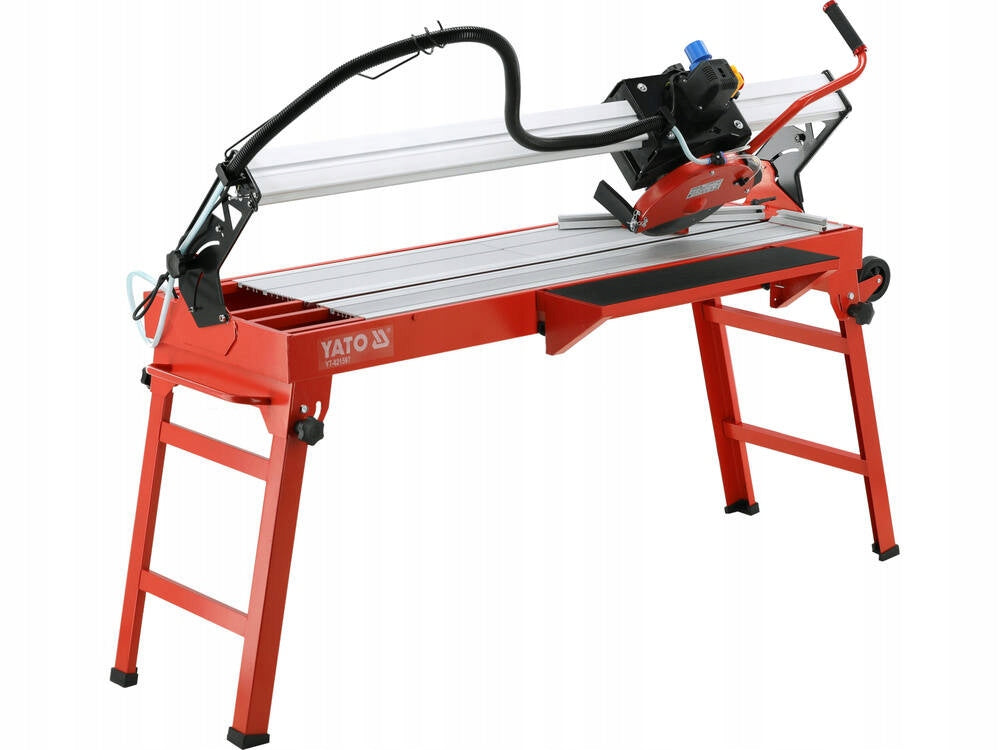

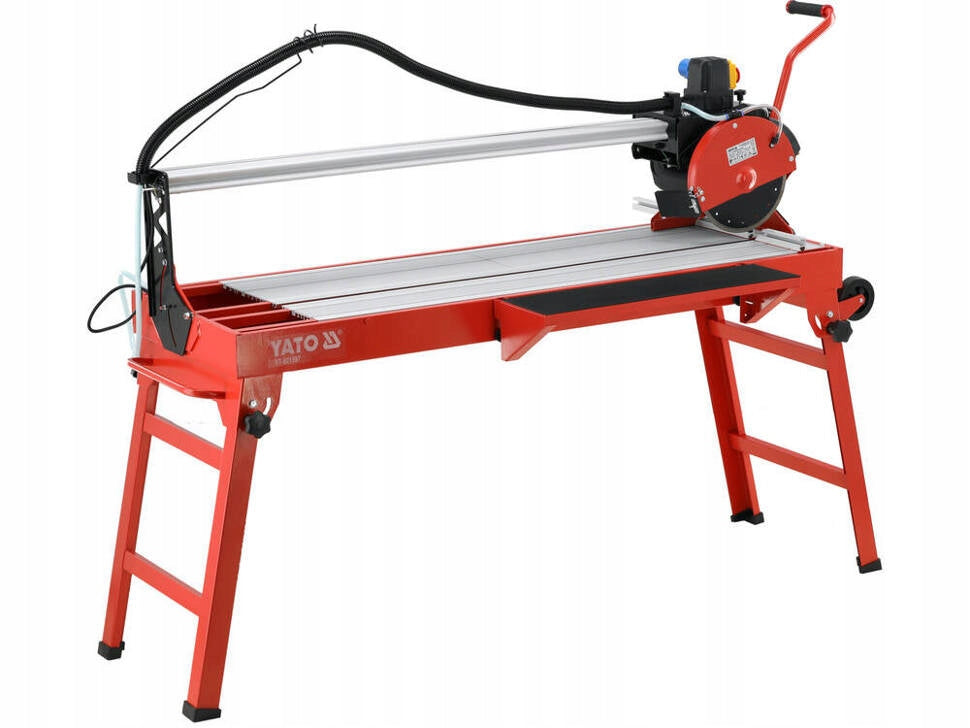

Stalinė plytelių pjaustyklė Yato 1250 mm 1500 W

Trumpai apie prekę

Prekė: Stalinė plytelių pjaustyklė Yato 1250 mm 1500 W. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Yato
• Modelis: YT-821597
• Galia: 1500 W

Product code: YT-821597

Table cutter for stoneware 1500 W YT-821597

Table cutter with guide and laser pointer designed for wet cutting with diamond discs of ceramic materials - tiles, glaze, stoneware, terracotta. A solid table with a large working surface and an additional table top allows you to cut large-format tiles with a maximum dimension of 1200 x 600 mm.

Features:

• precise cutting without the need for routing thanks to laser-marked line and guide rail
• diamond blade and rotation speed up to 2990 rpm /min ensure cutting without damage in a straight line and at an angle of 45°
• adjustment of cutting length, depth and angle
• moving head also in the vertical axis
• 655nm wavelength laser powered by 2 AAA batteries
• duralumin table top
• additional worktop allows you to expand the work surface
• cutting disc cover increases operator safety
• residual current circuit breaker
• Wet operation with attached water pump and hose
• 4 folding legs with the possibility of locking with knobs
• large wheels and handle make it easy to transport the device

• Rotation: 2990 min⁻¹
• Power: 1500 W
• Max. cutting length: 1250 mm
• External diameter of the disc : 250 mm
• Internal diameter of the disc: 25.4 mm
• Max. cutting depth: 50 (90˚), 37 (45˚) mm
• Twisting: < 2.5 m/s²
• Worktable size : 1000x460 mm
• Laser wavelength: 655 nm
• Electrical insulation class: I
• Power supply for laser module : 2x1.5V; AAA
• Laser power: ≤1 mW
• Laser class: 2
• Laser: yes
• Disconnector : yes, residual current
• Angle of work: 0-45 ˚
• Type of work: dry, wet
• Frequency: 50 Hz
• Degree of protection : IP54
• Acoustic pressure: 85.0 ± 3.0 dB(A)
• Acoustic power: 98.0 ± 3.0 dB(A)
• Voltage: 230 V a.c.
• Weight: 66
