Stalinis frezavimo staklės 1500 W

Trumpai apie prekę

Prekė: Stalinis frezavimo staklės 1500 W. Kategorija: Frezavimo staklės.

• Gamintojas: Proma
• Modelis: 25024002
• Įtampa: 230 V

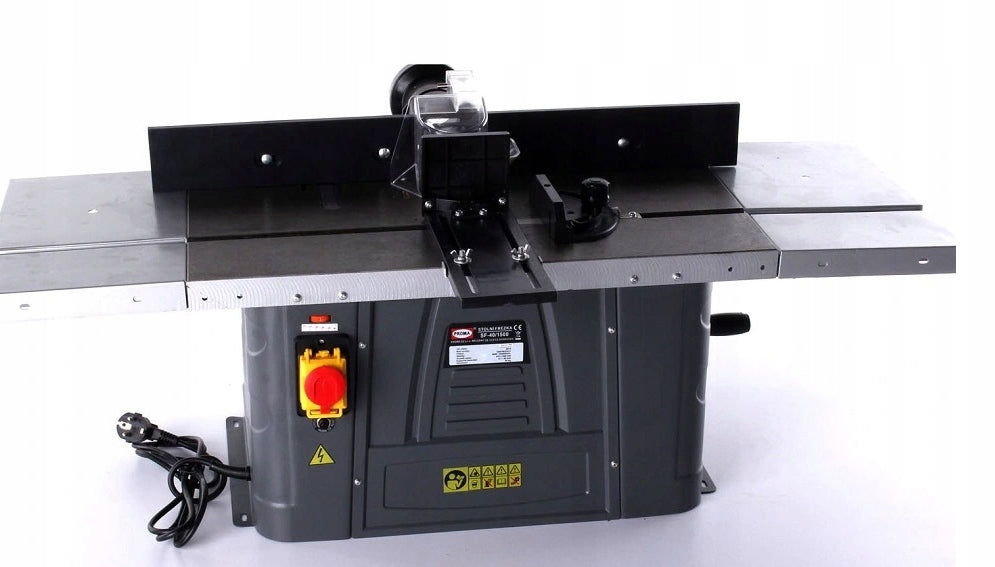

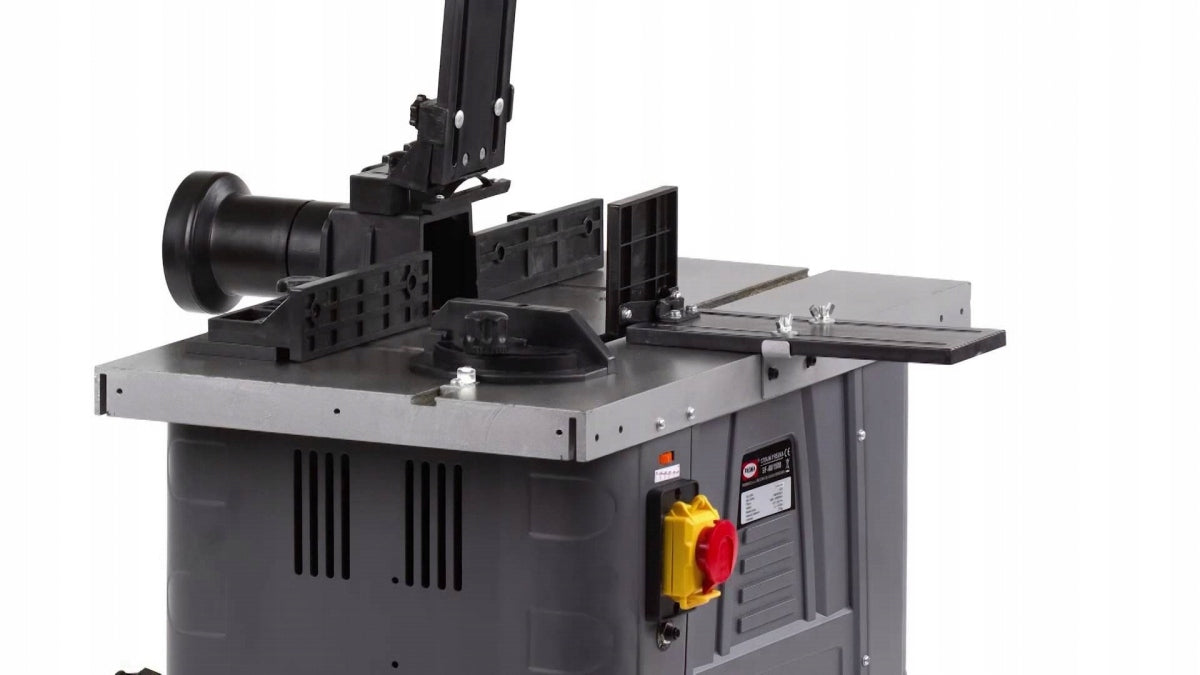

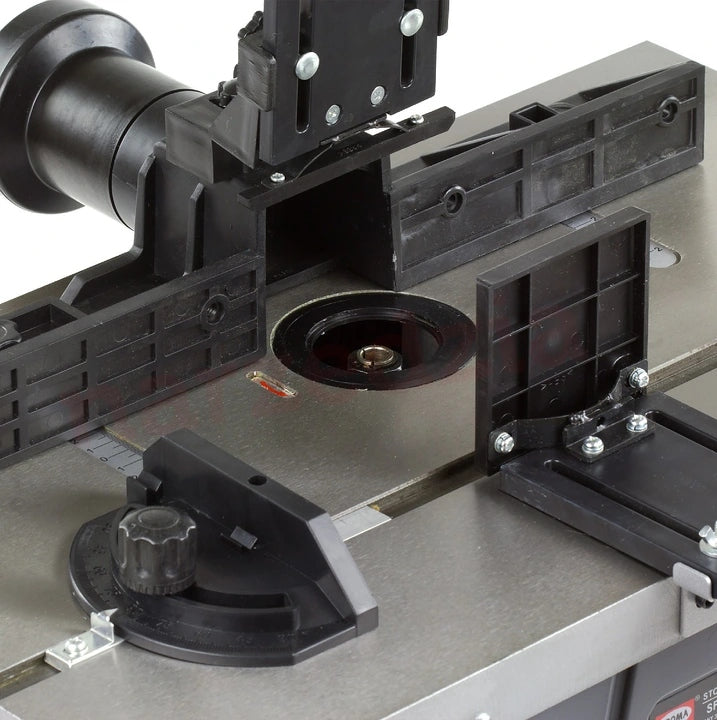

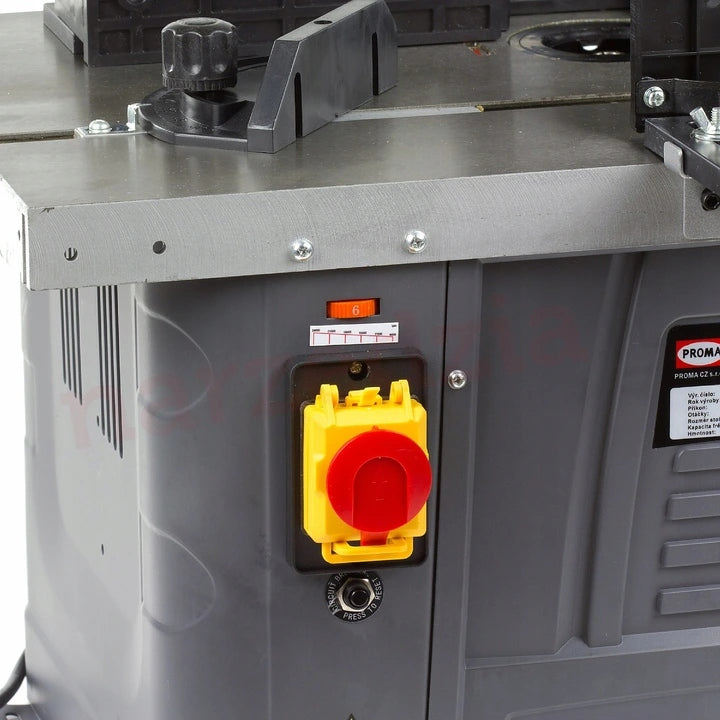

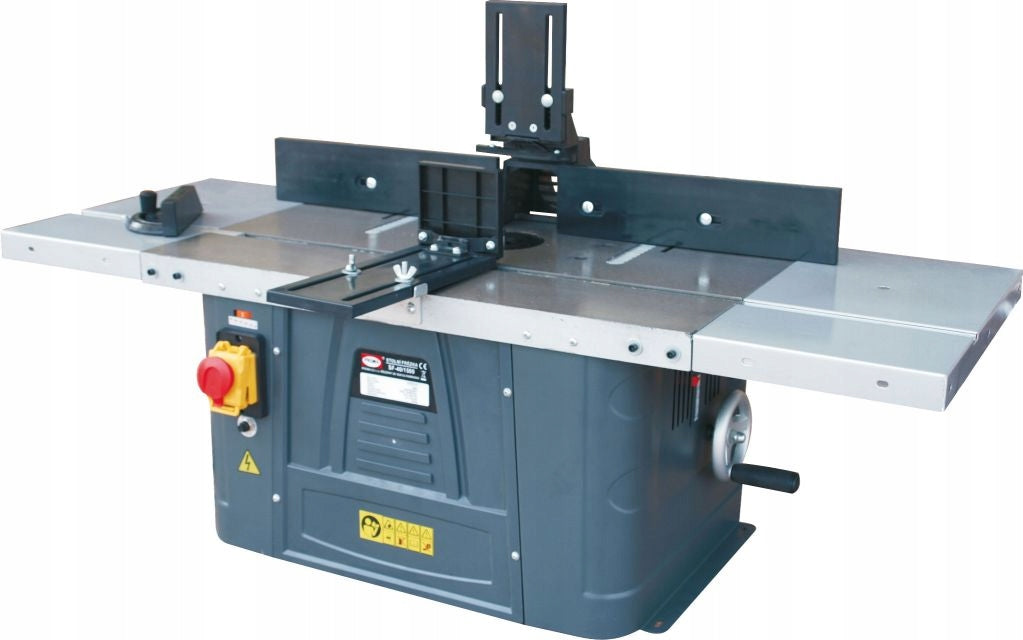

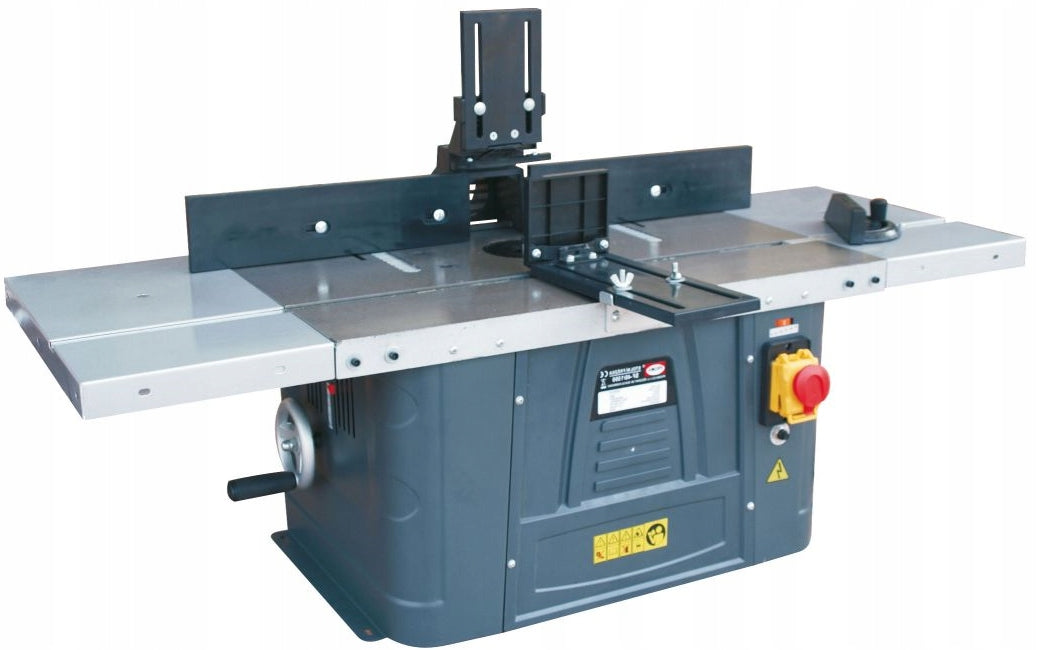

PROMA SF-40/1500 + sleeves 6,6,35,8,12,12,7 mm

Lower spindle milling machine for hobby applications.

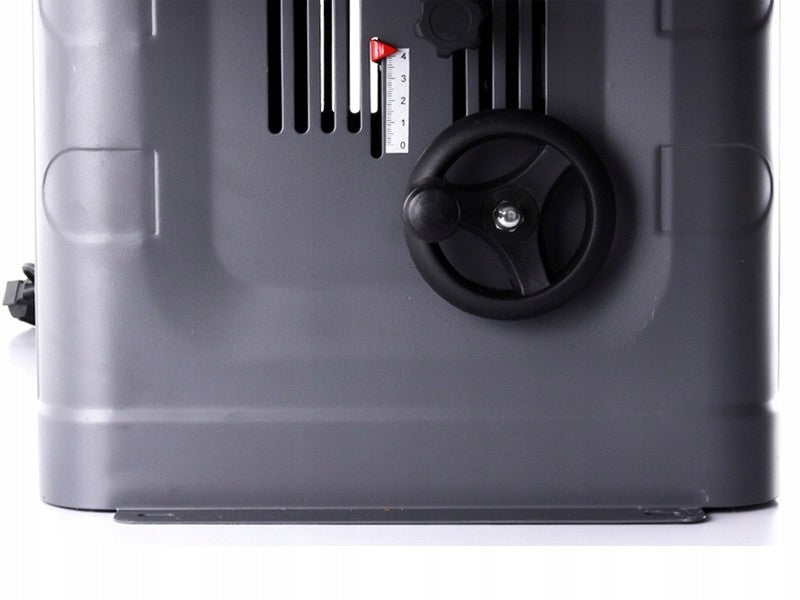

Compact, small structure. The rotation of the cutter can be smoothly adjusted. A knob on the side is used to set the height, there is also a spindle lock which makes it easier to replace the cutter.

• Carpentry milling machines are designed for machining soft and hard wood
• suitable for small and medium-volume production
• advantage is a strong table made of cast iron
• spindle tilt and height adjustment allows wide use of milling machines
• The spindle of the machine with a diameter of 30mm is mounted on maintenance-free bearings, which ensures optimal and precise operation.

Perfect solution for DIYers and small plants.

• Connection power: 1,5 kW
• Supply Voltage: 230V
• Spindle speed: 8000, 24000/min.
• Engine speed: 8000-24000 /min.
• Clamp diameter: 6; 6,35; 8; 12; 12,7 mm
• Spindle length: 20 mm
• Spindle stroke: 40 mm
• Spindle stroke adjustable smoothly
• Hole diameter in the table: 75 mm
• Max diameter of the device above the table: 120 mm
• Max diameter of the device under the table: 73 mm
• Table Size: 610x360 (210x360) mm
• Dimension of the moving table: 315 mm
• Table ring dimension: 30 mm
• Dust extraction tip diameter: 70/100 mm
• Dimensions: 1030x360x311 mm
• Weight: 32 kg

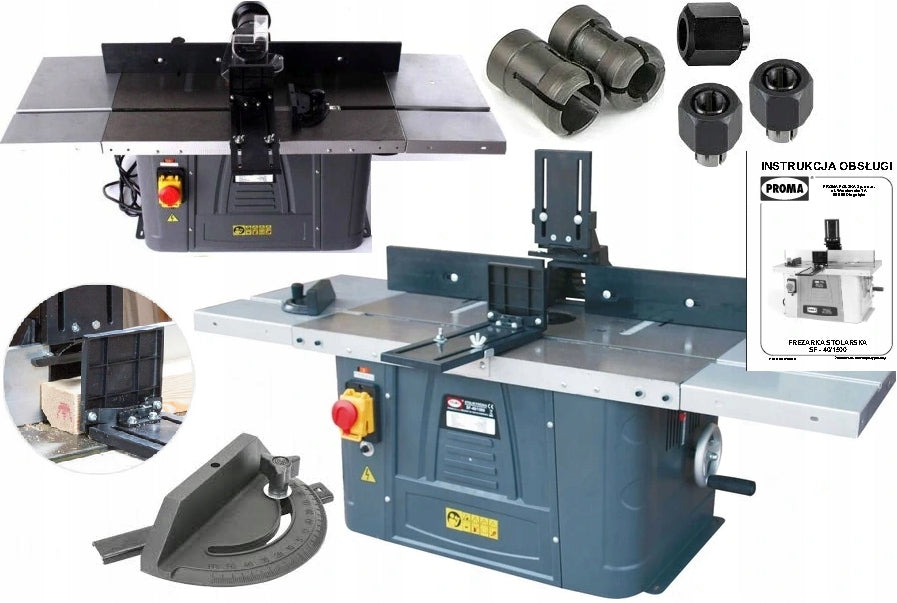

• Milling machine SF-40/1500
• Table extension x 2 pcs side tables
• Setting measure with protractor
• Extraction nozzles - 70/100 mm
• Clamp rings 4 pcs
• Angular Measurement
• Cutter cover -PLEXI
• Longitudinal material feed guide
• Cross stop
• User manual
• Warranty card
