Stalinis gręžtuvas PROXXON TBM 220, 220x120 mm, 140 mm, 230 V

Trumpai apie prekę

Prekė: Stalinis gręžtuvas PROXXON TBM 220, 220x120 mm, 140 mm, 230 V. Kategorija: Gręžimo staklės.

• Gamintojas: Proxxon
• Modelis: 28128

PR28128

< ! -- x-tinymce/html -->

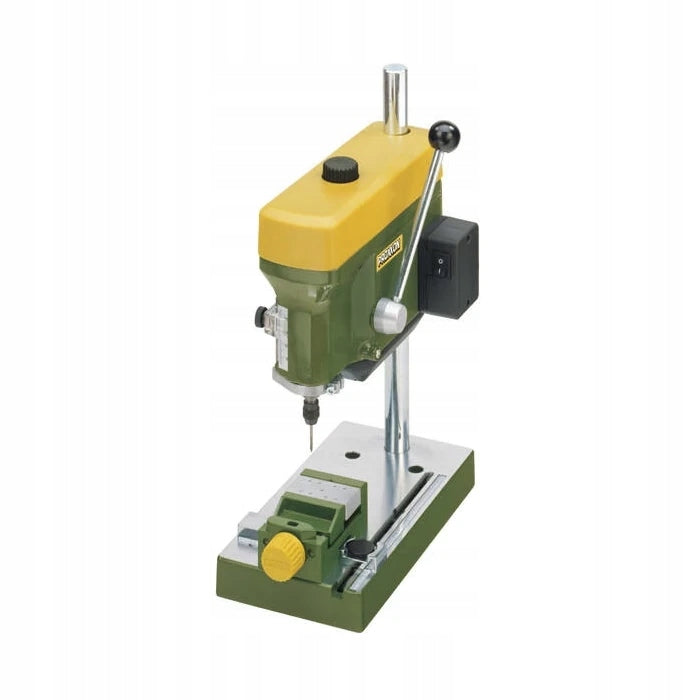

Proxxon TBM 220 is a high-tech tool that meets the highest standards of precision and efficiency in the drilling area. Its robust construction and wide range of adjustment options make it an indispensable equipment both in professional workshops and in hobby workshops.

Key Features:

• Stability and rigidity: A robust steel column and a precision-machined die-cast aluminium worktop guarantee stability and eliminate vibration during operation, resulting in high drilling accuracy.
• Versatility: Three-stage speed control allows you to adjust the operating parameters to the properties of the material being processed and the type of task being performed.
• Precision: Precise feed and the ability to adjust the drilling depth ensure repeatability and accuracy of the holes made.
• Equipment: The set includes six MICROMOT triple tool clamps, allowing you to work with drills of different diameters, which increases the versatility of the device.
• Compact design: Lightweight and handy design makes it easy to transport and store your drill.
• Expansion possibilities: Thanks to the threaded holes on the worktop, it is possible to install additional equipment, such as the KT 70 coordination table, which expands the range of applications.

Application:

• Industry: Precise drilling of holes in metals, plastics and other materials.
• Electronics: Assembly of electronic components, prototyping.
• Modeling: Creating precise models, machining small elements.
• Jubilery: Precious metal processing.

Advantages:

< ! -- x-tinymce/html -->

• High quality workmanship: Robust construction and the use of high-quality materials guarantee a long service life of the device.
• Precision and repeatability: Ideal for tasks that require high accuracy.
• Versatility: A wide range of applications thanks to the ability to adjust operating parameters.
• Ease of use: Intuitive operation and clear markings.

Technical data of Proxxon 28128:

• Power supply: 230 V, 50-60 Hz
• Power: 85 W
• Rotational speeds: 1800, 4700, 8500 rpm /min
• Feed: 30 mm
• Drill reach: 140 mm
• Thread: 3/8"
• Weight: 3,3 kg
• Worktop: 220 x 120 mm with parallel guide and scale
• MICROMOT tool clamps: 1 mm, 1,5 mm, 2 mm, 2,4 mm, 3 mm, 3,2 mm

The Proxxon 28128 kit includes:

< ! -- x-tinymce/html -->

• Table drilling machine Proxxon TBM 220
• Six MICROMOT precision tool clamps (1-3,2 mm)
• User manual
