Stalinis pjūklas GoodMajster GMM-TS315R, 315 mm, 2800 W, 230 V

Trumpai apie prekę

Prekė: Stalinis pjūklas GoodMajster GMM-TS315R, 315 mm, 2800 W, 230 V. Kategorija: Staliniai pjūklai.

• Gamintojas: GoodMajster
• Modelis: GMM-TS315R
• Įtampa: 230 V

Technical data

• ✅Model: GMM-TS315R
• ✅Height: 86cm
• ✅EPS power*: 2800W
• ✅Power: 2200W S6 40%
• ✅Diameter of the disc: 315mm x 30mm x 3,0mm / 24 teeth
• ✅Table size with side insert: 160x55cm / 95x80cm
• ✅Table size without accessories: 80x55cm
• ✅ Power supply: 220-240V
• ✅Weight: 50kg

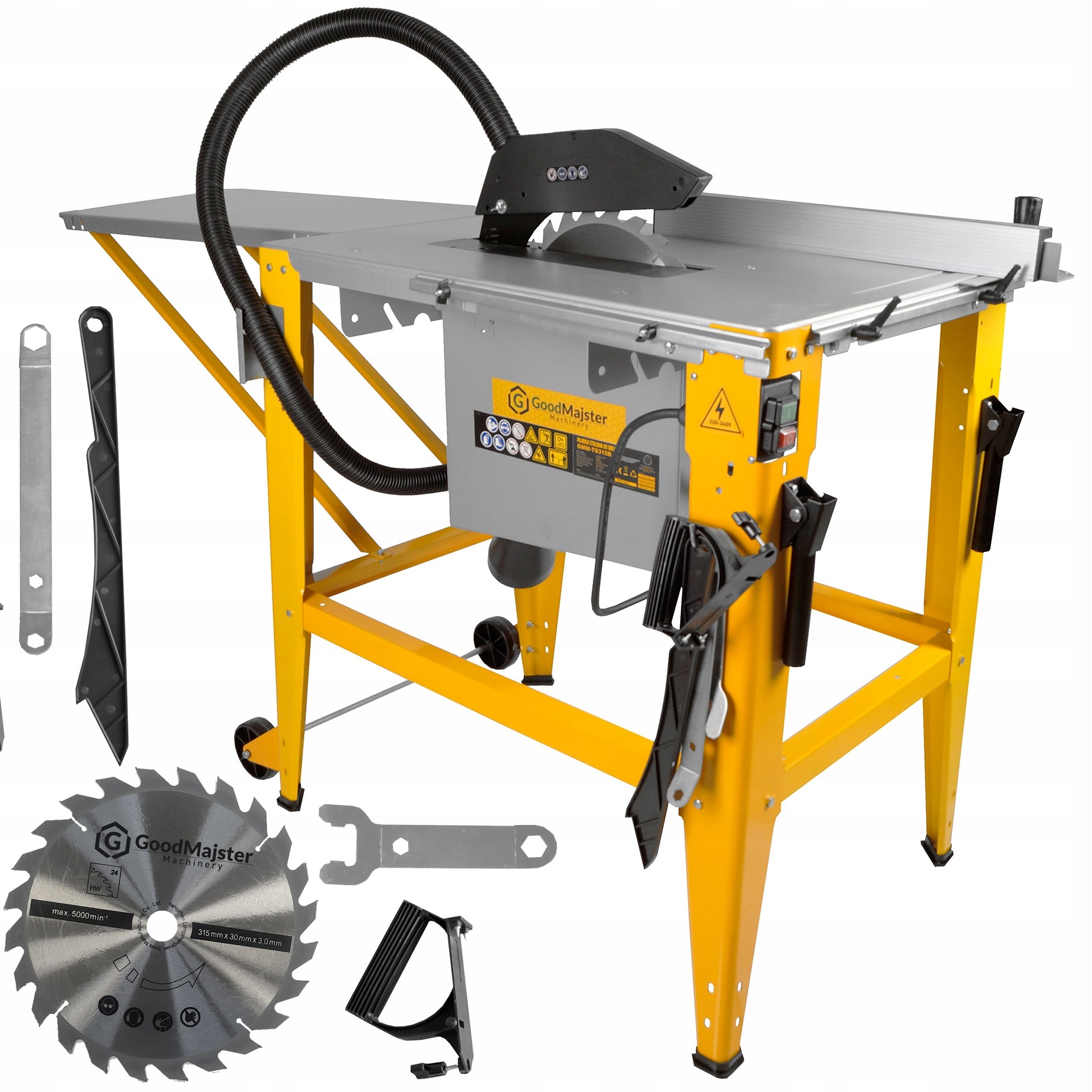

Set Composition:

• ✅Table saw GoodMajster Machinery GMM-TS315R
• ✅Table
• ✅Worktable Enlargement Cover
• ✅2 set of brackets for the insert (transverse and longitudinal version) (MWS SYSTEM)
• ✅ Shield cover
• ✅ Dust extraction hose
• ✅ Parallel Guide
• ✅Slanted Guide
• ✅2 keys
• ✅Cutting disc with spectra mounted on the saw
• ✅2 Wood pushers
• ✅Transport wheels

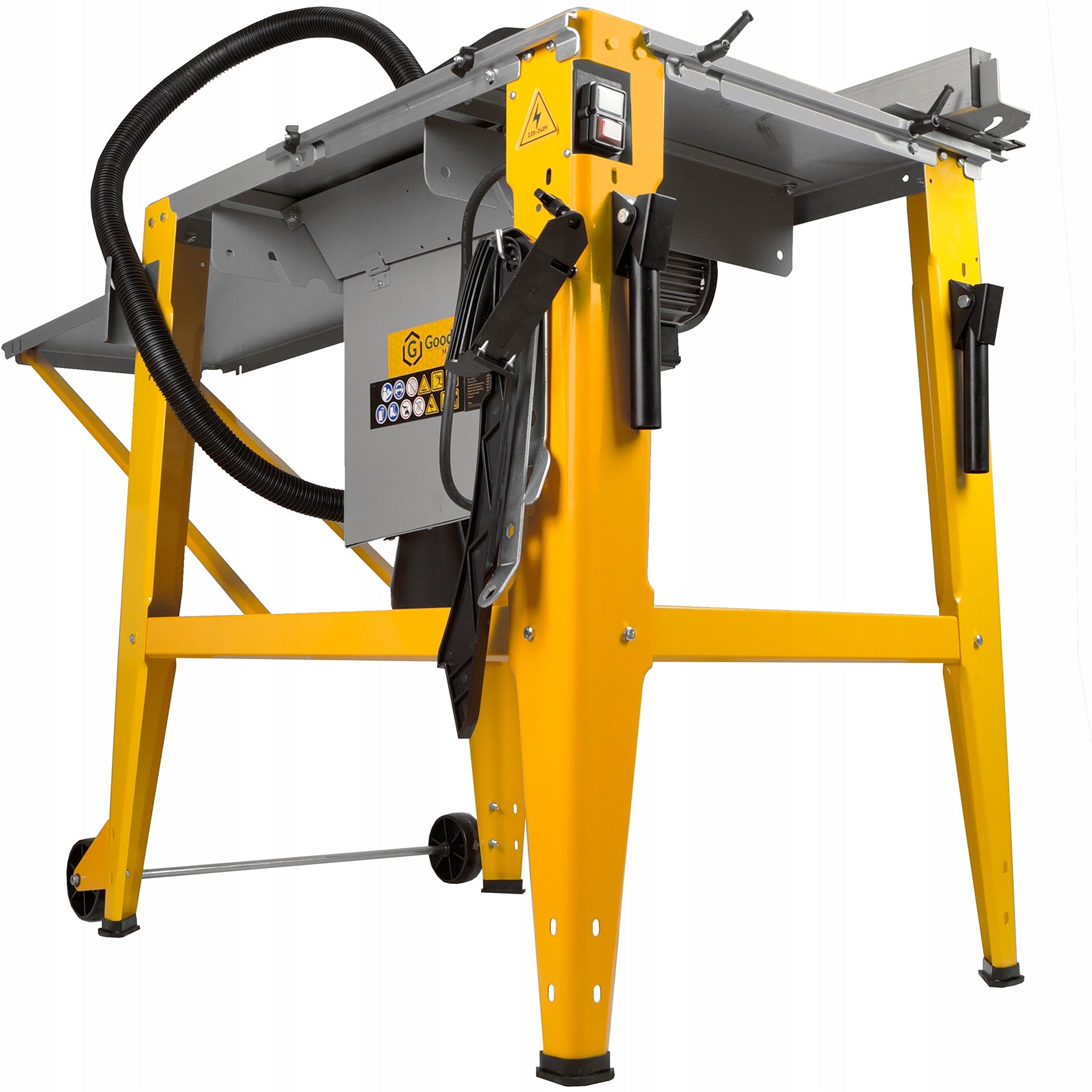

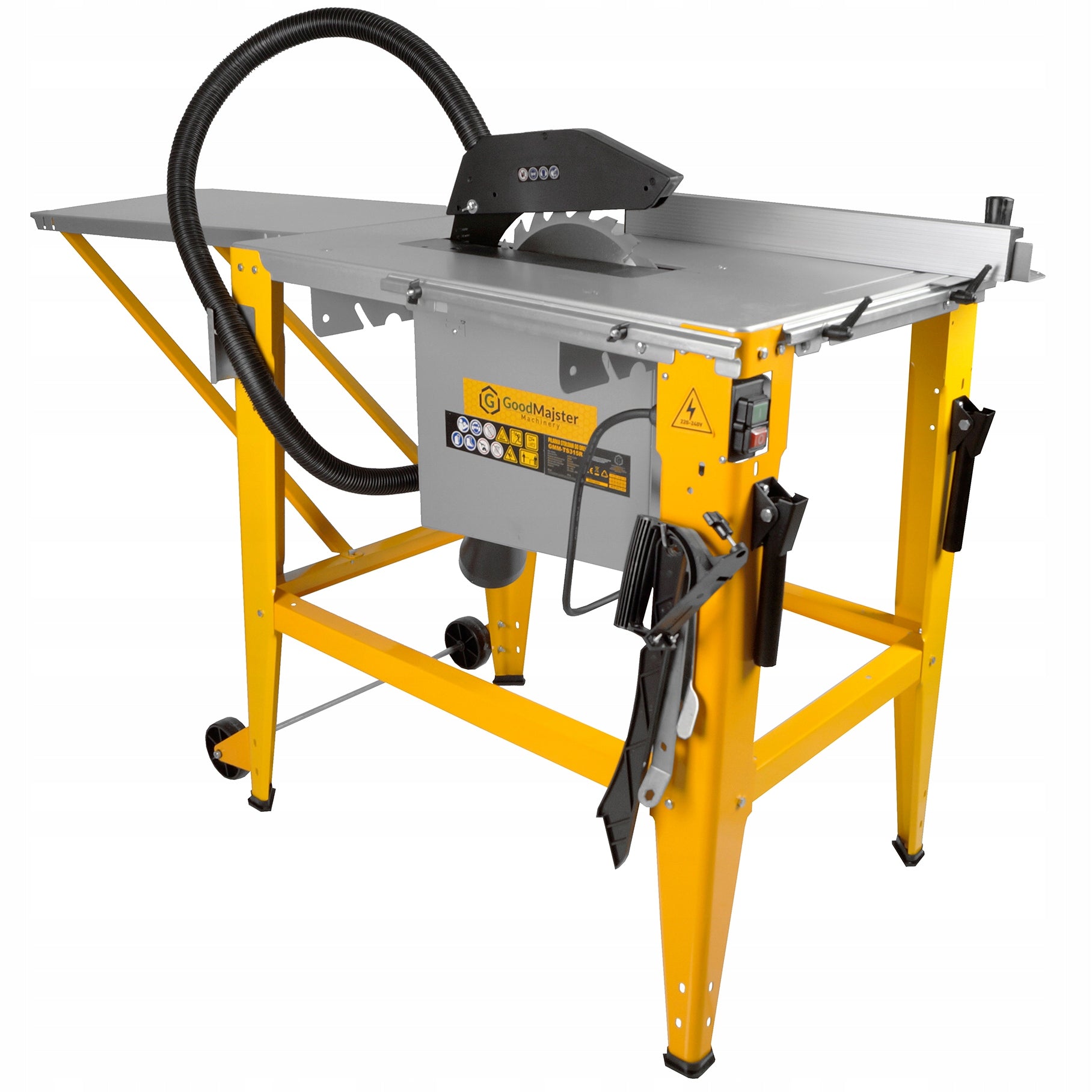

The GoodMajster Machinery GMM-TS315R circular saw is a 315mm table saw with 2800W power!

The GMM-TS315R table saw is designed for ⭐⭐cutting wood⭐⭐ both longitudinally and transversely. Stable table construction made of thick sheet metal, and embossing on the legs of the table make the saw safe during operation, and allows you to process large boards and wooden boards.

The GoodMajster Machinery brand has been using the company's experience since ⭐1999⭐ and is a ⭐Polish brand⭐, guaranteeing professional advice, fast service, and the highest quality of its products, which is why the ✔ Table Saw 315mm is delivered to the customer after TEST EACH COPY. ✔

The GoodMajster Machinery GMM-TS315R table saw has a modern ✅INDUCTION MOTOR developed in a modern formula ✅INDUCTION TECHNOLOGY, which provides EPS power up to ⭐2800W⭐ with a current consumption of 2200W. Modern technology makes it much more efficient than brush motors.

The motor has a fully copper winding - ⏩COOPER ⏩WIRED ⏩TECHNOLOGY, which is much more efficient, resistant to overheating, and damage!

Thanks to the use of an induction motor from the renowned brand RATO, it can be described as the most efficient TABLE SAW in its class. ✅INDUCTION TECHNOLOGY✅ engine provides up to 50% more efficiency than similar machines, guarantees the highest performance, and reliability due to the fact that it has more power and greater efficiency, and does not heat up like a brush motor, and thanks to thermal protection HIGHTEMP will turn off when overheating occurs.

GoodMajster Machinery is a brand whose company has existed since ⭐1999, which is why it has extensive experience in the subject of construction machinery. GoodMajster Machinery is not compared to cheap models of splitters, and its main goal is to offer machines:

⏩ failure-free

⏩of high quality

⏩with high durability

⏩with superior performance

⏩on the best components of recognized manufacturers.

The machine is addressed to ✅demanding customers✅, which is why each unit undergoes detailed quality control at every stage of production: from checking the quality of welds, through checking the efficiency of the hydraulic pump, engine efficiency, ending with checking the operation of the finished equipment.

Innovative work table extension system.

The country has a ✅extended table back or ✅extended on the left or ✅ right side. As one of the few manufacturers of GoodMajster Machinery, it allows you to change the place of the table, from longitudinal to transverse, depending on your needs.

The set includes ⭐supports for both side and longitudinal adjustment.

Developed by GoodMajster Machinery, the ✔ MWS (Maximum Workin Surface)✔ system allows you to customize the machine to your needs.

With MWS we can:

⏩cut long elements - setting the table extension longitudinally - the work table has dimensions 160x55cm

⏩cut wide elements - setting the table extension transversely - the work table has dimensions 80x95cm

Such a change in the MWS supplement is quick, and takes about ⏩2 minutes. It consists in unscrewing 2 screws, and loosening the next two and changing the position of the insert on the table. (Supports should also be replaced.)

Longitudinal, transverse cutting, and full disc adjustment!

The country has a tilting disc, thanks to which it can cut at an angle in the range of ⭐0-45st⭐ This is especially important during carpentry work, because the table saw can perform the processing of boards and furniture boards, and cut edges at a given angle. With its tilting blade, the saw can be used to:

✅preparing boards for furniture

✅machining of furniture boards

✅cuts of OSB and MDF

✅furniture production

✅performing carpentry machining

✅production and processing of roof truss

✅and many other carpentry, carpentry and roofing works.

The table saw has a maximum cutting height of ✅85mm, which makes it able to cut beams, slabs, wood, boards.

The height of the disc is ⭐smoothly adjustable⭐, which makes the cuts accurate.

The height of the cutting disc and the tilt of the disc are equipped with ⭐visible and ⭐durable graduation, and is adjustable with a comfortable crank handle. It is very important that the pitch of the dial has a height indicator, which is synchronized with the dial and shows the height of the dial correctly. You no longer need to measure the height of the disc - just pay attention to the graduation next to the crank of lifting and lowering the cutting disc.

Additional accessories give the possibility of ✅longitudinal and ✅ transverse cutting. The side guide makes it easy to cut boards to the desired width!

The work table has been equipped with a parallel guide, and the guide itself with a convenient quick-clamp ⏩⏩QUICKLOCK! It involves on tightening the sliding rail to lock the side guide, or loosening to move the guide. ⏩⏩QUICKLOCK guarantees stability that the side guide will not move during operation and will not change dimension!

Rails for side guide are located:

- ⭐on the front of the machine (from the switch side), which allows setting the guide for longitudinal cutting.

- ⭐on the left side of the machine, which allows you to set the guides for cross-cutting.

The angle guide that has been attached makes the GoodMajster Machinery saw able to cut at an angle of ✅0-60st✅.

The angle guide has a range of 120 degrees, because we can smoothly set it in the range as ✔ -60st | ✔ 0st | ✔ +60st. An additional advantage is the lock of the most popular angles: ✔ 0 | ✔ 30 | ✔ 45 degrees to guarantee the precision of the cut.

Table saw ✅GoodMajster Machinery GMM-TS315R✅ has a certified switch with overload protection and a socket for connecting the power cord. The switch is made in IP44 protection class, which allows you to work in dust and with average air humidity.

GMM-TS315R ✅the 315mm saw blade is equipped with a ✅ sawdust removal system, so that the work does not harm health and ensures order in the workshop. The sawdust drainage pipe has a handle, which allows it to be placed firmly so that it does not interfere with operation.

The advantage is that the ⭐pipe can be connected to the most popular sawdust extracts⭐ and industrial vacuum cleaners to ensure maximum cleanliness in the workshop.

Thanks to the involvement of Polish engineers in the design, the machine has a large number of warning pictograms to remind the user about the correct operation and health and safety rules. The cutting disc cover is also made of high-quality plastic to effectively protect the operator from debris and chips.

The cutting disc used in the saw is the original product of GoodMajster Machinery. It is ✅hardened and ✅has a widie to ensure the cutting of soft and hard wood.

Additional equipment and convenient transport system guarantee success!

The manufacturer of GoodMajster Machinery has equipped the machine with a service key holder so that they are always at hand. A rich set of accessories greatly facilitates the work:

⏩Pusher for boards

⏩Pusher for furniture boards

⏩service key for shield

⏩transmission service key

Convenient and ergonomic transport system allows you to quickly change the working place of the machine. Two metal folding handles and durable wheels guarantee safe movement of the machine.

The transport system can be used by one person to efficiently move the country. Enough:

1. ✅Turn off the machine.
2. ✅Catch the transport handle and lift it.
3. ✅Tilt the machine backwards - in the opposite direction than the switch.
4. ✅Transport the machine.
5. ✅Tilt the machine forward and put.

What distinguishes the GoodMajster Machinery brand? High quality at an affordable price.

The GoodMajster Machinery table saw comes in original and safe cardboard packaging.

GoodMajster Machinery as a fully POLISH brand ⭐takes care of safety therefore, GMM-TS315R has ⭐warning stickers, instruction manual fully in Polish, developed by Polish engineers to be understandable and clarify most of the doubts.

The table saw was produced for the ⭐⭐ market Polish⭐⭐, which is why it has an instruction manual in Polish, a cardboard box with the inscriptions in Polish, and service and spare parts are located in Poland!

Set Composition:

• ✅Table saw GoodMajster Machinery GMM-TS315R
• ✅Table
• ✅Worktable Enlargement Cover
• ✅2 set of brackets for the insert (transverse and longitudinal version) (MWS SYSTEM)
• ✅ Shield cover
• ✅ Dust extraction hose
• ✅ Parallel Guide
• ✅Slanted Guide
• ✅2 keys
• ✅Cutting disc with spectra mounted on the saw
• ✅2 Wood pushers
• ✅Transport wheels

* EPS EPS POWER - Effective Power Solutions - This is the power with which the device works, compared to a device with the maximum effective power, to the device originally measured. This power is the result of the convergent force. The power is given in rounding. / HP Horse Power

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	GoodMajster
Parametry	Manufacturer code	GMM-TS315R
Parametry	EAN (GTIN)	5906660935995
Parametry	Series	GoodMajster Machinery
Parametry	Batteries included	no
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Supply voltage	230 V
Parametry	Maximum power	2800 W
Parametry	Saw bore diameter	30 mm
Parametry	Rotational speed	2800 rpm
Parametry	Disc diameter	315 mm
Parametry	Maximum cutting height	85 mm
Parametry	Device weight	50 kg
Parametry	Product weight with unit packaging	55 kg
