Stalo keraminio granito plytelių pjaustyklė lazeriu

Trumpai apie prekę

Prekė: Stalo keraminio granito plytelių pjaustyklė lazeriu. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Schwarzbau
• Modelis: TSW230G
• Galia: 1800 W

free diamond blade included 230 mm

• New, improved design!
• Increased engine power
• inductive-brushless engine
• adjustment of the cutting angle
• attachment with protractor
• automatic water pump
• built-in laser
• rubberized top
• cut: dry / wet
• reinforced litter box frame (2 additional struts ! )
• Certified product. Has a declaration of conformity!

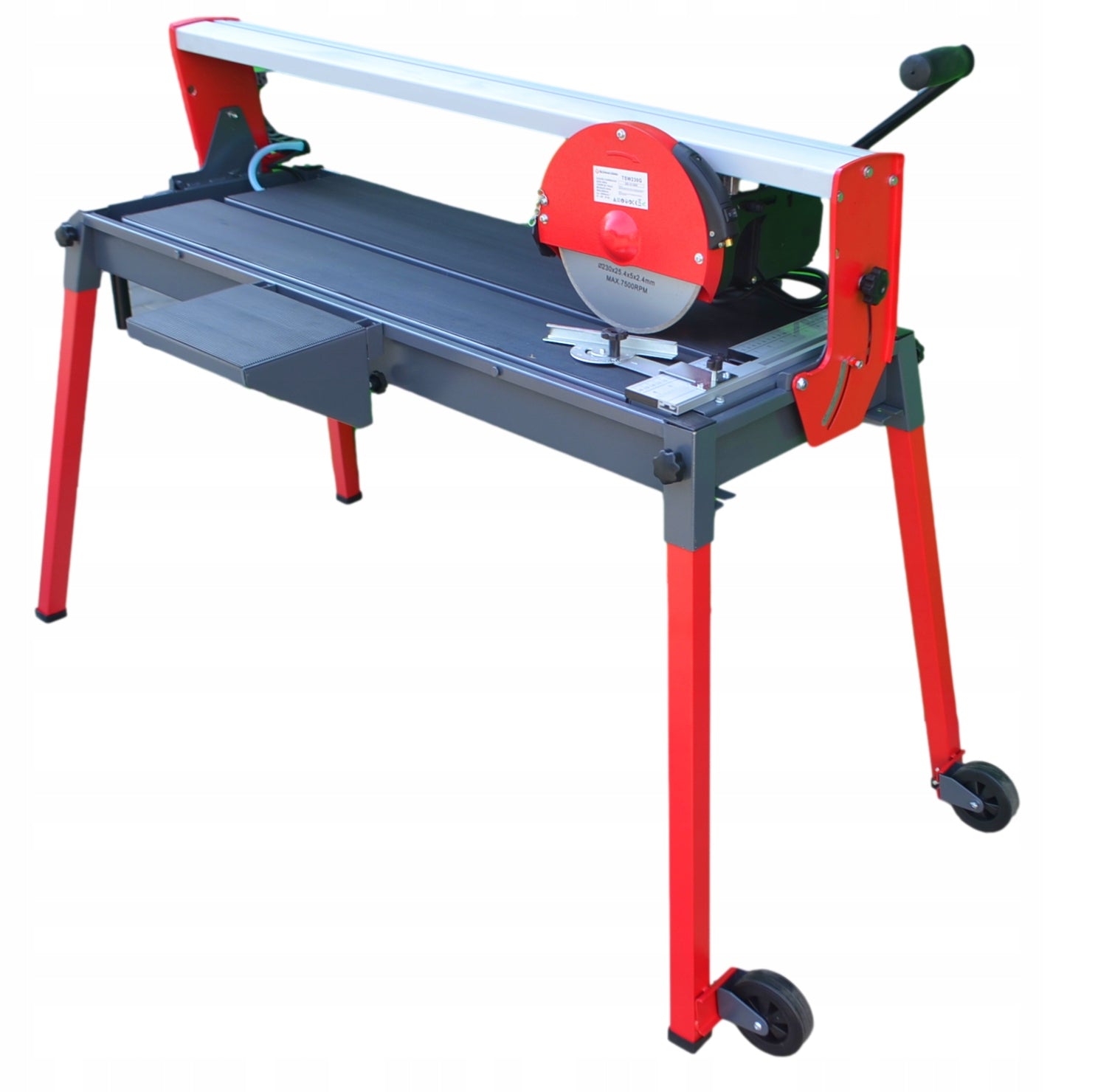

The Schwarzbau TSW230G tile cutter is a sensational machine for precise cutting of all types of tiles. Equipped with diamond disc and pump automatically suctioning water in continuous circulation to cool the disc. The wet working system used in the device with the use of water allows for almost dust-free operation. With this device, you can trim tiles as standard, at an angle (flat), as well as in "penalty". The table is made of thick steel and aluminum. Ideal for all kinds of finishing work on tiles made of glaze, terracotta and stoneware. Due to its power, it can also be used for cutting various types of wood, floor and wall panels, parquet, all kinds of boards and chipboard.

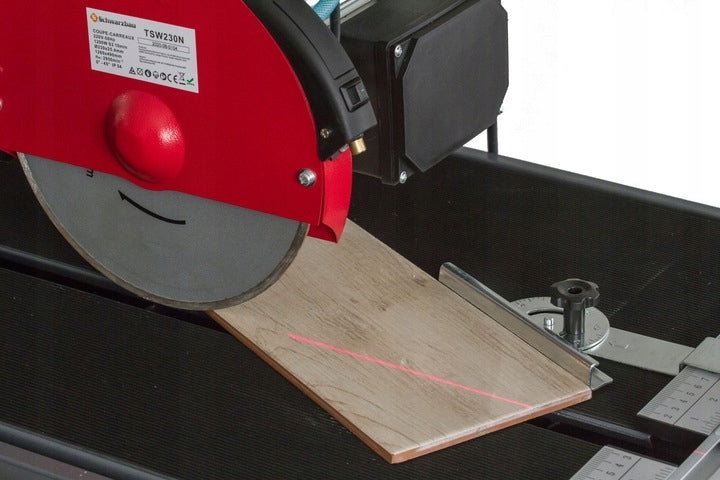

Mounted on the disc cover, the laser guide makes it easy to arrange the cutting material and guide the disc.

The pump to power the cooling system of the disc will recover excess water and give a new portion of coolant. Thanks to this solution, working with the device is almost dust-free, and the shield wears less.

The device comes with a protractor, thanks to which we can easily cut the material at the angle we are interested in.

The power supply system of the shield cooling system is hidden in a peszluelastic protection against interruption or abrasion.

A rubber cover is mounted on the shield to protect against chipping or the rest of the cut material.

The table is equipped with a removable attachment to increase the stability of the material being cut.

• Engine working power 1200W
• power consumption 1800 watt
• Disc rotation 2950 r/min
• max cutting length 92cm
• cutting depth 43 mm
• power supply 230 v / 50 Hz
• diameter of the disc 230 mm
• disc opening 25,4 mm
• built-in automatic pump
• setting the angle of 0-45 degrees
• 4 bearing skid
• induction motor
• rubberised work table
• additional side attachment
• contactor switch
• laser

Contactor switch

Comfortable large handle for engine feed

Reinforced litter box, rubberized work table top, efficient water pump

Precise protractor

Specifications
