Stebėjimo kamera Dahua rinkinys, 5 vnt., 6 Mpx, IPC-HFW1639TC-A-IL, PoE

Trumpai apie prekę

Prekė: Stebėjimo kamera Dahua rinkinys, 5 vnt., 6 Mpx, IPC-HFW1639TC-A-IL, PoE. Kategorija: Rinkiniai.

• Gamintojas: Dahua
• Modelis: IPC-HFW1639TC-A-IL-0280B-S6 (x5) + NVR + HDD KIT

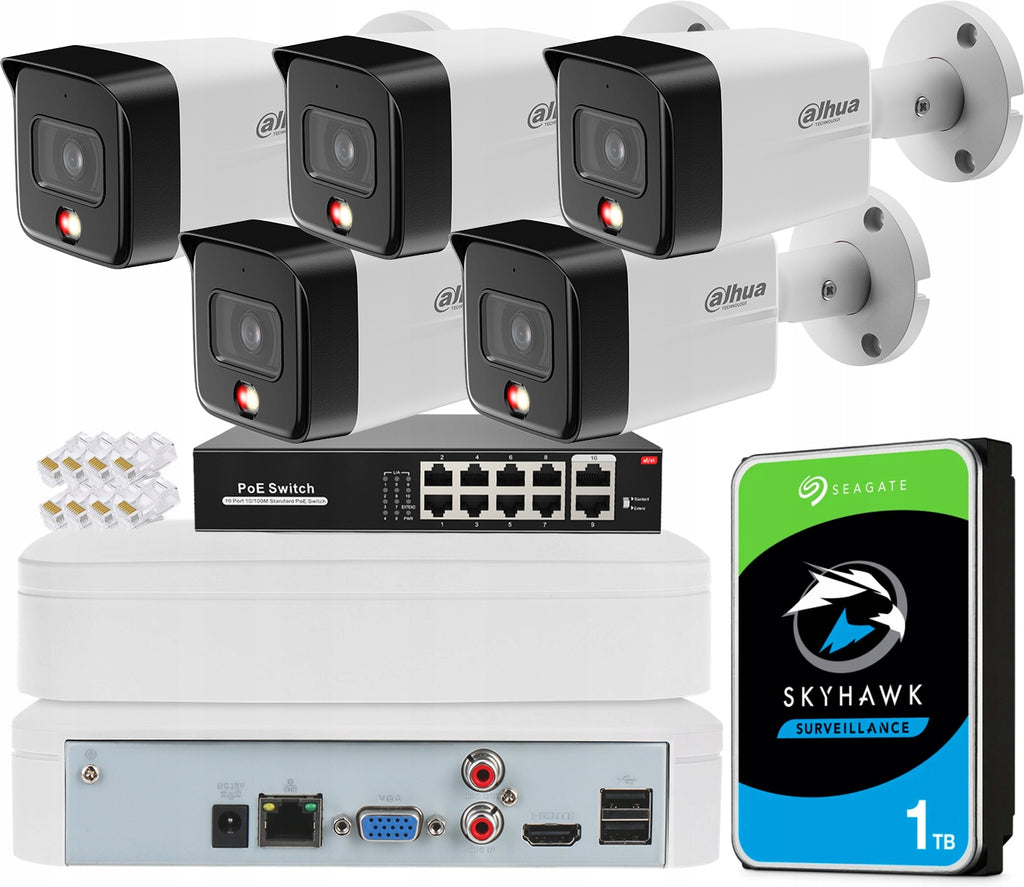

5 x 6Mpx Full-Color IP Camera | 8CH IP Recorder | 1TB HDD | 8x PoE Switch | Plug Set

The most important features of the set:

✅ Dahua PoE surveillance kit with 5 external cameras 6Mpx

✅ Smooth and sharp image in high resolution 6Mpx (3200x1800p)

✅ Cameras with the possibility of mounting inside and outside

✅ Quick and convenient installation of the camera thanks to PoE power technology

✅ Night vision up to 30 meters in colour and infrared - Dual Light technology

✅ Cameras with automatic mode day / night

✅ Motion detection function that sends notifications about key events straight to your application

✅ Overwrite video on disk

✅ Hard Drive Seagate Skyhawkwith large capacity included

✅ Live view and access to recordings via internet on computer, cell, tablet

✅ P2P support (cloud) - a function that allows remote access without port forwarding and public IP address

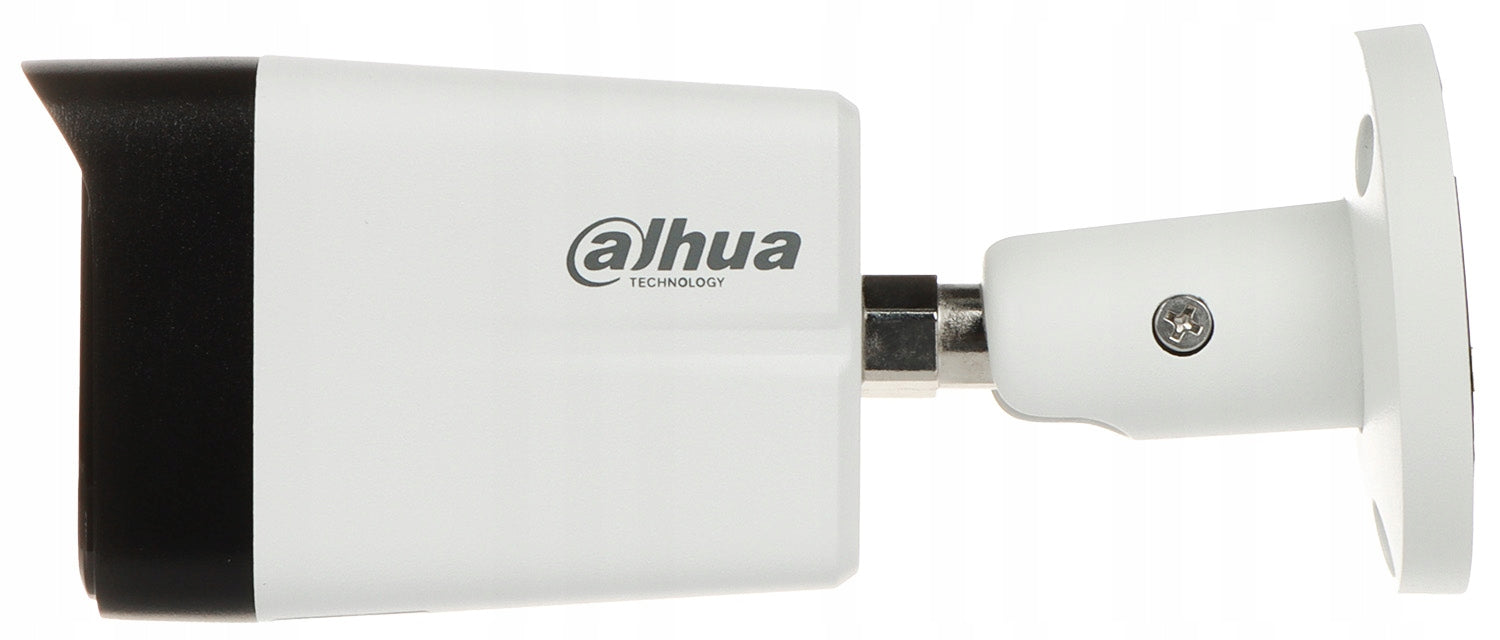

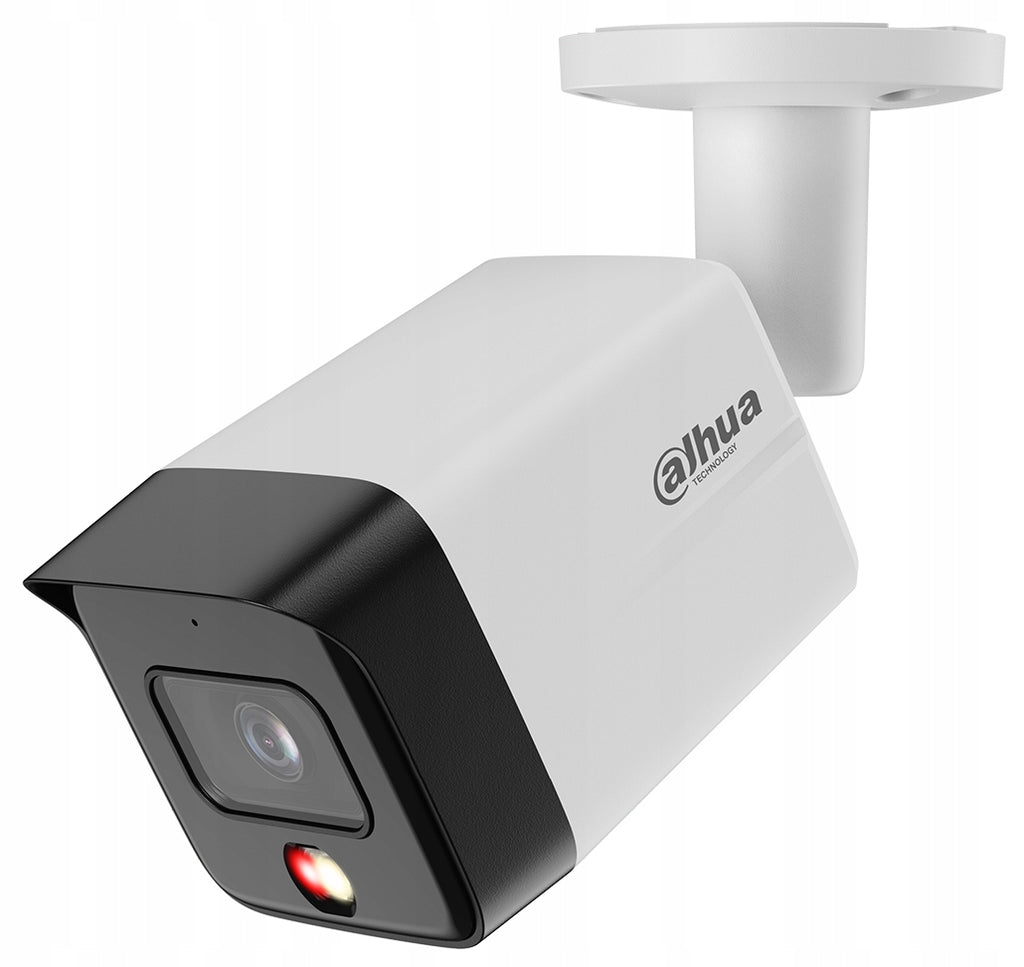

• 5 x 6MP High-Resolution IP Cameras - Dahua IPC-HFW1639TC-A-IL-0280B-S6
• 1 x PoE IP Network Video Recorder (NVR) - Dahua NVR2108-4KS3
• 1 x 1TB Seagate Skyhawk Hard Drive, designed for 24/7 operation
• 1 x 8-Port PoE Switch - EI-H1108PL
• 10 x RJ45 Connectors

The offered monitoring set can be operated and configured using the intuitive mobile application DMSS (smartphones) and the Smart PSS (PC) program. Thanks to this, the user receives constant access to recordings and live view from anywhere with access to the network. An additional advantage of the software is the ability to receive alarm notifications through the motion detection function in cameras.

The DMSS application is available for smartphones with Android and iOS. The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The monitoring system has a built-in motion detection algorithm - when moving objects are detected on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

These cameras feature a dual night mode - allowing you to record grayscale images at night using infrared, or full-color images using the white light illuminator. Thanks to this feature, you can easily identify the colors of an intruder's clothing, even when they are sneaking around in complete darkness.

• Transducer: 1/2.7" CMOS
• Resolution: 6Mpx (3200 × 1800)
• Lens: 2.8mm
• Viewing angle: H: 98°
• Smart Dual Light - use of dual illuminator
• Full-Color - color image technology around the clock
• Built-in microphone: Yes
• Configuration and remote operation: VMS software (Smart PSS, DSS Express, DSS PRO), WEB browser, mobile applications
• Image compression: H.265+ / H.265 / H.264+ / H.264
• Examples of intelligent functions: object classification - object detection
• Leak-proof class: IP67
• Power supply: 12 VDC / PoE (802.3af)
• Power consumption: < 6.6 W
• Dimensions: Φ173.3 mm × 70.0 mm × 70.0 mm
• Weight: 44g

• Number of channels: 8 IP channels
• Resolution supported: up to 12Mpx (up to 8Mpx with AI funds)
• Video outputs: 1xHDMI, 1xVGA
• Video compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 20TB
• Mobile application: DMSS, Smart PSS
• Support for ONVIF: Yes
• PoE power budget: < 36W
• Ethernet speed: RJ45 10M/100M
• Dimensions; 204.6 mm × 206.4 mm × 45.6 mm
• Power Supply: 48VDC

The disk in the set is a model from the Skyhawk series, dedicated to monitoring, characterized by a higher service life.

• Capacity: 1 TB
• Cache: 64 MB
• Interface: Smart SATA 6 Gb/s
• Size: 3,5”
• revolution /min: 5700 rpm. /min

Industrial switch is a universal PoE switch, dedicated to work in network monitoring systems that require power supply in the PoE standard.

Technical parameters:

• Number of PoE power ports: 8
• Number of Uplink ports to expand the system: 2

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 10x RJ45 plug
• A set of instruction manual

Specifications
