Stebėjimo kamera rinkinys, 4MP IP PoE, 4 vnt., 2560x1440, juodos

Trumpai apie prekę

Prekė: Stebėjimo kamera rinkinys, 4MP IP PoE, 4 vnt., 2560x1440, juodos. Kategorija: Rinkiniai.

• Gamintojas: Zintronic
• Modelis: 4xIKTP430LV2-B-IR9P4S18MPL-0

Aimed at customers with high requirements who expect reliable quality at a reasonable price. The set includes 4 B4 cameras from the renowned company Zintronic, characterized by excellent quality. This model enjoys great popularity and recognition due to its reliability. The compact housing and robust components guarantee trouble-free use. These cameras are perfect for both inside room monitoring and outside.

____________________________________

✅Complete set ready for assembly

The kit comes immediately configured, cameras paired with the DVR, all ready for assembly. There will also be instructions for connection in the box. ( SET WITHOUT DISK )

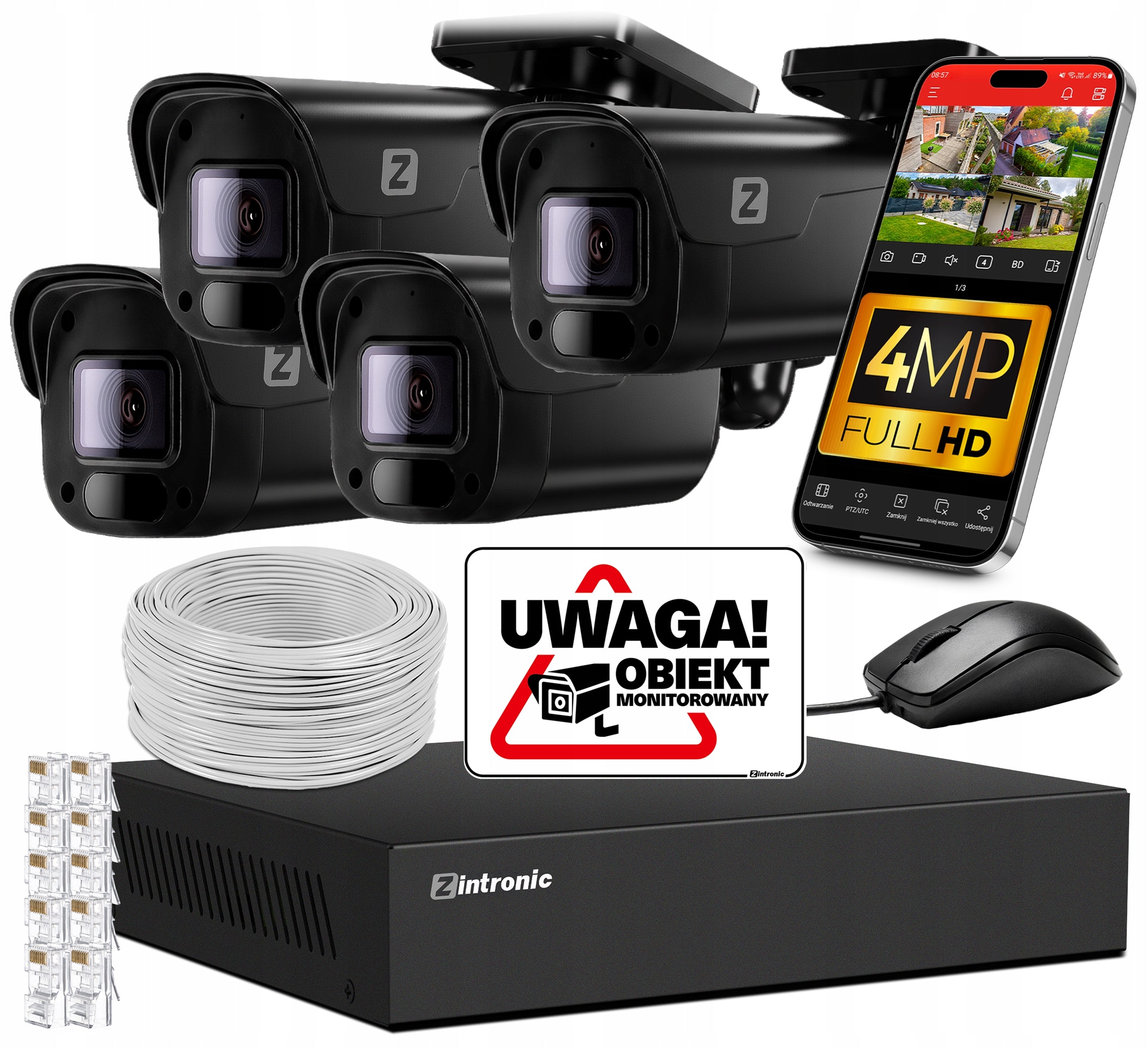

COMPOSITION OF THE SET:

• 4x B4 Tube Cameras (4mpx)
• 1x 9kan 4PoE Recorder
• 1x Monitored object plate
• 40m twisted pair with tips

What sets our set apart?

⚡ Plug & Play: ready to go – connect the cameras and scan the QR code.

📸 4 Mpx (2560×1440 @ 25 fps): sharp, realistic day/night image.

🎯 Angle 85° (3.6 mm): wide view and good detail.

🌙 IR up to 30 m: clear night recordings

🔄 Up to 9 cameras: easy system expansion.

🌍 Remote view: phone, computer, TV.

🎙 Audio: built-in microphone – picture with sound.

🔌 PoE: power supply and transmission with one cable.

🧑 🔧 Support: quick technical support of the specialist.

WHY ZINTRONIC

Securing an important facility with monitoring does not have to cost several thousand zlotys immediately. We try to offer you a solution that will give you the best parameters at a reasonable price.

⚠ ⚠

All elements of the sets can be purchased separately. We do not sell ready-made products created in China with truncated parameters, we only select full-value products for sets. Then know that we are dealing with a ready-made set from China - It has one large collective box with a recorder, and the cameras can not work separately and can not be purchased separately.

• Full-featured Cameras vs. Limited Parameters: While others offer ready-made kits with cameras with limited features, we provide full-fledged cameras that are reliable and efficient. We also sell them individually at separate auctions
• Individual selection of Components: Our kits are assembled with the highest quality components that are carefully selected to ensure the highest quality of monitoring. We do not rely on mass-produced kits from China, which often have limited features.

➡ It means it means longer service life and greater functionality, quality and reliability compared to cheaper, ready-made solutions.

⚠ LIVE VIEW FROM ANYWHERE

TV - Computer - Smartphone/Tablet

Keep an eye on and access to your cameras wherever you are!

Our equipment is dedicated to free software in Polish which allows you to log in and operate the cameras in the most convenient way for you:

1. Traditionally on TV/Monitor via DVR
2. On your computer through a browser on your local network or IVMS 320 or Bitvision.
3. Phone/Tablet - Bitvision app

The horn camera of the B4 model is not only simplicity, but also attractive aesthetics and solid components, which guarantee pleasurable experience from use. The Universality of the camera makes it perfect for both inside and outside buildings, enabling uninterrupted observations around the clock.

Examples of using cameras for:

• home, office, office
• shop, warehouse
• corridors, staircases
• garages, plots, plants
• schools, offices, churches,

Resolution - 4MP 2560*1440@25kl/s

Thanks to the innovative solutions used, the camera guarantees smooth and sharply defined image both day and night. This will allow you to see even more precise details, meeting expectations both in the case of daytime monitoring and in more difficult lighting conditions at night.

Lens with a wide viewing angle of 85°

Discover new horizons with our 3.6 mm focal length lens, which will give you a wide viewing angle of 85°! With this innovative solution, you can enjoy a fuller picture, capture more details, and easily monitor areas with a larger footprint.

Built-in MICROPHONE

Security is not just an image - it's also sound. The camera is equipped with a built-in microphone that allows not only precise image recording, but also excellent recording of sound in real time.

Infrared - 30m night vision

IR LEDs mounted in the camera will allow you to view from the camera even in the middle of the night. The camera is equipped with new generation IR diodes, which are able to illuminate the monitored area at a distance of up to 30 meters.

Motion Detection

After determining the area for monitoring, such as the driveway or door, you have the ability to precisely configure the start time of recording by the recorder or camera. This function works both according to the schedule and when motion is detected in a given area, sending notifications to the application or computer.

Mask of privacy

The use of monitoring may violate the privacy of neighbors/other people. The privacy mask feature offers us to set a private zone that will be covered.

Privacy zones are freely configurable by the user areas of the image on which a mask is applied, causing them to be excluded from monitoring. Thanks to the privacy zones, it is possible to record fragments of the image with respect for the right to privacy.

The recorder supports up to 9 cameras, has 4 built-in Poe ports, which allows us to connect 4 cameras directly, and if we want to expand our system, you can either add the remaining 5 cameras over the network or using an additional PoE switch.

Multifunctional digital recorder to support 9 IP cameras.

1. Supports up to 9 cameras in up to 4k/Ultra HD 8MPx resolution
2. Built-in PoEx4 ports

✅ Recorder Allows us to save to disk and support all our Cameras from one place, as well as a number of different functions.

Recorder functions included:

• Local and remote preview (image preview can be tracked locally on the monitor/TV at the recorder or on a computer or smartphone using the free in Polish from anywhere on earth).
• Motion detection - you can set a notification when motion is detected in the observed area. Motion detection is based on an algorithm that analyzes changes in the image seen by the camera, and its sensitivity can be set from 1 to 10. In the options you can choose exactly what detection area we are interested in.

• Sending notifications to the email / application - When motion is detected, the registrar will send us a notification along with a photo to the email or push notification to the application on the phone.
• Recording on disk - continuous, temporal or event-induced recording such as motion, alarm, vandalism (the length of the recording depends on the disk capacity we install and whether we set the recording invoked by the event or continuous).
• Backup and ripping to portable memory (USB memory)
• Automatic overwriting of recordings - if the disk fills up, the system will automatically overwrite recordings on the oldest files.
• H265 compression allows you to save disk space and longer write time For example: 1 TB drive at a resolution of 2592x1944 with 4 cameras lasts for: 6 days

Phone app

Intuitive, Polish-language application BitVision - allows you to constantly view the monitored room, and view recorded events on the MIcro SD card. In the application you can also take photos and record videos (photos and recordings will be saved to a smartphone with the application installed). It is also possible to digitally zoom in on any place in the displayed image (digital zoom).

• Live preview from the app
• Incoming notifications for applications
• Ability to take photos and videos
• Ability to view recordings
• Digital magnification of any area of the displayed image x8

WHY IP MONITORING

• IP monitoring gives us better quality and more smooth image
• Lower installation costs IP technology uses only one UTP cable,
• Installation is simpler and cheaper to start (just plug the camera into the recorder and the recorder will detect and activate the cameras)
• Increased functionality
• Possibility of connecting cameras over longer distances up to 90m.

⚠ Method of connecting the set – quick installation of the monitoring set:

1. Place the cameras in the planned mounting locations and connect the LAN cable to each of them.
2. Connect the other ends of the LAN cables from the cameras to the PoE ports of the recorder (order is arbitrary).
3. Connect the recorder to the router with a LAN cable – from the LAN port of the recorder to the LAN port of the router.
4. If you plan to have access to the DVR menu on your TV or monitor, connect it with an HDMI cable.
5. Connect the power supply from the box to the recorder and to the 230V network.
6. Install the Bitvision mobile application on your Android or iOS phone, create an account (preferably in the gmail.com domain) and add a recorder by scanning the QR code (visible on the sticker on the bottom of the recorder or on the box), entering the login: admin and password: 12345 and CAPTCHA verification code (from the above-mentioned stickers).
7. The monitoring set is active.

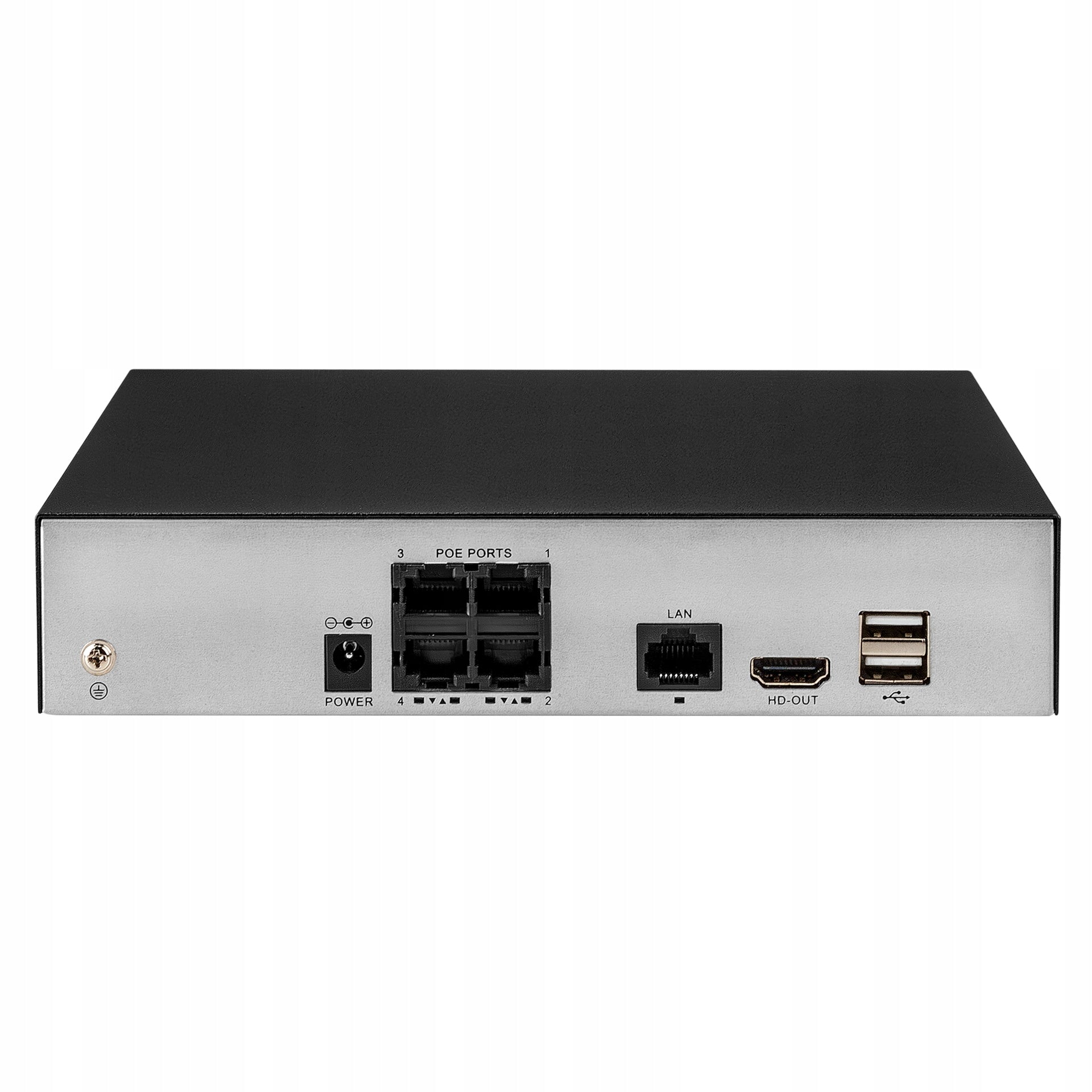

✅NVR IP 9 Channel 4PoE Network Recorder 8MPx 1 Sata x 1pcs

• SKU: IR9P4S18MPL
• Number of cameras supported: 9
• Number of POE ports: 4
• Throughput: 80MB
• Maximum supported resolution: 8MP/4K (3840×2160)
• Number of hard drive inputs: 1 x SATA, (up to 8TB)

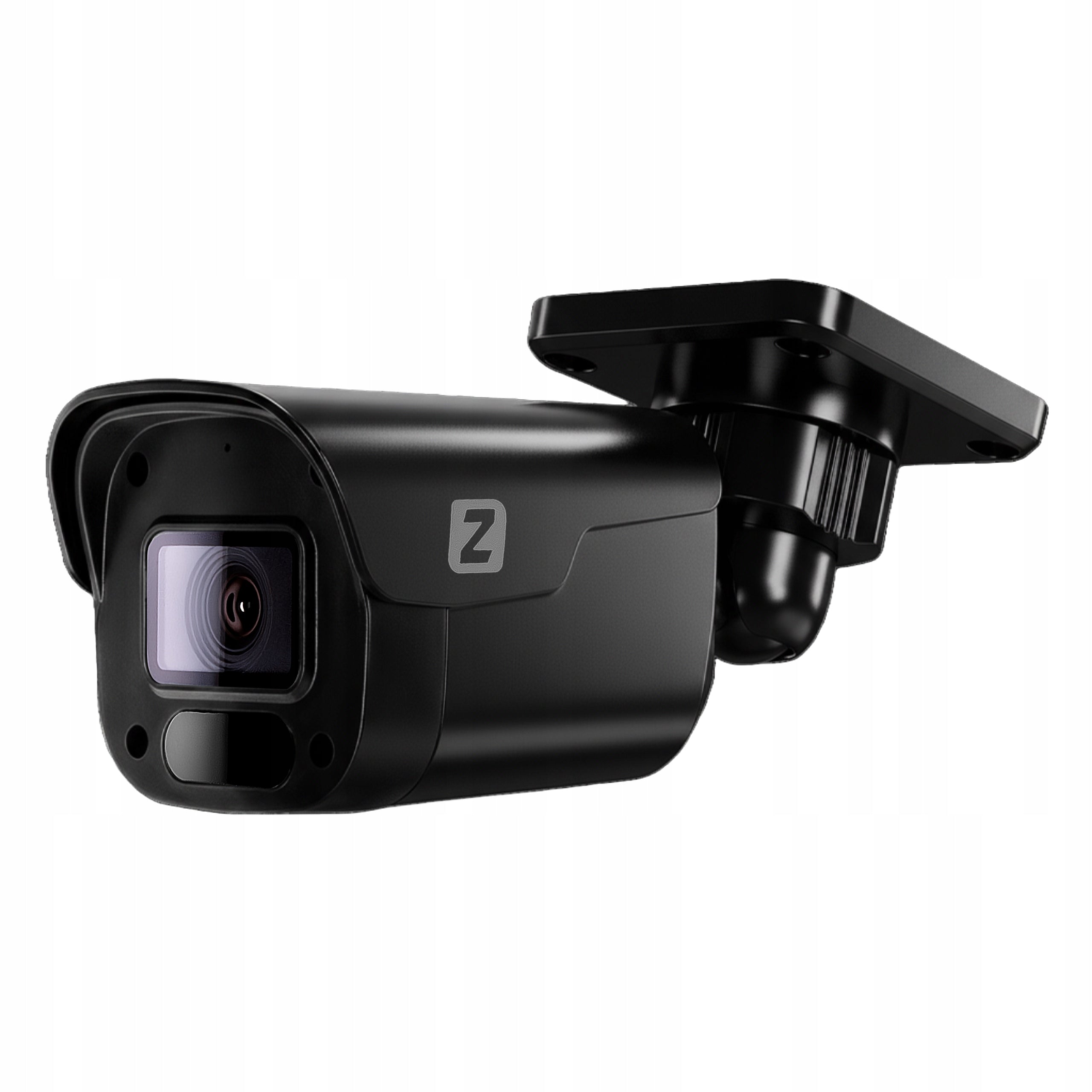

✅IP camera 4MP B4 30M IR 3.6mm - 4 pcs.

• SKU - IKTP430LV2
• Type of camera - Network
• 4MPx 2560*1440@25kl/
• Audio recording: built-in microphone

✅Adhesive information board - 1 pcs.

• SKU: T-25X175Z

✅Ethernet LAN Cable Network CAT5 40m BITNER 100% Copper

• SKU: BITK5UTPW

✅Ends/plugs rj45x10pcs

• SKU: RJ45/C53

ATTENTION! A: It is possible to convert twisted pair to patch cords without additional surcharge.

Example view from the camera:
