Stebėjimo kamera rinkinys HiLook by Hikvision, 6 IP kamerų, 6 MP, lauko, PoE, su programėle

Trumpai apie prekę

Prekė: Stebėjimo kamera rinkinys HiLook by Hikvision, 6 IP kamerų, 6 MP, lauko, PoE, su programėle. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: IPC-B160HA-LU (x6) NVR CAT5E HIK SW EIFLEX

6x Outdoor IP Camera 6Mpx | 1x 8-Channel IP Recorder | 8+2 PoE Switch | Wiring & Mounting Accessories

✅ PoE IP monitoring kit with 6 external cameras 6MPx

✅ Excellent image quality 6MPx - all details in the image remain legible at all times

✅ Cameras with the possibility of mounting inside i on outside the building - protection class IP67

✅ Convenient installation of cameras thanks to the function of powering cameras via PoE switch

✅ Built-in lights in Hybrid Light technology:

• infrared IR illuminating the scene at night up to 30m from the camera
• white LED lights lighting the scene at night up to 20m from the camera

✅ Motion detection function 2.0 - cameras detect movement and also recognize objects (human/vehicle), limiting false alarms

✅ Built-in microphone in cameras for sound recording - you will not only see, but also hear what is important

✅ Function overwrite video (loop recording)

✅ Preview via the Internet on your computer, smartphone or tablet

✅ Crimping machine, set of plugs and UTP cable by Hikvision included

➡ ➡ ➡ Expandable to 8 cameras

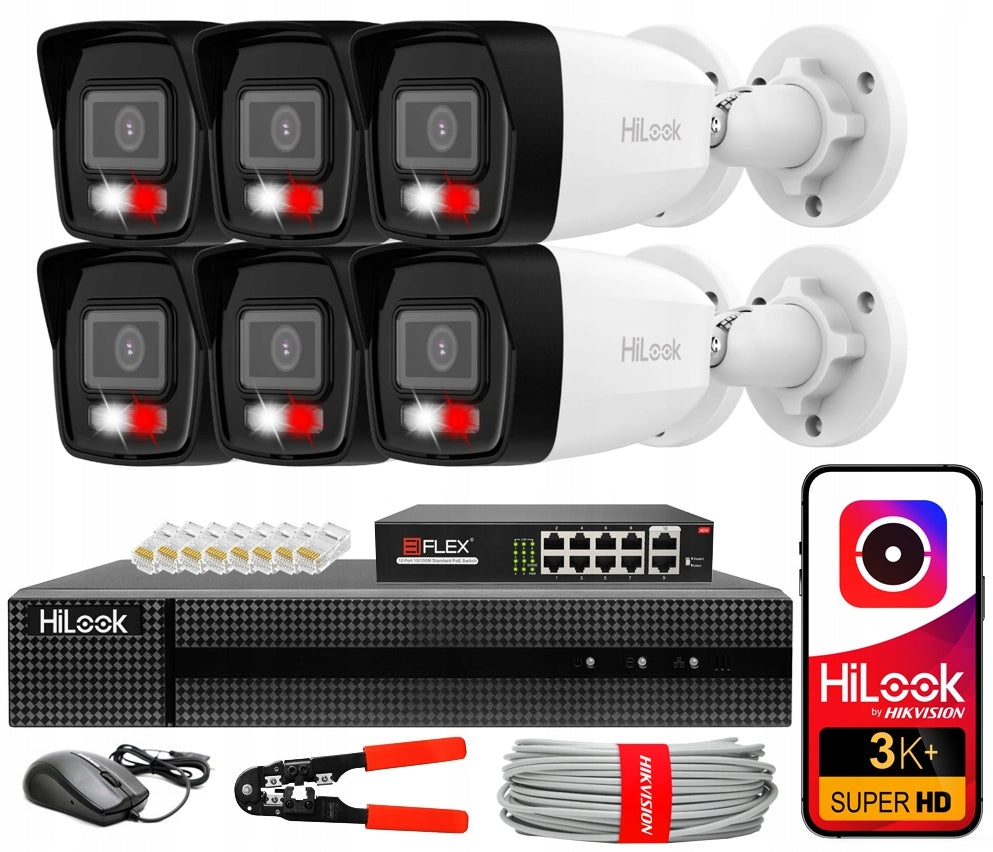

• 6 x 6Mpx horn outdoor camera - IPC-B160HA-LU HiLook by Hikvision
• 1 x 8-channel IP recorder - NVR-108MH-C HiLook by Hikvision
• 1 x PoE Switch 8+2 Eiflex for powering cameras and connecting the system to the Internet
• 1 x UTP twisted pair cable by Hikvision - 60 meters
• 12 x RJ45 modular plug - for cameras and switch
• 1x RJ45 Plug Crimping Machine

The above system has been selected so that its installation is maximally simplified and intuitive. All devices and accessories are fully compatible, and the instructions included in the kit will guide you step by step through the installation and configuration process. And if you encounter any problem, our experts are at your disposal.

✅ Remote Viewing on PC and Mobile App

HiLook surveillance systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, and the iVMS-4200 software for PCs. This gives the user constant control and supervision over the monitored area from anywhere in the world with network access. The app and software allow you to:

• View live video
• Remotely play back recordings
• Create scenarios and motion detection rules
• Control PTZ (Pan, Tilt, Zoom) cameras
• Receive notifications about events within the system

The application uses the P2P cloud for operation, so the system does not need to have ports forwarded on the router.

✅ Hybrid Light - motion-activated lighting

The HiLook IPC-B160HA-LU uses Smart Hybrid Light technology, which combines the advantages of classic infrared (IR) illumination and white LED light.

In standard mode, the camera can work discreetly in infrared, providing night monitoring without visible light. However, when the system detects the movement of a person or vehicle, the camera can automatically turn on the white LED lighting, switching to color night vision mode. Thanks to this, the recordings are more detailed and allow you to more easily recognize the important details of the event, and the inclusion of light also works preventively, deterring potential intruders.

✅ MD 2.0 Intelligent Motion Detection

The advantage of IPC-B160HA-LU BLACK cameras is the intelligent motion detection technology, used in them, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Thanks to the algorithm, the camera will allow you to:

• Recognize moving people and vehicles with high accuracy.
• Limits the number of false alarms caused by falling leaves, insects, etc.
• Instantly informs about the detection of cars or people in the application by means of a "PUSH" notification

✅ 3K+/6MPx resolution

The 6MP resolution in the camera provides significantly more detail compared to standard 4 MP or Full HD cameras.

With more pixels, the image is more detailed, making it easier to recognize faces, license plates and small details in the monitored area. Higher resolution also allows you to cover a larger area with one camera without losing image quality, and also allows digital magnification of fragments of the recording while maintaining good readability. In practice, this means more effective monitoring and greater certainty of event identification.

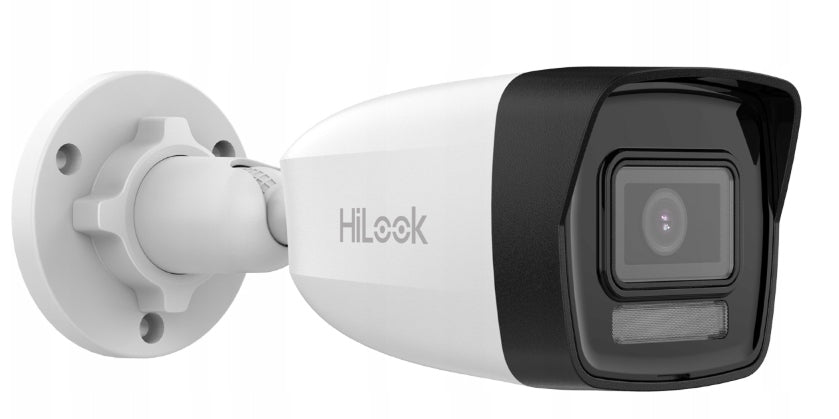

The IPC-B160HA-LU is a network model with 6MPx resolution, equipped with a dual illuminator (IR+LED), microphone and built-in intelligent motion detection algorithm MD2.0.

Technical parameters:

• Converter: 1/2.4” 6MPx CMOS
• Recording resolution: 3200 × 1800 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~113°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: True WDR 120dB
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: DUAL - color or infrared
• Infrared range: up to 30 m
• White light range: up to 20m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HikConnect/ HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, Application
• Assembly: external or internal
• Power Supply: 12V or PoE
• Color: white
• Protection class: IP67
• Dimensions: 184.1 × 66 × 69.1 mm

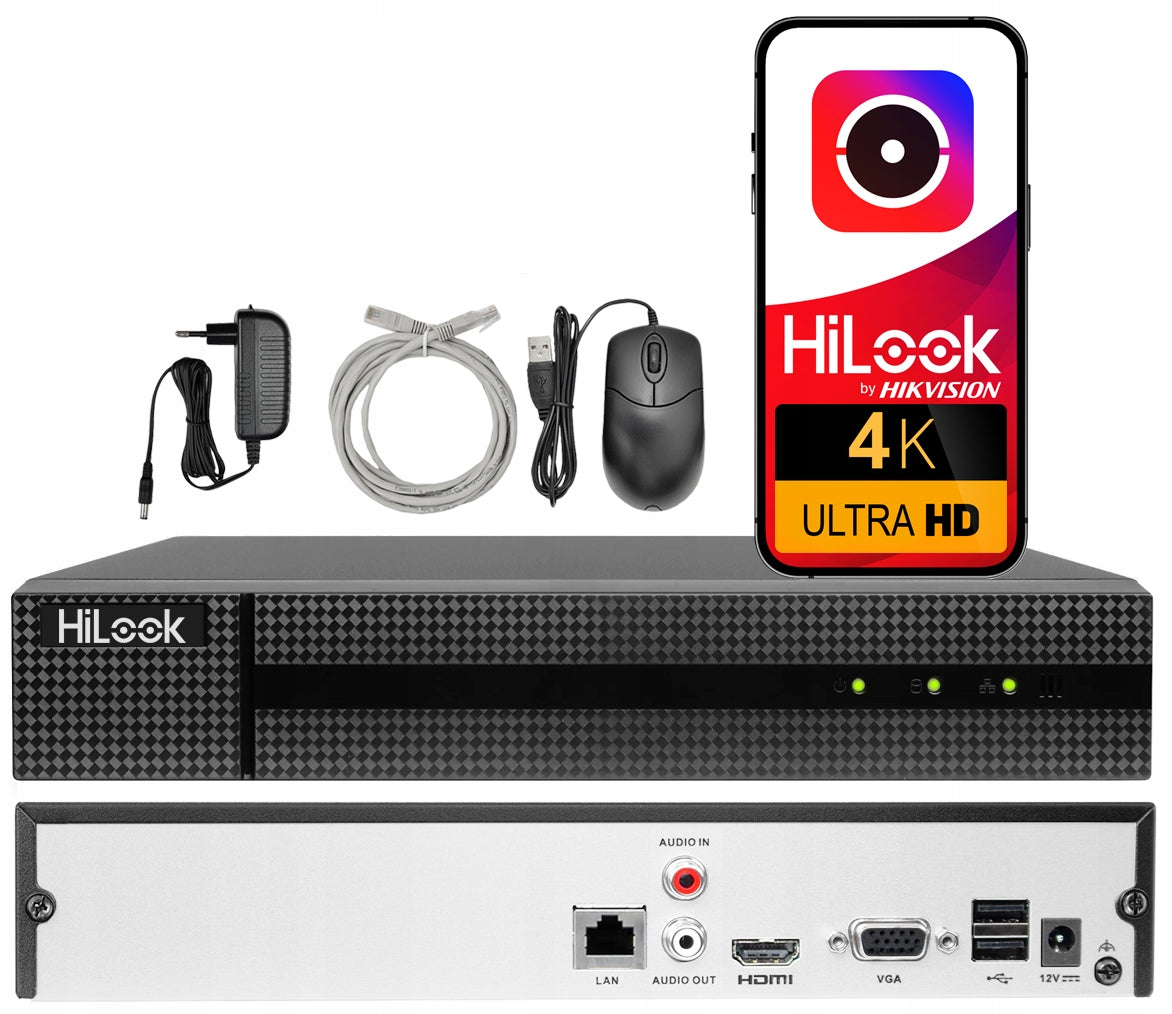

Efficient 8-channel IP recorder, allowing you to support cameras with a maximum resolution of up to 8 megapixels.

• Number of channels: 8 channels
• Resolution supported: up to 8Mpx (4K 3840×2160)
• Decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/4-ch@1080p (30 fps)
• Motion detection: Yes, supported
• Intelligent image analysis: on 4 channels, human/vehicle traffic filtering (MD2.0)
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile app: HiLook App
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 12VDC

Includes power supply and mouse.

Model EI-H1108PL by EIFLEX is a universal POE switch with a large power budget (120W) dedicated to connecting and powering network devices, such as IP cameras or IP video intercoms.

Parameters:

• Number of ports: 10
• PoE ports: 8x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbs RJ45
• Switch Type:Unmanaged
• PoE power standard: IEEE 802.3af/at PoE+
• Power of one port: up to 30W
• Total PoE power: 120W
• Bandwidth: 2Gbps
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 195*130*40mm

UTP cable included is a high-quality twisted pair computer brand Hikvision, category 5E, with four pairs of asymmetrically twisted conductors - dedicated to CCTV systems.

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 12x RJ45 plug
• 1x Crimping machine for plugs
• A set of instruction manual

The offered set guarantees trouble-free and smooth operation ensuring full safety of the monitored object or terrain. HiLook systems are solutions valued all over the world, with excellent technical parameters and the best value for money.
