Stebėjimo kamerų rinkinys HILOOK BY HIKVISION, 6 x 6MP, POE, 2TB, juodas

Trumpai apie prekę

Prekė: Stebėjimo kamerų rinkinys HILOOK BY HIKVISION, 6 x 6MP, POE, 2TB, juodas. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: IPC-T260HA-LU BLACK(x6) NVR HDD 2TB (DSDi Ready)

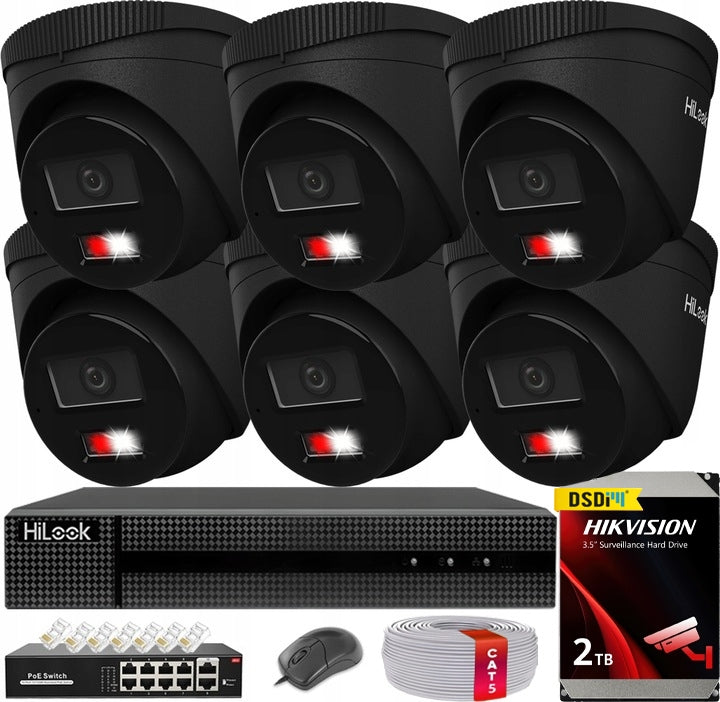

6x Outdoor IP Camera 6Mpx HiLook | 1x 8-Channel IP Recorder | 1x 2TB Drive | 8+2 PoE Switch | Wiring & Mounting Accessories

✅ IP surveillance kit in PoE technology with 6 dome cameras IPC-T260HA-LU BLACK

✅ Excellent image quality thanks to the 1/2.4'' CMOS sensor with a resolution of 3200 × 1800p @6Mpx

✅ Cameras that can be mounted inside and outside the building - IP67 protection class

✅ Convenient camera installation thanks to the PoE camera powering function

✅ Built-in illuminators with Hybrid Light technology:

• IR infrared illuminating the scene at night up to 30 m from the camera
• white LED light illuminating the scene at night up to 20m from the camera

✅ Motion detection function - notifications in the application and recording of important events

✅ Built-in microphone for sound recording

✅ Alarm filtering algorithm with object recognition - human/vehicle

✅ Video overwriting function (loop recording)

✅ Hikvision 2TB heavy-duty hard drive included

✅ Online viewing on your computer, smartphone or tablet

✅ P2P support (cloud) - a feature that allows remote access without port forwarding and public IP address

• 6 x Outdoor dome camera 6Mpx - IPC-T260HA-LU BLACK HiLook
• 1 x 8-channel IP recorder - NVR-108MH-C HiLook
• 1 x Switch PoE 8 + 2x Uplink EI-H1108PL Eiflex
• 1 x Hard drive for CCTV - Hikvision 2TB (or equivalent Seagate/Toshiba/WD Purple - subject to availability)
• 1 x UTP twisted pair cable - 30 meters
• 12 x RJ45 plug

The above system has been selected so that its installation is maximally simplified and intuitive. All devices and accessories are fully compatible with each other, and the instructions included in the kit will guide you step by step through the installation and configuration process. And if you encounter any problem, our experts are at your disposal.

HiLook surveillance systems can be controlled, configured, and managed using the intuitive **HiLook App** for smartphones and tablets, as well as the **iVMS-4200** software for PCs. This provides users with **constant control and monitoring** of the surveilled area from anywhere in the world with internet access. The app and software allow for:

• Live view
• Remote playback of recordings
• Creating motion detection scenarios and rules
• Controlling PTZ (Pan-Tilt-Zoom) cameras
• Receiving event notifications within the system

The app uses P2P cloud technology, so your system does not require port forwarding on your router.

The cameras in this kit feature innovative **Hybrid Light technology**. With built-in IR and LED illuminators, they enable effective night observation in both infrared (black and white) and full-color modes. The illuminator range is **30 meters for IR and 20 meters for LED.**

This ensures a **higher level of security**, allowing for effective object identification by color, in any lighting conditions.

The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.

The advantage of the camera is the proprietary technology Motion Detection 2.0, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Thanks to the algorithm, the camera will allow you to:

• Recognize moving people and vehicles with high accuracy.
• Limits the number of false alarms caused by falling leaves, insects, etc.
• Instantly informs about the detection of cars or people in the application by means of a "PUSH" notification

The recorder in the set supports the efficient H.265+ image compression standard. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant saving space on the hard disk and extending the archiving time of recordings on the disk.

The cameras included in the set are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with a focal point in which the recorder is located is connected using a single UTP category 5 cable (twisted pair).

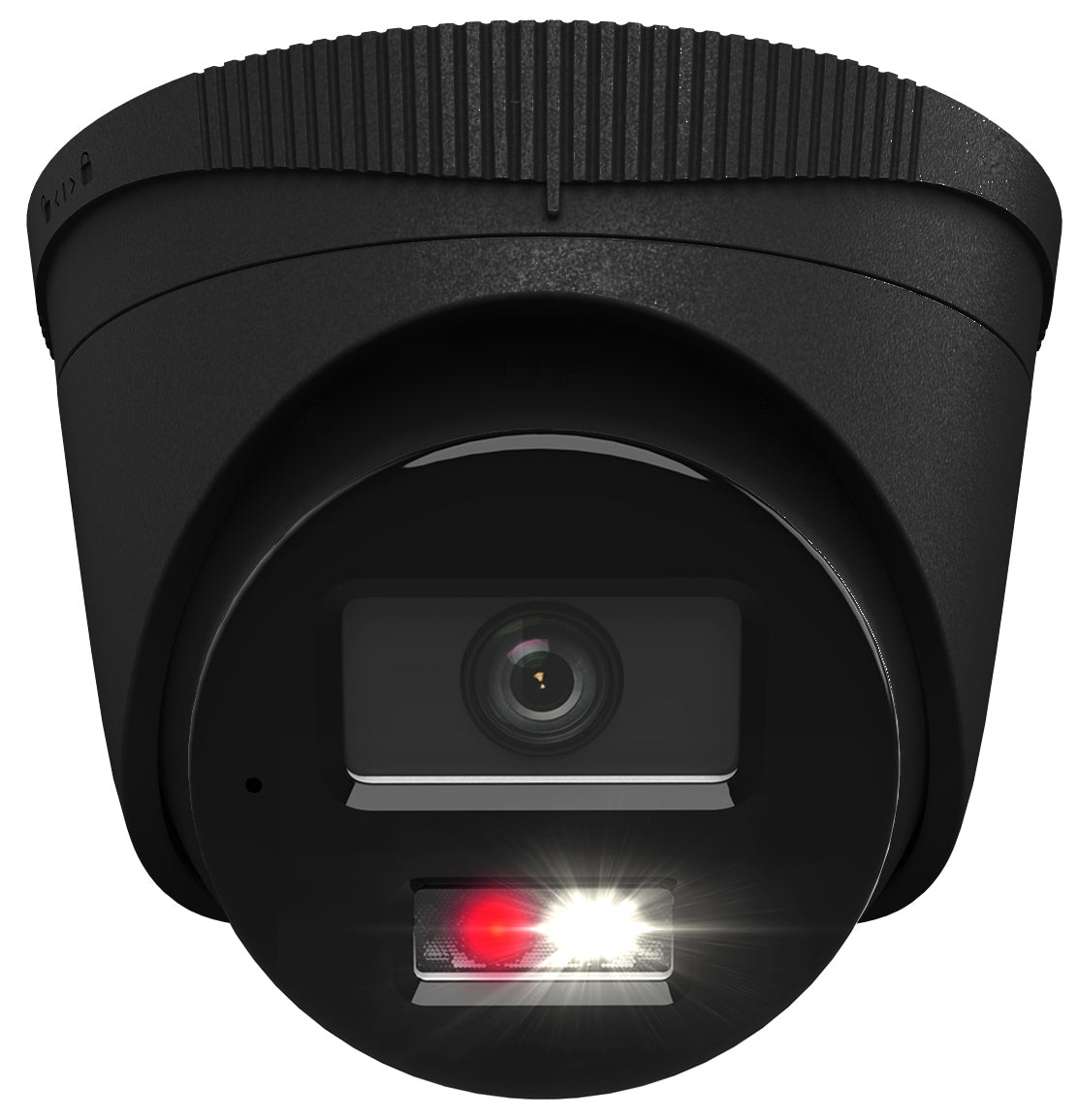

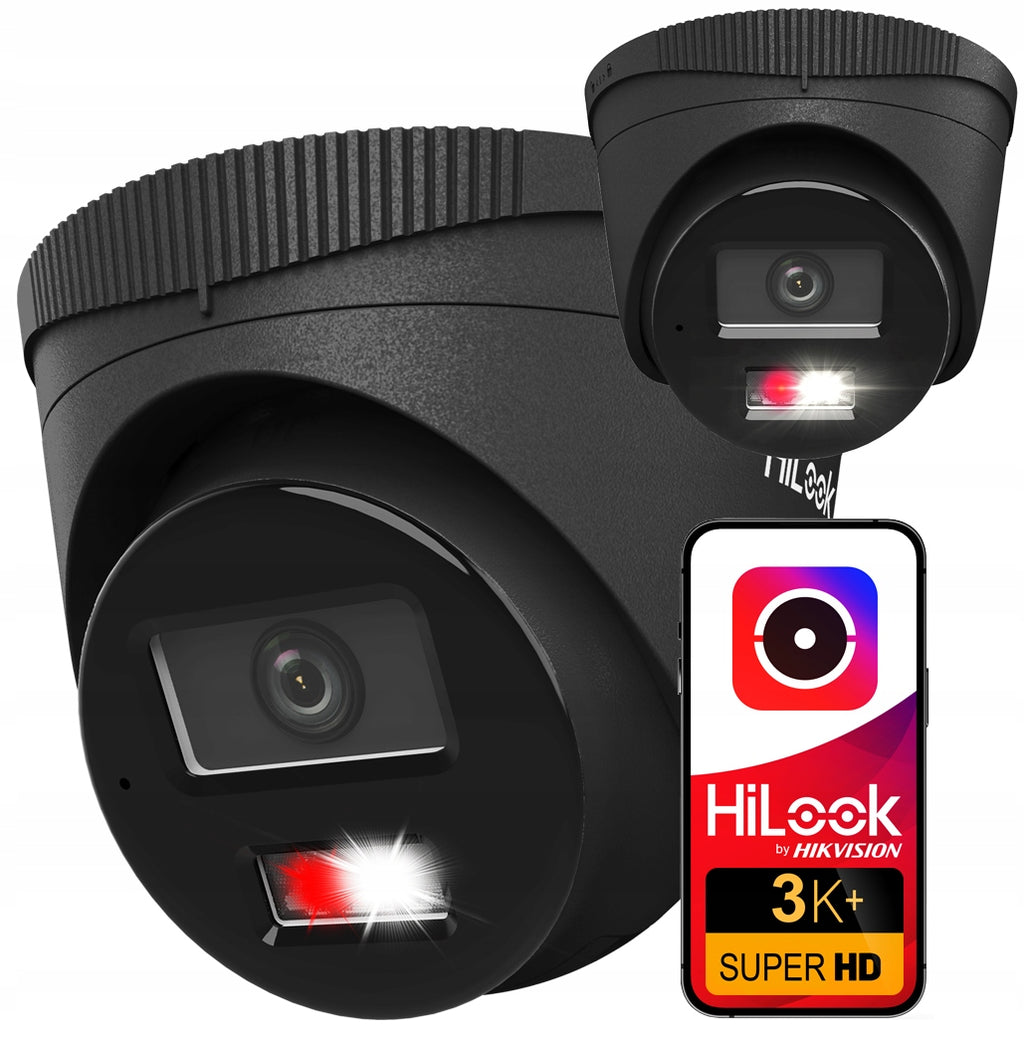

IPC-T260HA-LU BLACK is a network model with a resolution of 6MPx, equipped with a dual illuminator (IR+LED), microphone and built-in image analysis algorithm MD2.0.

Technical parameters:

• Converter: 1/2.4” 6MPx CMOS
• Recording resolution: 3200 × 1800 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~113°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: True WDR 120dB
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: DUAL - color or infrared
• Infrared range: up to 30 m
• White light range: up to 20m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, Application
• Assembly: external or internal
• Power Supply: 12v orPoE
• Leak-proof class: IP67
• Housing material: metal+plastic
• Dimensions: Ø 112 mm × 82 mm
• Weight: 0.34 kg

Efficient 8-channel IP recorder that allows you to support cameras with a maximum resolution of 8 megapixels.

• Number of channels: 8
• Recording resolution: up to 8 Mpx (4K Ultra HD)
• Bitrate in/out: 80/80 Mbps
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Video outputs: 1x HDMI, 1x VGA
• Audio Inputs/Outputs: 1x RCA/1xRCA
• USB ports: 2x USB 2.0
• Network interface: 1x Ethernet 10M/100M Self-adaptive
• Live view: HIK-Connect / HiLook App, iVMS-4200 (lite)
• Storage for hard drives: 1x HDD (up to 8TB)
• Power Supply: 48 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 315 x 240 x 48 mm
• Weight: 1 kg

Includes power supply and mouse.

This switch has 10 ports with speeds of **10/100Mbps**, including **8 PoE ports** with a total power budget of **100W** and up to **30W per port**. The switch also has **2 RJ45 Uplink ports** at 1000Mbps speed.

• Number of Ports: 10
• PoE Ports: 8x 10/100Mbps RJ45
• Uplink Ports: 2x 1000Mbps RJ45 Uplink
• Switch Type: Unmanaged
• Network Protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
• PoE Power Standard: IEEE 802.3af/at PoE+
• Power Per Port: up to 30W
• Total PoE Power: 100W
• Switching Capacity: 2Gbps
• EXTEND Mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 195x130x40mm
• Weight: 0.8kg
• Power Supply: AC100-240V (built-in power supply)

The drive included in the set is a model from the Surveillance series dedicated to monitoring, characterized by a longer service life.

• Capacity: 2 TB
• Cache: 64 MB
• Interface: SmartSATA 6 Gb/s
• Size: 3.5”
• Fig. /min: 5400 rpm /min

*(or equivalent Seagate/Toshiba/WD Purple - subject to availability)

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 12x RJ45 plug
• A set of instruction manual

The offered set guarantees trouble-free and smooth operation ensuring full safety of the monitored object or terrain. HiLook systems are solutions valued all over the world, with excellent technical parameters and the best value for money.

DSDi® Ready

The monitoring system we offer, marked with the "DSDi" tag, has a license that allows you to use the services of the DSDi® system, which provides additional after-sales support and control over the purchased equipment. Thanks to the intuitive application, the user can easily check the warranty period for individual devices, as well as expand the package of available service services within the DSDi ecosystem.
