Stebėjimo sistema su 8 WiFi kameromis, 8 Mpx, 10x optinis priartinimas

Trumpai apie prekę

Prekė: Stebėjimo sistema su 8 WiFi kameromis, 8 Mpx, 10x optinis priartinimas. Kategorija: Rinkiniai.

• Gamintojas: Zintronic
• Modelis: 6xIKTW830V2-2xIKPW840MZV2-IR9S18MP

The set includes 8 A8 cameras from Zintronic + 2 PTZ P8 ZOOM, which are characterized by above-average functionality and reliability. These cameras are perfect for both internal and external monitoring. They have built-in infrared LEDs, ensuring image recording even in complete darkness and an infrared filter for incredible image quality and color clarity.

The camera is small in size, making it ideal for monitoring rooms: ✅FOR HOME | ✅FOR OFFICE | ✅FOR GARDEN | ✅FOR WAREHOUSE | ✅FOR PLANT ✅FOR OFFICE | ✅FOR STORE | ✅FOR PLOT | ✅FOR HALLWAY | ✅FOR STAIRCASE.

____________________________________

✅Complete set ready for assembly

The kit comes immediately configured, cameras paired with the router and then added to the DVR, drive screwed in, all ready for assembly. There will also be instructions for connection in the box.

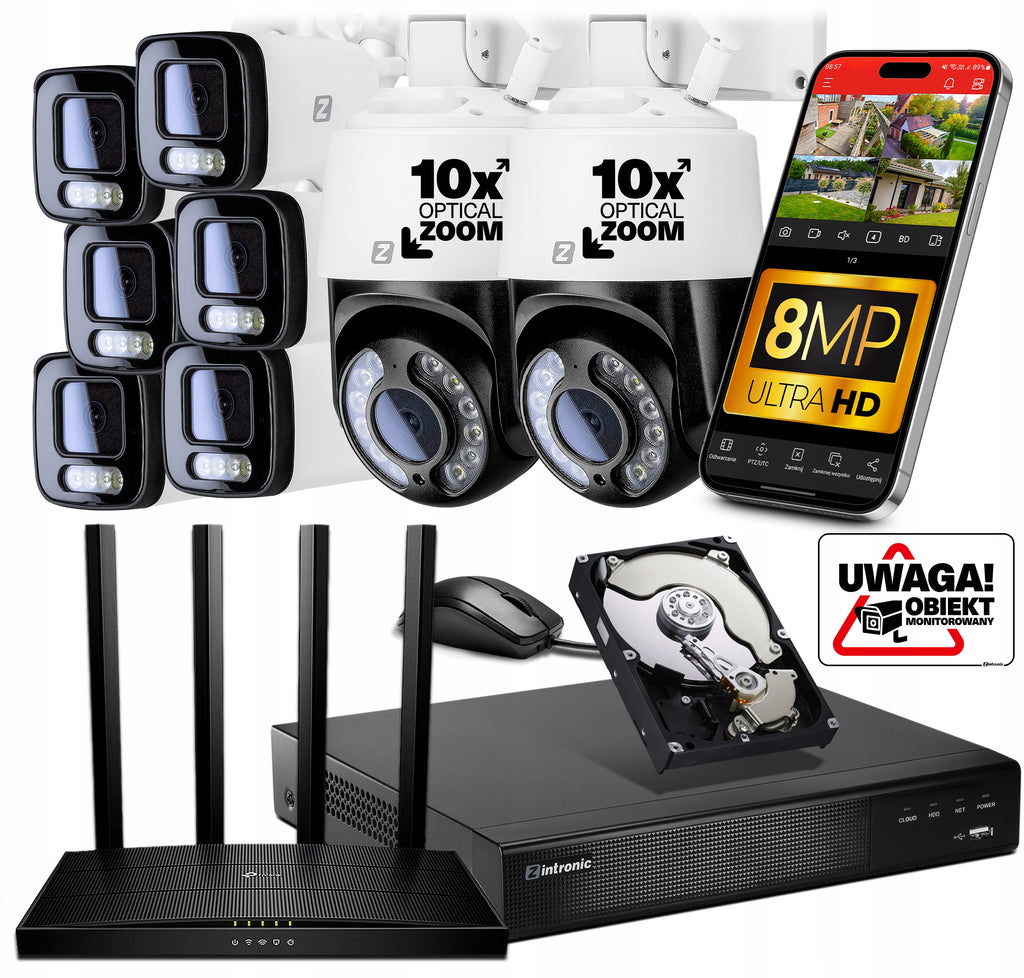

COMPOSITION OF THE SET:

• 6 A8+ 2 Rotary P8 ZOOM Tube Cameras(All 8mpx)
• 1x NVR IP 9 Channel Network Recorder
• 1x 1TB Hard Drive
• 1x Monitored object plate
• TP-LINK Archer C6 WIFI AC1200 router

Technical specification:

✅High quality image: 8MP - 3840x2160@20kl/s

✅Wide viewing angle: 89° viewing angle , (3.6mm lens)

✅8camera: 6 horn cameras + 2 rotating PTZ (all 8mpx)

✅Infrared (night vision): 30M/40M

✅ Audio recording - built-in microphone

✅ High Compression: H.265 allowing more data to be written to the same disk

✅ Remote access via the application on the phone, preview on the phone, computer and TV.

✅Motion detection - notifications on Email/apps

With the kit you get full technical support.

____________________________________

WHY ZINTRONIC

Securing an important facility with monitoring does not have to cost several thousand zlotys immediately. We try to offer you a solution that will give you the best parameters at a reasonable price.

⚠ ⚠

All elements of the sets can be purchased separately. We do not sell ready-made products created in China with truncated parameters, we only select full-value products for sets. Then know that we are dealing with a ready-made set from China - It has one large bulk box with WIFI recorder, and the cameras can not work separately and can not be purchased separately.

• Full-featured Cameras vs. Limited Parameters: While others offer ready-made kits with cameras with limited features, we provide full-fledged cameras that are reliable and efficient. We also sell them individually at separate auctions
• Individual Selection of Components: Our kits are assembled with the highest quality components that are carefully selected to ensure the highest quality of monitoring. We do not rely on mass-produced kits from China, which often have limited features.

➡ It means it means longer service life and greater functionality, quality and reliability compared to cheaper, ready-made solutions.

➡ ➡ In addition, The advantage of our router kits is the ability to easily increase the range of cameras (by purchasing a popular network extender) or improve their signal in case of multiple walls or long range distance. This is a functionality that ready-made sets with WiFi recorder (recorders with antennas) do not offer

TV - Computer - Smartphone/Tablet

Keep an eye on your camera wherever you are!

For our equipment there is dedicated free software in Polish which allows you to log in and operate the cameras in the most convenient way for you:

1. Traditionally on TV/Monitor (if you have a DVR
2. On your computer through a browser on your local network or IVMS 320 or Bitvision.
3. Phone/Tablet - Bitvision app

• High resolution of all 8 cameras Both 6 horn cameras and and 2 PTZ swivel cameras support high resolution 8MPx 3840×2160

• Wireless WiFi Kit - The cameras simply plug into the power supply and then wirelessly connect to the recorder. This makes the system ideal in places where cables are not pulled.
• Tightness IP66 and solid metal housings ensure long-term use of cameras, resistant to weather conditions,
• Visibility at night 30m in the case of and 40m horn cameras in the PTZ camera combined with high resolution will allow more accurate recording of events.
• Remote access to cameras via whether computer, browser or dedicated phone application will provide you with a preview from your cameras wherever you are.
• High quality + Modern Design cameras will ensure that the monitoring system fits perfectly into the facades of the building. And the compact size and adjustable camera feet allow installation anywhere.
• Ease and simplicity in use and technical support after purchase.

• Local and remote preview (Image preview can be tracked locally on the monitor/TV at the DVR or on a computer or smartphone using free software in Polish from anywhere on earth)
• Motion detection - can be set to detect motion in the observed area. Motion detection is based on an algorithm that analyzes changes in the image seen by the camera, and its sensitivity can be set from 1 to 10. In the options you can choose exactly what detection area we are interested in.
• Sending notifications to email/apps - When motion is detected, the registrar will send us a notification along with a photo to email or push notification to the application on the phone.
• Writing recordings to disk - recording either continuous, temporal or triggered by an event type. alarm movement, vandalism (the length of the recording depends on the disk capacity we install and whether we set the recording triggered by the event or continuous.
• Automatic overwriting of recordings - if the disk is full, the system will automatically overwrite recordings on the oldest files.
• Privacy mask - if we have a neighbor who does not want to be 'observed' and our camera covers it, we can set a privacy mask that will cover the neighbor's property allowing us to observe the area that interests us.

Phone app

Intuitive, Polish-language application BitVision - allows you to constantly view the monitored room, and view recorded events on the MIcro SD card. In the application you can also take photos and record videos (photos and recordings will be saved to a smartphone with the application installed). It is also possible to digitally zoom in on any place in the displayed image (digital zoom).

• Live preview from the app
• Incoming notifications for applications
• Ability to take photos and videos
• Ability to view recordings
• Digital magnification of any area of the displayed image x8

H265 compression - allows you to write twice as much data to disk/card as the H264 codec.

For example:

4 TB drive at 2560x1920@15kl/s resolution with 8 cameras lasts for about: 8 days

These are approximate values because the actual recording time depends on where the camera is placed and what it is looking at (e.g. if the camera looks at the sidewalk where people walk it will use up a lot more space than if it looks at the empty lawn from the back of the house)

✅NVR IP 9 CHANNEL NETWORK RECORDER 8MP 1 Sata x 1pcs

Technical specification

SKU: IR9S18MP

• Number of cameras supported: 9
• Bandwitch: 80MB
• Maximum supported resolution: 8MP/4K (3840×2160)
• Number of hard drive inputs: 1 x Sata, maximum disk capacity 8TB
• USB inputs: 2x USB 2.0
• Power supply: 12 V DC/2A
• Compression: H.265 / H.264
• Audio compression: G.711A
• Motion detection: Yes

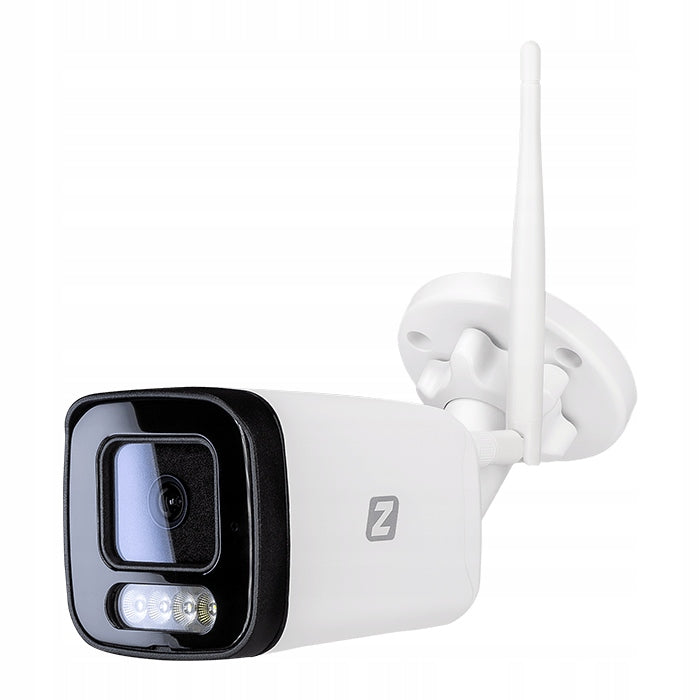

✅WiFi A8 IP camera - 3.6mm 8mpx 30m - x6pcs

Technical specification:

• SKU: IKTW830V2
• Type of camera - Network IP
• Resolution - 8MP(3840x2160)@12fps 1MP(1280x720)@12fps
• Matrix: 1/2.8" SONY IMX 415
• Lens focal length: 3.6mm (89° viewing angle)
• Tightness: IP66
• Infrared range: 30m
• Call. micro SD card input: YES (up to 128GB)
• WIFI range: up to 100m in open area
• Alarm: Yes message to email, apps, alarm, etc.
• Motion Detection: Yes
• Audio: Yes – built-in microphone and speaker (two way audio)
• Vandal-proof: Yes
• Metal housing: Yes
• Dimensions: 174mm x 67mm x 67mm(L×W×H)
• Weight: 330g

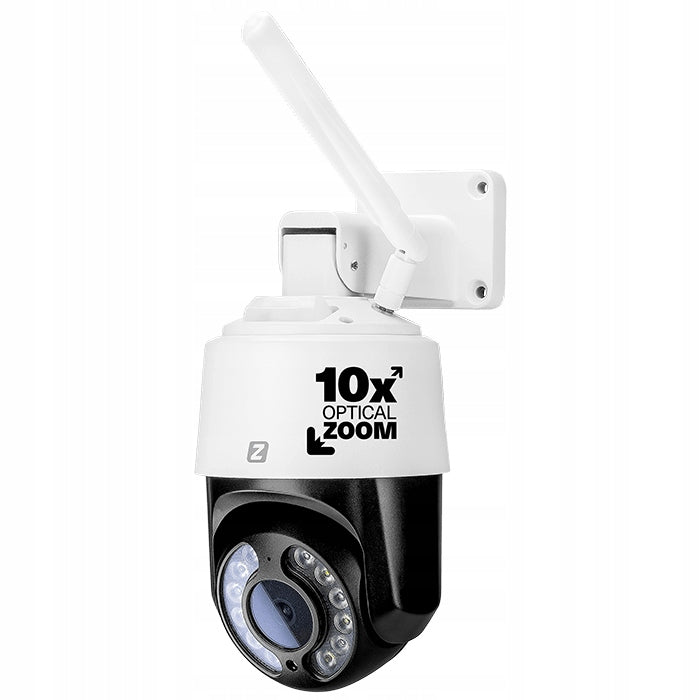

✅Professional IP Camera P8 10xZOOM WiFi PTZ 8MP -x 2pcs

Technical Specifications:

• SKU: IKPW840MZV2
• Type of camera - Network IP
• Resolution - 8MP(3840x2160)@10fps 1MP(1280x720)@10fps
• Matrix: 1/2.8" SONY
• Transducer: Sony IMX415
• Main Processor: SSC338Q
• Lens focal length: 3.6mm (89° viewing angle)
• Infrared range: 40m IR, 30m white
• Call. micro SD card input : YES (up to 128GB)
• Compression: H.264/H.265/JPEG/AVI/MJPEG
• Phone app: Yes
• Wi‐Fi: 2.4GHz/5GHz
• Onvif: Yes
• Weight: 0,92kg
• Dimensions: 145mm x 155mm x 278mm (L×W×H)
• Alarm: Yes message to email, apps, alarm, etc

✅SATA Hard Drive 1 TB SATA III 64MB - 1 pc. (subject to Toshiba S300 or Skyhawk availability)

• Internal 3.5-inch 1 TB HDD using SATA III (6 Gb/s) interface.
• It comes with 64 MB of cache.
• The rotation speed is 7200 rpm. /min.
• The drive uses NCQ - Native Command Queuing technology.

Technical specification

• SKU: HDWV110UZSVA or ST1000VX013
• Manufacturer: Toshiba / Skyhawk
• Capacity: 1TB
• Cache capacity: 64 MB
• Memory Type: HDD

✅WiFi router TP-LINK Archer C6 AC1200 - 1pc

• Ports: 4 ports 10/100Mbps LAN 1 port 10/100Mbps WAN
• Buttons: Wi-Fi/WPS Reset On/Off
• Power Supply: 9V / 0,6A
• Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions (S x G x W): 230 x 144 x 35 mm (9,1 x 5,7 x 1,4 inches)
• Antenna: 4*5dBi, integrated, omnidirectional
• Working frequency: 2,4-2,4835 GHz
• 2,4GHz (300 Mbps) and 5GHz (867 Mbps) networks offer a total bandwidth of 1200 Mbps
• 4 external antennas and one internal antenna ensure stable wireless connection and maximum network coverage
• Wireless modes: Modes: router, signal amplifier (from version 5), access point (from version 5)
• Wireless transmission functions: Enable/disable wireless transmission, WDS bridge, WMM, wireless transmission statistics
• Wireless transmission security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption

✅Adhesive information board - 1 pcs.

• Type: Obverse - Mounted on wall, gate, glass, etc.
• Material: Plastic
• Selected features: Waterproof UV resistant
• Dimensions: 250 x 170 mm
