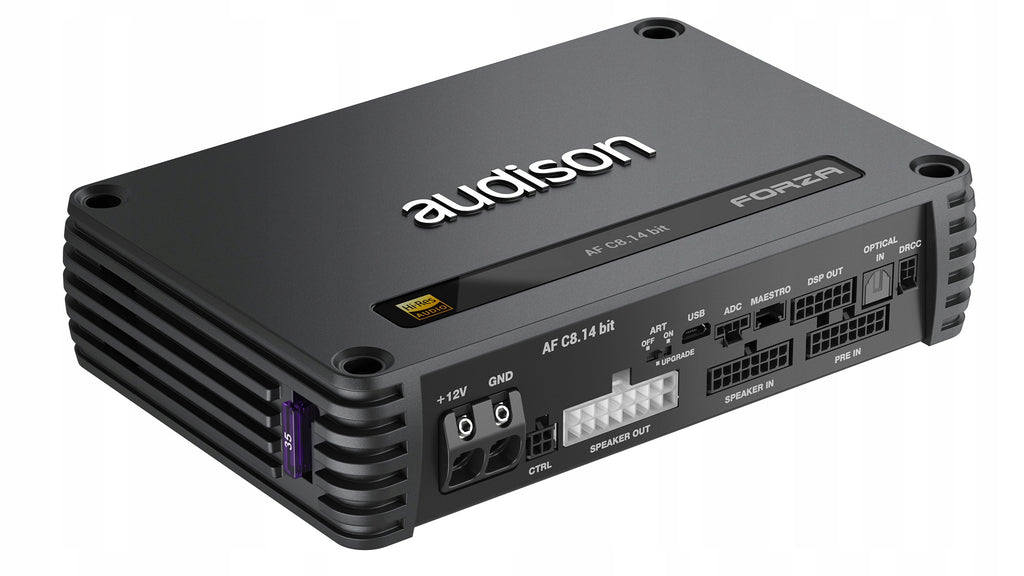

Stiprintuvas Audison AF C8.14 bit FORZA, 8 kanalai, 12 kanalų DSP

Trumpai apie prekę

Prekė: Stiprintuvas Audison AF C8.14 bit FORZA, 8 kanalai, 12 kanalų DSP. Kategorija: Stiprintuvai.

• Gamintojas: Audison
• Modelis: AF C8.14 bit

MODEL: AF C8.14 bit

The AF C8.14 bit offers eight enhanced channels with high fidelity of 65 W x 8 at 4 Ω*, 100 W x 8 at 2 Ω*, with audiophile sound of the latest generation of Audison D-Class technology. Higher switching frequencies, steeper filtering and higher tolerance components deliver sound beyond Class D expectations – in an incredibly compact package! This is combined with a native DSP processor operating at a frequency of 24 bits/96 kHz, extending the audio bandwidth to 40 kHz and obtaining the desired high-resolution certificate. Bridged channel pairs give 200 W x 4 at 4 Ω*, guaranteeing flexible and efficient operation. Absolute Volume support in Audison B-CON guarantees maximum bit depth, even with wireless connections! * Continuous output power (RMS) at 14,4 VDC, 1% THD, all channels driven.

Weight and sizes

• Improved sound quality and power thanks to the latest ADT (Audison D-Class) technology.
• Unbeatable power-to-volume ratio up to 0,68 W RMS/cm³ reaching 82% efficiency
• Next-generation Bit Drive software platform
• Hi-Res compatibility, with extended audio bandwidth up to 40 kHz, possible thanks to DSP operation at 24 bits/96 kHz
• Maximum versatility thanks to the possibility of using bridging options for each pair of power outputs
• Up to 14 output channels (8 amplified, 6 optional preamplifier outputs) controlled by DSP to extend the system with other amplifiers
• 8 high/low level inputs (and Toslink optical digital input) support connectivity to even the most complex OEM systems
• Expansion card slot (additional 4 analog or 1 digital inputs)
• Electrical signal analysis for each input channel ensures proper integration and correction
• Acoustic analysis (using a USB microphone) integrates the response graph with the equalizer display. This ensures smooth tuning and great sound!
• Advanced signal routing options allow the technician to go beyond predefined system definitions in the configuration wizard

Amplifier Specifications:

• Channels 8
• Class -Class D
• Supply voltage / fuse 11 ÷ 15 V DC / 1 x 35 A
• Operating supply voltage 6,5 ÷ 17,5 V DC
• Resting current 1,3 A
• Current consumption in standby mode 1,5 mA
• Consumption at 14,4 VDC, 2 Ω, maximum musical power 34 A
• Remote input 4 ÷15 V DC (1 mA)
• Remote OUTPUT 6,5 ÷15 V DC (150 mA)
• ART - Automatic remote on/off from OUTPUT BTL 1,5 V DC speakers
• Rated power efficiency 81%



Stages of the AMPLIFIER:

• Distortion — THD at 1 kHz, 4 Ω, 70% rated power 0,05%
• Bandwidth @ -1,5 dB 10 Hz ÷ 42 kHz
• Attenuation factor at 1 kHz, 4 Ω, 2 VRMS 100
• Signal-to-noise ratio (A weighted at 1 V input) Main input 85 dBA
• Signal-to-noise ratio (A weighted at 1 V input) Optical input 98,5
• Total power RMS 800 W
• Minimum load impedance 2Ω
• Continuous Output Power (RMS) at 14,4 VDC, 1% THD
• • 8 channels at 4 Ω: 65 W x 8
• • 8 channels at 2 Ω: 100 W x 8
• • 4 channels (bridge 1/2; 3/4; 5/6; 7/8) at 4 Ω: 200 W x 4
• Adjustable crossover Yes



CEA SPECIFICATIONS:

• Output power at 4 Ω, 1% THD+N, 14,4 V - 55W x 8
• MV coefficient (ref. Output power 1 W): 80 dB



INPUTS/OUTPUTS:

• Inputs before input 0,6 ÷ 6 VRMS (pulse 15 kΩ)
• Digital Input Yes
• Preliminary exits 2
• High level inputs 8
• Low Level Inputs 8
• Speaker inputs 2,2 ÷ 22 VRMS (imp. 5 Ω)
• Digital input -1 x optical S/PDIF; Max. 192 kHz / 24 bits + 1 x optical/concentric S/PDIF with optional F2O card
• Optical input IN - 1 x optical S/PDIF; Max. 192 kHz / 24 bits + 1 x optical/concentric S/PDIF with optional F2O card



DIGITAL SIGNAL PROCESSOR:

• Audio DSP Converter -Analog Devices ADAU1467, qualified car audio processing processor at 96 kHz.
• Analog devices 3 x ADAU1978 (4 channels) and ADAU1966A (16 channels) (24 bits/192 kHz) A/D and D/A converters for a very high level of performance.
• Filter type-Full / high-pass / low-pass / bandwidth
• Filter mode and slope:
• Linkwitz-Riley @ 12/24/36/48 dB/oct.
• Butterworth @ 6/12/18/24/30/36/42/48 dB/oct.
• Bessel @ 6/12/18/24/30/36/42/48 dB/oct.
• Chebysheva @ 6/12/18/24/30/36/42/48 dB/oct.
• QLP @ 6 dB/octave
• Splitting frequency 20 Hz ÷ 20 kHz
• 0°/180° phase control, all-pass filters
• Analog input equalizer (20 ÷ 20k Hz) 12 Biquad + Latency
• Parametric/graphic Biquad output equalizer: 15 poles, 20 Hz ÷ 20 kHz
• Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200,8 inch
• Time Alignment Delay 0 ÷ 15 ms
• Input Output Real-time Audio Monitoring - RTA



Control connections:

• DRC port Input for DRCC remote control (optional)
• ADC Port Manage other Audison devices that support this standard
• 1 cable Configurable functions (activated + 12 V)
• 2 wire Customizable functions (activated + 12 V)

GENERAL REQUIREMENTS:

• Computer Connections -Compatible with Micro USB 1.1 / 2.0 / 3.0
• Software/computer requirements Windows 10, Windows 11 (min. resolution 1024 x 768
• Ambient operating temperature range 0°C to 55°C (32°F to 131°F)



SIZE / WEIGHT:

• Size 200x 47x134
• Weight 2,04 kg

Box contents:

• USB cable for connecting Forza bit amplifiers to your computer.
• 6 channel DSP output cable for connecting Forza bit amplifier to Forza D amplifier.
• Eight stereo RCA connectors to connect the Forza bit amplifier to aftermarket sources with PRE-OUT outputs supplied with Forza amplifiers.
• Forza Mounting Kit
• Bit AF Control Cable - Provided control connection to control memory selection and remote switching on.
• SPK OUT 8CH -Provided cable with eight pairs of marked cables to connect speakers to AF M8.14 bit and AF C8.14 bit.
• Supplied cable with 8 pairs of labeled wires to connect Forza bit amplifier with high level OEM source output.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Audison
Parametry	Model	AF C8.14 bit
Parametry	Number of channels	other
Parametry	Amplifier class	D
Parametry	Product weight with unit packaging	3 kg
Parametry	Manufacturer code	AF C8.14 bit
Parametry	Packaging status	original
