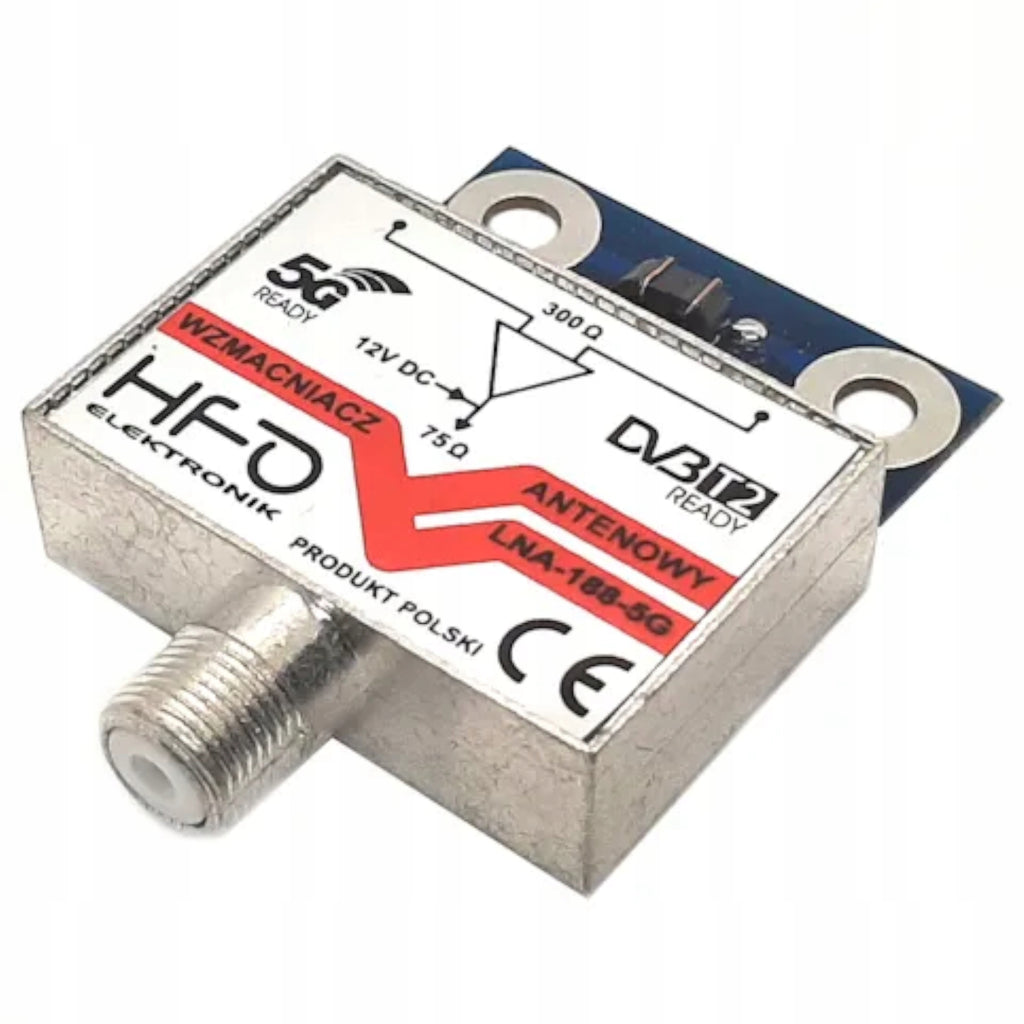

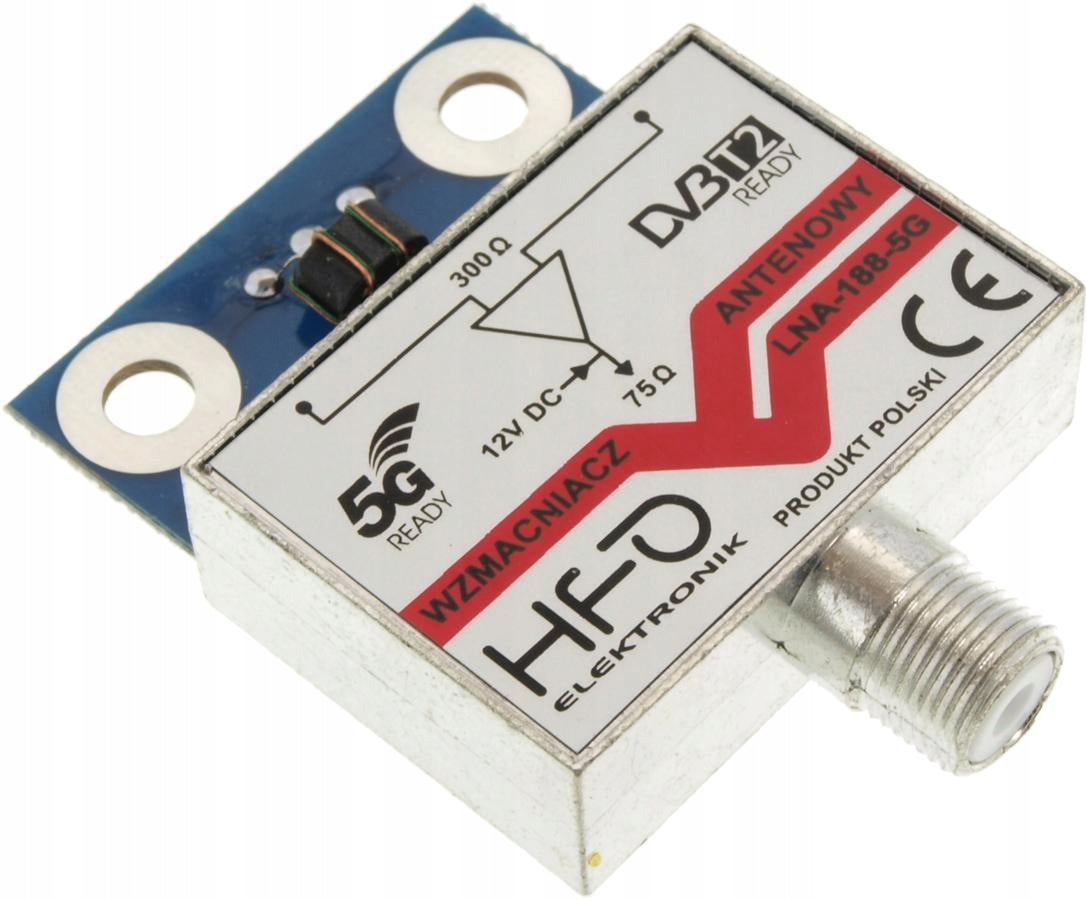

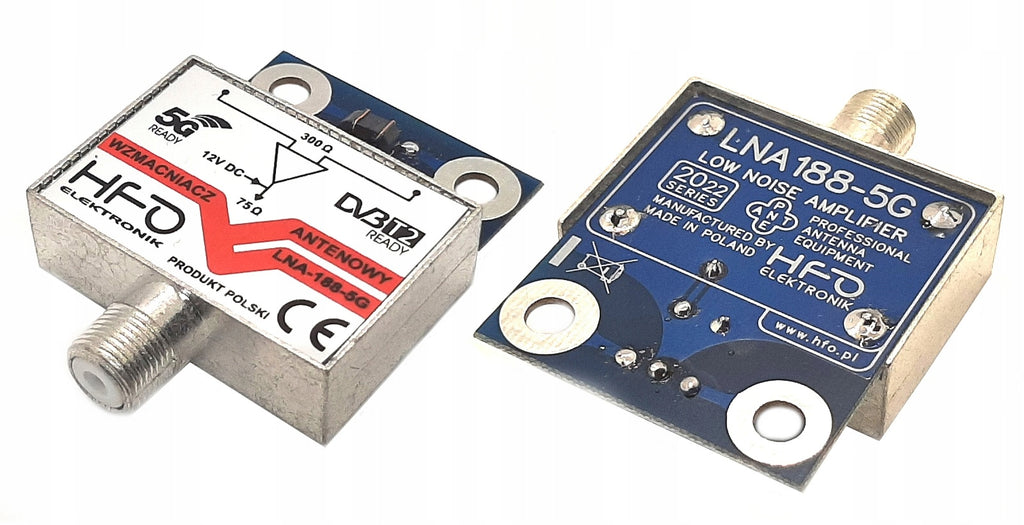

Stiprintuvas HFO Elektronik LNA-188-5G

Trumpai apie prekę

Prekė: Stiprintuvas HFO Elektronik LNA-188-5G. Kategorija: Stiprintuvai.

• Gamintojas: no brand
• Modelis: LNA-188-5G

Filters at the amplifier input effectively eliminate (up to 95%) interference from transmission :

Manufactured and developed in Poland by HFO ELEKTRONIK

PARAMETERS OF THE LNA188-5G AMPLIFIER:

• Gain level: up to 30dB
• Gein band: UHF and VHF (channels 5 - 48) includes MUX 1, MUX 2, MUX 3, MUX 8 and local multiplexes
• Power supply: 12V DC, 55mA, power supply via coaxial cable
• Dimensions (H x width x debt): 14mm x 40mm x 44mm(without F connector)/54mm(with F connector)
• Connections: connectors for mounting the amplifier in antenna terminals, solid, threaded type F connector for fixing the cable

FEATURES OF THE LNA169-5G AMPLIFIER:

• Light metal alloy housing that provides high resistance to interference and atmospheric factors
• High-quality F socket - giving a good connection and convenient and easy installation
• LNA series amplifiers fit various antennas (ATX, Yagi, mesh and others) and can be mounted in place of a traditional plate amplifier
• High resistance to DVB-T2 digital TV signal interference signals: CB, FM, LTE700 (5G), LTE800 (4G), GSM900, Wi-Fi, Bluetooth
• Ultra Low Noise Ratio
• Gain characteristics compensating attenuation of coaxial cable
• The use of the LNA188-5G model is recommended at a distance of 20 - 100 km from the transmitter, depending on the terrain and power of the transmitter;
• We guarantee repeatability of the parameters of our amplifiers, each amplifier is tested individually on specialized measuring instruments.

).

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Model	LNA-188-5G
Parametry	Product weight with unit packaging	0.04 kg
Parametry	EAN (GTIN)	5905289670058
Parametry	Manufacturer code	LNA188-5G
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
