Stovas televizoriui 32–85" su pasukama laikikliu, tinka VESA

Trumpai apie prekę

Prekė: Stovas televizoriui 32–85" su pasukama laikikliu, tinka VESA. Kategorija: Rankenos.

• Gamintojas: Qumak-Sekom
• Modelis: PWHP011

⭐ High quality universal mount designed for 32"- 85" LCD/LED TVs. Precision-crafted with high-quality parts and materials, it ensures a secure and convenient installation of your TV on the wall. The movable frame allows you to adjust the position of the screen from 6 to 50 cm distance from the wall and rotation to 160°. The frame also has a tilt function of the mounted TV in the range from -5° to +8° to ensure the best viewing angles. Thanks to a dedicated cable management system, you can safely and aesthetically guide the wires connected to the TV. The mount is compatible with TVs of brands such as: SAMSUNG, LG, SONY, TCL, PANASONIC, and many others equipped with VESA mounting holes in the range from 200x200 to 600x400 mm. The handle is powder-coated in black, making it perfect for the living room, office, or waiting room.

⚙ Specification:

• Condition: new,
• Brand: Qumak-Sekom
• Max. lifting capacity: 30 kg,
• Supported screen size: 32-85",
• VESA: from 200x200 to 600x400,
• Rotation adjustment: up to 160°,
• Tilt adjustment: from -5° to +8°,
• Adjustable distance from the wall: from 6 to 50 cm,

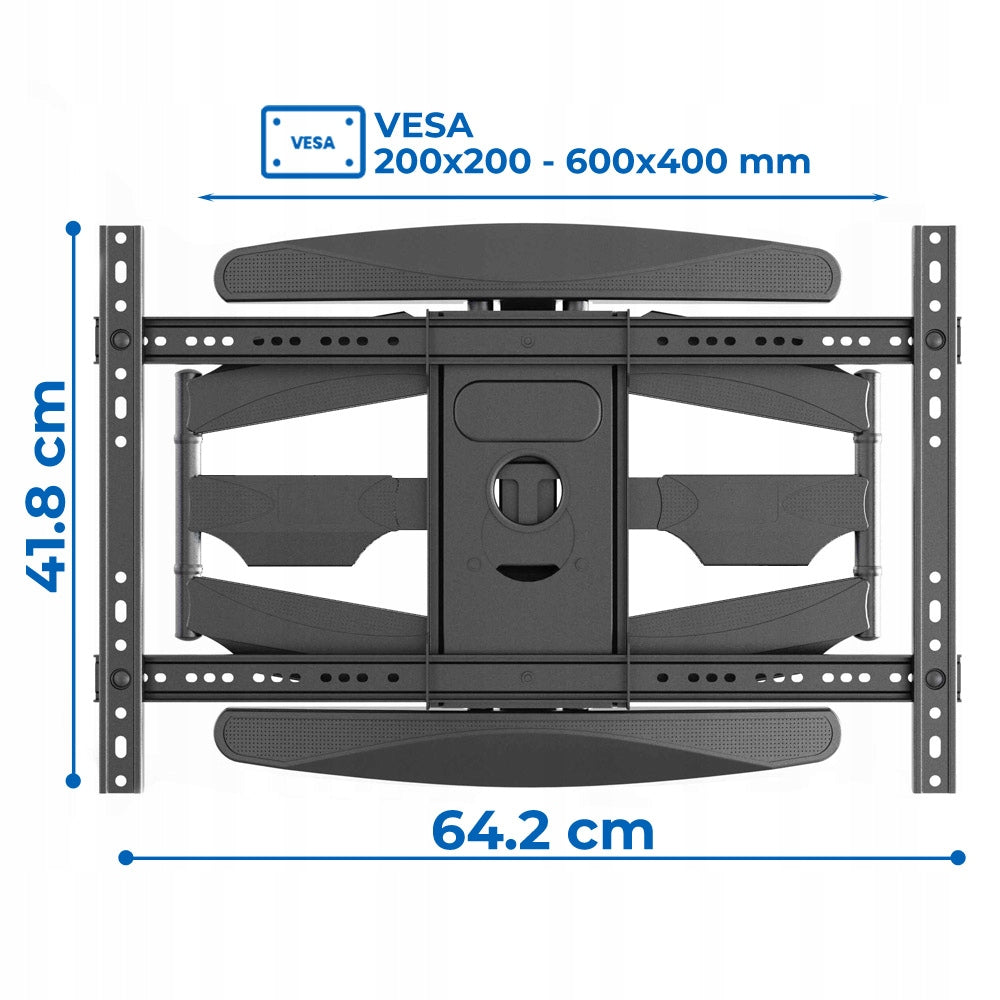

• Length of rails: 41.8 cm, 64.2 cm
• Material: powder coated steel, plastic,
• Additional Features: wire guides
• Package contents: handle, arms, screws, screws, mounting parts.
• Stock code: PWHP011

✅ High quality and modern design

The entire handle is made of high quality black powdered steel. The reinforced wall plate evenly distributes the weight of the suspended TV. Thanks to the modern design, the handle fits not only into the home or office but also into a service premises, airport or restaurant.

✅ VESA mount

The mount supports screens ranging in size from 32 to 85 cal, with the VESA mounting standard. With a wide range of compatible dimensions, most TVs can be mounted. Fit VESA dimensions: from 200x200 to 600x400.

➡ How to check VESA mounting hole spacing

The VESA standard specifies the spacing of the four mounting holes located on the back of the TV. The spacing depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes in level, and the second parameter the distance between the holes in pion. Information about the compatibility of the TV with the VESA standard can be checked in the instructions, specifications on the manufacturer's website or measured yourself using a measuring cup. When choosing a mount, pay attention to the weight of the TV.

The picture next to it shows examples of available spacing of mounting holes (compatible dimensions for this handle should be checked in the technical specification above).

✅ Full range of motion and adjustment

The arm is designed to provide a lifting capacity of TVs weighing up to 30kg and adjustments at three points allowing you to adjust the distance from the wall and rotation. With a full range of motion, the handle can be adjusted to suit your needs and room. The arm rotates up to 160° and moves from 60 to 500 mm from the wall. In addition, the board to which the TV is attached allows you to adjust the slope in the range of from -5° to +8°.

✅ Guides for cables

No more loosely hanging wires. Thanks to a dedicated cable management system, you can safely and aesthetically guide the wires connected to the TV.

✅ Easy installation and simple operation

The handle is ready to install immediately after unpacking. With the included set of mounting parts, wrench, and instructions, it can be mounted without having to spend money on additional components.

The included set of screws fits most TVs on the market, although in the case of mounting some models (m.in: Samsung, TCL, etc.) you may need to use longer screws or additional distances to level the rear surface of the housing (not included in the set and must be purchased on your own).

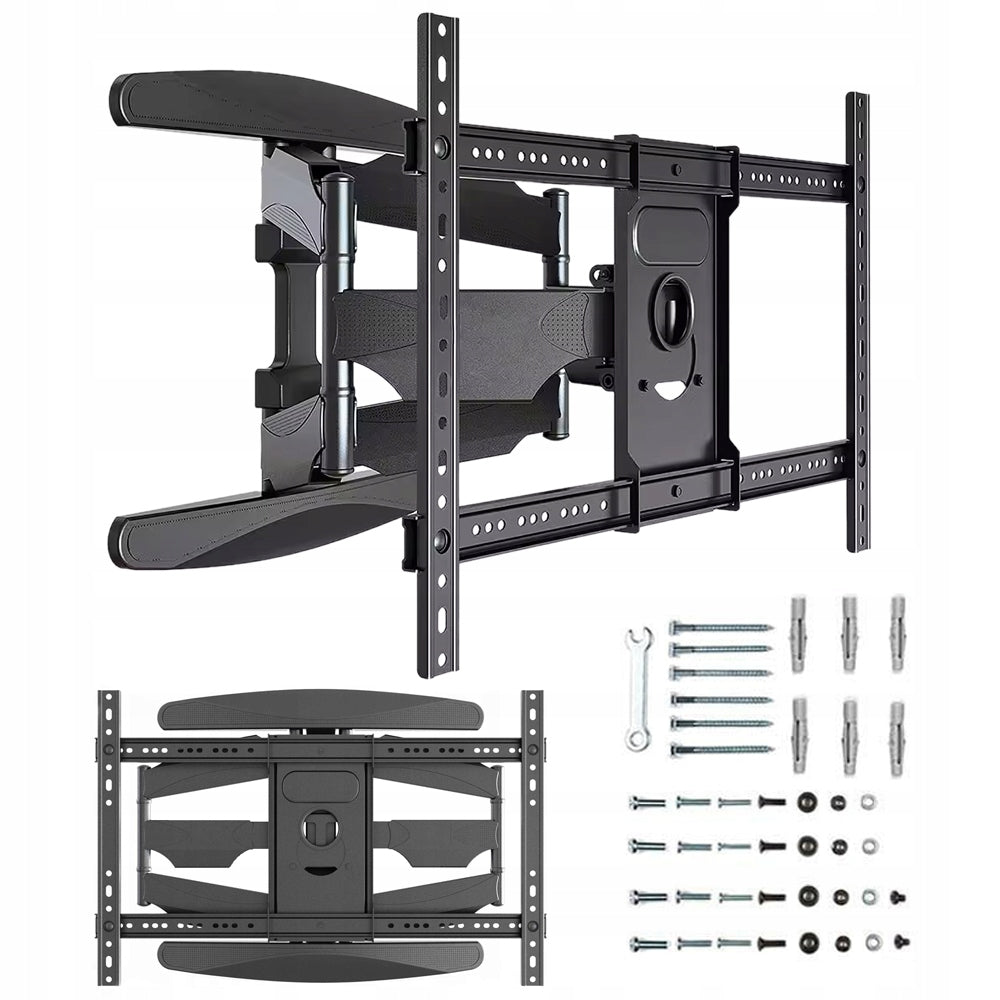

The set includes

• Original box,
• Handle and arms,
• A set of assembly parts (screws, screws, etc.),
• Assembly instructions in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	PWHP011
Parametry	Model	PWHP011
Parametry	Maximum TV size	85"
Parametry	Brand	Qumak-Sekom
Parametry	Maximum load	30 kg
Parametry	Kind	rotating
Parametry	EAN (GTIN)	5906728467727
Parametry	Packaging status	original
Parametry	VESA Standard	200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,600 x 300,600 x 400
