Stumdomų vartų pavara KSE380 iki 2500 kg, 20 m/min, be bėgių

Trumpai apie prekę

Prekė: Stumdomų vartų pavara KSE380 iki 2500 kg, 20 m/min, be bėgių. Kategorija: Kietieji diskai.

• Gamintojas: Elektrobim
• Modelis: KSE380-DG

ELEKTROBIM KSE380-DG - Latest version 2025 available from 03.06.2025r

Proven and trouble-free drive for self-assembly.

Sliding gate motor KSE380-DG:

⭐ Quiet and quick opening of the gate in a few seconds

⭐ Operation for gates 2500kg

⭐ New, improved version of the software!

⭐ Opening speed up to 20m/min

⭐ Functions e.g. soft start/stop, auto-closing, gate

⭐ Quick, self-assembly with video instructions

⭐ Manufacturer technical support with 15 years of experience

• Three-phase motor with 230V

  The 380-DG drive is equipped with a modern, brushless three-phase motor, which thanks to the built-in rectifier bridge works with a standard 230V power supply – you do not need a three-phase installation. This solution combines the advantages of industrial motors with the convenience of home connection.

• Smooth and quiet operation without loss of power

  Unlike typical 230V drives on the market, which often do poorly with slowing down and cause when stopped, the 380-DG model, thanks to its three-phase motor, provides even, quiet movement without a drop in force – even with heavy gates. This is the level of fluidity typical of industrial equipment, now available in a compact drive.

• High opening speed – up to 20 m/min

  The drive reaches an impressive popening speed of up to 20 meters per minute, which significantly reduces the waiting time for entry. It is convenience, time saving and greater safety, especially in places with high traffic.

• Expanded control board with LED display

  The drive controller has a clear LED display, which facilitates configuration and diagnostics. With digital inputs, you can easily connect photocells, warning lamp, buttons, home automation and many other devices. This is a great flexibility and full control over the system. Additional protective cover protects electronics against moisture and insects, which significantly increases the durability and reliability of the entire system – even in harsh outdoor conditions.

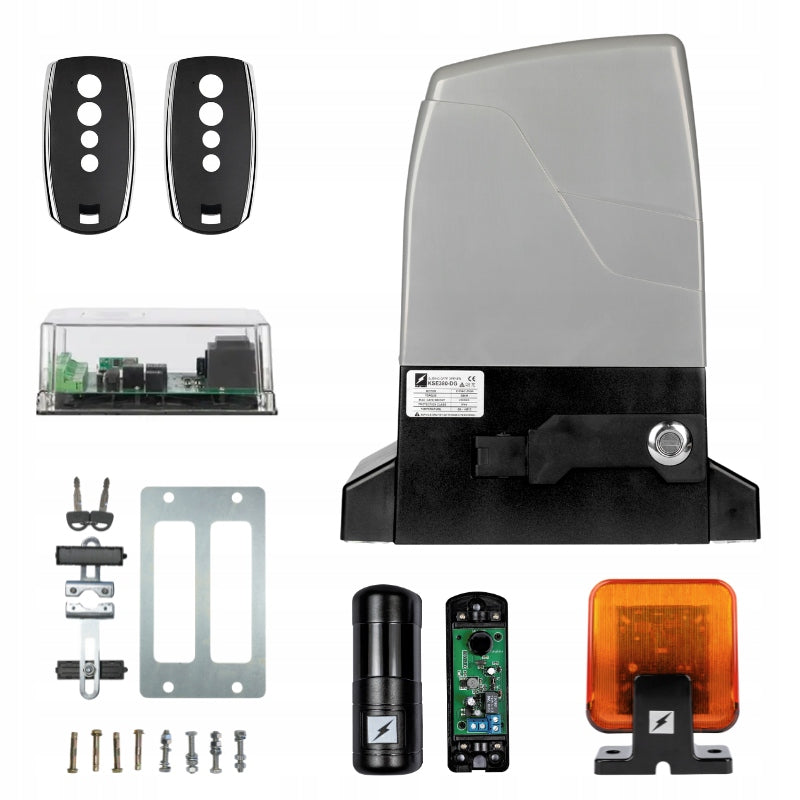

DRIVE FOR SLIDING GATES

✅ Built-in anti-crush protection

✅ Powered drive 230V for sliding gates up to 2500kg

✅ Maintenance-free brushless three-phase motor

✅ Durable, self-lubricating internal transmission

✅ Reliable magnetic limit switches

✅ Simple installation

✅ Emergency unlocking

KSE DRIVE CONTROL BOARD

✅ Protection, temporary, amperometric, thermal, overload protection

✅ Soft start and stop function

✅ Control inputs for WIFI, GSM or video intercom modules

✅ Possibility of connecting a wired wall switch

✅ Gate function, automatic closing

✅ Easy connection and programming

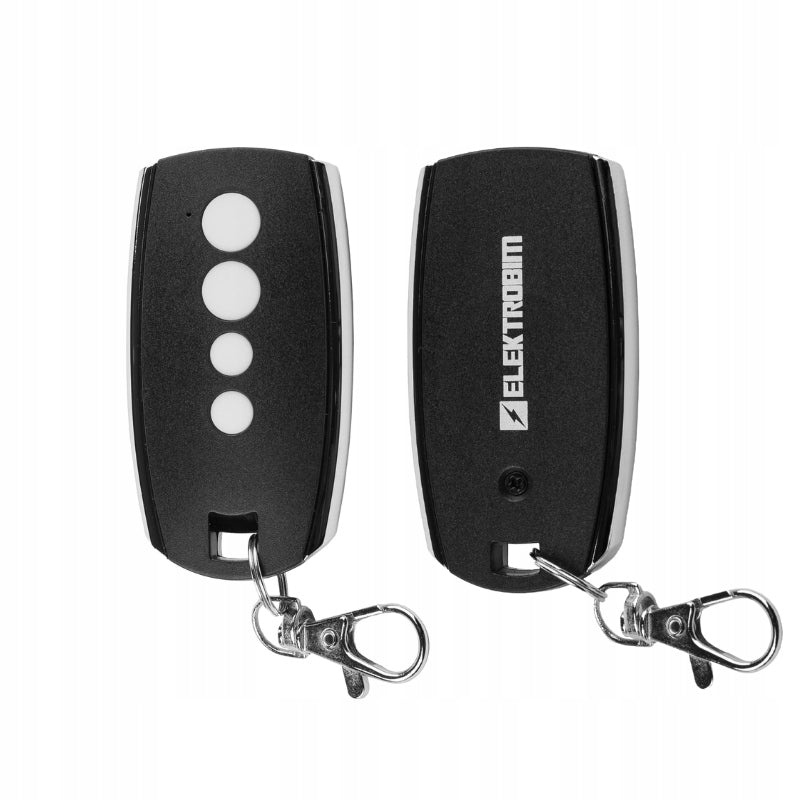

2x PILOT PS-10 4-channel 433MHz

✅ Interference resistant remote controls operating at 433.92MHZ

✅ Seamless operating range up to 100m

✅ Special manufacturer coding to ensure the safety of entry to the property

✅ Remote controls equipped with a battery

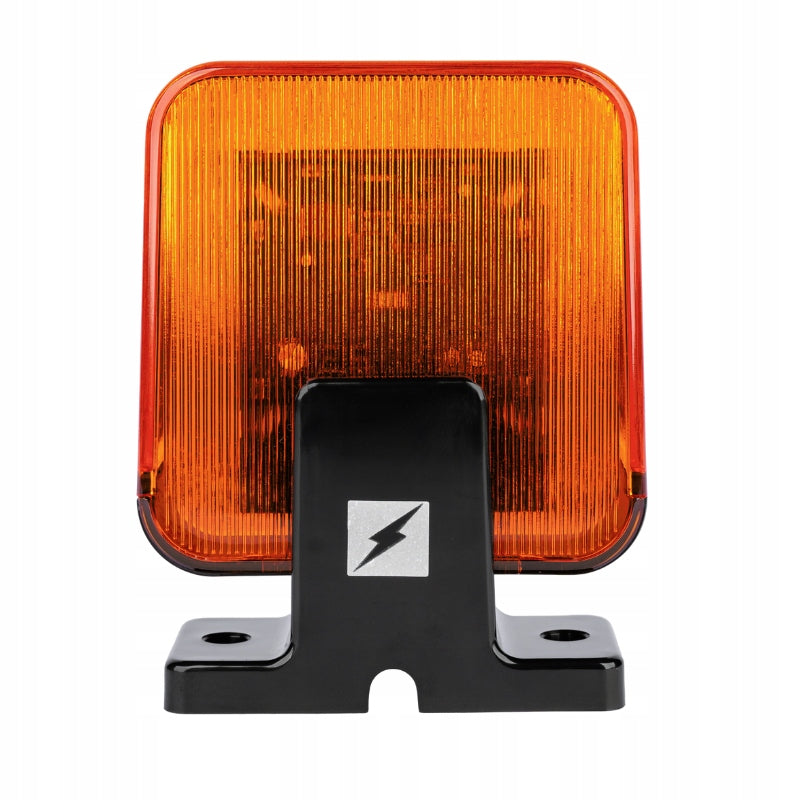

LED signal lamp

✅ Automation movement warning element particularly useful after dark when it is dark at the gate

✅ Universal 12-265V AC/DC power supply

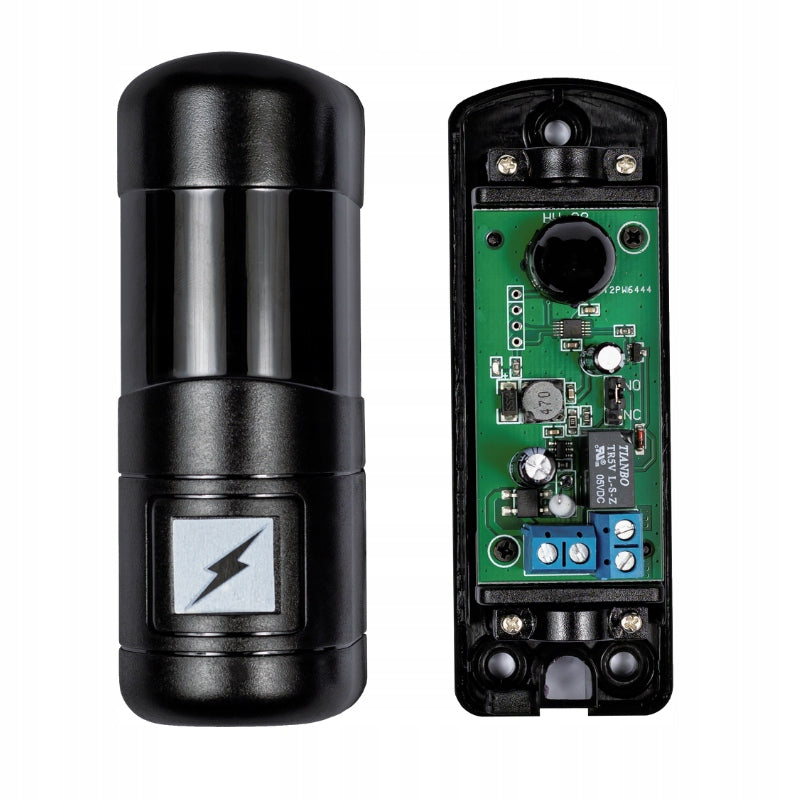

Set of photocells with adjustable angle

✅ Photocells, protecting the gate from collisions with other objects, e.g. by car

✅ Auto-reverse - if an obstacle is encountered during closing, the gate will return to the open position

✅ Attachments included

Mounting accessories and magnetic limit switches

✅ Mounting bracket with screws

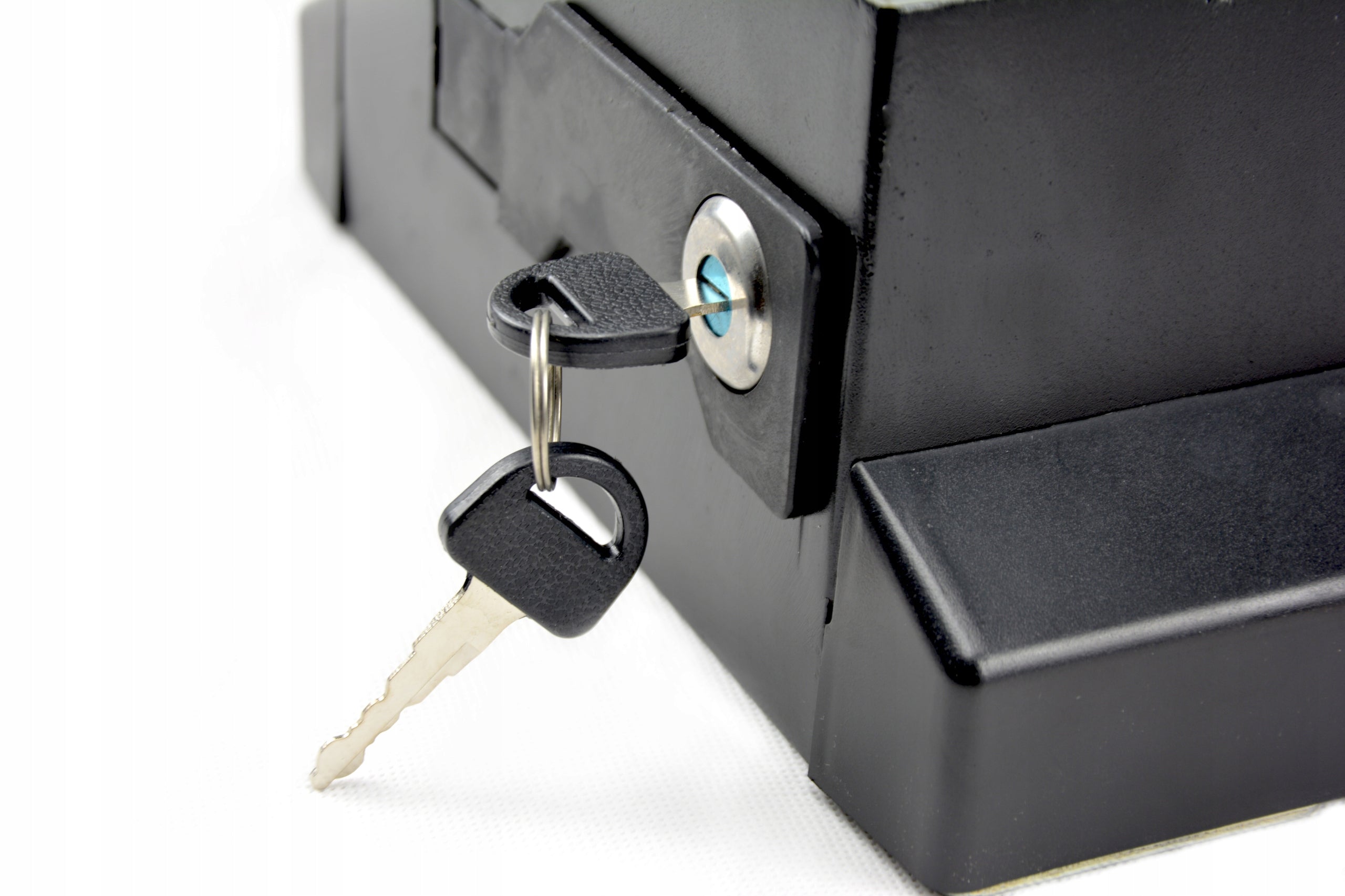

✅ Keys to unlock the slot machine

✅ Magnetic limit switches with handles

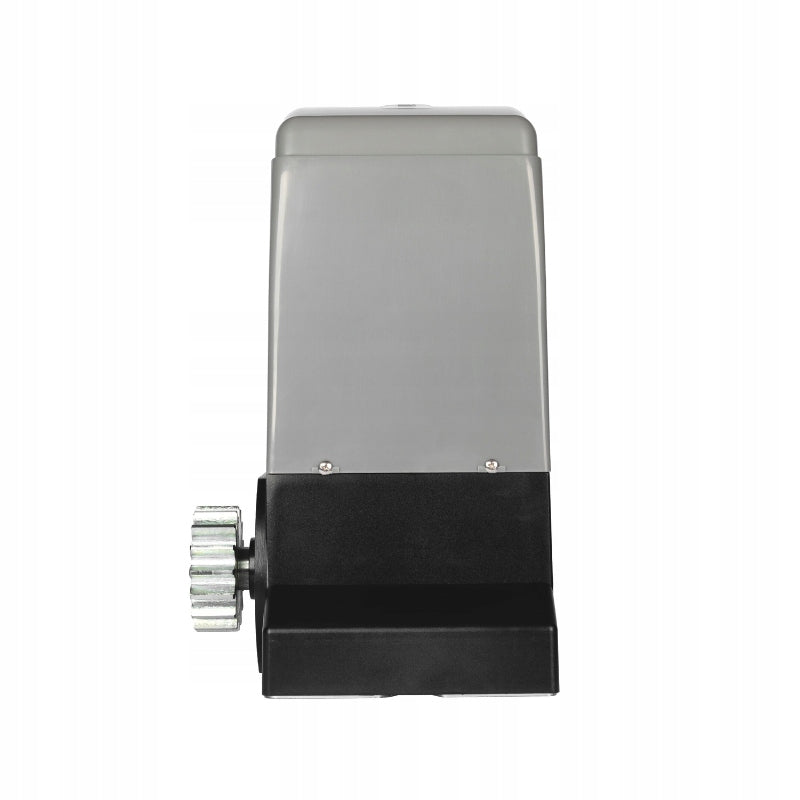

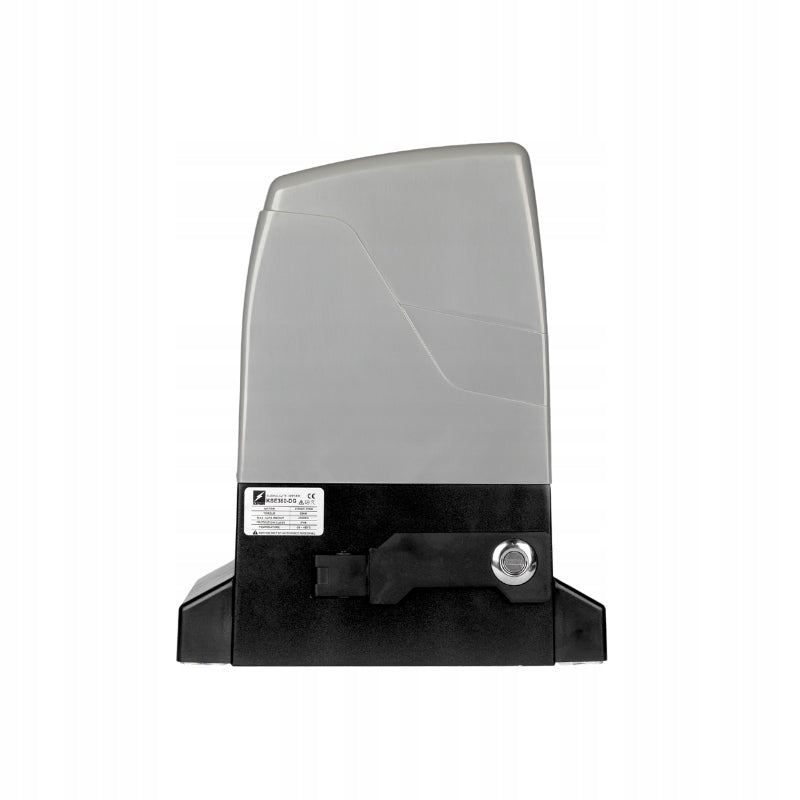

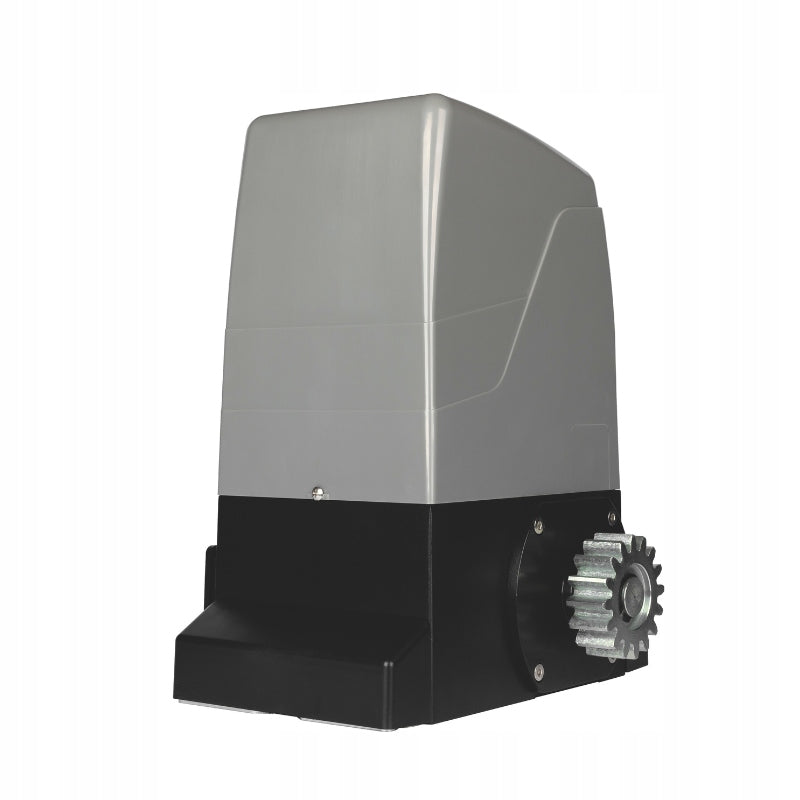

Drive for gate KSE380-DG

• Supply voltage: AC230 [V] / 50 [HZ]
• Maximum gate weight: 2500 [kg]
• Engine power: 250 [W]
• Linear opening speed: 20 [m/min]*
• Output moment of force: >62 [Nm]
• Weight: ~14 [kg]
• Limit switches: Magnetic
• Operating temperature: -30~+60 C

Control panel

• Remote control frequency: 433.92 MHz
• Max. Remote control range: 100 meters
• Compatible remote controls: PS-01, PS-02, PS-03, PS-10

*Maximum speed depending on the weight of the gate.
