Stumdomų vartų vežimėlių rinkinys 70x70, pagaminta Lenkijoje

Trumpai apie prekę

Prekė: Stumdomų vartų vežimėlių rinkinys 70x70, pagaminta Lenkijoje. Kategorija: Vežimėliai ir ratukai.

• Gamintojas: Gp-System
• Modelis: Z.WBR.5BE.70x70.S

More tight bearings - 2RS which gives longer operation of the trolley - bearings without dirt between the bearing balls.

• RS. - BUTYL bearing side gasket (black) not tin ZZ (silver) - less tight plate in the ZZ type.
• butyl synthetic elastomer (the same material as in Simering seals) characterized by high gas and water tightness, good chemical resistance and flexibility in a wide temperature range, has a better contact or tightness with both bearing rings

RS and ZZ bearing images

Only with us 3 sizes of guide rollers are with bearing and not sliding roller without bearing size:

-33mm for 40/40/3 catheter

-35mm for 40/40/2 catheter

-43mm for 50/50/3 catheter

which ensures much better rotation of the roller as in a roll without a bearing.

Only with us each roll as standard with angle

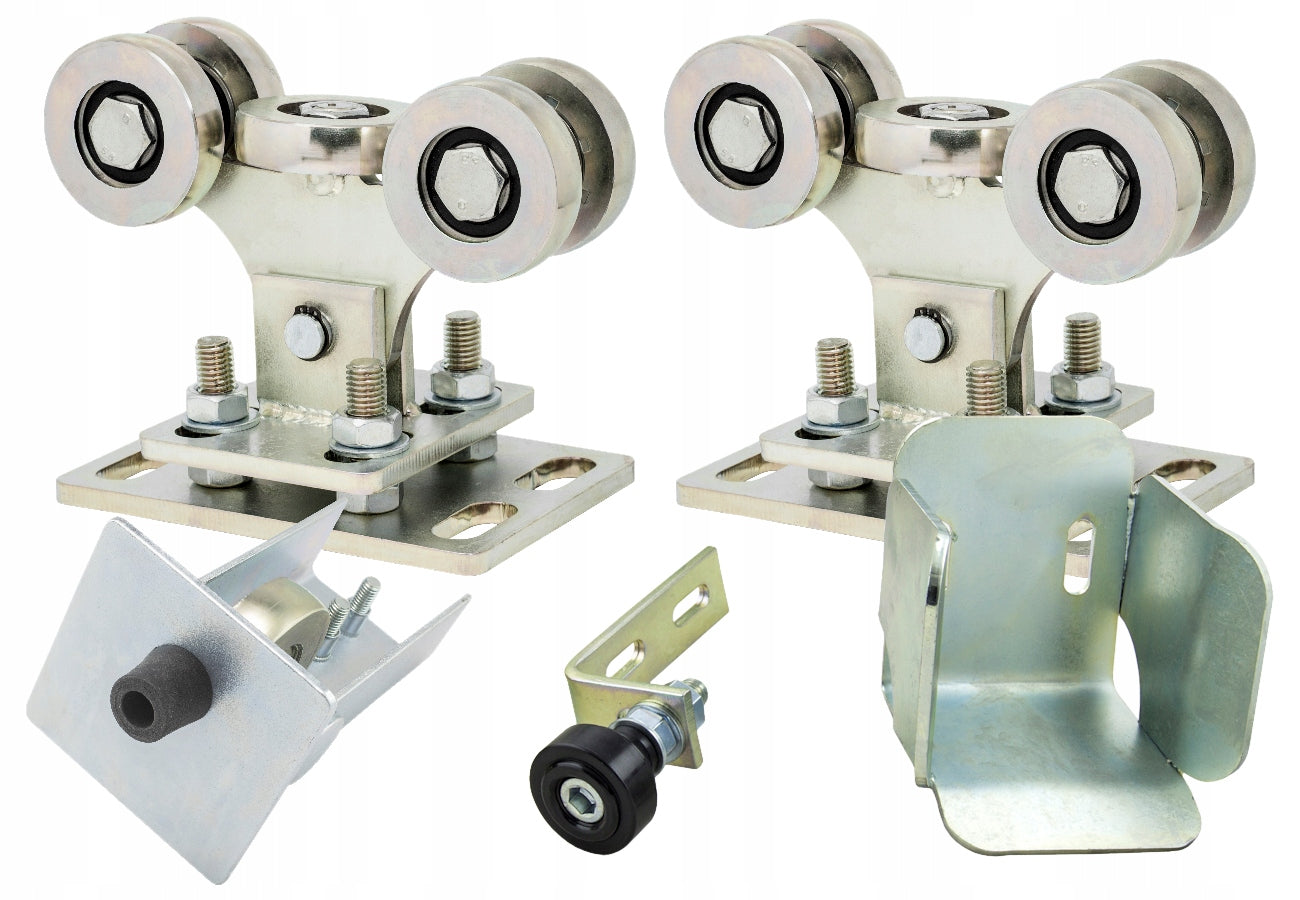

Set :

1) 2x 70x70x4 rail trolleys, self-aligning with adjustment.

2) gate overrun roller with cap - 1 pc

3) overrun socket to relieve trolleys in the state - closed gate - 1 pc

4) free guide roller for your choice - 1 pc

All rollers always with angle for convenient installation:

• 25 mm with angle (for catheter 30x30x2)
• 33 mm bearing with angle (for catheter 40x40x3)
• 35 mm bearing with angle(for catheter 40x40x2)
• 43 mm bearing with angle (for catheter 50x50x3)

Please indicate in the notes to order the selected roll. In the absence of information, we send a 33 mm roll to the 40x40x3 catheter

5) instructions for installing the gate with the trolley spacing table in relation to the length and weight of the gate - we send by e-mail.

Dimension 70 mm is the outer dimension of the rail with a wall of 4 mm.

WE DO NOT MEASURE THE PROFILE INSIDE !

Large beans for adjustment, both in the bottom platform and the top plate of the trolley, which gives a very large range of adjustment during assembly.

Elements of the set :

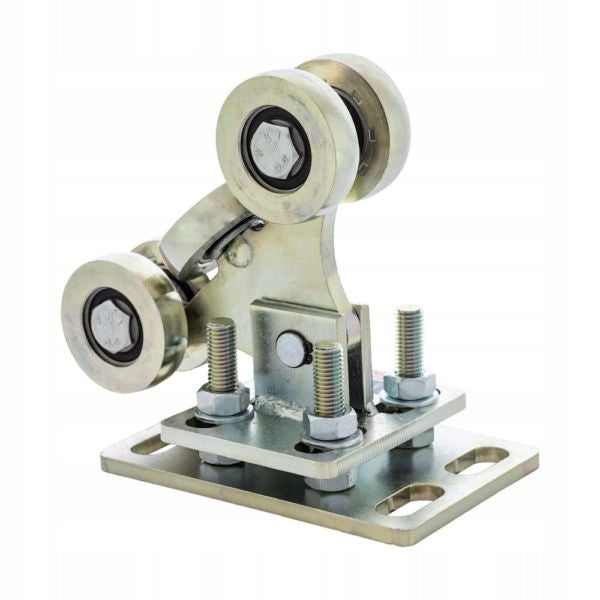

5-roller gate trolley for rail 70x70x4

• trolley symbol: WBR.5BE.70x4.S
• Rollers: 60,5 - steel, rolled by us on CNC machine tools, precisely adjacent to the profile

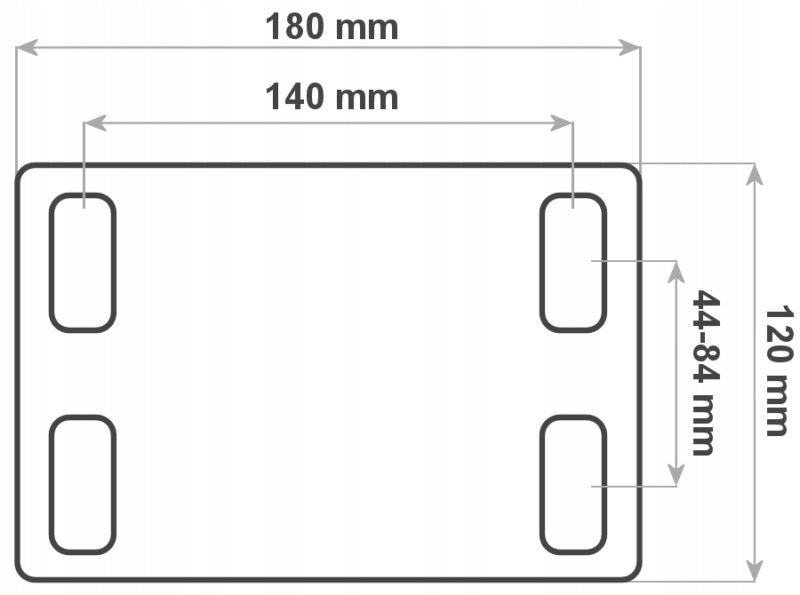

• Adjustment platform (lower plate): 180 × 120 with pins 14
• Coating: galvanized

Weight of trolley: 4,5 kg

Purpose of the trolley:

• Gate weight: up to 700 kg
• Entry light: 4-6 m

Overrun roller with cap and fender, mounted in the running rail.

Remember! Assembly the socket and roller so that the roller clearly enters the socket (slightly lifting the gate). It is designed to support the weight of the gate in the "gate closed" state.

Thanks to the fender, the gate stops without additional noise, and the force of "impact" is reduced.

This is our production inrun roller, in which the roller is mounted on a pin fastened with a Seger ring, not crimped.

Mounting screws "enter" into a rivet nut with a long thread (10 mm, not like the competition thread only in a 3-4 mm plate), which ensures the stability of the mounting connection.

Inrun socket.

Remember! Assembly the socket and roller so that the roller clearly enters the socket (slightly lifting the gate). It is designed to support the weight of the gate in the "gate closed" state.

This relieves the trolleys when the gate is closed.

We know from practice that the gates are closed 99% of the time, at 99% of customers. By relieving the trolleys, you extend their service life!

The socket has water drainage holes.

Rolls with thick rigid angle

All rollers are always with an angle for convenient installation:

• 25 mm with angle (for catheter 30x30x2)
• 33 mm bearing with angle (for catheter 40x40x3)
• 35 mm bearing with angle(for catheter 40x40x2)
• 43 mm bearing with angle (for catheter 50x50x3)

Please indicate in the notes to order the selected roll. In the absence of information, we send a 33 mm roll to the 40x40x3 catheter
