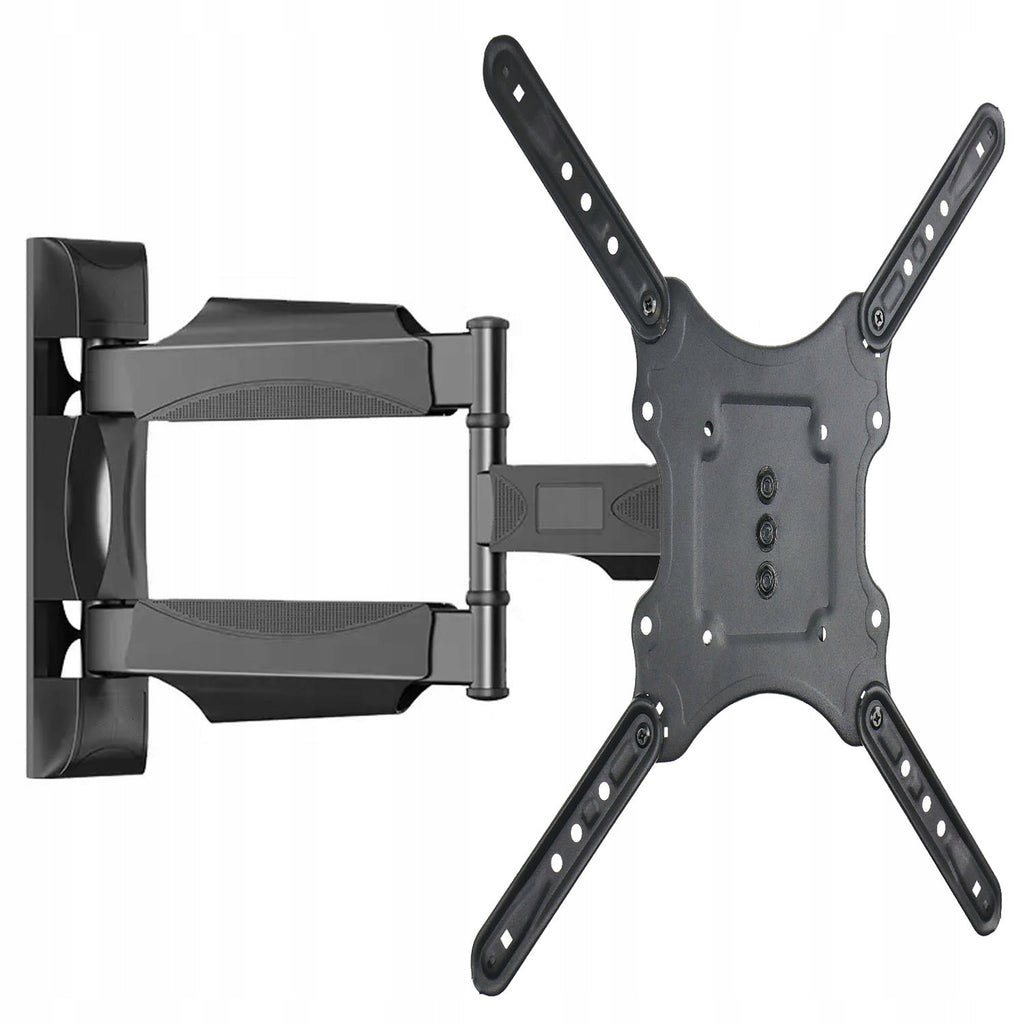

Sukamas televizoriaus ar monitoriaus laikiklis 32–60" PIVOT, VESA

Trumpai apie prekę

Prekė: Sukamas televizoriaus ar monitoriaus laikiklis 32–60" PIVOT, VESA. Kategorija: Rankenos.

• Gamintojas: Qumak-Sekom
• Modelis: PWHP014

HIGH QUALITY WORKMANSHIP | 180° ROTATION | SLOPE FROM -8° TO +8° | VESA 100x100 - 400x400 | TV from 32" TO 60" | MAX. 31.8 KG | PIVOT 90°

⭐ Fully adjustable, swivel TV mount with a size of 32-60 inches. Made of high quality materials, it is able to hold TVs weighing up to 31.8 kg. It provides wide possibilities of adjusting the TV thanks to 180° rotation in the horizontal plane, PIVOT 90° function and inclination in the range from -8° to +8° to ensure the best comfort and visibility of the image. Thanks to a dedicated cable management system, you can safely and aesthetically guide the wires connected to the TV. The mount is compatible with TVs of brands such as SAMSUNG, LG, SONY, TCL, PANASONIC, and many others equipped with VESA mounting holes in the range from 100x100 to 400x400 mm. The handle is powder-coated in black, making it perfect for the living room, office, or waiting room.

• Condition: new,
• Max. lifting capacity: 31.8 kg,
• Supported screen size: 32-60",
• VESA: from 100x100 to 400x400 (mm),
• Rotation adjustment: up to 180°,
• Tilt adjustment: -8° to +8°,
• PIVOT: 90°

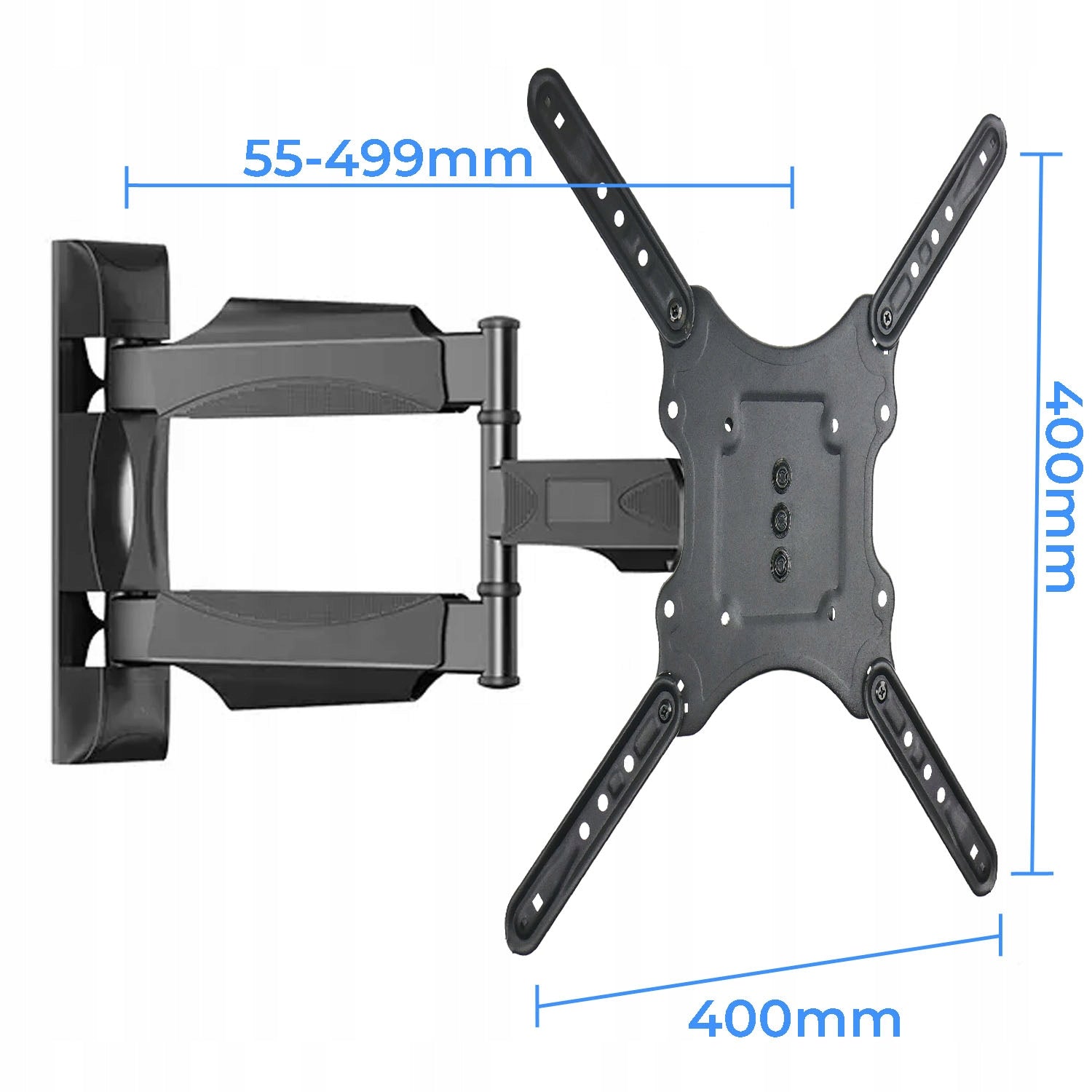

• Adjustable distance from the wall: from 55 to 499 (mm),
• Color: black,
• Material: powder coated steel,
• Package contents: handle, arms, set of screws and bolts, wrench, manual.
• Stock code: PWHP014

✅ High quality and modern design

The entire handle is made of high quality black powdered steel. The reinforced wall plate evenly distributes the weight of the suspended TV. Thanks to its modern design, the handle fits not only into the home or office but also into a service premises, airport or restaurant.

✅ Full range of motion and adjustment

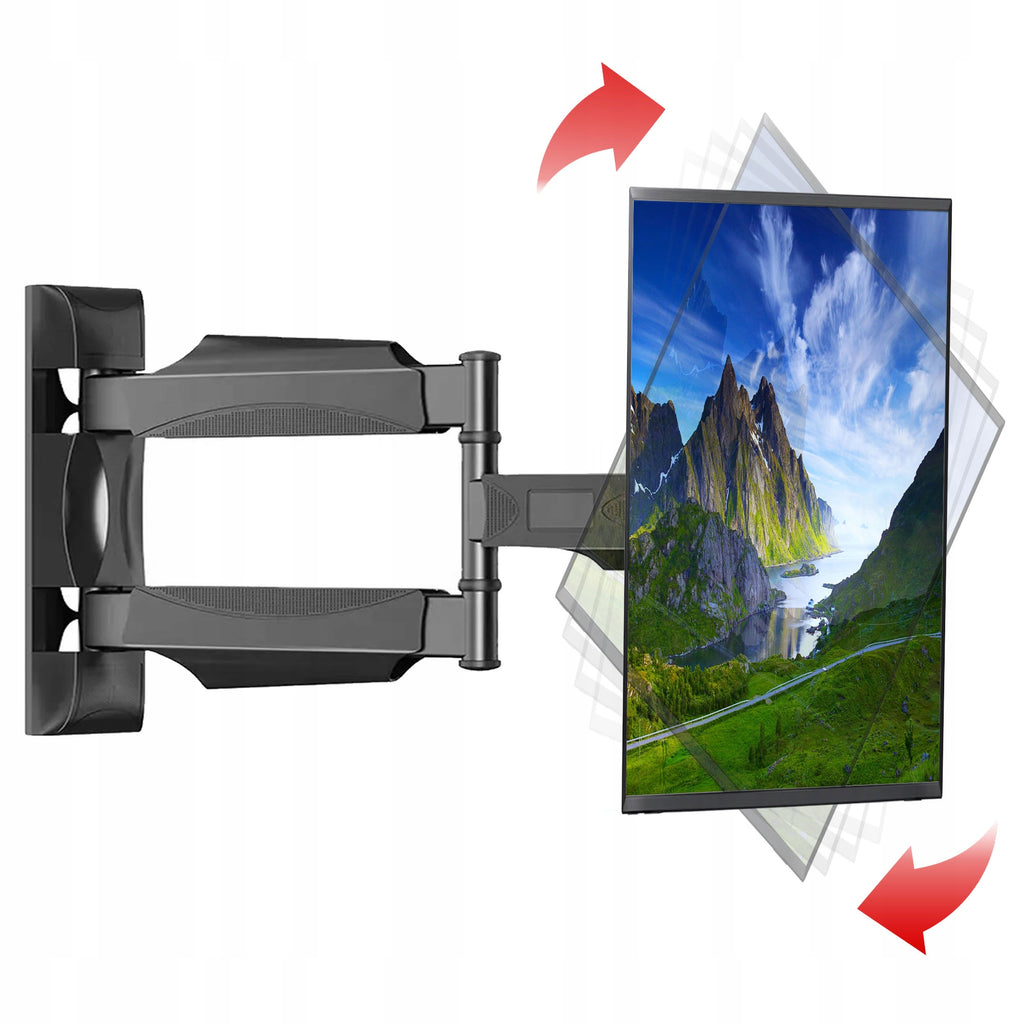

The arm has been made of three parts to provide lifting capacity of TVs weighing up to 31kg and adjustments at three points allowing you to adjust the distance from the wall and rotation. With a full range of motion, the handle can be adjusted to suit your needs and room. The arm rotates up to 180° and moves between 55 and 499 mm from the wall. In addition, the board to which the TV is attached allows you to adjust the tilt in the range of from -8° to +8° and rotate the screen to an upright position - PIVOT 90°.

✅ Guides for cables

No more loosely hanging wires. Thanks to a dedicated cable management system, you can safely and aesthetically guide the wires connected to the TV.

✅ Compatible with VESA mount

The mount supports screens ranging in size from 32 to 60 inch, with the VESA mounting standard. With a wide range of compatible dimensions, most TVs can be mounted.

➡ Matching VESA dimensions:

• 100x100 (mm)
• 200x200 (mm)
• 300x300 (mm)
• 400x400 (mm)

➡ How to check VESA mounting hole spacing

The VESA standard specifies the spacing of the four mounting holes located on the back of the TV. The spacing depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes in level, and the second parameter the distance between the holes in pion. Information about the compatibility of the TV with the VESA standard can be checked in the instructions, specifications on the manufacturer's website or measured yourself using a measuring cup. When choosing a mount, pay attention to the weight of the TV.

The picture next to it shows examples of available spacing of mounting holes (compatible dimensions for this handle should be checked in the technical specification above).

✅ Easy installation and simple operation

The handle is ready to install immediately after unpacking. With the included set of mounting parts, wrench, and instructions, it can be mounted without having to spend money on additional components.

The included set of screws fits most TVs on the market, although in the case of mounting some models (m.in: Samsung, TCL, etc.) you may need to use longer screws or additional distances to level the rear surface of the housing (not included in the set and must be purchased on your own).

➡ Set contains:

• handle,
• 4x arm,
• mounting key,
• Screw 7x65 - 3 pcs.
• plastic pin Φ10xΦ7x60 - 3 pcs.
• Screw M4x25 - 4 pcs.
• Screw M5x25 - 4 pcs.
• Screw M6x25 - 4 pcs.
• Screw M8x25 - 4 pcs.
• nut M6 - 4 pcs.
• Screw M6x12 - 4 pcs.
• distances M15x8x10 - 4 pcs.
• installation instructions
• plastic grille
