Aprašymas
Trumpai apie prekę

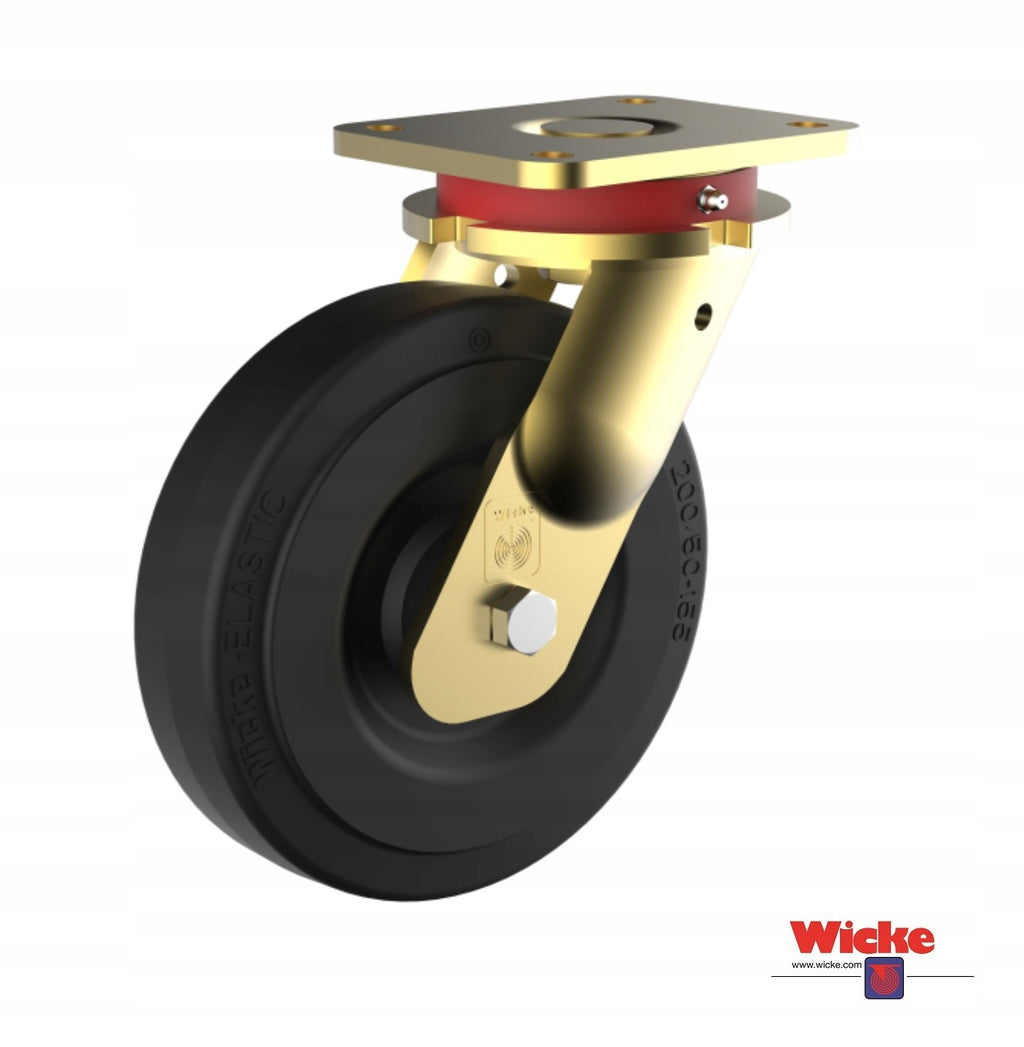

Prekė: Sukamasis ratukas šlavimo mašinai 200 mm WICKE. Kategorija: Grindų šlavimo mašinos.
- Gamintojas: Wicke
- Modelis: 169547 DB LLAK 4/200/50K
- Svoris: 5.75 kg
CIRCLES 169547 DB LLAK 4/200/50K
The DB series rubber wheels have a steel hub with a welded structure and a vulcanized tread made of flexible rubber Wicke - ELASTIC® with a hardness of 63 Shore A. The wheels are equipped with ball bearings.
FORKS
Pivot forks with a massive welded structure, with plate mounting, galvanized, yellow chromate, designed for heavy loads (600 kg).
Pivot head equipped with thrust ball bearing (DIN 711/ISO 104) and tapered roller bearing (DIN 720/ISO 355). The bearings are lubricated with long-lasting grease, and the head also has a lubricator.
The top plate and fork arms are twisted with a pin and secured with a spot weld.

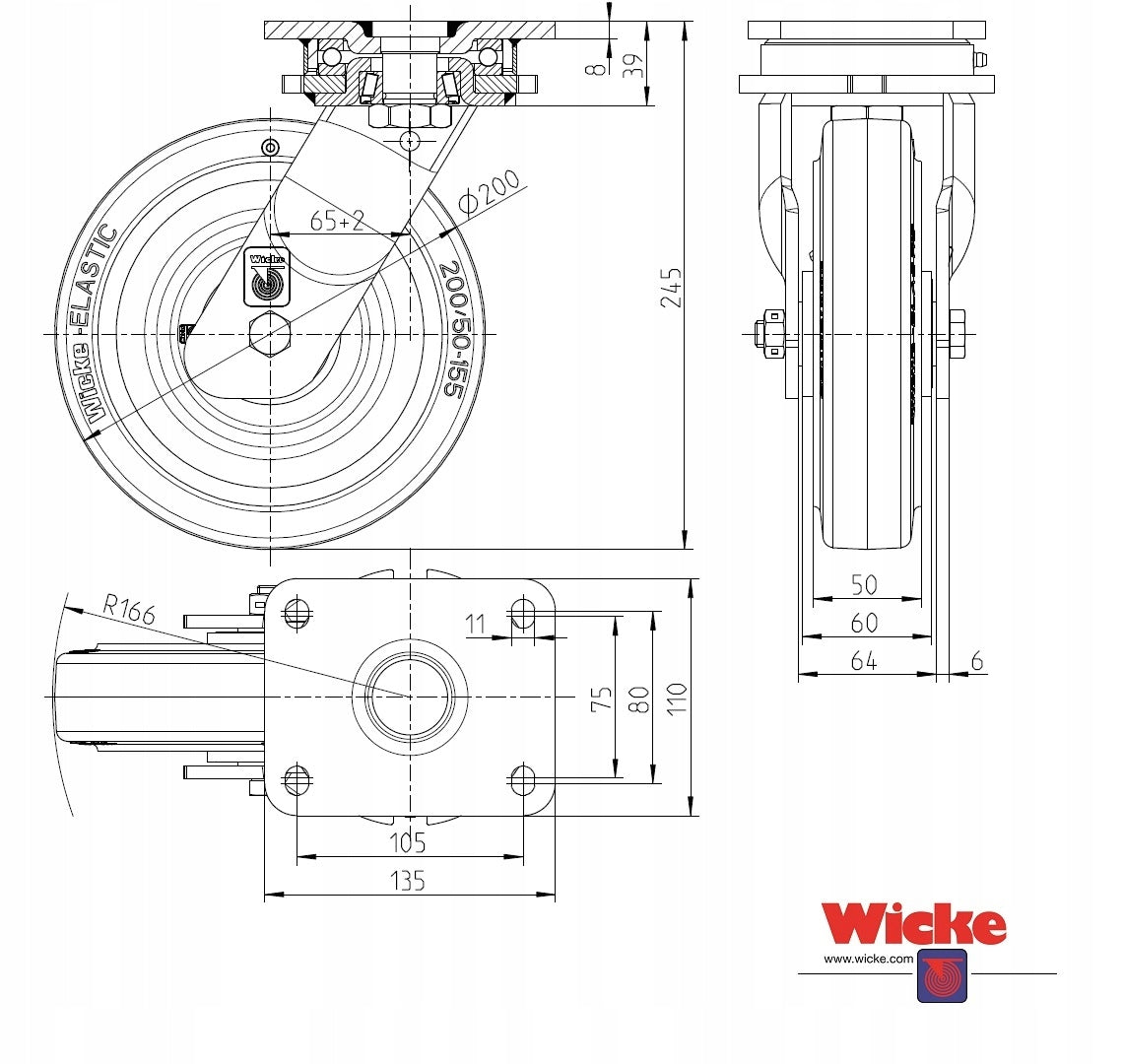

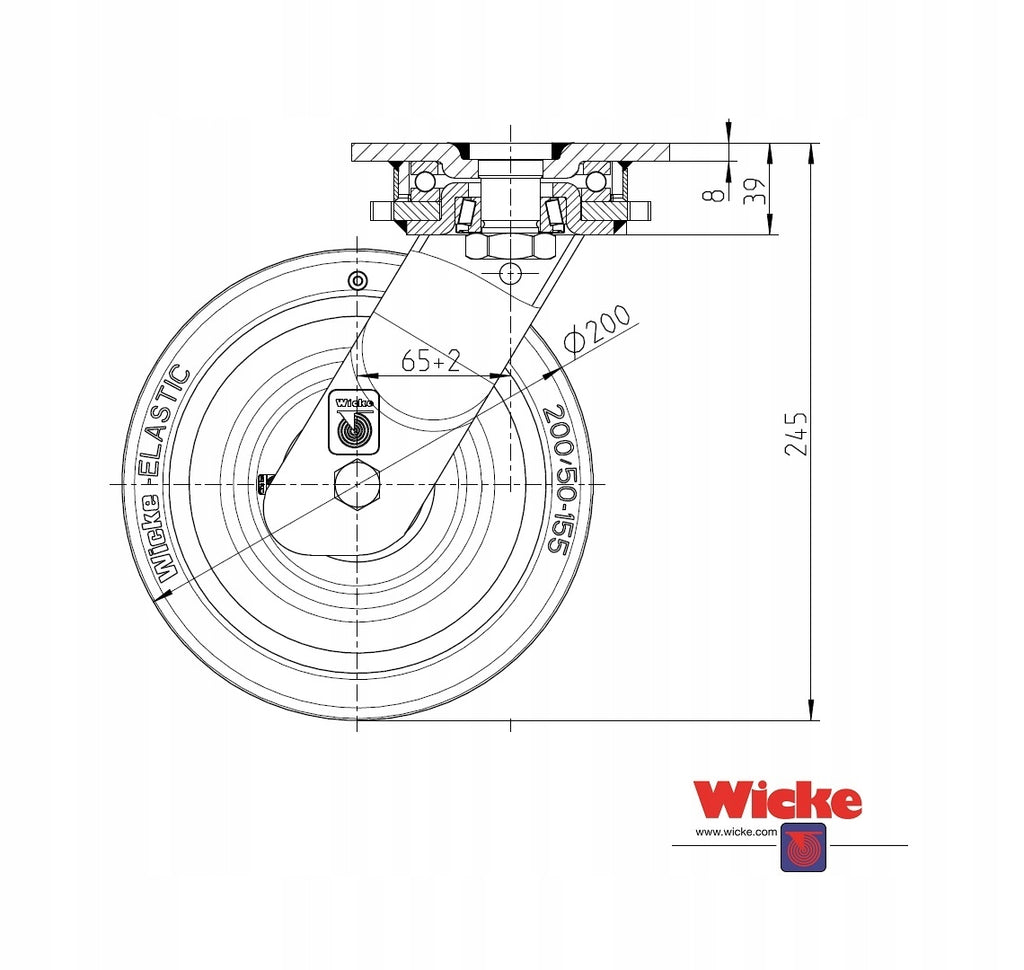

TECHNICAL DATA
- Diameter (D): 200 mm
- Wheel width (T): 50 mm
- Width of plate: 110 mm
- Tile length: 135 mm
- Tile thickness: 8 mm
- Diameter of mounting hole (d): 11 mm
- Total height (H): 245 mm
- carrying capacity: 600 kg
- Wheel tread type: rubber tread Wicke- ELASTIC®
- Rim type: welded steel
APPLICATION TO VARIOUS TYPES OF PLOUGHS AND SWEEPERS
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Wicke |
| Parametry | Model | 169547 DB LLAK 4/200/50K |
| Parametry | Power supply | handheld |
| Parametry | Manufacturer code | DB LLAK 4/200/50K |
| Parametry | Weight | 5.75 kg |
| Parametry | EAN (GTIN) | 4053357010655 |
