Sukimosi reguliatorius su termostatu HC3S, 3 greičiai

Trumpai apie prekę

Prekė: Sukimosi reguliatorius su termostatu HC3S, 3 greičiai. Kategorija: Oro šildytuvai.

• Gamintojas: Reventon
• Modelis: HC35

REVENTON

• Product type: Controller, Temperature controller
• Height [ mm ]: 130
• Width [ mm ]: 85
• Depth [ mm ]: 40
• Assembly: Wall-mounted, Internal
• Network voltage [ V ]: 230

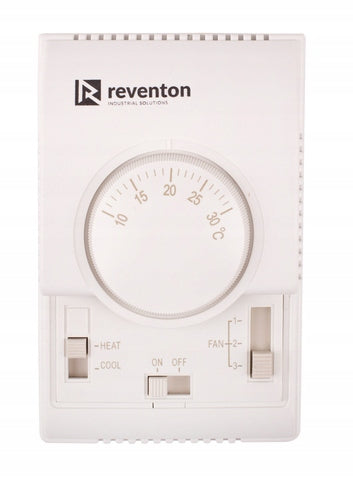

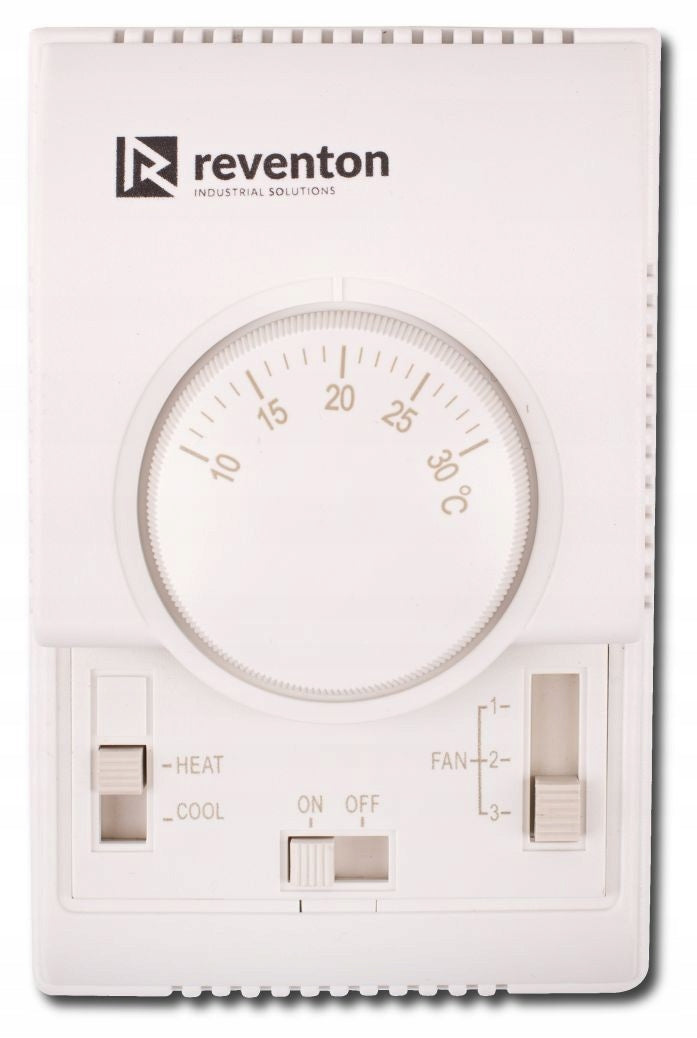

Rotation controller with thermostat HC3S - 3 speed rotation from REVENTON

The controller is designed to control the rotation of devices that are equipped with three-speed fan motors. Three-stage speed control and a built-in thermostat make the device a useful element of installations heating large areas. The thermostat turns off the device when the set temperature on the controller is reached. The regulator itself has the ability to control the actuator of control valves that can be mounted on the pipe supplying the device. The controller can be used in the case of heating to maintain the set temperature by properly heating the room as well as to maintain the set temperature when there is a need to cool the room. Changing the speed of rotation, the heating / cooling mode is possible by moving the appropriate slider on the regulator.

With one HC3S controller, we can regulate the operation of several devices at the same time

• Heaters HC20-3S, HC30-3S, HC35-3S, HC45-3S - maximum 3 units
• Heaters HC50-3S, HC70-3S - maximum 2 units
• Heaters Farmer IP54, IP65 - maximum 1 pc.

Advantages

• Independent control switch system
• 3-stage fan adjustment
• Electric valve and thermostat controlled fan
• HEAT/COOL heating-cooling switch
• On/Off switch and switch
• Temperature range: 10°C~30°C
• Adjustment accuracy: < 1°C

Dimensions: 130x85x40 mm

Voltage: 230V/50~60Hz

Maximum intensity: 3A

Specifications
