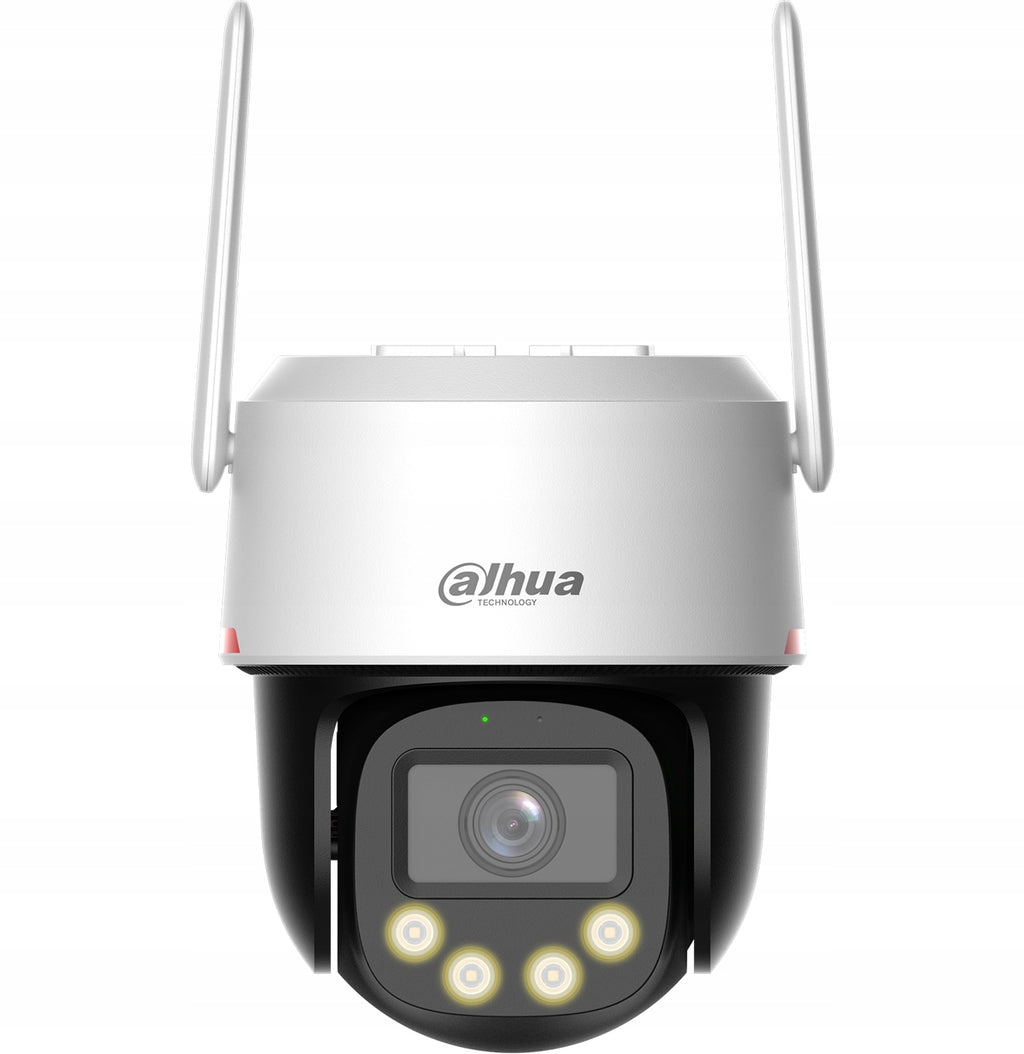

Sukiojama 8MPX UHD Dahua P8F-PV-0360B-PRO stebėjimo kamera su vaizdo analize

Trumpai apie prekę

Prekė: Sukiojama 8MPX UHD Dahua P8F-PV-0360B-PRO stebėjimo kamera su vaizdo analize. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: P8F-PV

WizColor | Auto Tracking Lite | IVS | AI-ISP | SMD 3.0 | LED up to 30 meters | Active Deterrent | WiFi

Advanced WizColor 4K Rotary Camera

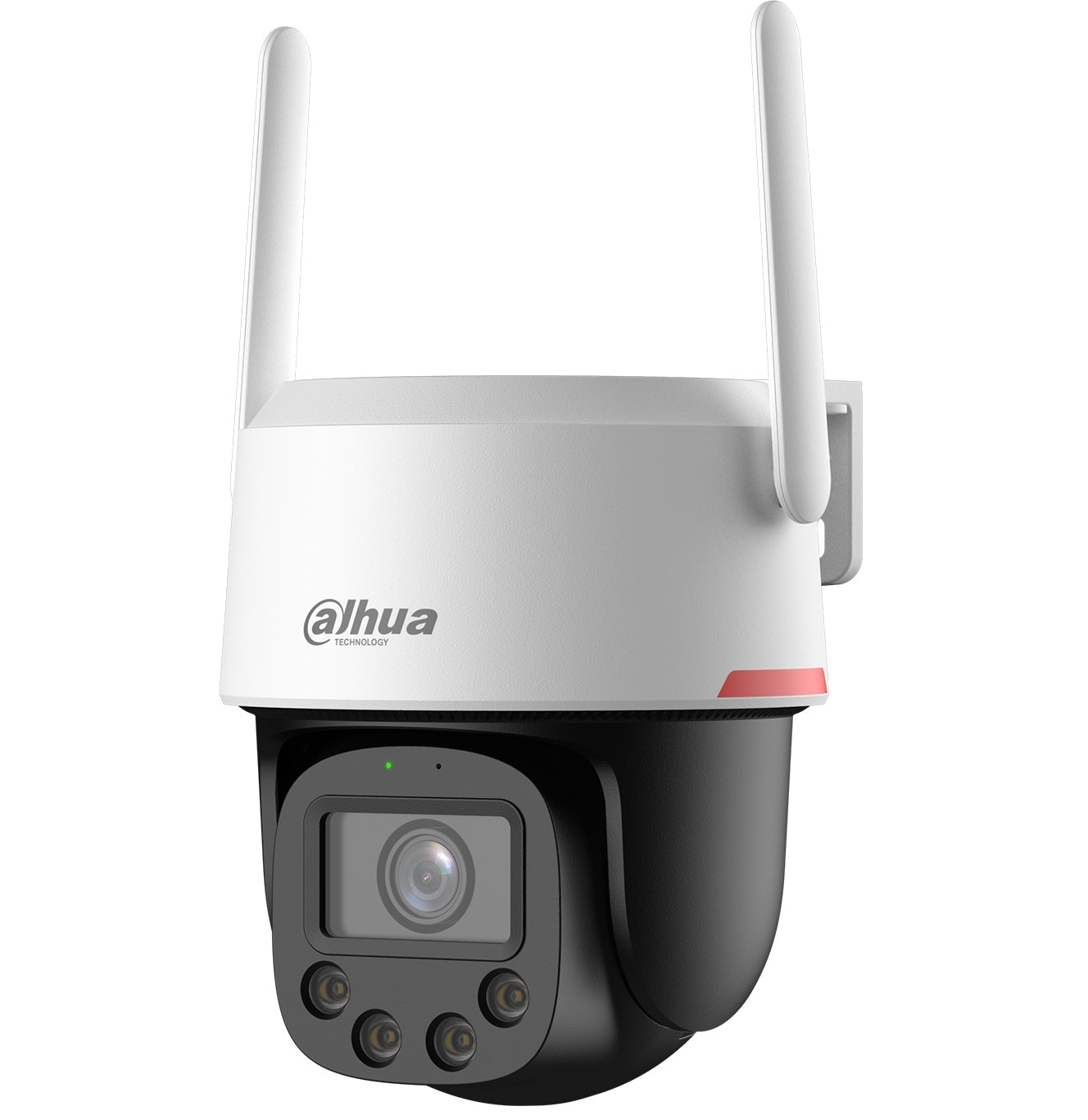

The Dahua P8F-PV camera is a professional network rotary camera (PT) with a resolution of 8MPx, designed for demanding business applications in video surveillance.

It belongs to the WizSense i series and uses innovative WizColor technology, thanks to which it provides a colorful image around the clock – even with minimal ambient lighting.

The camera offers advanced AI-based analytics functions (m.in. SMD 3.0 with human and vehicle classification, intruder detection, automatic target tracking) and active deterrence of intruders with light and sound.

The camera also has two-way audio communication (built-in microphone and speaker), allowing remote conversation with people in the supervised area.

Technical parameters:

• Converter: 1/1,8" 8MP CMOS
• Resolution: 3840x2160 (8Mpx)
• Network interface: 1x RJ45 Ethernet 10/100Mbps / WiFi
• Compression: H.265+/ H.265/ H.264+/ MJPEG
• Lens: 3,6mm
• Sensitivity: 0,0005lux/F1,0, 0lux (LED on. )
• Lighting: 4 white light LEDs (30m range)
• Image Features: AWB, ATW, AGC, BLC, HLC, 2D/3D NR, WDR 128dB
• WizColor - bright, colorful image technology at night
• AI-ISP - improving image/video quality through AI algorithms
• Built-in microphone and speaker (two-way conversation)
• Ability to upload your own audio file (commands / alarm)
• Supports cards microSD / microSDHC / microSDXC up to 256GB
• AI functions: perimeter protection - IVS , Auto Tracking Lite, object classification (human / vehicle)
• SMD 3,0 - classification with false alarm filtering
• Active deterrence - 4 LEDs flashing (white light), beep (message or alarm)
• Image preview: Smart PSS, DMSS, Web Interface
• Housing: plastic, tightness class (IP66)

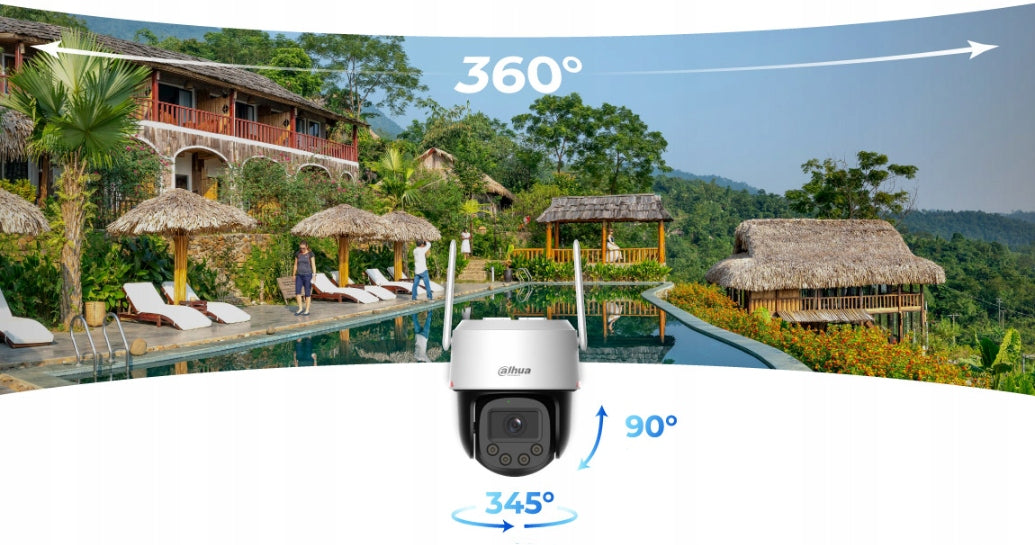

Full visibility without blind spots

The Dahua P8F-PV camera is equipped with a rotating Pan/Tilt head, allowing horizontal rotation up to 345° and vertical tilt up to 90°. Thanks to this, one camera can effectively monitor a vast area, eliminating the so-called. dead zones. The direction of observation is controlled remotely – using a mobile application or computer, which provides full control over real-time monitoring.

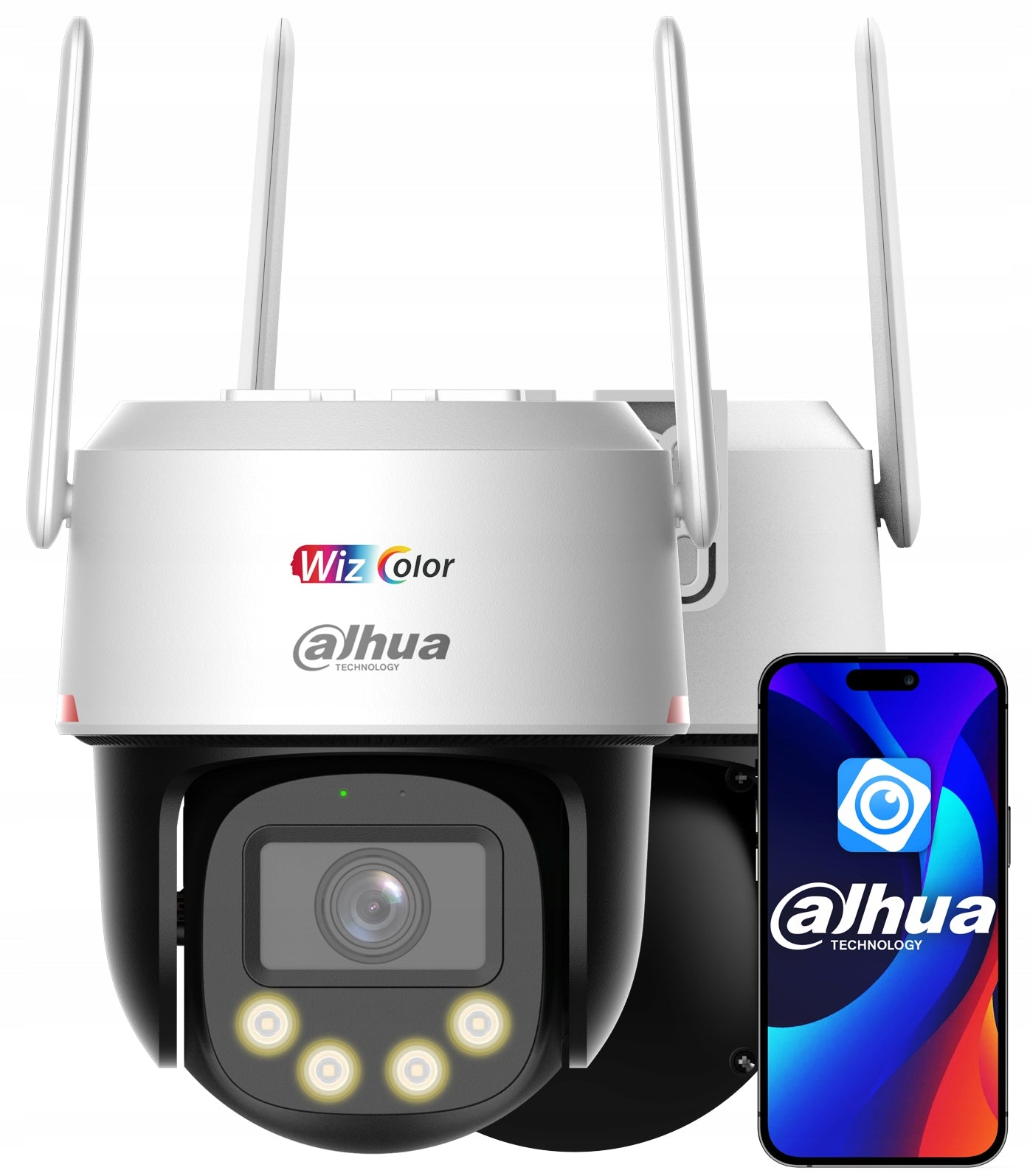

WizColor technology – 24/7 color image

Unlike classic cameras using infrared (IR) mode, the P8F-PV model works on the basis of WizColor technology, which allows you to capture color images both during the day and at night – without switching to black and white mode.

The built-in white light allows you to effectively illuminate the scene in low light conditions, even at a distance of up to 30 meters. Thanks to this, it is possible to better identify objects, people and vehicles in every situation – even after dark.

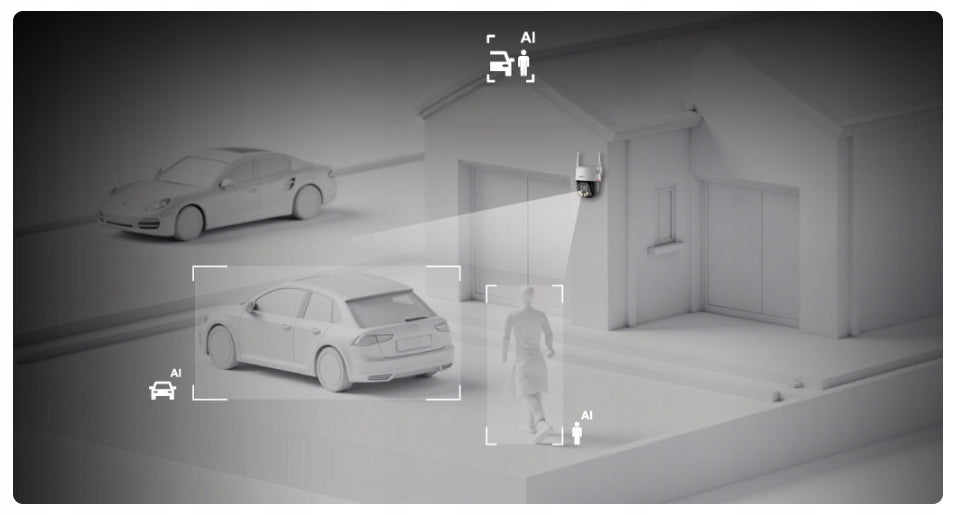

Intelligent motion detection with human and vehicle recognition

The P8F-PV camera is equipped with an advanced image analysis system based on artificial intelligence, which distinguishes between people and vehicles. This ensures that you receive notifications only about actual events, not about movement caused by leaves, animals, or shadows. In addition, the autotracking function allows the camera to automatically follow the detected object in motion – both human and car – which ensures better supervision and capture of event details in real time.

Resistance to all conditions

The camera is designed to work in harsh outdoor environments. Solid housing in IP66 protection class protects the device against dust, rain, snow and strong wind gusts. Regardless of the season and weather conditions – the camera operates stably and reliably, ensuring continuous monitoring even at temperatures from to 30 °C to +55 °C. It's the perfect solution for outdoor applications where durability and trouble-free operation are important all year round.

Specification:

• Model: P8F‑PV
• Converter: 1/1.8" CMOS
• Resolution: 3840 (H) ) × 2160 (vertical. ) 8MPx
• Angle of view: H: 82.9°; V: 47.3°; D: 93.4°
• Number of illuminators: 4 white light LEDs (30m range)
• Light warning: warm light, flash time 5 to 30 s, frequency: high, medium, low
• Rotation range: Pan: 0°–345°, Tilt: 0°–90°
• Transducer sensitivity: 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on)
• Bitrate: H.264: 104 to 8192 kbps, H.265: 41 to 8192 kbps
• Camera type: External/Internal
• Video compression: Smart H.265+, H.265, Smart H.264+, H.264B/M/H, MJPEG
• Focal lens: 3,6mm
• Built-in lens: Yes, fixed focal length
• Mechanical Infrared Filter : Yes
• Day/Night: Auto(ICR)/Color/Black and White
• Motion detection: Yes
• Slot for SD card: Yes, support max 256GB
• Max. Number of users: 20
• Network port: RJ-45 (10/100 Base-T)
• WiFi module: Yes, built-in
• Supported network protocols: HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP
• Built-in microphone and speaker: Yes
• Smart Events (IVS): intersection line, intrusion, tracking, SMD: version 3.0
• Detection of people and vehicles: Yes
• Software: Smart PSS, DMSS, Player, ConfigTool, NVR, Smart Player
• Mobile applications: iOS, Android
• Working humidity: ≤95% (relative humidity), non-condensing
• Working temperature: –30 °C to +55 °C
• Leak-proof class: IP66
• Power consumption: 3W (12V DC) Max: 9W
• Power Supply: 12VDC 1A
• Housing material: Plastic
• Net weight: 0,6 kg
• Product dimensions: 153.5 mm × Φ129.3 mm
