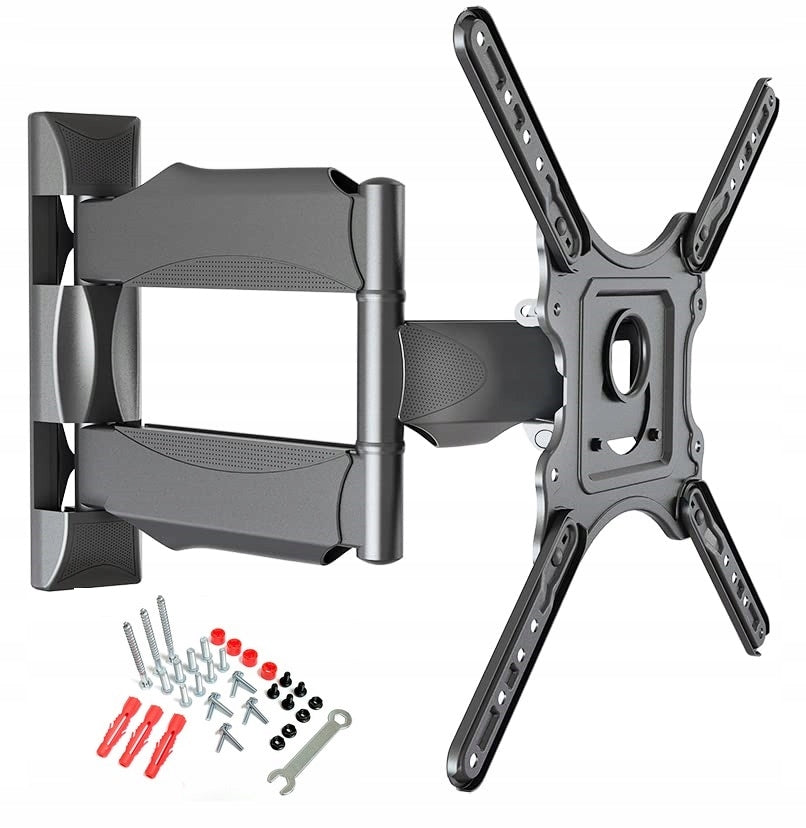

Sukiojamas STRONG televizoriaus laikiklis, 32–65", iki 31 kg

Trumpai apie prekę

Prekė: Sukiojamas STRONG televizoriaus laikiklis, 32–65", iki 31 kg. Kategorija: Rankenos.

• Gamintojas: Kopier
• Modelis: Model-P4

The presented handle is incredibly strong and versatile - it has an adjustable spacing of mounting holes

Thanks to its design, it allows you to adjust the distance from the wall from 50 to 400 mm, which makes it incredibly versatile and attractive.

The mount is compatible with VESA standard max. 400 x 400 mm, suitable for LCD TVs measuring 32 – 55 inches.

COMPATIBLE WITH ANY VESA-compliant TV MODEL .

Mounting hole spacing from 100x100 ~ 400x400 (mm)

• VESA 100 (100mm x 100mm hole spacing)
• VESA 100×200 (100mm x 200mm hole spacing)
• VESA 200×100 (200mm x 100mm hole spacing)
• VESA 200 (200mm x 200mm hole spacing)
• VESA 200×300 (200mm x 300 mm hole spacing)
• VESA 300×200 (300mm x 200 mm hole spacing)
• VESA 300 (300mm x 300mm hole spacing)
• VESA 400×200 (400mm x 200 mm hole spacing)
• VESA 400 (400mm x 400mm hole spacing)

Technical data:

Supported TV Size: 32"- 65"

Maximum lifting capacity: 27,2 kg

Compatible with VESA standard: 100x100 mm to 400x400 mm

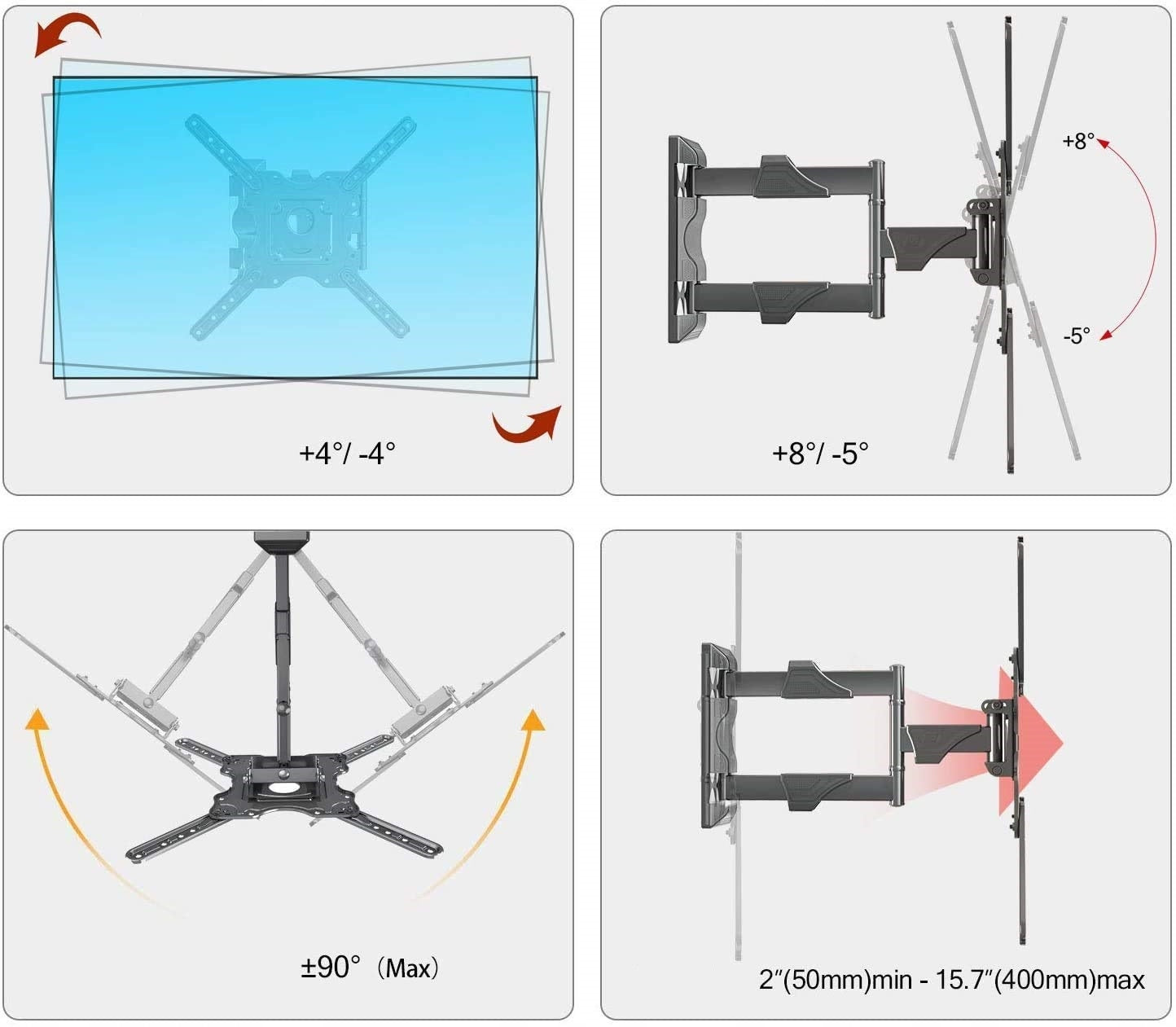

Rotation adjustment: 180°

Tilt adjustment: +8°/-5°

Adjustable rotation: +4°/-4°

Adjustable distance from wall: 50 ~ 400 mm

Management system, cable routing

MOUNTING KIT

1. Screw M4×25mm – 4 pcs.
2. Screw M5×25mm – 4 pcs.
3. Screw M6×25mm – 4 pcs.
4. Screw M8×30mm – 4 pcs.
5. Distance 10mm – 4 pcs.
6. Wrench 10mm – 1 pc.
7. Screw 7×70mm – 3 pcs.
8. Pin Ø10×Ø7×66mm – 3 pcs.

SET COMPOSITION

• handle
• set of screws*
• installation instructions
