Aprašymas
Trumpai apie prekę
Prekė: Sukiojamas televizoriaus laikiklis 32"–55. Kategorija: Rankenos.
- Gamintojas: Ergosolid
- Modelis: 2020-P4

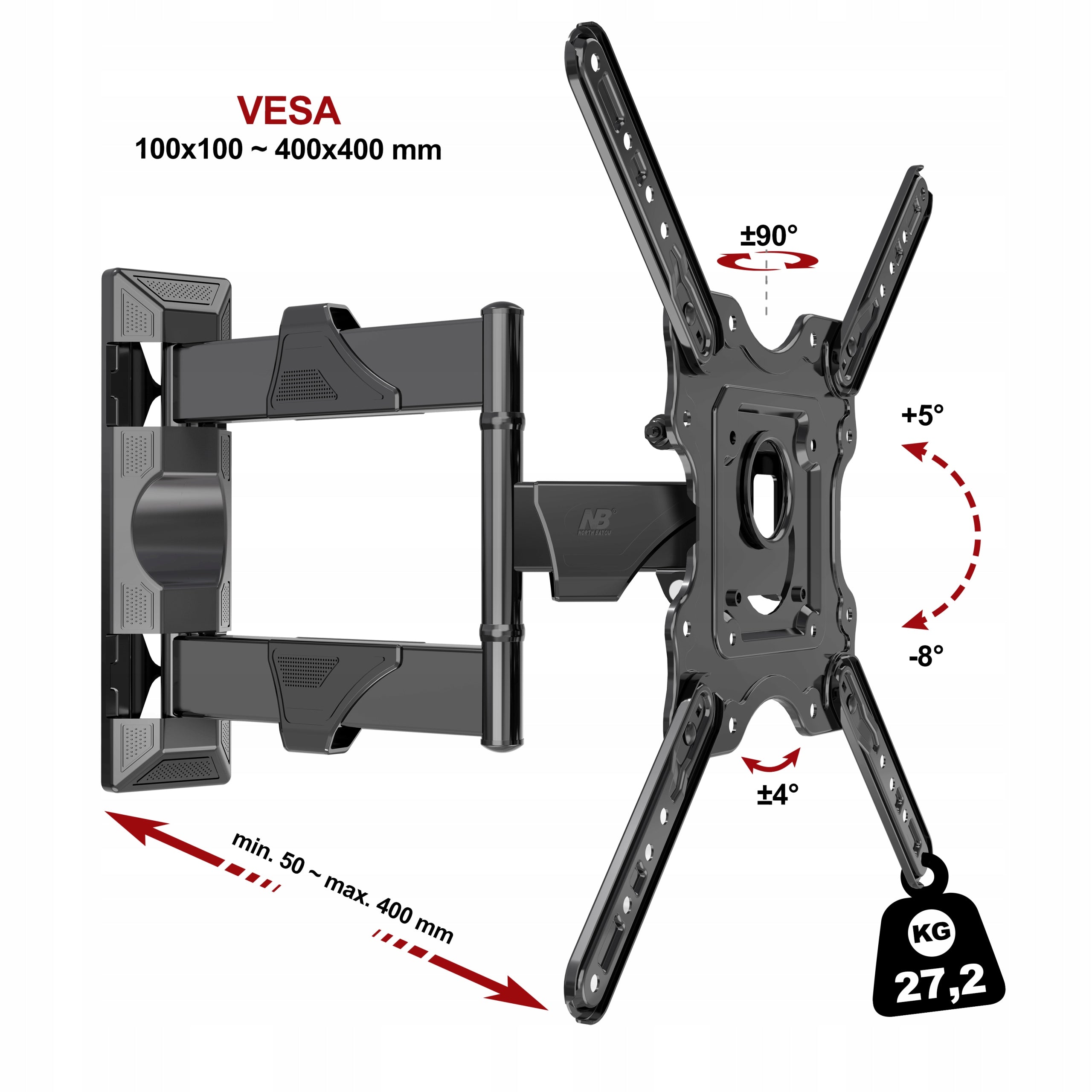

High quality LCD LED TV mount
Model: 2020-P4
- TV Size: 32-55 inches
- Maximum TV weight: 27,2 kg
- VESA: 100x100 ~ 400x400 mm
- Rotation adjustment: 180°
- Tilt adjustment: +5° / -8°
- screen tilt correction ±4°
- Adjustable distance from wall: 50 ~ 400 mm
- Cable management system
- Powder coated in black
- Certificate: TUV GS
Original product from the official polish distribution.
A product of a reputable brand for 12 years on the market!
CHARACTERISTICS
- designed for 32"- 55" Plasma LED LCD TVs
- universal adjustable flat TV mount weighing up to 27,2kg
- high quality workmanship with attention to detail
- tilt adjustment
- Rotating arm
- small distance from the wall
- tilt correction (reduction of assembly errors)
- handle has TUV GS
- Compliant with VESA standard
- cable management system
- screw cover grille
- very solid workmanship
- available in black
TECHNICAL PARAMETERS
- max. lifting capacity 27,2 kg
- for TVs 32″- 55″
- rotation adjustment up to 180°
- tilt adjustment in the range of +5° / -8°
- ±4° screen tilt correction
- adjustable distance from the wall in the range of 50 ~ 400 mm
- TUV certified handle
Compatible with VESA (mounting hole spacing) standard:
- VESA 100x100 mm
- VESA 100x200 mm
- VESA 200x100 mm
- VESA 200x200 mm
- VESA 200x300 mm
- VESA 300x200 mm
- VESA 300x300 mm
- VESA 300x400 mm
- VESA 400x200 mm
- VESA 400x300 mm
- VESA 400x400 mm

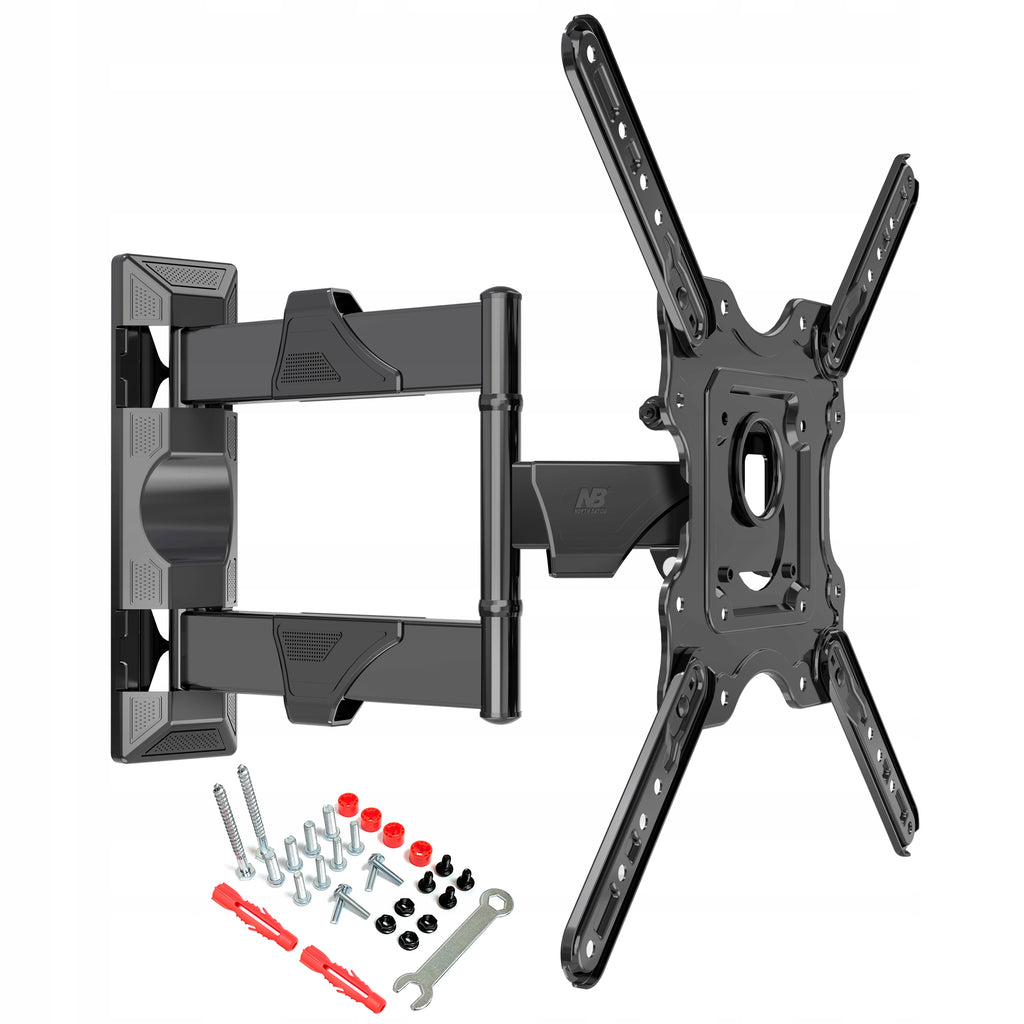

MOUNTING KIT
- Screw M4×25mm – 4 pcs.
- Screw M6×25mm – 4 pcs.
- Screw M8×30mm – 4 pcs.
- Distance 10mm – 4 pcs.
- Wrench 10mm – 1 pc.
- Screw 7×70mm – 2 pcs.
- Pin Ø10×Ø7×66mm – 2 pcs.
SET COMPOSITION
- handle
- set of screws*
- installation instructions
* standard/universal screws are included to fit most TVs, if they do not fit, then you should buy the appropriate screws on your own.
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
GALLERY
Product No.: PS 5951 PS 6552 NBP4BLK BRTW
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 2020-P4 |
| Parametry | Model | 2020-P4 |
| Parametry | Maximum TV size | 55" |
| Parametry | Brand | Ergosolid |
| Parametry | Maximum load | 27 kg |
| Parametry | Additional information | desk bracket |
| Parametry | Product weight with unit packaging | 3.03 kg |
| Parametry | EAN (GTIN) | 5901597300397 |
| Parametry | Packaging status | original |
| Parametry | Kind | rotating,retractable |
| Parametry | VESA Standard | 100 x 100,200 x 100,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,400 x 300 |
