Aprašymas
Trumpai apie prekę
Prekė: Sukiojamas televizoriaus laikiklis, 75–110" VESA. Kategorija: Rankenos.
- Gamintojas: North Bayou
- Modelis: SP5
- ✅ Screen size: 75"-110" (and smaller according to VESA)
- ✅ Maximum lifting capacity: 90,9 kg
- ✅ Tilt adjustment: +5° / -10°
- ✅ VESA: 400x300 ~ 800x600 mm
- ✅ Installation error correction system
- ✅ Cable Management System
- ✅ Right-left rotation adjustment up to ±45°
- ✅ Distance adjustment from wall: 72~700mm
- ✅ Certified handle: TUV GS, ISO9001

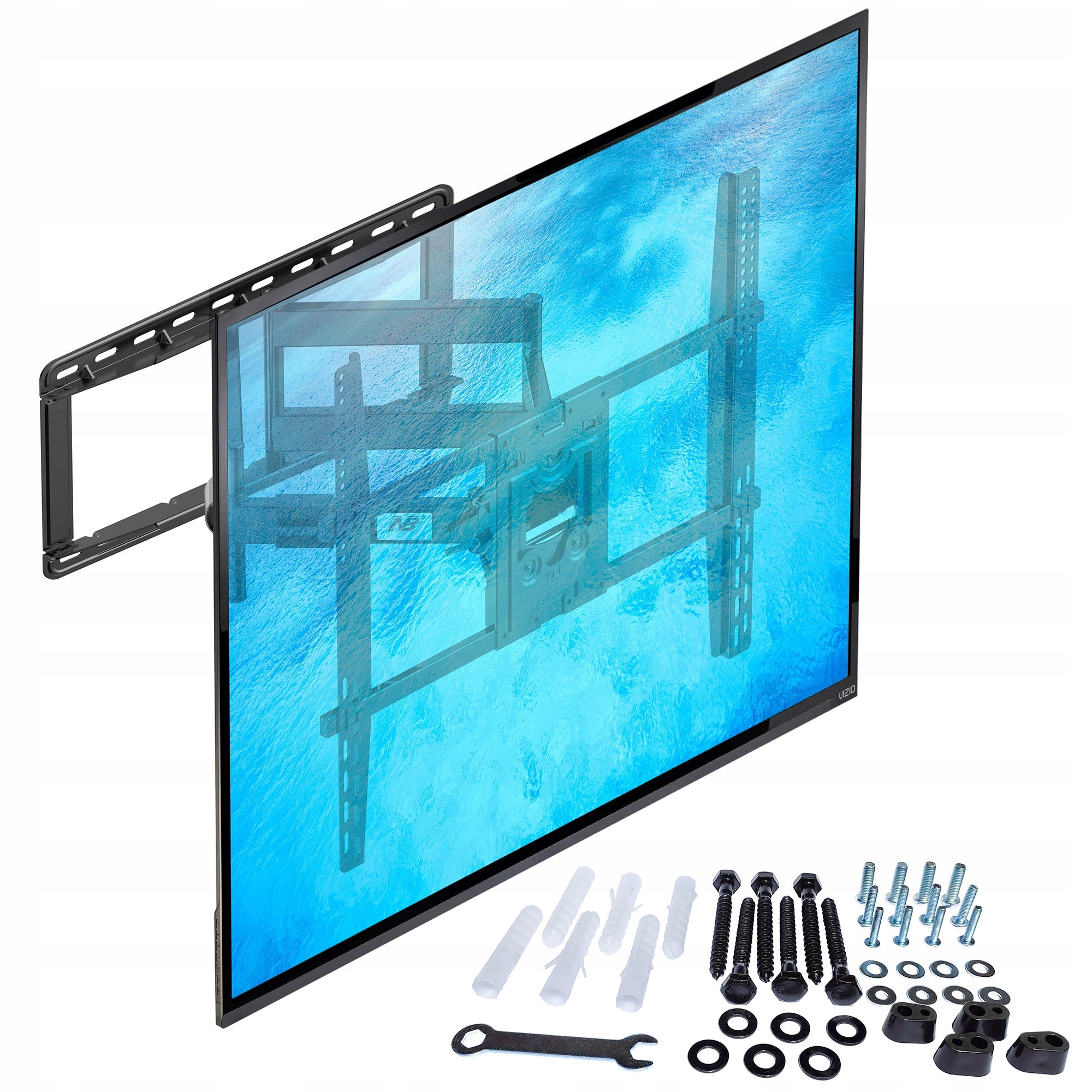

The set includes a universal set of mounting screws for the TV and a set of screws and studs for the wall.
CHARACTERISTIC
- ✅ Designed for large LCD LED Plasma TVs
- ✅ Universal adjustable TV mount
- ✅ High quality workmanship with attention to detail
- ✅ Unique design
- ✅ Tilt adjustment
- ✅ Rotating arm
- ✅ Short distance from the wall (flat design)
- ✅ Elimination of assembly errors
- ✅ VESA compliant
- ✅ Cable Management System
- ✅ Very solid workmanship
- ✅ Wide mounting plate better distributed the weight on the wall
- ✅ The handle has TÜV GS and ISO quality certificates
TECHNICAL PARAMETERS
- ✅ Maximum lifting capacity: 90,9kg
- ✅ For TVs: 75"-110" (and smaller according to VESA)
- ✅ Up/down tilt angle adjustment: +5°/-10°
- ✅ Rotation adjustment up to ±45°
- ✅ Elimination of assembly errors ±5°
- ✅ Cable Management System
- ✅ High quality, certificates: TUV, ISO
- ✅ Material: powder coated steel
- ✅ Minimum distance from the wall: 72mm
- ✅ Maximum arm reach: 700mm
Compatible with VESA (mounting hole spacing) standard:
- VESA 400x200 (400mm x 200mm hole spacing)
- VESA 400x300 (400mm x 300mm hole spacing)
- VESA 400x400 (hole spacing 400mm x 400 mm),
- VESA 600x400 (hole spacing 600mm x 400 mm),
- VESA 800x400 (hole spacing 800mm x 400 mm),
- VESA 800x500 (hole spacing 800mm x 500 mm),
- VESA 800x600 (hole spacing 800mm x 600 mm),
- ✅ and all others in the range 400x300~800x600 mm.
MOUNTING KIT
- M8×25 mm screw – 4 pcs.
- M6×25 mm screw – 4 pcs.
- M5×25 mm screw – 4 pcs.
- Backing Ø16x6,2x1,5 - 4 pcs.
- Backing Ø16x8,2x1,5 - 4 pcs.
- Backing Ø20x10,2x2,5 - 4 pcs.
- Distance H14 – 4 pcs.
- Key 10 mm – 1 pc.
- Screw 3/8"x88 mm - 6 pcs.
- Expansion pin Ø14x10x70 - 6 pcs.
SET COMPOSITION
- ✅ Handle
- ✅ Set of screws*
- ✅ Assembly instructions
* The set includes universal screws that fit most TVs. However, if they are not compatible with your model, you should buy the right screws on your own.
RETRACTABLE / FOLDABLE ARM
allows you to adjust the distance of the screen from the wall in the range from 72 mm to 700 mm
ROTATING DOUBLE ARM
allows you to point the screen in the desired direction up to ±45° (depending on the size of the screen)
UNIVERSAL VESA ADAPTER
allows you to adjust the width of the mounting holes for different VESA-compliant TVs. Full compatibility VESA mounting hole spacing from 400x300 mm to 800x600 mm

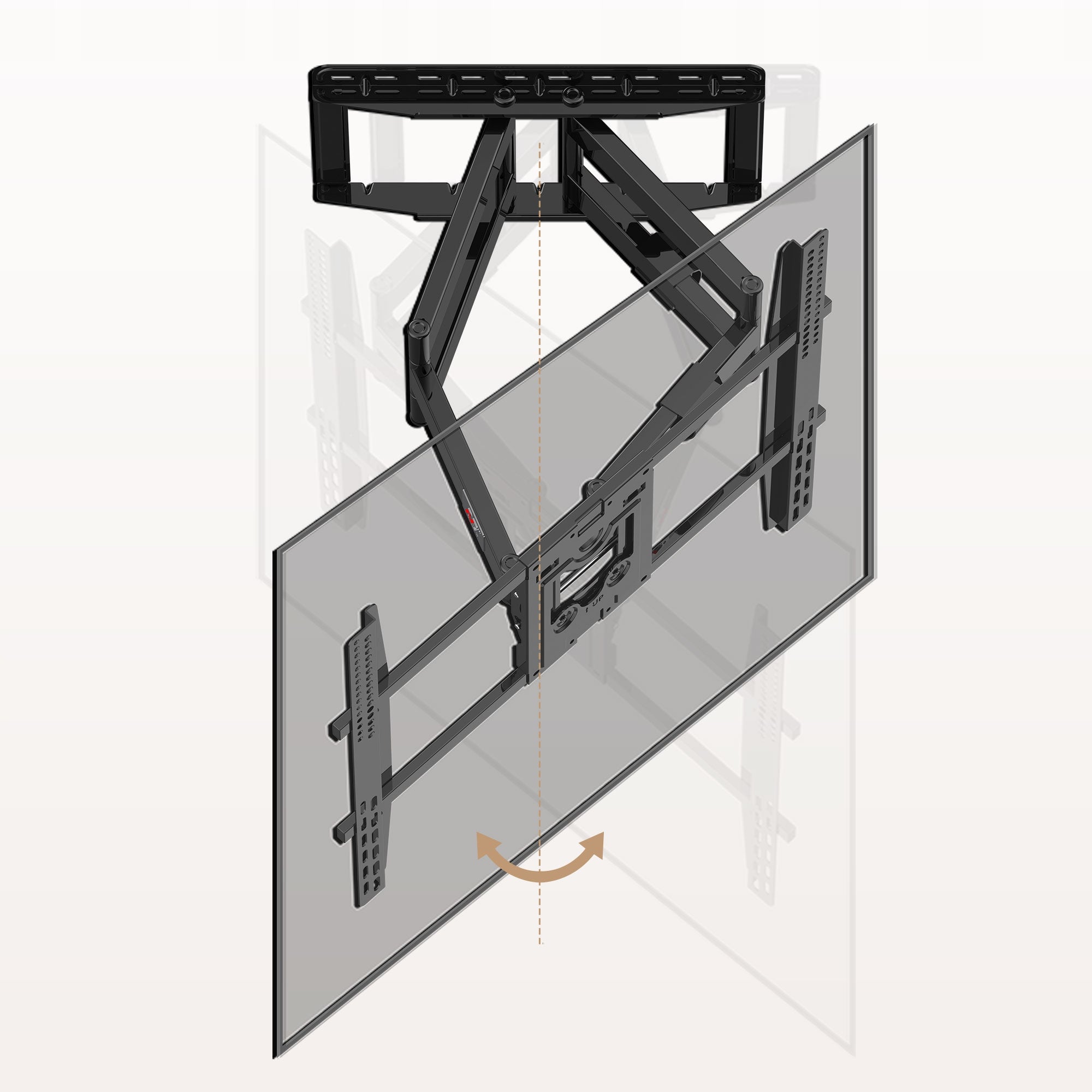

TILT CORRECTION
elimination of assembly errors in the range of ±5°. Possibility to adjust the level of the VESA plate relative to the plate screwed to the wall.
WIDE WALL MOUNTING PLATE
wide wall plate better distributes the weight on the wall. A wide mounting plate is recommended especially for walls with a weaker structure.
SOLID STEEL CONSTRUCTION
Certified high-quality handle ideal for large screens with a working capacity of 90,9 kg.

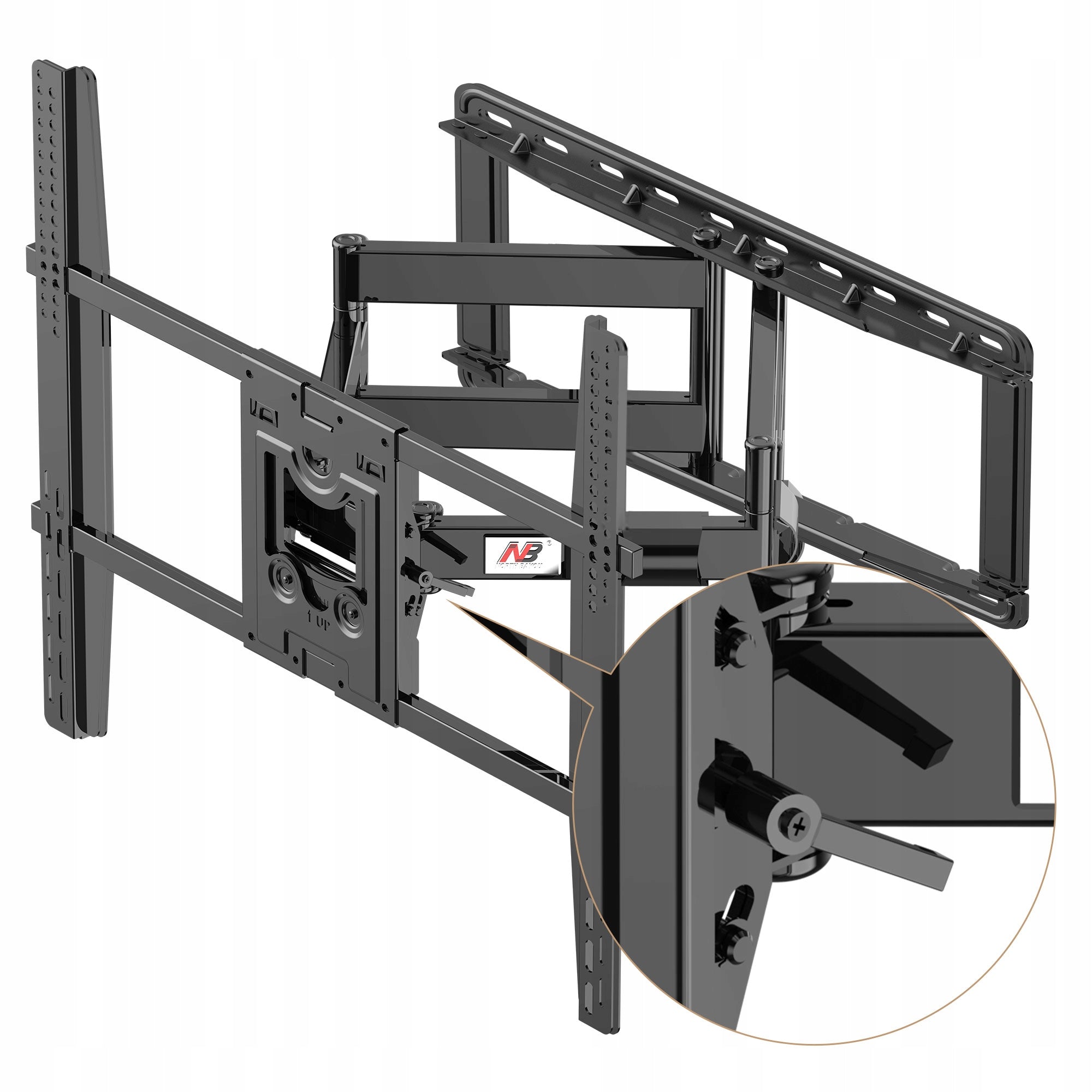

TILT ADJUSTMENT MECHANISM
Specially designed mechanism adapted to large and heavy screens guarantees that the screen will not automatically fall down as is the case in budget constructions.
The angle of inclination can be freely adjusted from +5° up and to -10° down.
✨ How to check if the mount will fit the TV?
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a hole spacing of VESA 400x200. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
Product code: NBSP5BLK BRTW
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | SP5 |
| Parametry | Model | SP5 |
| Parametry | Maximum TV size | 110" |
| Parametry | Brand | North Bayou |
| Parametry | Maximum load | 90 kg |
| Parametry | Mounting location | wall |
| Parametry | Product weight with unit packaging | 14 kg |
| Parametry | EAN (GTIN) | 6943223102042 |
| Parametry | Packaging status | original |
| Parametry | Kind | rotating,retractable |
| Parametry | VESA Standard | 400 x 200,400 x 400,600 x 300,600 x 400,800 x 400,800 x 600,600 x 500,400 x 300 |
