Sukiojamas televizoriaus laikiklis Strong, 40–85", tvirtas

Trumpai apie prekę

Prekė: Sukiojamas televizoriaus laikiklis Strong, 40–85", tvirtas. Kategorija: Rankenos.

• Gamintojas: North Bayou
• Modelis: P65

• Screen Size: 40"-85"
• Maximum lifting capacity: 68,2 kg
• Tilt adjustment: +8° / -5°
• VESA: 200x100 ~ 600x400 mm
• Assembly error correction system
• Masks wires
• Right-left rotation adjustment up to 120°
• Distance adjustment from the wall: 60~500mm
• Certified handle: TUV GS, ISO9001
• Original product of the brand NB
• Official authorized distribution of the manufacturer!

The set includes a universal set of mounting screws for the TV and a set of screws and studs for the wall.

Robust, proven construction and double arms allow you to extend the TV from the wall up to a distance of 50 cm and freely rotate left and right and choose the desired angle of inclination of the screen.

CHARACTERISTICS

• designed for large LCD LED Plasma TVs
• universal adjustable flat TV mount
• high quality workmanship with attention to detail
• unique design
• tilt adjustment
• Rotating arm
• short distance from the wall (flat design)
• Elimination of assembly errors
• VESA compliant
• cable management system
• grille covering mounting screws and cables
• very solid workmanship
• wide mounting plate better distributed the weight on the wall
• handle has TÜV, GS and ISO quality certificates
• available in black

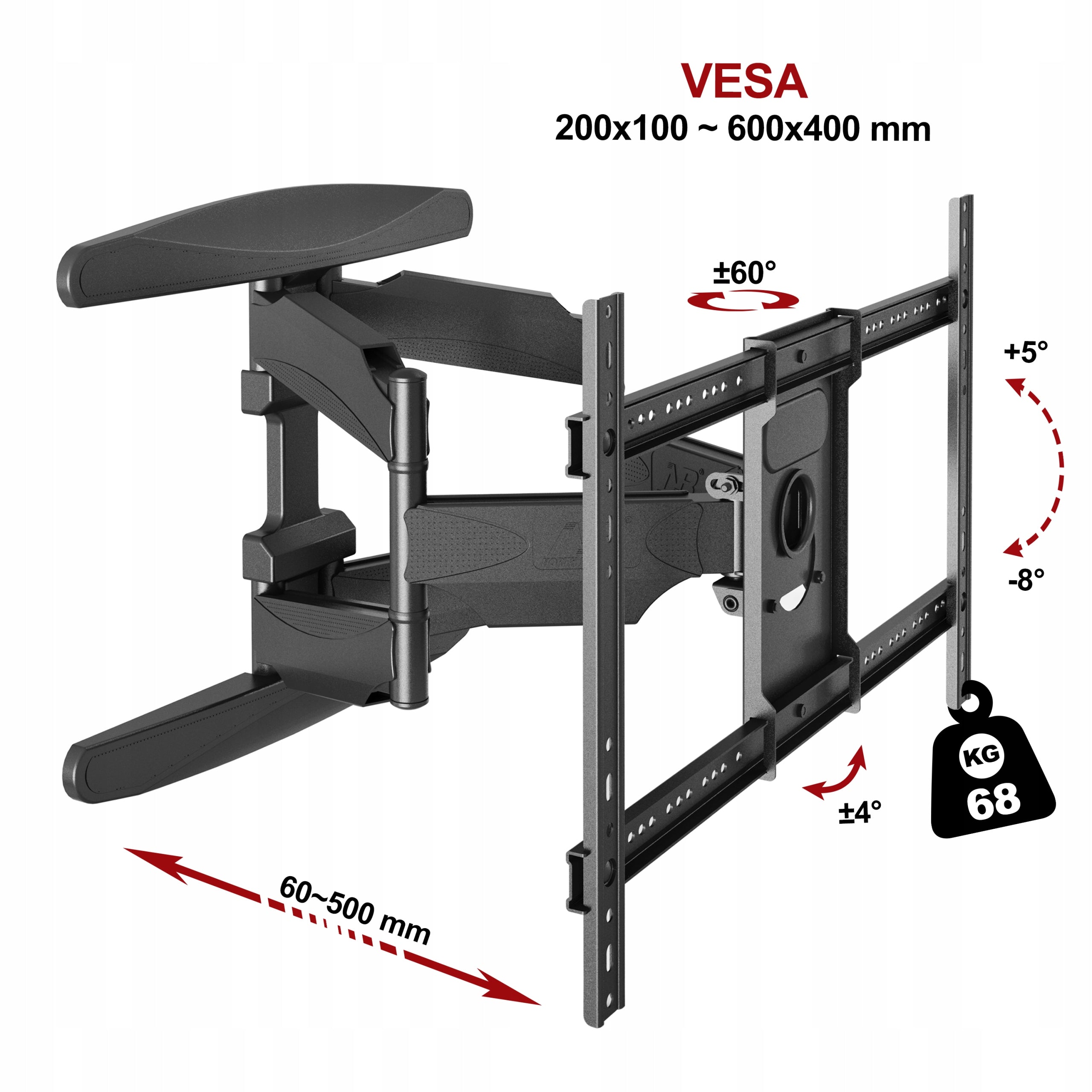

TECHNICAL PARAMETERS

• max. lifting capacity 68,2 kg
• for TV* 40"- 85"
• rotation adjustment up to 120°
• tilt adjustment in the range of +8° / -5°
• ±4° screen tilt correction
• certificates TÜV GS, ISO
• adjustable distance from the wall in the range of 60 ~ 500 mm
• compatible with VESA (mounting hole spacing) standard:
• VESA 200x100 (200 x 100 mm hole spacing)
• VESA 200 (200 x 200 mm hole spacing)
• VESA 300x200 (300 x 200 mm hole spacing)
• VESA 300 (300 x 300 mm hole spacing)
• VESA 400x200 (400 x 200 mm hole spacing)
• VESA 400 (400 x 400 mm hole spacing)
• VESA 600x400 (600 x 400 mm hole spacing)
• and all others in the range from 200x100 to 600x400 mm.

*The box says "from 55 inches", which is only a suggestion resulting from the reinforced handle design. In size, according to the VESA standard, the mount is suitable even for screens from 36 inches that will completely cover it. The most important parameters are lifting capacity and supported VESA standards, and the size in inches is always given only indicatively.

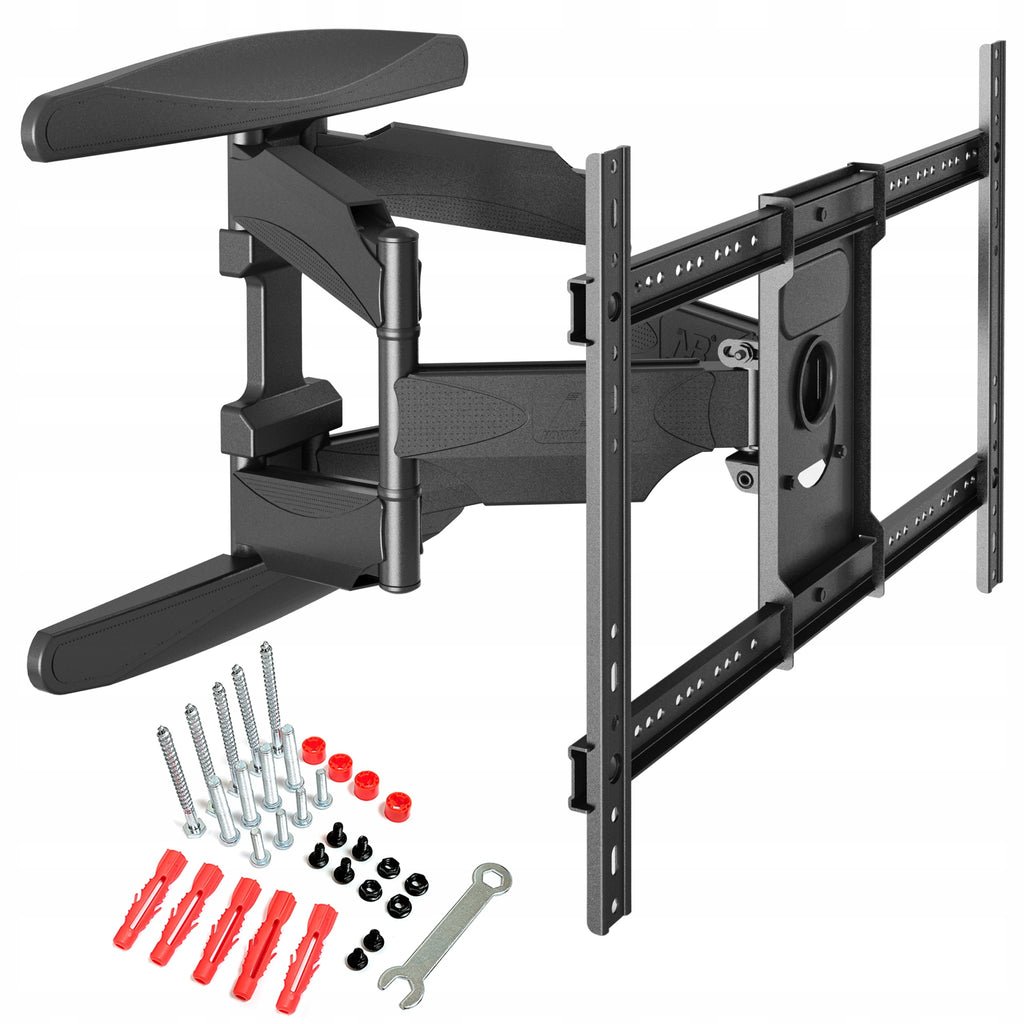

MOUNTING KIT

1. M6×25mm screw - 4 pcs.
2. M8×45mm screw - 4 pcs.
3. Distance 10mm - 4 pcs.
4. Key 10mm - 1 pc.
5. Screw 7×70mm - 5 pcs.
6. Pin Ø10×Ø7×66mm - 5 pcs.

SET COMPOSITION

• brand new TV mount
• set of screws*
• installation instructions

* standard/universal screws are included to fit most TVs, if they do not fit, then you should buy the appropriate screws on your own.

INCLINATION ADJUSTMENT

the ability to change the tilt of the screen up by 5° and down by 8°

RETRACTABLE / FOLDABLE ARM

allows you to adjust the distance of the screen from the wall in the range from 60 mm to 500 mm

ROTATING DOUBLE ARM

allows you to point the screen in the desired direction up to 120° (depending on the size of the screen)

UNIVERSAL VESA ADAPTER

allows you to adjust the width of the mounting holes for different VESA-compliant TVs. Full compatibility VESA mounting hole spacing from 200x100 mm to 600x400 mm

TILT CORRECTION

elimination of assembly errors in the range of ±4°. Possibility to adjust the level of the VESA plate relative to the plate screwed to the wall.

CABLE MANAGEMENT SYSTEM

plastic grilles help guide the wiring accordingly and thus improve the aesthetics and safety of the installation

WIDE MOUNTING PLATE

wide wall plate better distributes the weight on the wall. A wide mounting plate is recommended especially for walls with a weaker structure.

When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.

The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).

EXAMPLE

To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.

Product code: NBP65BLK BRTW
