Aprašymas
Trumpai apie prekę

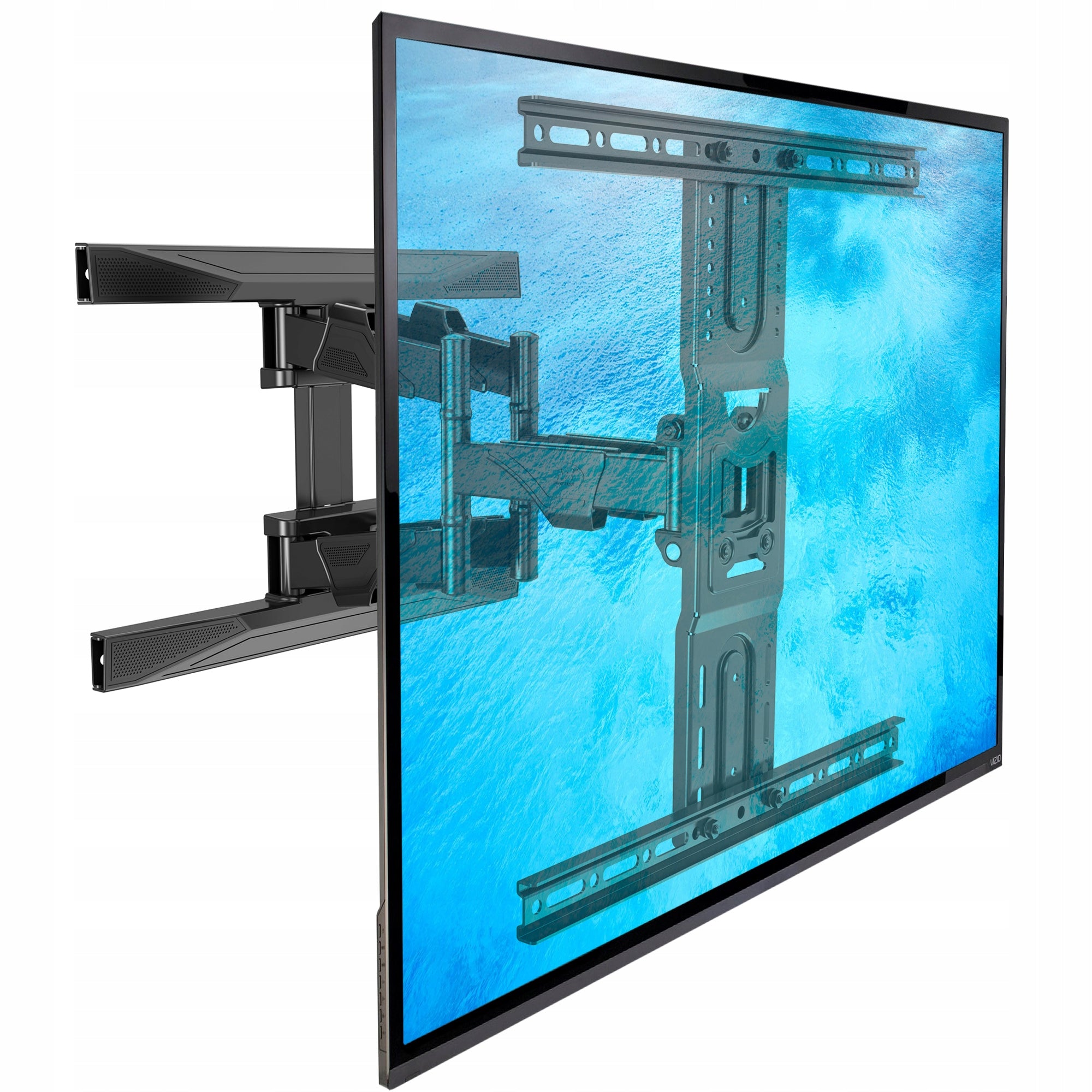

Prekė: Sukiojamas TV laikiklis STRONG, 45–80 colių, TUV sertifikuotas. Kategorija: Rankenos.
- Gamintojas: Fiber Novelty
- Modelis: 2020-P6
High quality LCD LED TV mount
Model: 2020-P6
- TV Size: 40-80 inches
- Maximum TV weight: 45,5 kg
- VESA: 200x200 ~ 600x400 mm
- Rotation adjustment: 160°
- Tilt adjustment: +3° / -5°
- screen tilt correction ±4°
- Adjustable distance from wall: 52 ~ 380 mm
- Cable management system
- Powder coated in black
- Certificate: TUV GS
Original product from the official polish distribution.
A product of a reputable brand for 12 years on the market!
CHARACTERISTICS
- designed for large LCD LED Plasma TVs
- universal adjustable flat TV mount weighing up to 45,5 kg
- high quality workmanship with attention to detail
- unique design
- tilt adjustment
- Rotating arm
- short distance from the wall (flat design)
- tilt correction (reduction of assembly errors)
- handle is TUV GS certified
- VESA compliant
- cable management system
- grille covering mounting screws and cables
- very solid execution
- available in black

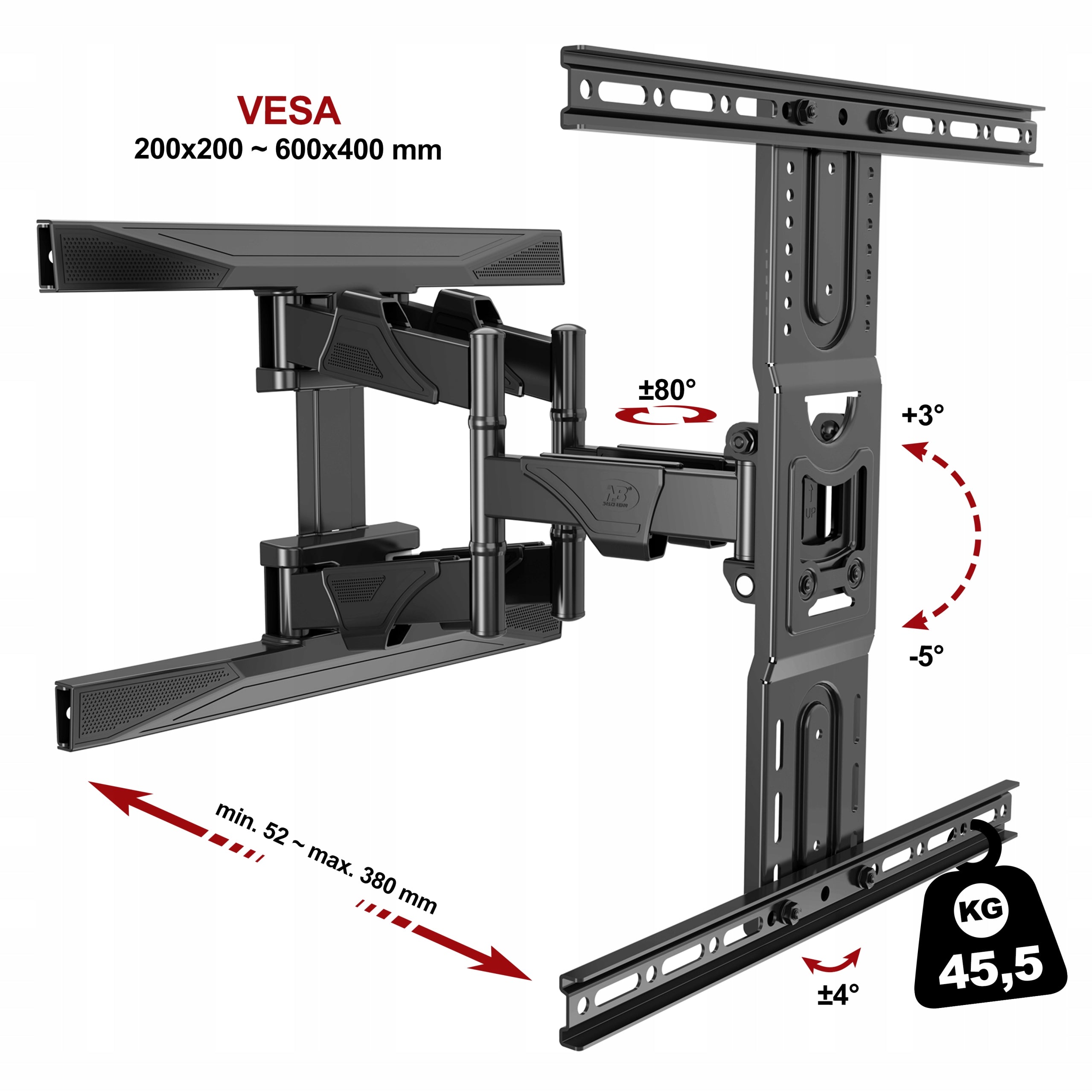

TECHNICAL PARAMETERS
- max. lifting capacity 45,5 kg
- for TVs 40″- 80″
- rotation adjustment up to 160°
- tilt adjustment in the range of +3° / -5°
- screen tilt correction ±4°
- adjustable distance from the wall in the range of 52 ~ 380 mm
- TUV GS certified handle
Compatible with VESA (mounting hole spacing) standard:
- VESA 200 (200mm x 200mm hole spacing)
- VESA 200×300 (200mm x 300 mm hole spacing)
- VESA 300×200 (300mm x 200 mm hole spacing)
- VESA 300 (300mm x 300mm hole spacing)
- VESA 400×200 (400mm x 200 mm hole spacing)
- VESA 400 (400mm x 400mm hole spacing)
- VESA 600×400 (600 x 400 mm hole spacing)
- and others in the range from 200×200 to 600×400 mm.

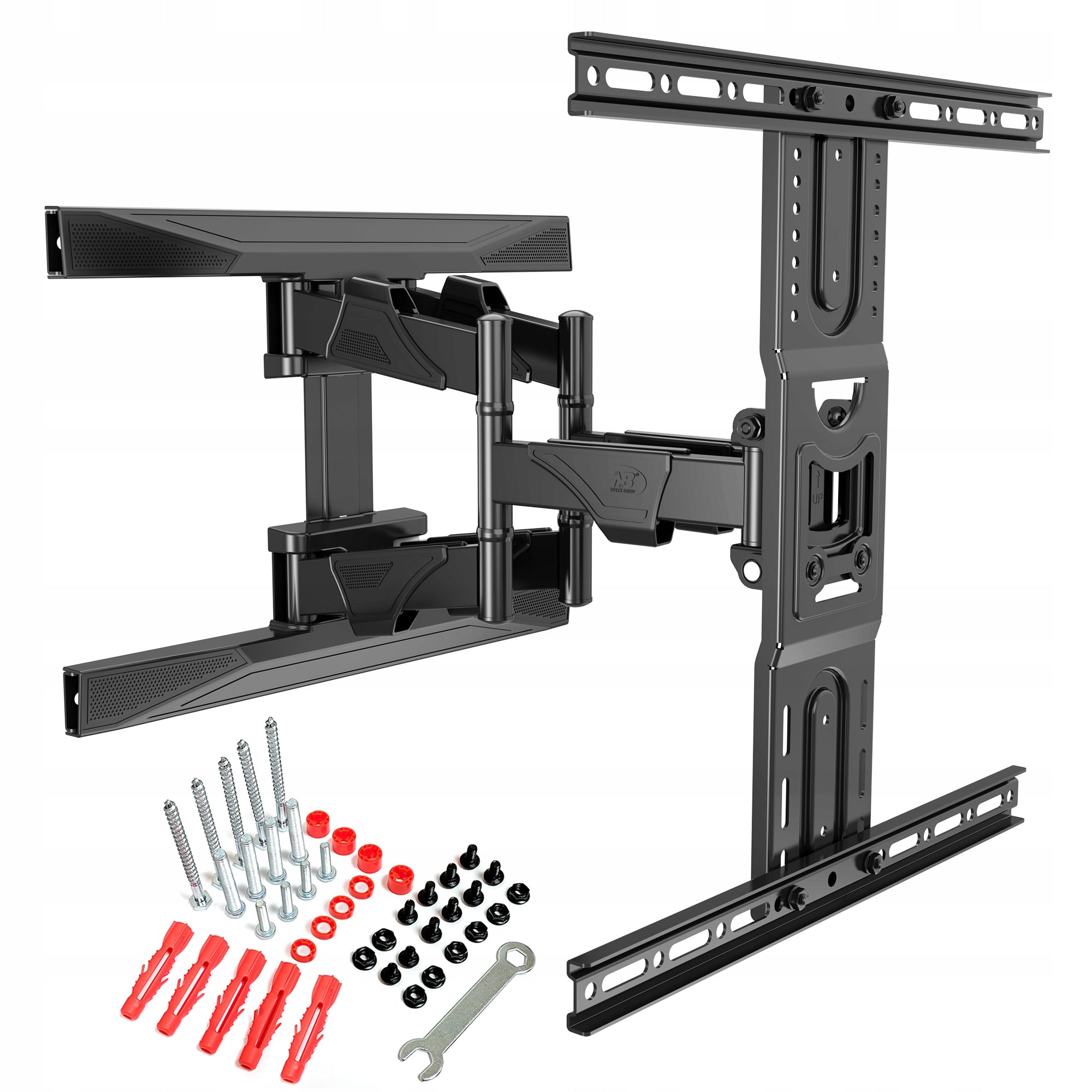

MOUNTING KIT
- ruba M6×25mm – 4 pcs.
- Screw M8×45mm – 4 pcs.
- Distance 10mm – 4 pcs.
- Distance 5mm – 4 pcs.
- Wrench 10mm – 1 pc.
- Screw 7×70mm – 5 pcs.
- Pin Ø10×Ø7×66mm – 5 pcs.
SET COMPOSITION
- handle
- set of screws*
- installation instructions
* standard/universal screws are included to fit most TVs, if they do not fit, then you should buy the appropriate screws on your own.
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
GALLERY
Series and Product No.: NBP6BLK PS BRTW
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 2020-P6 |
| Parametry | Model | 2020-P6 |
| Parametry | Maximum TV size | 80" |
| Parametry | Brand | Fiber Novelty |
| Parametry | Maximum load | 45 kg |
| Parametry | Additional information | desk bracket |
| Parametry | Product weight with unit packaging | 5.61 kg |
| Parametry | EAN (GTIN) | 5901597300403 |
| Parametry | Packaging status | original |
| Parametry | Kind | rotating,retractable |
| Parametry | VESA Standard | 200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,600 x 300,600 x 400,400 x 300 |
