Sūpynės vartų automatikos komplektas Nice WINGO 2024, 2 m, su 2 pulteliais INTI2

Trumpai apie prekę

Prekė: Sūpynės vartų automatikos komplektas Nice WINGO 2024, 2 m, su 2 pulteliais INTI2. Kategorija: Kietieji diskai.

• Gamintojas: Nice
• Modelis: WINGO 2024 FLo2rs ELDC EPM
• Įtampa: 230 V

Description of the set

Complete automation set Nice WINGO 2024 for double-leaf gates with a wing length of up to 2 m and a weight of up to 200 kg. Quiet, self-braking 24 V actuators with built-in limit stop at opening, controlled by a modern MC424LR10 control panel with radio receiver. Simple installation and programming with three buttons, two INTI2 remote controls included. The perfect solution for home gates.

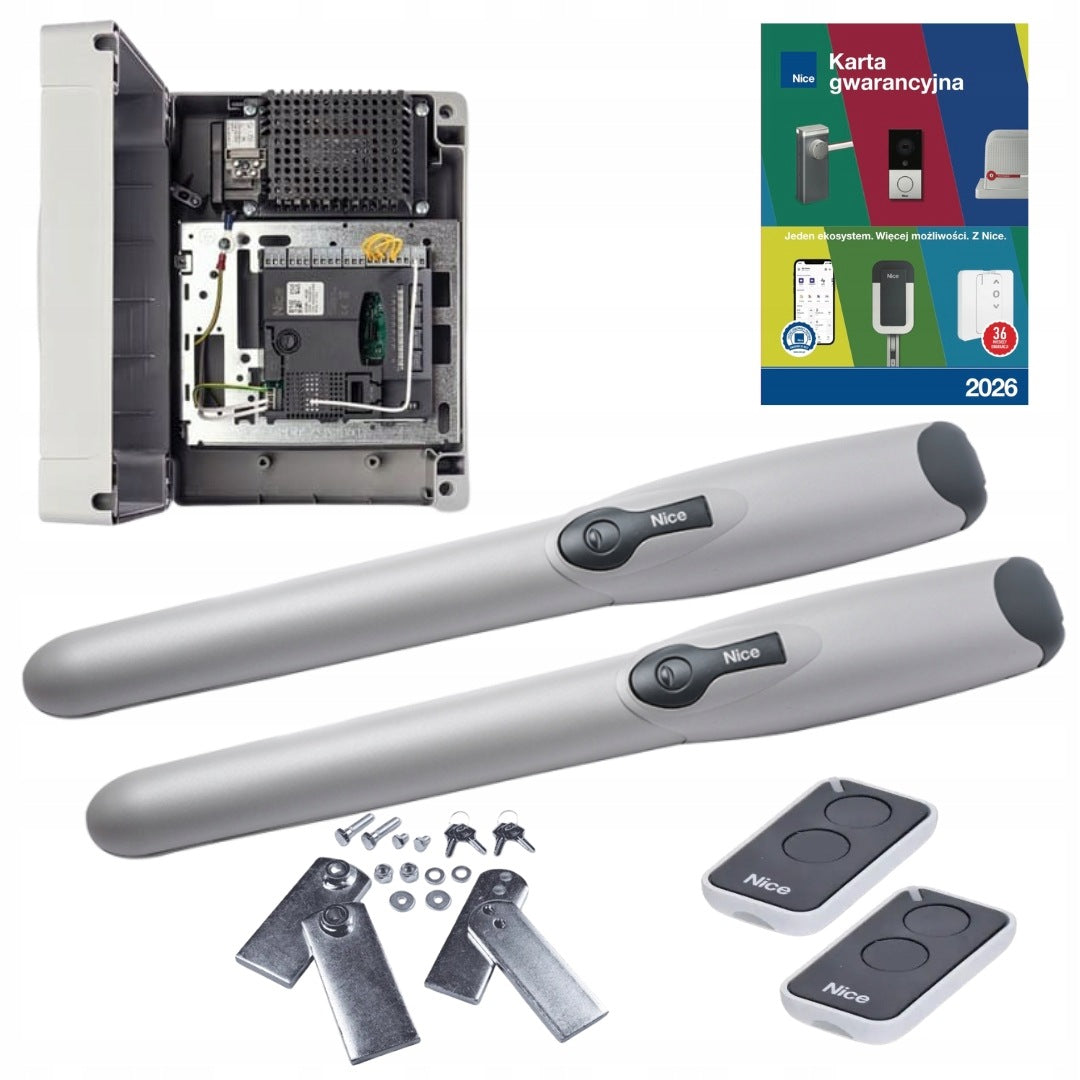

The set includes

• 2× actuator WG2024 24 V with limit stop at opening
• 1× MC424LR10 control panel with built-in radio receiver
• 2× INTI2 remote control
• set of mounting elements (handles + bolting)
• 2× key for emergency unlocking
• installation and use instructions, warranty card

Specification

• Purpose: double-leaf gate
• Max. wing length: 2 m
• Max. wing weight: 200 kg
• Motor power supply: 24 V DC
• Limit stop: when opening (mechanical)
• Control panel: MC424LR10 with built-in radio receiver
• Radioline: 433,92 MHz, dynamically variable code
• Degree of protection: IP44
• Operating temperature: -20 to +50 °C

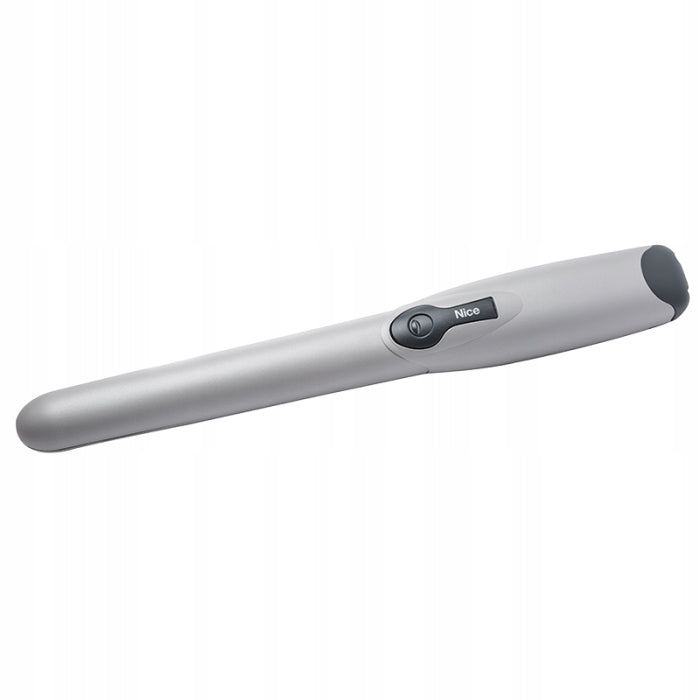

WG2024 motor (2 pcs. ) — 24 V electromechanical linear actuator for swing gates up to 2 m. Quiet and reliable thanks to the patented system of internal components and bronze metal nut. Built-in limit stop when opening, easy access to electrical connections from above.

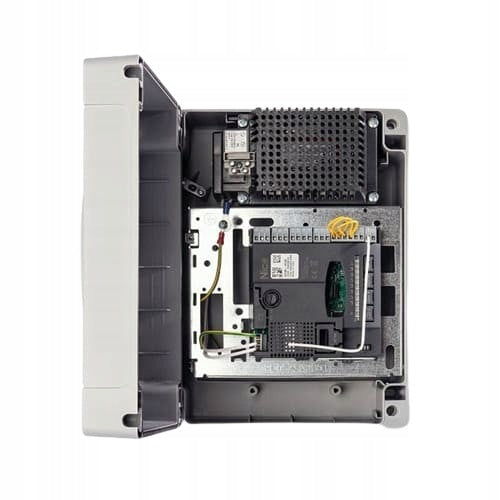

Central MC424LR10 — 24 V modular control panel for WINGO swing gates with built-in radio receiver. Auto-programming of limit positions, amperometric obstacle detection system, gate function, gentle start and release. Support for FLOR, SMILO and OPERA radio lines.

PIlot INTI2 (2 pcs. ) — Elegant 433,92 MHz dual channel remote control with dynamically variable O-Code. Compatible with Nice FLOR/ONE receivers, range up to 150 m, can act as a key ring.

Mounting elements — A set of brackets for fixing actuators on the posts and wings of the gate with screwing and metal keys for emergency unlocking of the drive in the event of a power outage. Everything is ready for assembly without additional parts.

Manufacturer's warranty Nice Poland: 24 months, with the possibility of extension up to 36 months in accordance with the conditions of Nice - after registration of the product and assembly and inspection made by a certified installer Nice. The product comes from an authorized polish distribution; the full range of conditions is specified in the warranty card included in the set.
