Sūpynės vartų pavaros rinkinys PowerMax 2 su WiFi valdymu

Trumpai apie prekę

Prekė: Sūpynės vartų pavaros rinkinys PowerMax 2 su WiFi valdymu. Kategorija: Kietieji diskai.

• Gamintojas: Home
• Modelis: PowerMax WiFi
• Įtampa: 24 V

AUTOMATIC DOUBLE-LEAF SINGLE GATE DRIVE with 2 remote controls

HOME PowerMax 60W EGA-18 control unit with built-in WiFi SMART and Bluetooth

!!!!!! DIGITALLY PROGRAMMABLE 2 TYPES OF GATES!!!!!

The X-House IOT application offering many possibilities is available in the Play Store.

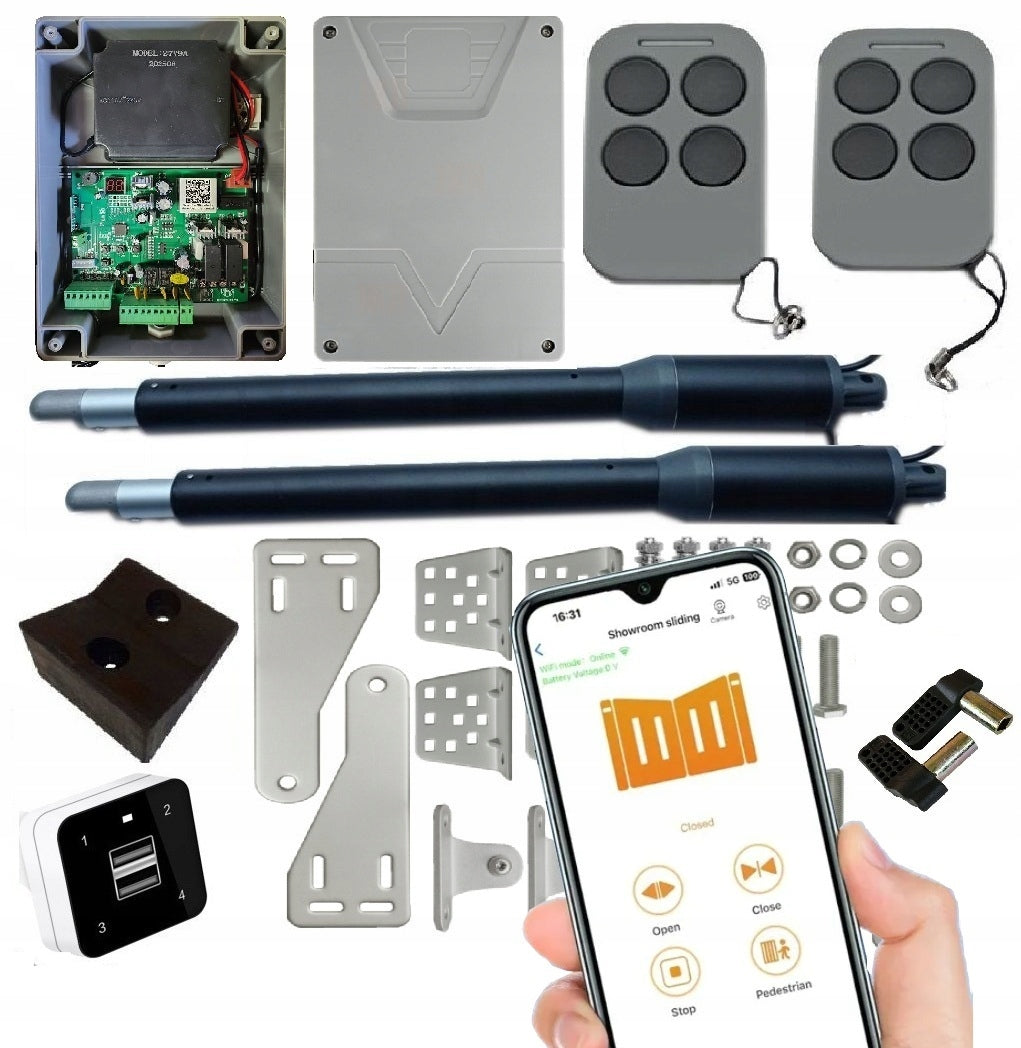

Set with two actuators, 60W control unit, two remote controls, mountings, and a bumper, built-in WiFi

The drive is designed for a weight of 150 kg and a span length of up to 2.1 m. A variety of mounting options allows for installation on both narrow metal and clinker/brick posts, with a hinge depth of up to 19 cm. The advanced control unit allows for full configuration of operating parameters and offers the ability to connect devices such as photocells, a lamp with an antenna, emergency power supply, bell buttons, and induction loops. . Thanks to the large number of well-made galvanized angle brackets with mounting holes, you can install the drive without any problem, even avoiding welding. Well-written instructions or our team will help you with this. Intuitive configuration allows for quick start-up of the drive, and the digital display allows for precise setting of operating parameters. Elegant four-channel remote controls on pendants allow you to control an additional drive np.do a garage. Amperometric and overload protection, as well as an optional infrared barrier, ensure safe operation in all conditions. The use of an LED lamp, thanks to its powerful diodes, ensures that the machine is operating even in sunny weather, and the built-in antenna allows the remote control range to be extended up to 200 m. Home POWER actuators, thanks to the use of metal gears, ensure trouble-free operation for many years, and the use of large drainage holes ensures resistance to weather conditions.

Headquarters functions:

version of the 60W control panel gives the comfort of a smooth start even with wings up to 2,5m long per span.

The control panel has a special PF function in the menu for heavy gates.

• Soft start and release of actuator rotations before closing

• Opening function with automatic closing (adjustable time to auto-closing)

• Dual-band overload switch (possibility to set separate thresholds for low and high revolutions)

• Time protection (adjustable max. working cycle time 20-99sec. )

• Cooperation with gates closed "on the tab"

• Gate function (opening only one wing to let pedestrians in)

• Possibility of connecting external bell buttons and additional control devices (domephones, encryptors, gsm modules, etc. )

• Indication of the operating status of the device with LEDs

• Ability to connect 2 pairs of photocells

• Emergency power connector (allows you to permanently connect a 24V battery)

• All operating parameters set digitally using buttons (no potentiometers)

• Fully programmable digital inputs E2,E1,E0 (can be assigned 1 of 10 functions to each input)

• The ability to freely define the functionality of remote controls (the ability to assign 1 of 10 functions for each of the buttons)

• Additional output controlled by the remote control button enabling m.in. control of the electrolock in the gate, lighting, etc.

• Up to 99 remote controls can be programmed

• 230V control panel power supply, 24V actuators

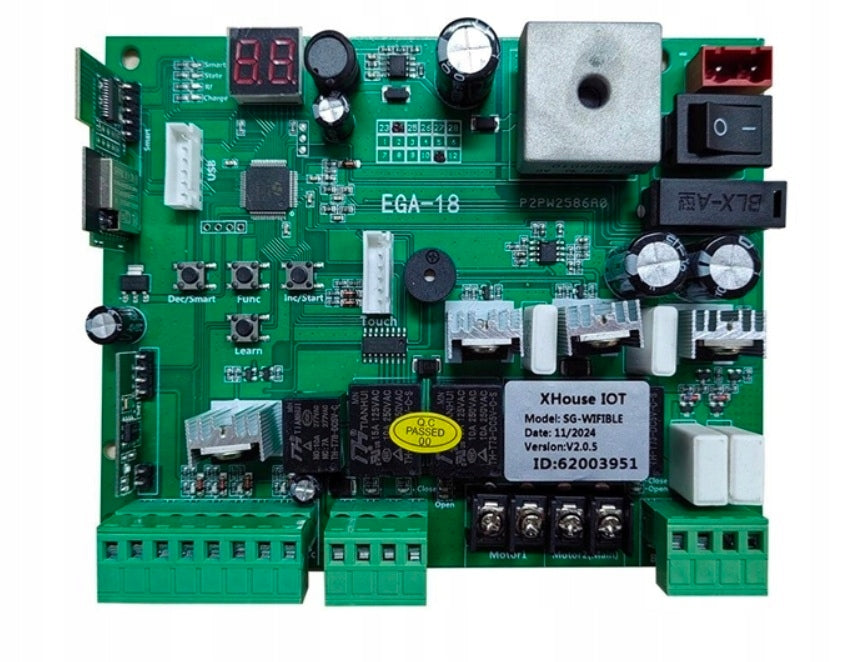

The new EGA-18 SMART control panel has a digital display that allows you to seamlessly program 9 parameters, flash mode, photocells and e-lock, built-in WiFi for the X-House IOT application available in the PLAY store

The control panel has an output for the bell button and other devices to control.

From the remote control, we can give an impulse to the gate electrolock.

Built-in SMART module for the application

XHouse IOT

- a versatile application for managing a smart home, allowing remote control of devices (lighting, cameras, security) from anywhere

. The app offers an intuitive interface, easy hardware addition, integration with Google Assistant/Amazon Echo, and live camera preview. Available on Android and iOS

Home automation, especially in the context of entry gates, has become the norm. Integration of the drive to the gate with the Smart Home system is not only a convenience, but also an increase in the level of security and control over own property. You can import our drive, controlled from the X-House IOT application, into the Home Assistant.

What are the benefits of integrating the drive into the gateway with the Smart Home system?

1. Gate management from anywhere: Thanks to the integration of the gate drive with the smart home system, you have the ability to control the entrance gate using a smartphone or tablet. No matter where you are, you can open, close or stop traffic through the gate.
2. Increased security: Thanks to the integration with the smart home system, you receive notifications about activities related to the gateway. For example, if the gateway is opened at an unexpected moment, you will receive an instant notification on your mobile device.
3. Smart Schedules: You can program the gate to open and close at specific times of the day. This is useful when you want the gate to be open to greet guests or closed at night, increasing privacy and security.

If you also use a CCTV camera, the application allows you to view and control the drive remotely depending on your needs.

At another auction also:

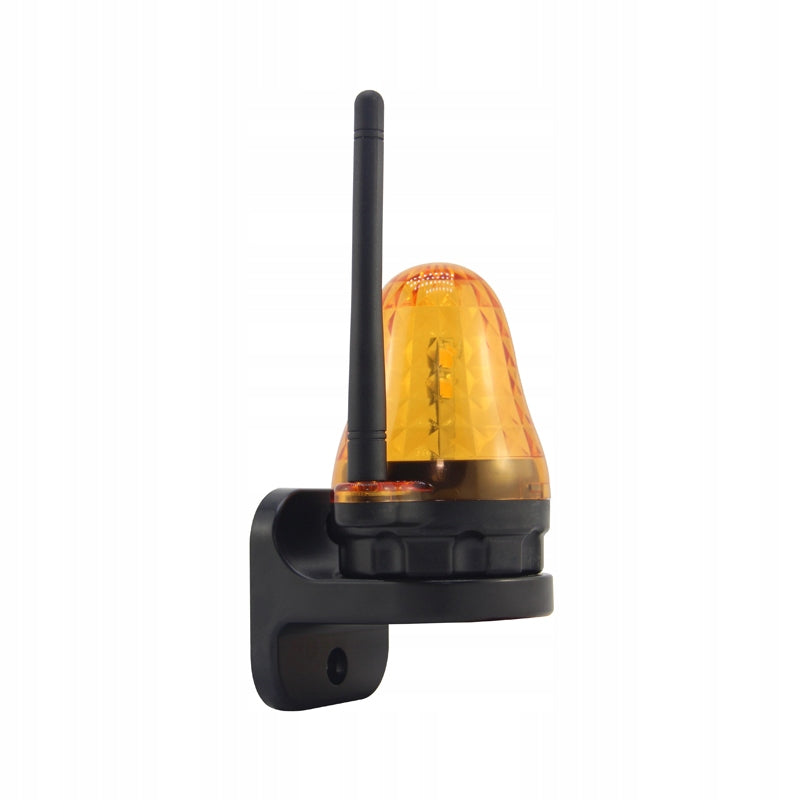

A powerful LED lamp with antenna provides a long range of remote controls and good signaling even during the day.

PLEASE REFER TO THE ASSEMBLY INSTRUCTIONS ATTACHED IN THE PDF FILE BELOW THE DESCRIPTION.

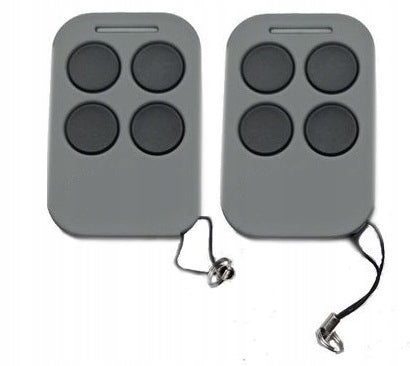

2 SM12 remote controls, up to 80m range!!!

The control panel uses a 27V digital transformer

The radio route used in the drive is based on 433,92MHz variable code. This is a safer, longer-range solution.

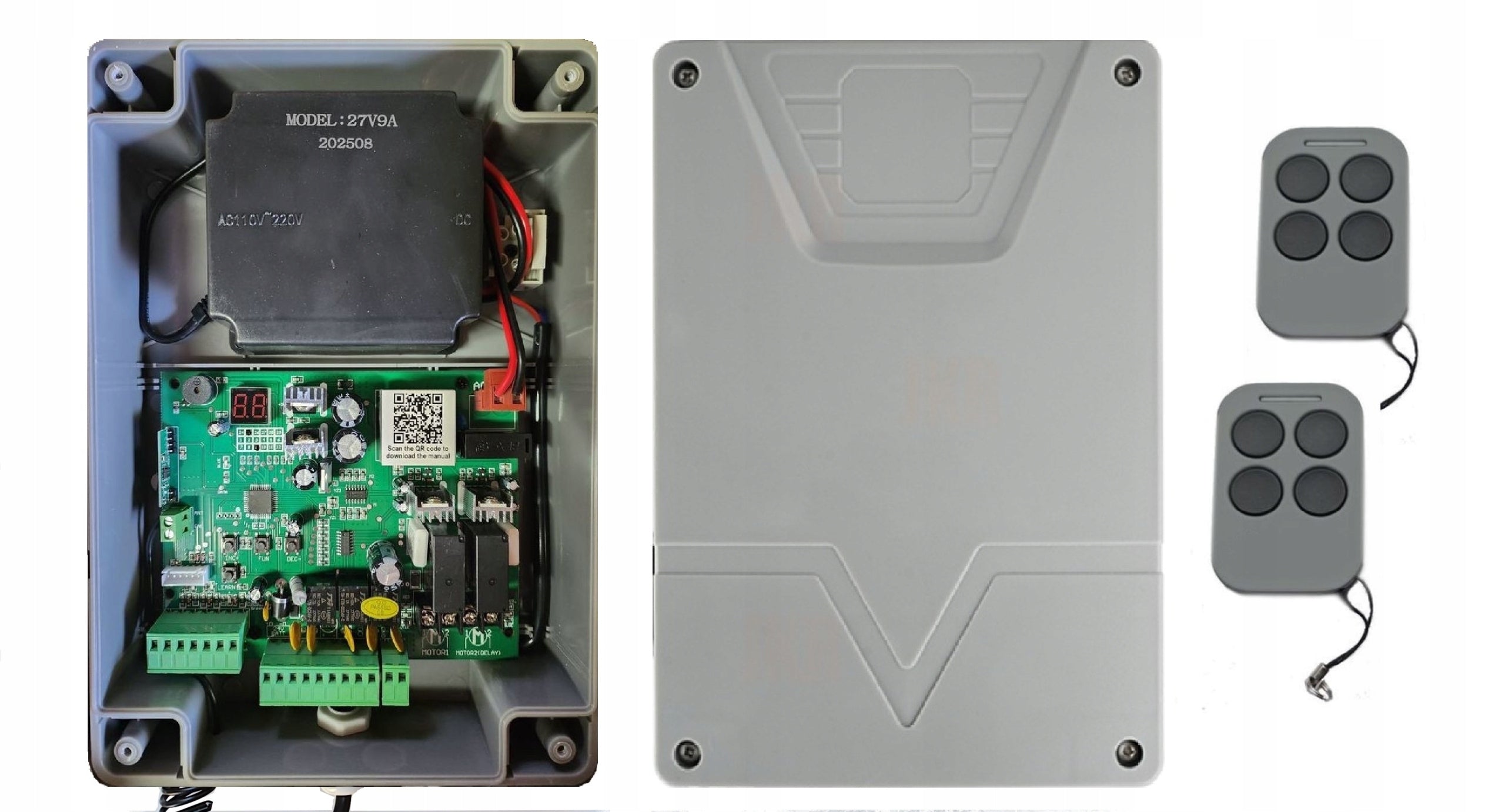

The control panel housing is equipped with 3 glands. They allow for safe and reliable cable routing through the control panel housing.

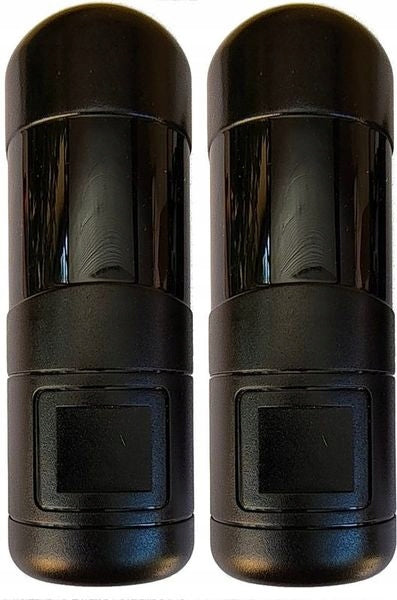

Photocells can be used for the drive:

Thanks to the rotating heads, they can also be mounted on surfaces not opposite each other, it is enough to point the heads at each other in photocells.

They ensure security, although they are not necessary for the proper operation of the gate. The control panel also has overload protection.

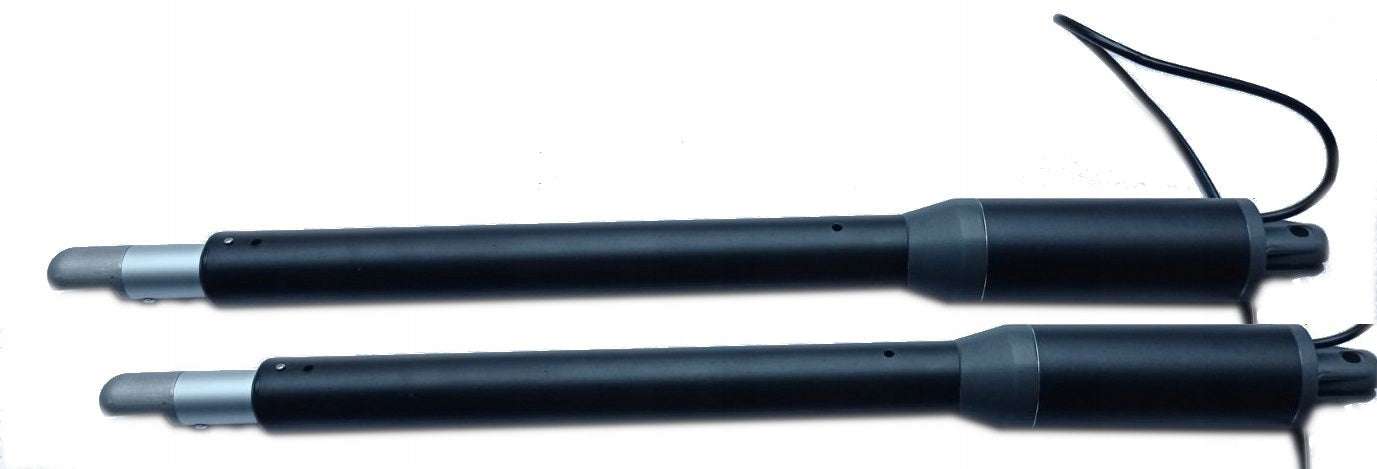

The actuators used give the possibility of mounting even on a narrow post. Angles and flat bars are also included, and studs in aluminum covers for mounting the foot and on clinker posts.

After purchase, additional materials such as photos from our installations, copies of the instructions in Polish are sent to the control panel and actuators.

At our other auctions you will get this kit in all possible configurations, with a lamp, photocells, more remote controls, emergency power supply, etc.

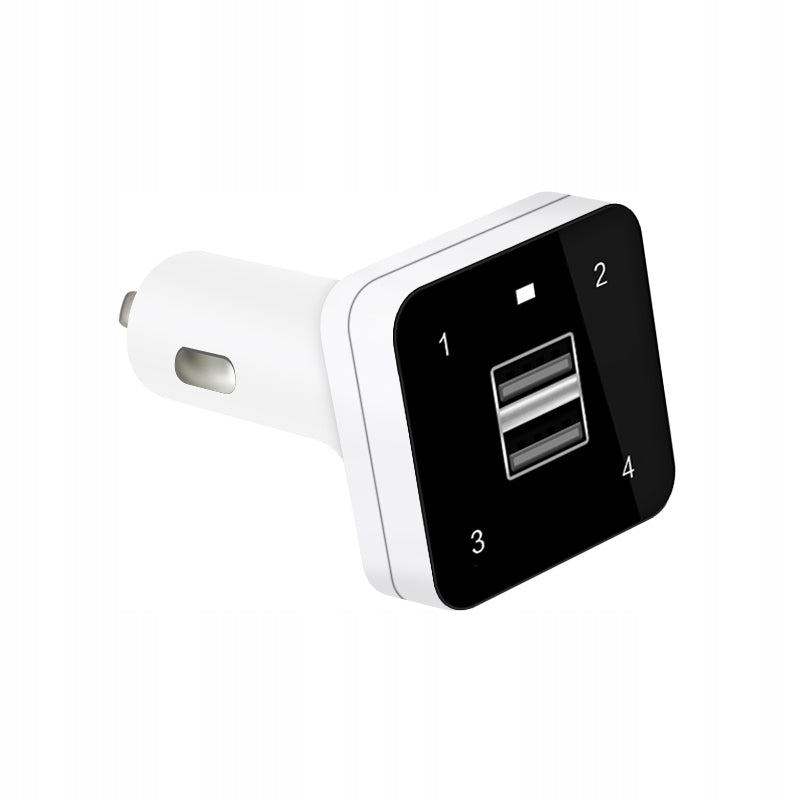

At another auction, it is possible to purchase a 4-channel remote control with a dual USB charger for the car cigarette lighter socket.

For the set we recommend a wireless numeric keypad.

Specifications
