Suvirinimo aliuminiu rinkinys: 1.0 mm tefloninis vielos ritinėlis ir antgalis

Trumpai apie prekę

Prekė: Suvirinimo aliuminiu rinkinys: 1.0 mm tefloninis vielos ritinėlis ir antgalis. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: no brand
• Modelis: ZESTAW DO SPAWANIA ALU

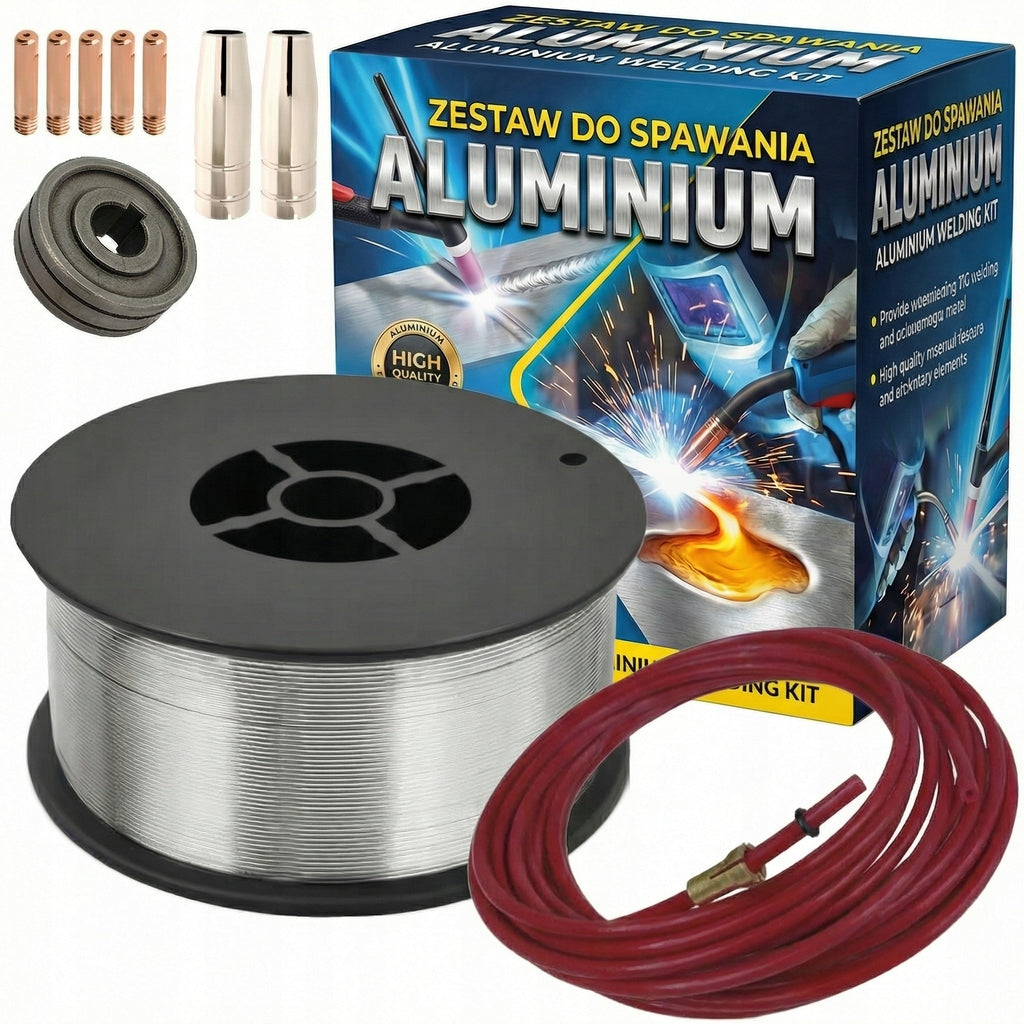

WIRE, GUIDE, GUIDE ROLLER, CURRENT TIPS, NOZZLES

Professional Aluminum Welding Kit – MIG/MAG (Standard MB-15)

The set has been completed for demanding welders who want to achieve clean and stable welds when working with aluminum. You will find everything necessary to retool the handle for soft aluminum wire.

• GUIDE ROLLER 1,0/1.2 mm - 1pcs
• TEFLON CARTRIDGE RED 3 m -1pcs

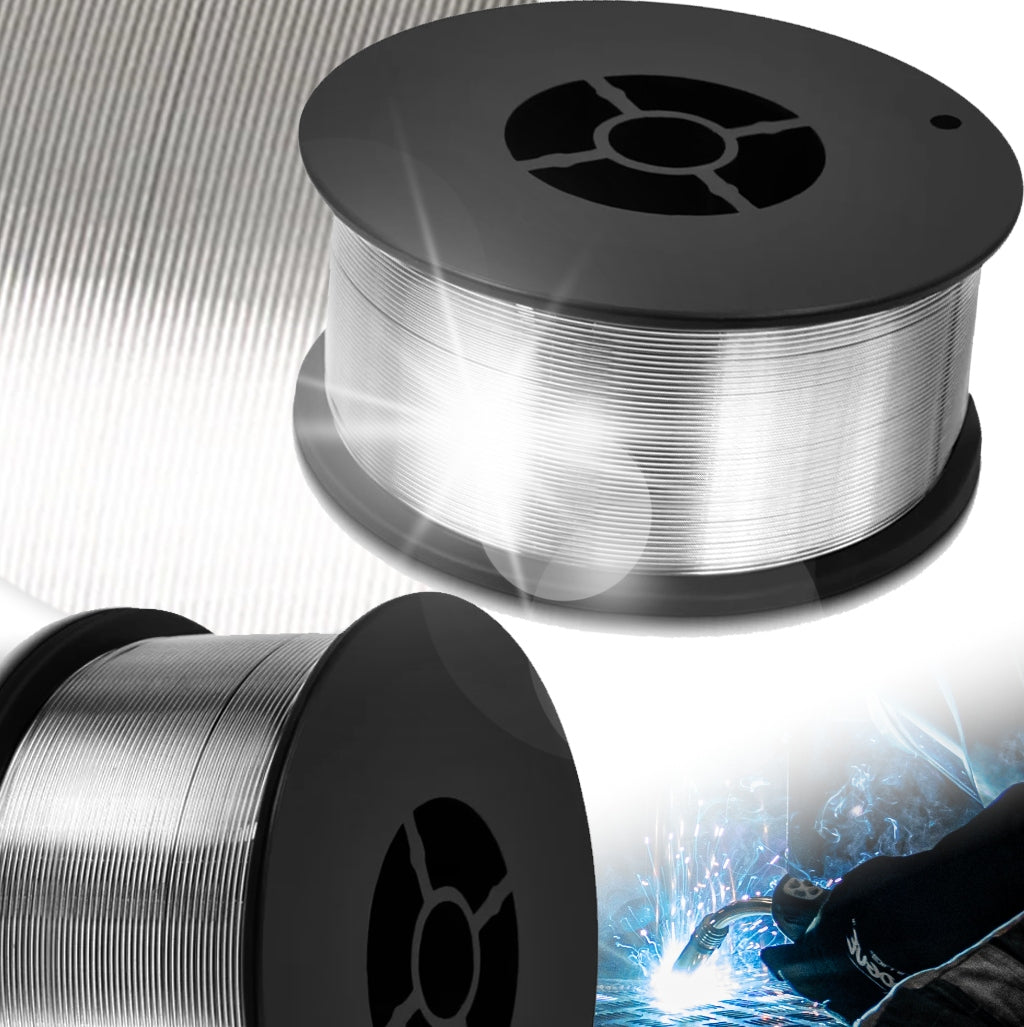

• WIRE ALSI ER4043 1,0 mm 0,45kg - 1 pcs.
• GAS NOZZLE - 2 pcs.
• CURRENT TIP ALU - 1,0 mm - 5 pcs.

AlMg5 wire is dedicated to applications where durable and robust connections in aluminum components are required. By choosing this product, you are betting on quality, durability, and professional results in every project.

Specification:

• Catalog number: SI32408075
• Type of spool with wire: D100 0,45kg
• Wire diameter ø [mm]: 1,0
• Welding/cutting/other methods: MIG/MAG
• Welded material: aluminium
• Application: welding

The RED Teflon cartridge for MIG/MAG handles is a specialized component designed to guide welding wire, especially when working with soft wires such as aluminum.

Made from high-quality Teflon, the cartridge ensures minimal friction, resulting in smooth wire feeding and reduced risk of jamming.

Specification:

• Nominal length of cartridge/wire/handle [m]: 3
• Insert type: Teflon red
• Insert dimensions [mm]: +- 1,5×4,0
• Wire diameter range [mm]: 1,0 – 1,2
• Weight [kg]: 0,073

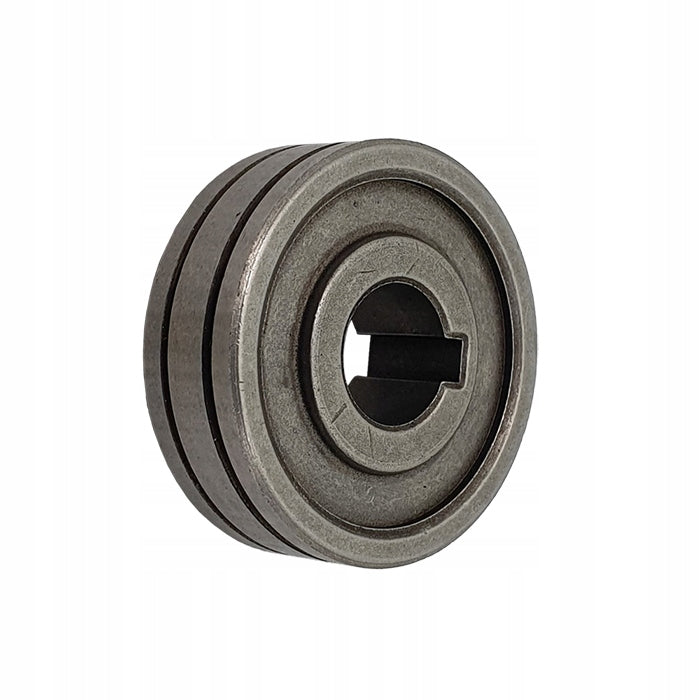

U-type guide roller

Most standard migraines are equipped with “V” rollers, which are ideal for hard steel wire. However, aluminum is soft and delicate, so it requires a completely different approach.

Why is a U-profile necessary?

• Deformation protection: The U-groove roller gently wraps the aluminum wire instead of digging into it (as a V-roll does). Thanks to this, the wire retains its perfectly round cross-section and does not lock in the current tip.
• Elimination of "squirreling": Using the wrong roll causes the wire surface to be cut. The resulting aluminum filings quickly clog the Teflon cartridge, which leads to jerking the arc and the need to interrupt work.
• Stable feed without slipping: Specially contoured groove ensures maximum grip with minimal pressure. It is crucial to avoid the so-called. "bird's nest" (wire tangles) at the feeder

Technical specification:

• Catalog number: 7811629
• Shape of groove depending on the welded material: U (for aluminium)
• Slot diameters on 2 sides of roll ø [mm]: 1,0/1,2
• Roller dimensions [mm]: 30x10x10

5x Current terminal ALU (1,0 mm):

Specialized tips with a larger inner hole. Aluminum expands under the influence of heat more than steel – ALU tips prevent the wire from locking during welding.

2x Gas nozzle (husk):

Standard, reinforced design to fit MB-15 handles. Provides optimal arc gas cover.

Why this set?

Aluminum welding requires precision. The use of standard steel parts often ends with a "bird's nest" at the feeder or blocking the wire in the tip. This kit eliminates these problems by offering a dedicated Teflon cartridge and a U-roller that guarantee smooth wire feeding.

Application:

• Car workshops (repairs of plating, air conditioning).
• DIY and DIY projects in aluminum.
• Production of lightweight aluminum structures.
