Suvirinimo aparatas 215A, MIG/MAG, MMA, TIG Lift, 230V, tinkantis aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas 215A, MIG/MAG, MMA, TIG Lift, 230V, tinkantis aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-PAS-215L
• Ilgis: 460 mm
• Plotis: 220 mm
• Aukštis: 360 mm

• Model: PM-PAS-215L / PM1555
• Manufacturer: POWERMAT

✅Multi-functional inverter welding machine has been designed to perform a variety of welding work in workshops, garages and during assembly and repair work.

✅Supports several popular welding methods, thanks to which it allows you to adjust the way of work to the type of material and the nature of the task performed.

✅The use of IGBT technology, electronic control and a clear LCD panel ensures convenient configuration of parameters and stable operation of the device.

✅Additional convenience is the synergistic mode, which helps to choose the right settings for the selected material and welding method.

• Power supply: 230 V / 50 Hz
• Technology: IGBT
• Welding Current: DC
• Protection class: IP21S
• Idle voltage: 62 V
• Wire diameters: 0,8 / 0,9 / 1,0 / 1,2 mm
• MMA electrode diameters: 1,6 – 5 mm
• Operating modes: 2T / 4T / SPOT
• MIG/MAG current range: 30 – 215 A
• MMA current range: 25 – 190 A
• Current range LIFT TIG: 15 – 215 A
• Plug diameter: 35/50 17V-35 (13 mm)
• Weight: 13.10 kg

✅Welding methods:

• MIG/MAG Manual
• MIG/MAG Synergistic
• MIG PULSE
• MMA
• LIFT TIG
• FLUX

✅Supported materials:

• steel,
• stainless steel,
• aluminium and its alloys,
• copper and its alloys,
• soldering materials

✅Adjustment:

• inductance (-10 to +10),
• BURNBACK,
• SPOT,
• HOT START,
• ARC FORCE,
• VRD (ON/OFF)

• ✔ Multifunctionality – the device supports MIG/MAG Manual, MIG/MAG Synergistic, MIG PULSE, MMA, LIFT TIG and FLUX methods, allowing you to perform many types of work with one device.
• ✔ IGBT technology – a modern electronic system ensures stable operation of the power source and precise control of the welding process.
• ✔ Welding of various materials – the device is adapted to work with carbon steel, stainless steel, aluminum and its alloys, copper and materials intended for soldering.
• ✔ Synergistic mode – automatically selects parameters after selecting the material, gas and wire diameter, making it easier to prepare the device for work.
• ✔ Aluminum support – dedicated material programs and MIG PULSE function facilitate the execution of welds in aluminum elements.
• ✔ Easy-to-read LCD panel – the display presents the most important operating parameters, and intuitive control allows you to quickly change settings.
• ✔ Adjustment of welding parameters – the ability to set inductance, HOT START, ARC FORCE, BURNBACK, SPOT and VRD functions allows you to adjust the nature of work to the task at hand.
• ✔ Working with full and self-shielding wire – the device enables welding using both shielding gas and FLUX method.
• ✔ EURO connector – facilitates connection, replacement and servicing of the welding torch.
• ✔ Adjustable wire feeder – allows you to adjust the pressure to the type of welding material used and ensures stable feed.

✔ The device is used during workshop, locksmith, assembly, repair and repair works.

✔ It works well in the execution of steel structures, repair of machine elements, service and renovation works and during welding of thin and thicker metal elements.

The possibility of using various welding methods allows you to choose the right technique both for working with structural steel, stainless steel, aluminum, as well as copper and its alloys.

✔ Modern design using IGBT technology ensures stable operation of the device and effective control of the welding process.

✔ Electronic control panel with LCD display allows convenient monitoring of parameters and their quick change.

✔ The device is equipped with an adjustable wire feeding mechanism, allowing you to adjust the clamping force to the type of binder.

The manual wire feed feature makes it easy to prepare the device before starting work, while the standard EURO connector allows for quick replacement of the welding torch

✔ The device enables welding of aluminium and its alloys thanks to dedicated material programs AL MG and AL SI.

✔ MIG PULSE improves control over the welding process of aluminium, facilitating aesthetic and even welds.

Cooperation with U-rollers and the possibility of using different wire diameters allows you to properly prepare the device to work with soft aluminum alloys.

The welder is equipped with a number of functions that increase comfort and control over the welding process.

The user is available, among others:

• ✔ synergistic mode,
• ✔ MIG PULSE,
• ✔ HOT START,
• ✔ ARC FORCE,
• ✔ VRD,
• ✔ regulation of inductance,
• ✔ regulation BURNBACK,
• ✔ SPOT function,
• ✔ operating modes 2T and 4T,
• ✔ manual wire feed,

the possibility of changing polarity during the transition between MIG/MAG and FLUX.

✔ The wire feeding mechanism allows smooth handling of the welding material and adjustment of the roller pressure.

✔ Thanks to this, it is possible to adapt the operation of the device to different types of wire.

✔ Support for V-type and U-type rollers allows you to prepare the device for both steel and aluminum welding.

The manual wire feeding function speeds up the preparation of the handle before welding.

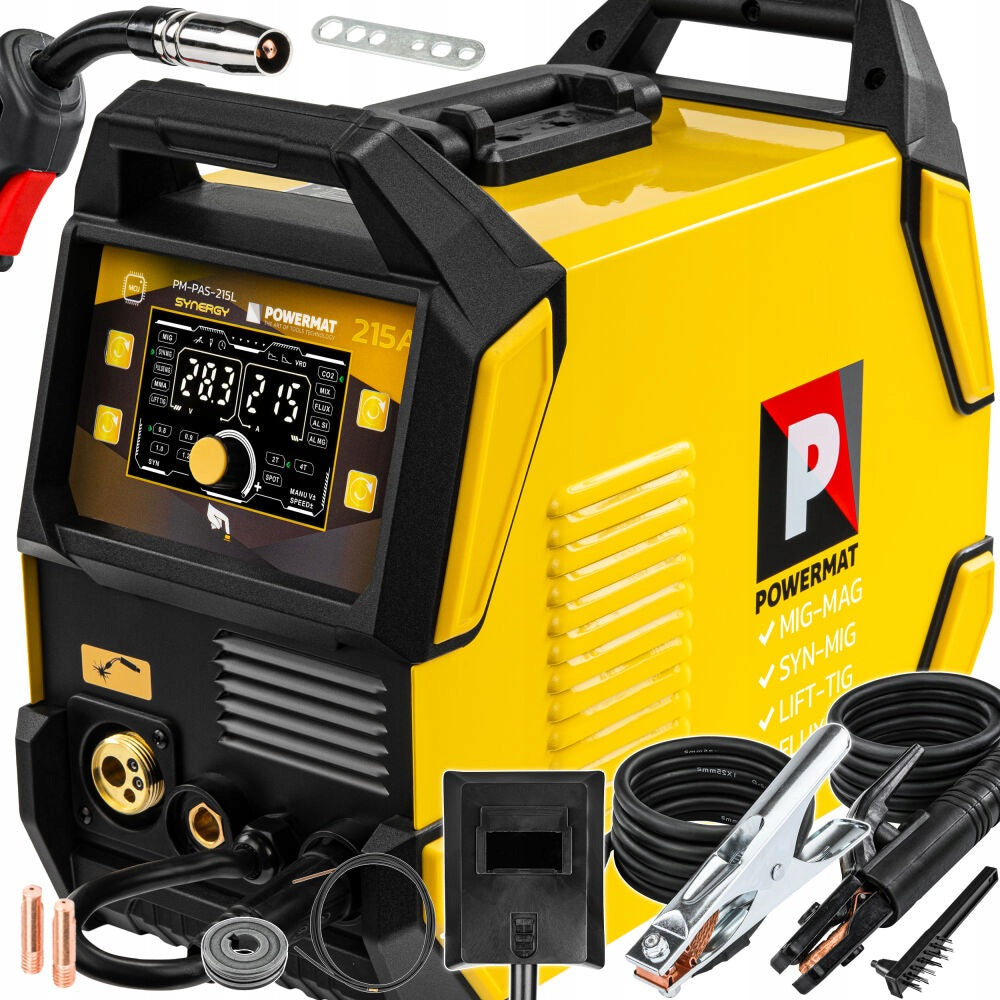

• ✔ Inverter welder,
• ✔ EURO MIG/MAG welding torch,
• ✔ MMA electrode holder,
• ✔ Bulk holder,
• ✔ Welding mask,
• ✔ Brush with hammer,
• ✔ Current tip 0,8 mm,
• ✔ Current tip 1,0 mm,
• ✔ Wire feeder roller 1,0/1,2 mm type U,
• ✔ Universal key,
• ✔ Flexible Teflon cable,
• ✔ Operating instructions,
• ✔ Original packaging.
