Suvirinimo aparatas 250 A, TIG AC/DC, MMA, pjovimas 50 A

Trumpai apie prekę

Prekė: Suvirinimo aparatas 250 A, TIG AC/DC, MMA, pjovimas 50 A. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Welbach
• Modelis: 1026411

⭐⭐⭐⭐⭐

Stamos ® brands

✅ Model: TRON AIO250

✅ Catalog No.: 10021503

✅ Product Condition: New

➡ The most important features of the product:

• Efficiency – the multifunction welding machine impresses with a welding current of 250 A and a cutting current of 50 A at 60% of the duty cycle
• 3in1 – Whether you are welding or cutting metals using TIG AC/DC or MMA methods, the multifunctional plasma cutter welding machine offers all the possibilities
• Precision – digital control panel for accurate setting of all parameters, including pulse frequency, initial current and gas outflow time
• Handiness – 3in1 multifunction welding machine offers 2T mode for short welding jobs and 4T for longer tasks
• Versatility – ideal for all self-melting metals such as steel, copper or nickel, and thanks to AC and pulsed connection, the multifunction welding machine is ideal for aluminum

✅ Technical specification:

• 2/4 Bar - Yes
• Working cycle [%] - 60
• User manual - Yes
• ARC-Force - No
• Overcurrent - No
• Anti Stick - No
• Synergy - No
• Hot Start - No
• Power factor - 0.96
• Type of converter - IGBT
• Cutting current - 50 A
• Foot pedal - Yes
• Soft start - Yes
• Compliance with standards - EN IEC 60974-1
• Water cooling - No
• Insulation class - F
• Plasma cable - 4 m
• MMA cable - 2 m
• Pulse function - Yes
• Operating air pressure - 4 Bar
• Automatic wire feeder - No
• Memory function - Yes
• Ground wire - 2 m
• Idle voltage [V] - TIG 60 / MMA 60 / CUT 260
• Ignition TIG - HF
• Gas solenoid valve - Yes
• Overheating protection - Yes
• Rated input current [A] - TIG 15.8 / MMA 16 / CUT 15.8
• VRD - No
• Ignition Plasma - HF
• Maximum gas outflow time [s] - 10
• Maximum thickness of welded material [mm] - TIG 20 / MMA 20 / CUT 20
• Protection against too high voltage - No
• Recommended electrode diameter - MMA 1.6 - 4.0 / TIG 1.6 - 3.2
• Material - Plastic, Steel
• Colour - White
• Efficiency [%] - 83
• Welding methods - MIG, TIG, CUT
• Cutting width [cm] - 2
• Voltage [V] - 230
• Input power [kVA] - TIG 4.5 / MMA 6.2 / CUT 6.5
• Air consumption [l/min] - 140 - 200
• Welding voltage [V] - MMA 27 / TIG 17 / CUT 100
• MMA welding current [A] - 5 - 250
• TIG welding current [A] - 5 - 250
• Maximum input current [A] - TIG 21, MMA 28, CUT 29
• Degree of protection IP - IP21S
• Package height [cm] - 50
• Package length [cm] - 63
• Package width [cm] - 34
• Package weight [kg] - 24.4
• Product height [cm] - 40
• Product length [cm] - 52
• Product width [cm] - 22
• Product weight [kg] - 20.5
• Number of packages - 1

✅ Multifunction welder shows excellent performance even with aluminum

With the TRON AIO250 multifunction welding machine from Stamos, you will get a professional, efficient and high-quality device for various repair and maintenance work. Weld precisely in inert gas by TIG AC/DC method or electrodes in MMA mode up to 250 A at 60% duty cycle. You want to cut metals? Then use a powerful, integrated 50 A plasma cutter. The basis of operation is the state-of-the-art IGBT inverter technology, which allows quick change between cutting, TIG AC/DC and MMA and reliably uses all technical parameters. Switching from 2T to 4T mode will allow particularly comfortable welding.

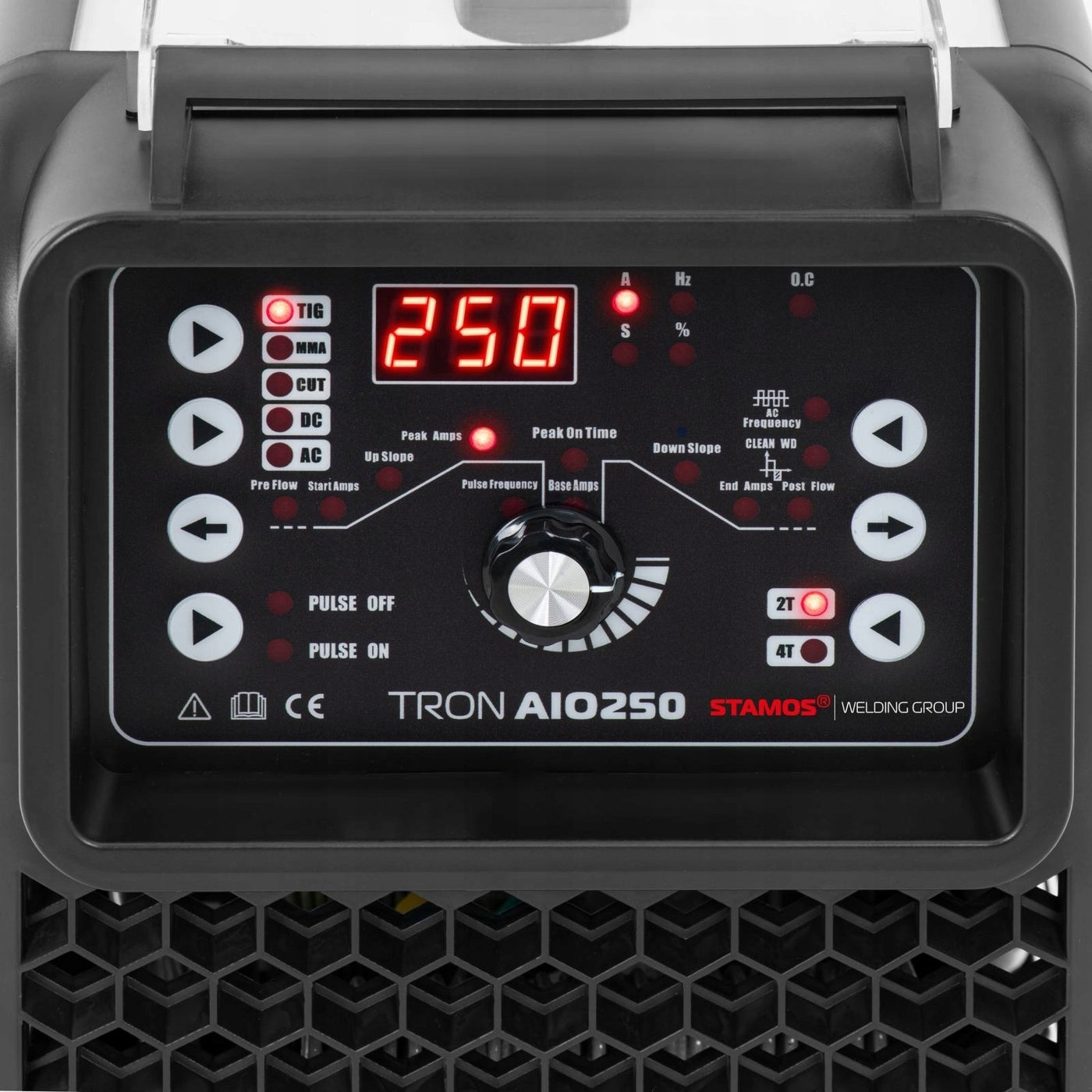

✅ Everything under control on the digital control panel

All parameters can be quickly and conveniently set on a clear control panel, even with welding gloves. You can check them on the LED display. In TIG mode, you can weld with direct or alternating current, depending on the metal. You can use alternating current (AC) for processing light metals such as aluminum or titanium. DC, on the other hand, works well for joining more durable metals such as steel, stainless steel, copper or brass. For optimal welding results, use the Pulse function. Select numerous parameters, such as initial, primary or final current. Set them optimally to the workpiece with a knob.

For plasma cutting, you will set the compressed air on an external pressure reducer and determine the desired current up to 50 A. Do you want to weld outside, even in strong winds? Use the MMA method. Thanks to the stable current, you will achieve very good results of various metals, such as steel, iron, cast iron, nickel or copper. For your safety, the multifunction welding machine is equipped with overheating protection. IGBT inverter technology affects the compact design, making it easy to transport the multifunctional welding device to the workstation with the carrying handle.

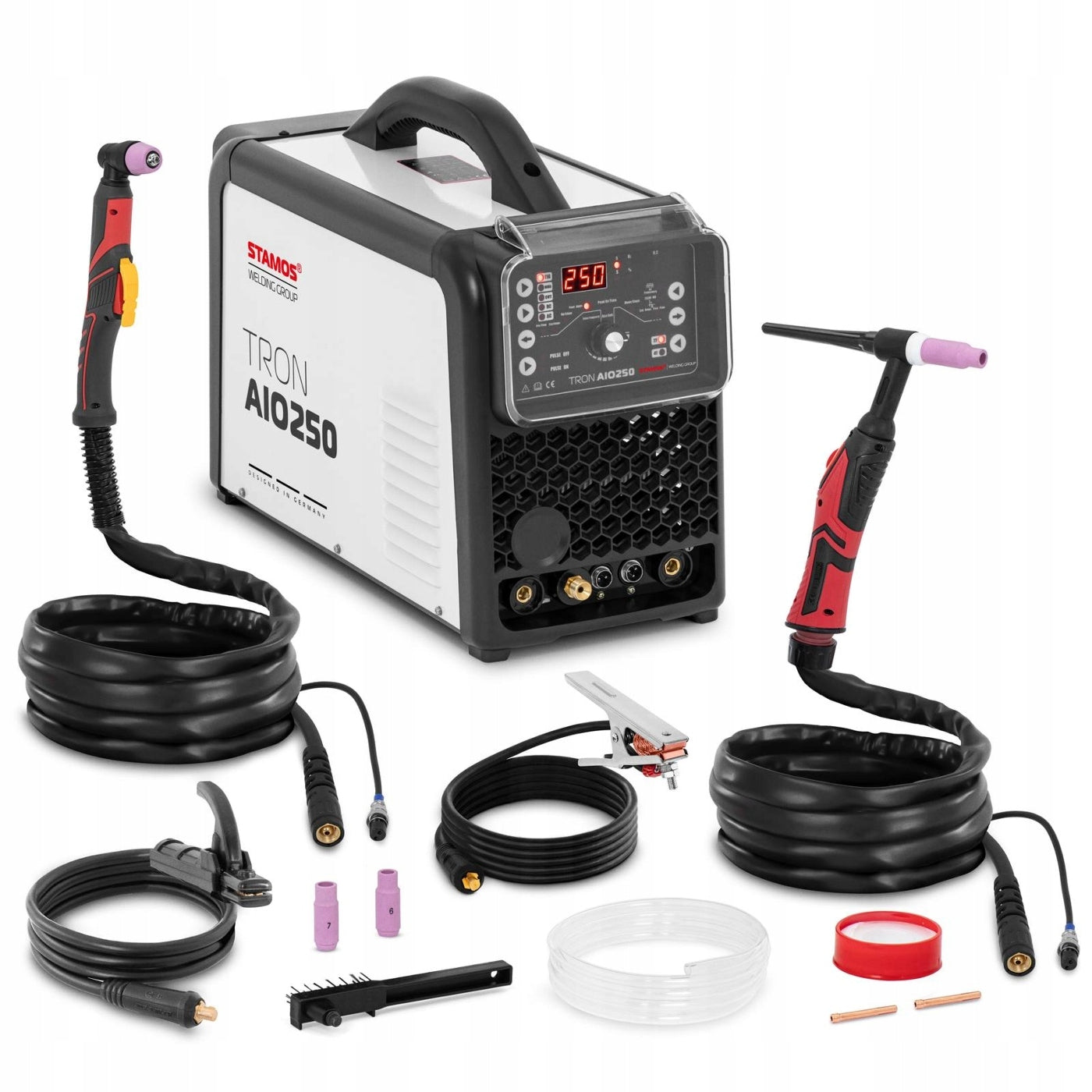

✅ Contents of the shipment:

• Multifunction welder TRON AIO250
• TIG welding torch with hose package (3 m)
• Plasma burner with hose package (3 m)
• Electrode holder with cable (2 m)
• Ground clamp with cable (2 m)
• Hose (3 m)
• Power cord (1,8 m)
• Pressure reducer
• Brush

⬇ Product Images:
