Suvirinimo aparatas 340A MMA TIG LCD inverteris

Trumpai apie prekę

Prekė: Suvirinimo aparatas 340A MMA TIG LCD inverteris. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Schwartzmann
• Modelis: MMA-340A

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

Equipment for outdoor work, increased tightness of the housing, construction labyrinth, increased IP electronics.

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░ ░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

(in most welding machines this function is implemented automatically and we have no influence on changing this parameter)

for continuous operation with enlarged MAXX heat sinks and fan, thick wires and reinforced electronics.

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

You do not have to be an experienced welder to bond this metal welding machine with a strong melt, the functions used in the most expensive IGBT welding machines are included in this device!

SCHWARTZMANN 340A IGBT of the latest generation.

► Features: ANTI STICK, HOT START, ARC FORCE

► Smooth adjustment from 20-340A LCD

► Fan and thermostat for continuous operation

► Arching by rubbing, does not stick to the electrode

► Electrodes from 1.6- 5.0 355A

.

For welding various types and grades of metals and alloys: non-alloy and alloy steels, cast iron, nickel, copper and alloys

Welder adapted to work with most aggregates equipped with AVR power from 5,5K

The welder is equipped with a led diode indicating overheating

The true power of 340A and high efficiency of 60% means that it does not turn on practically at all even when welding long welds.

The welding machine has the possibility of TIG welding after using the appropriate welding torch.

After its installation, the welding machine turns into a TIG welding machine while maintaining many parameters of expensive TIG devices.

-

+ PRACTICAL HAND MASK

+ THICK WELDING WIRES

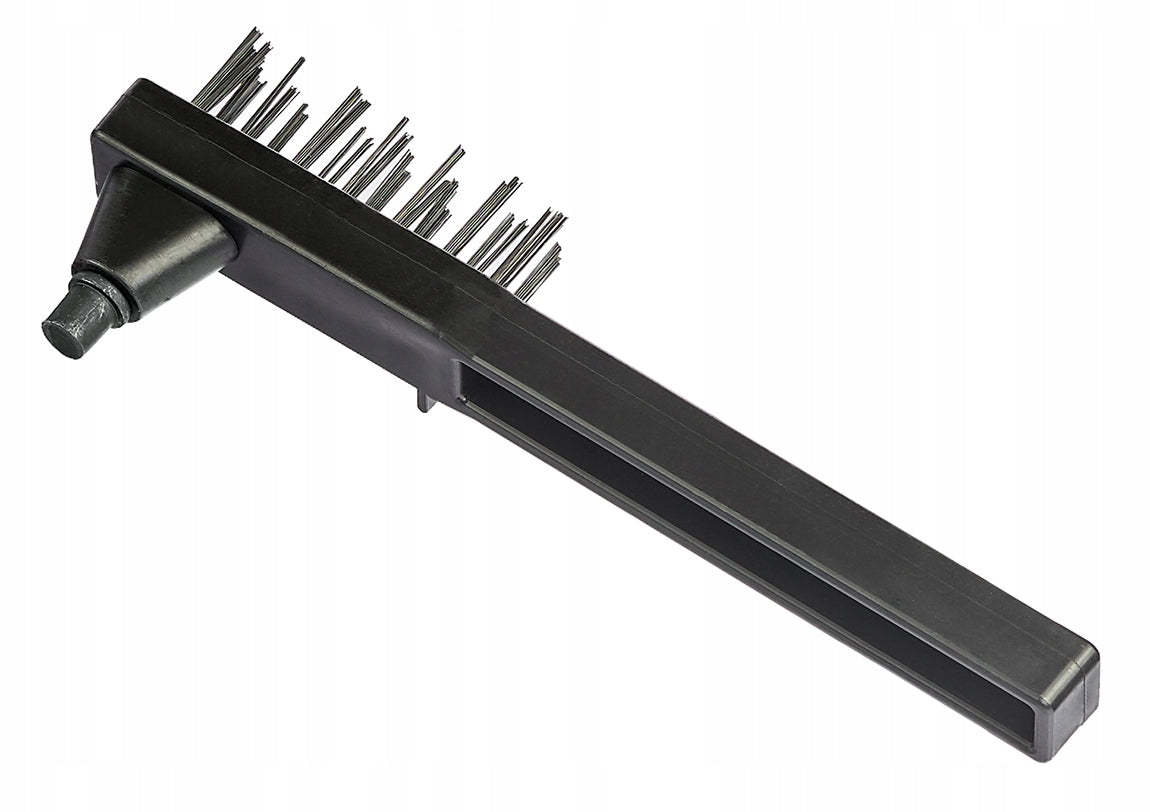

+ BRUSH WITH HAMMER

• - IGBT technology
• - Smooth regulation of welding current 20-340A
• - Possibility of using electrodes 1.6 - 5.0mm
• - Features: HOT START, ANTI STICK, ARC FORCE
• - Equipped with thermostat and fan

Popularly called hot start, it allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

cuts/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

stabilizes the arch regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

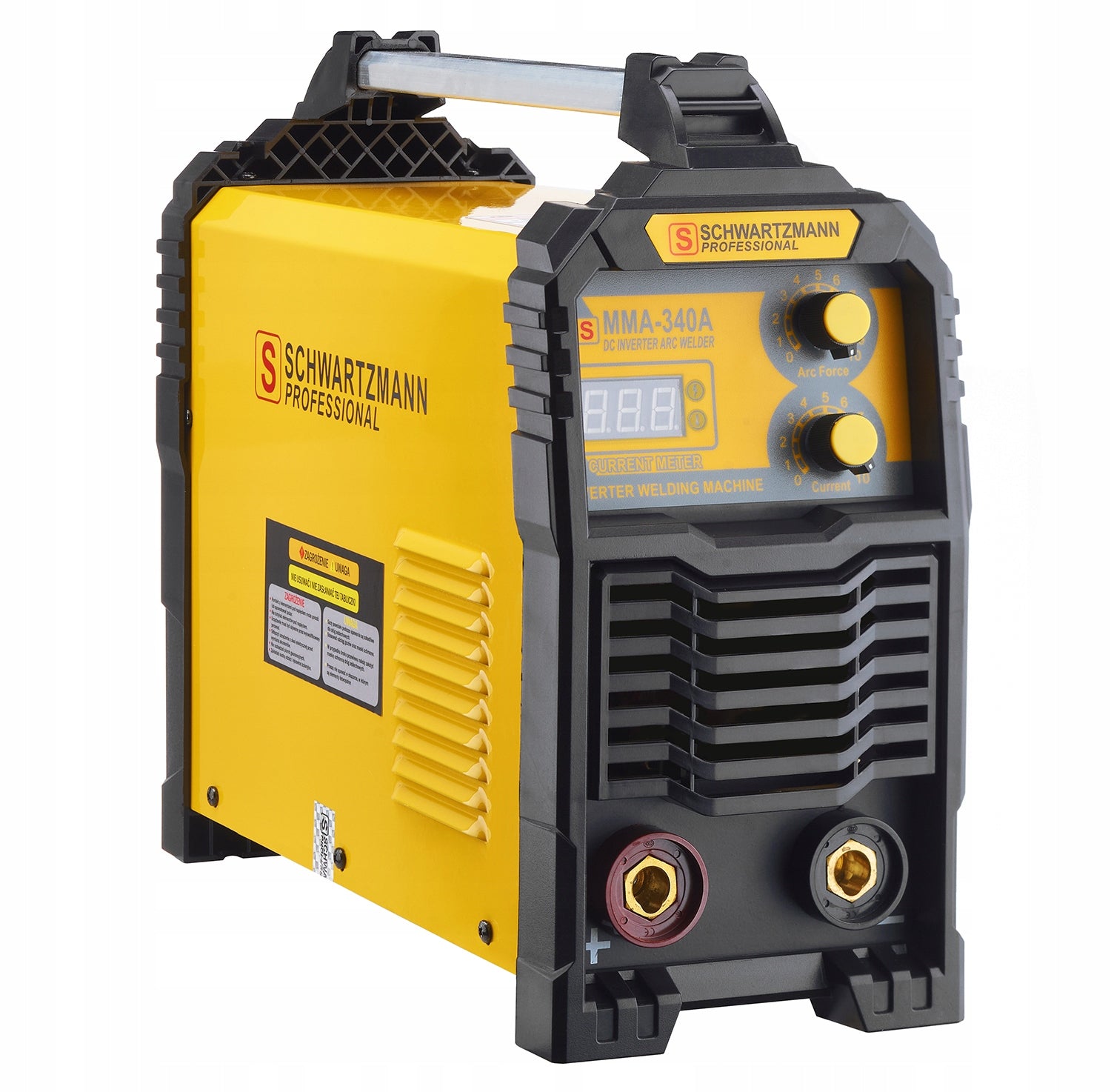

Inverter welding machine by SCHWRTZMANN with power 340A.

It has a versatile application, used for welding stainless steel, alloy steel, carbon steel, copper and other metals.

Equipped with fan, LCD display, potentiometer for smooth adjustment and quick connectors.

A special feature and distinguishing the welding machine from competing machines are IGBT transducers, ensuring low weight of the device and high reliability.

The converter, which uses high-quality IGBT transistors, allows for a smooth weld position and a significant reduction in the amount of chipping.

The welding machine has welding power from 20 - 340A.

Large readable display allows you to accurately set the correct welding current.

You can take the device anywhere, and small dimensions and weight (about 5kg) will make it much easier.

• Brand: SCHWARTZMAN
• Model: MMA-340
• Power supply: AC/230V
• Frequency: 50Hz
• Welding Current: 20-340A
• Efficiency: 60%/340A
• Security Required: 16A
• Insulation class: IP21S
• Weight: 4kg
• Length 37cm
• Width: 16cm
• Height: 33cm
• Length of mass cable: approx.130cm
• Length of electrode cable: approx.175cm
• Power cord length: approx. 170cm

After its installation, the welding machine turns into a TIG welding machine while maintaining many parameters of expensive TIG devices.

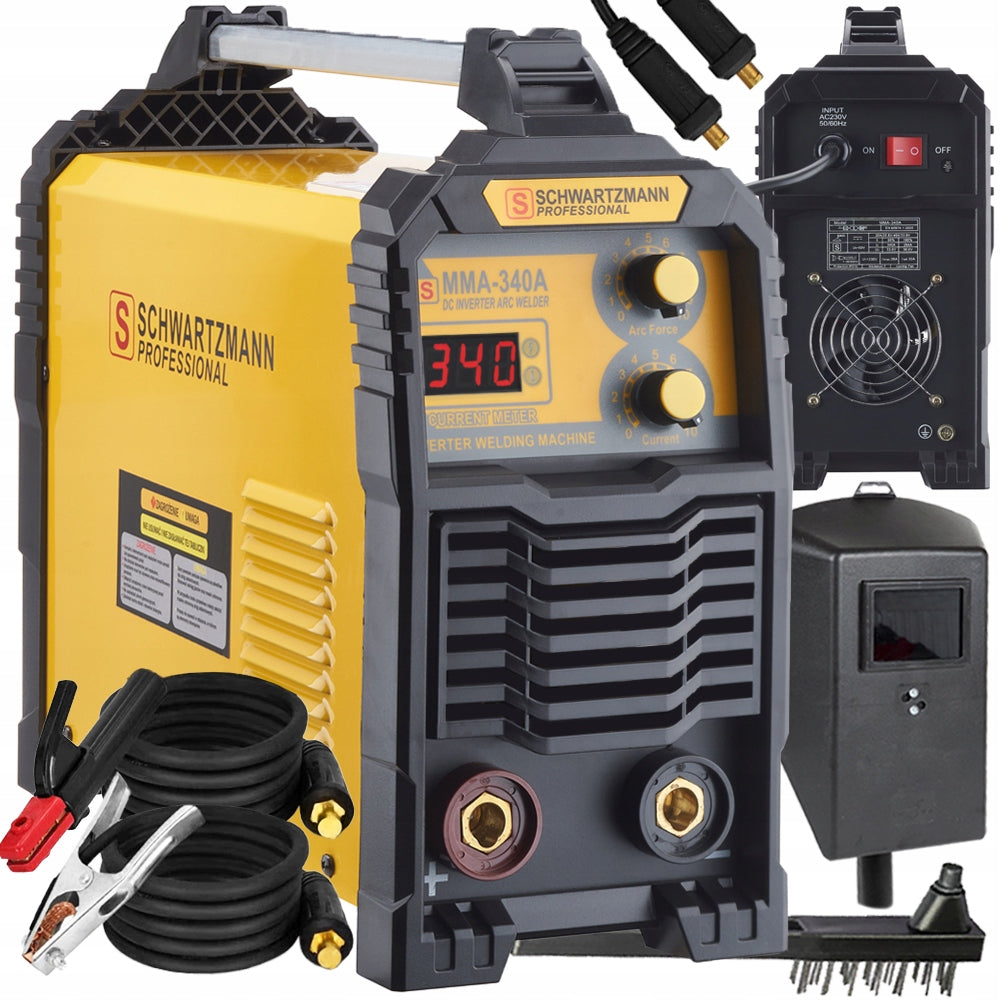

SCHWARTZMANN 355A inverter welder

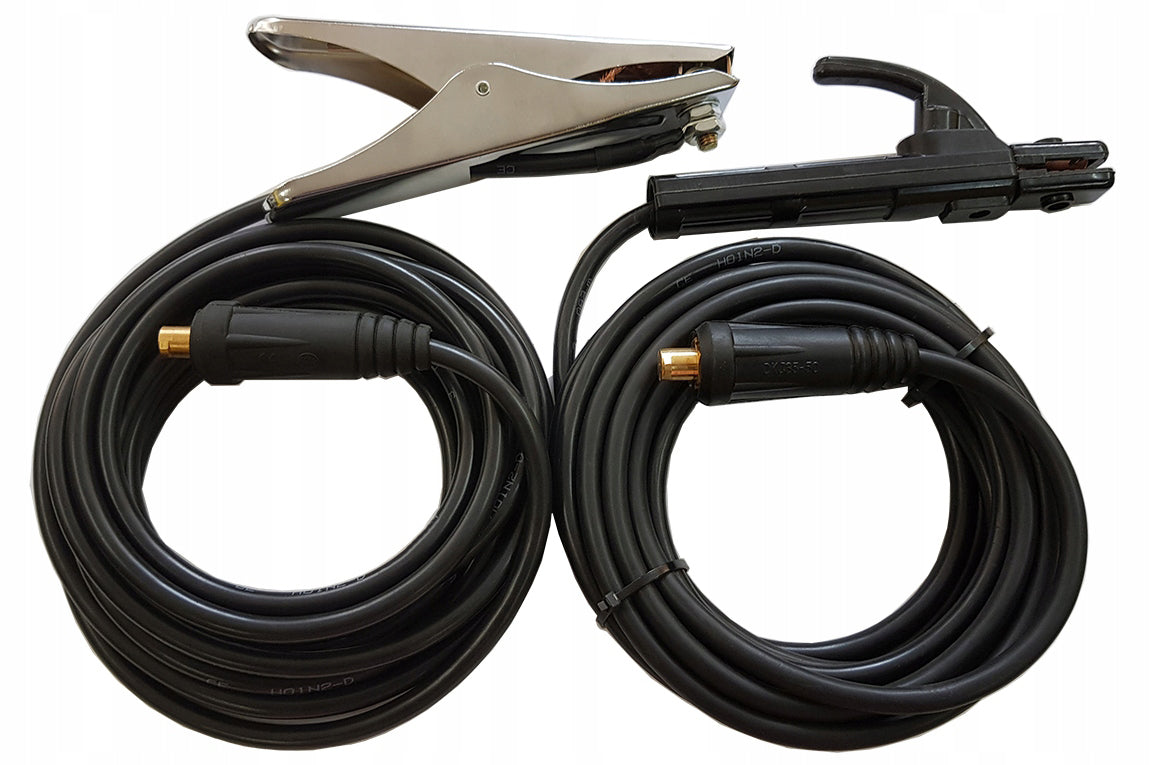

MMA DIN welding cable with electrode holder

DIN mass cable with clamp

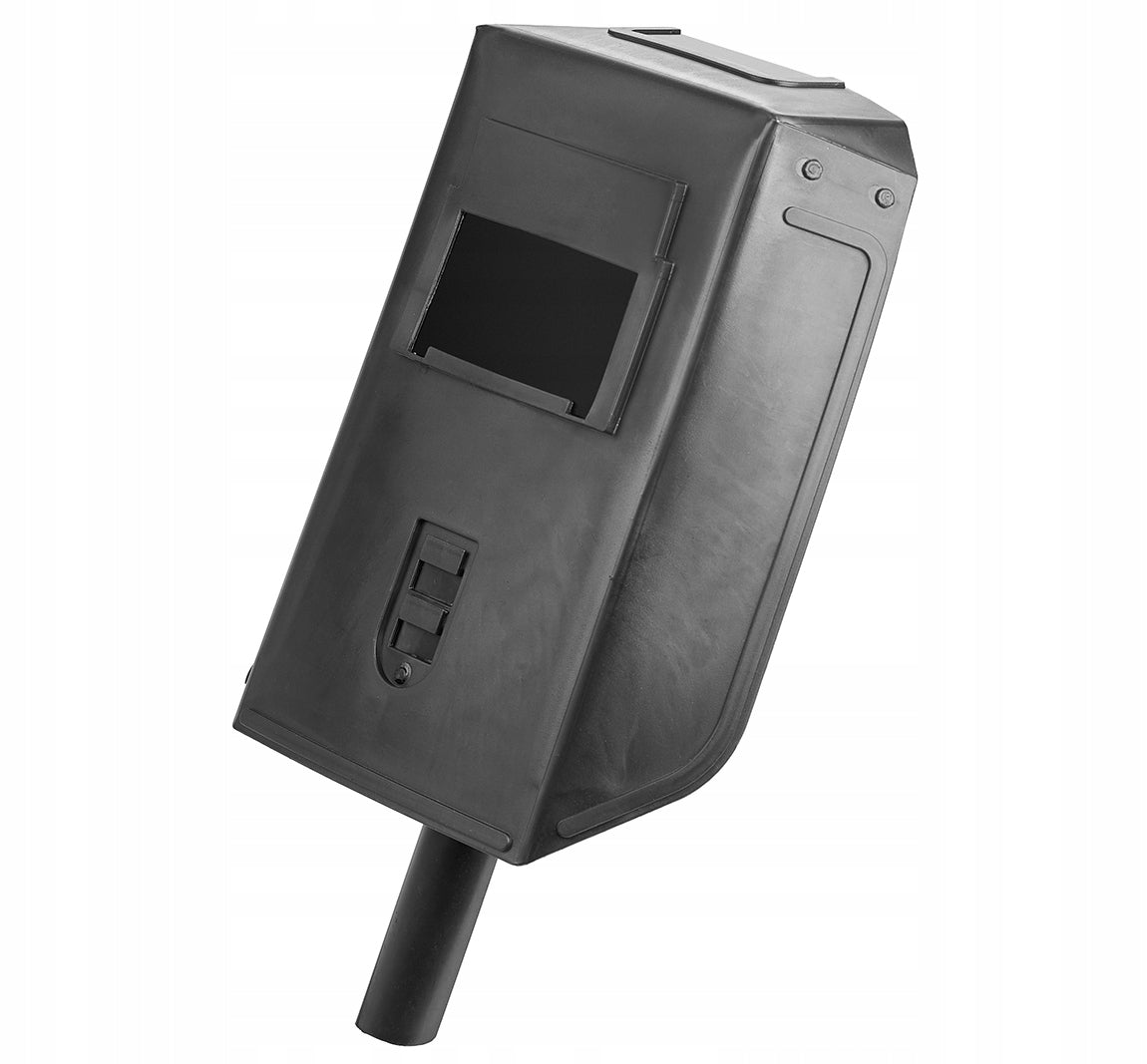

Protective shield with glass

Brush with hammer

User manual in Polish

Instruction manual in Polish

Original packaging

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Schwartzmann
Parametry	Power consumption	6.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Device weight	4 kg
Parametry	Welding range	20–340 A
Parametry	Length of ground cable	180 cm
Parametry	Welding cable length	215 cm
Parametry	Product weight with unit packaging	6 kg
Parametry	Manufacturer code	MMA-340A
Parametry	Packaging status	original
Parametry	Model	MMA-340A
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
