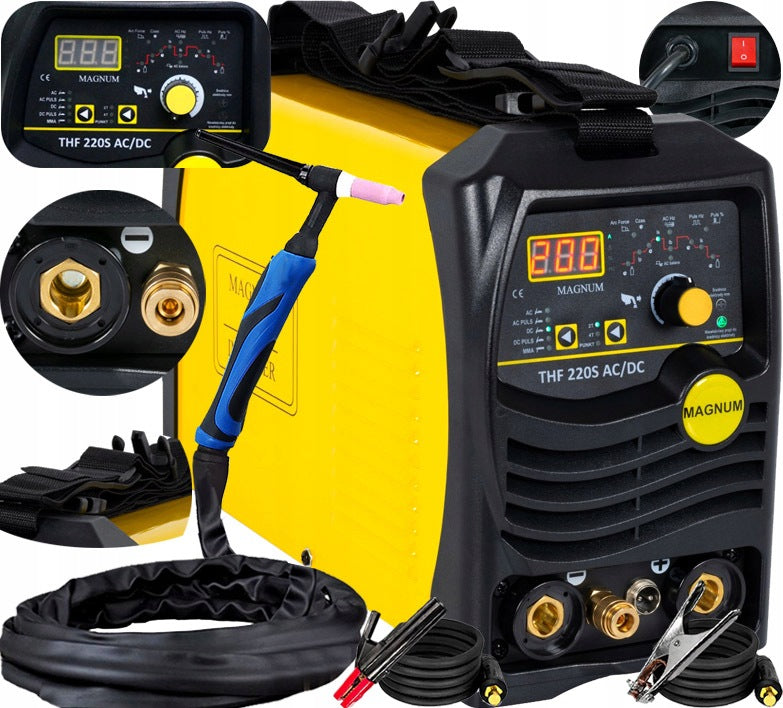

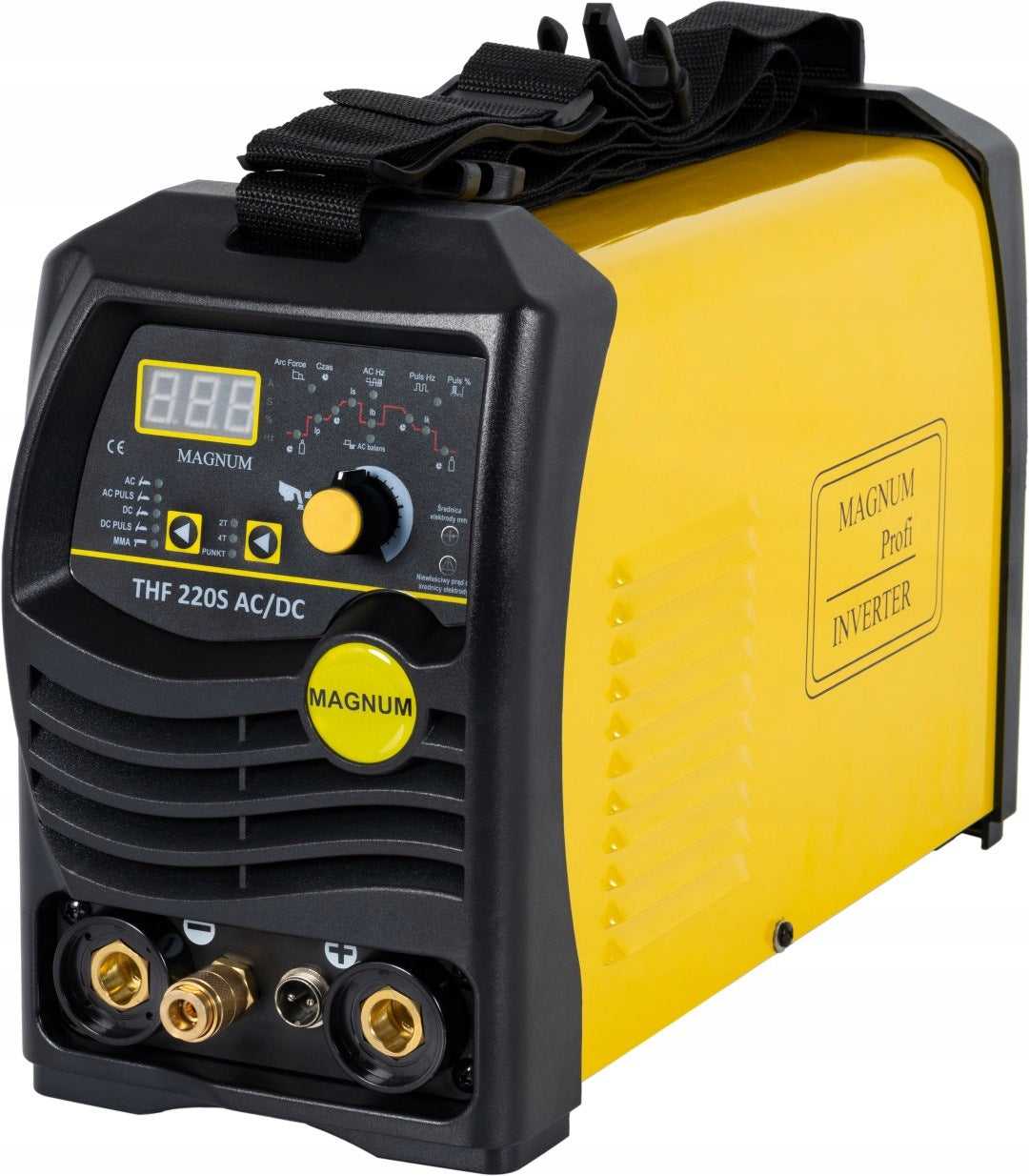

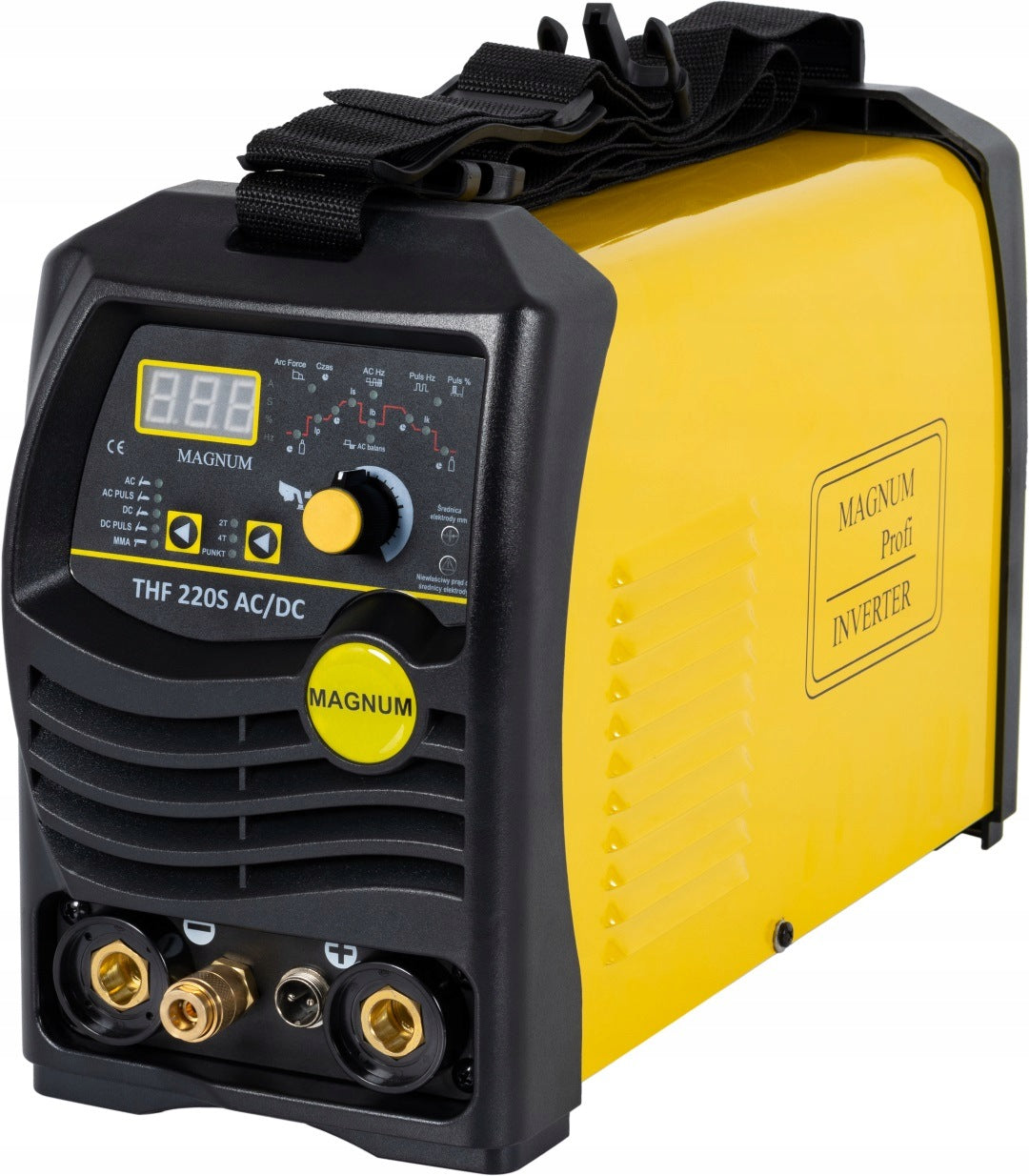

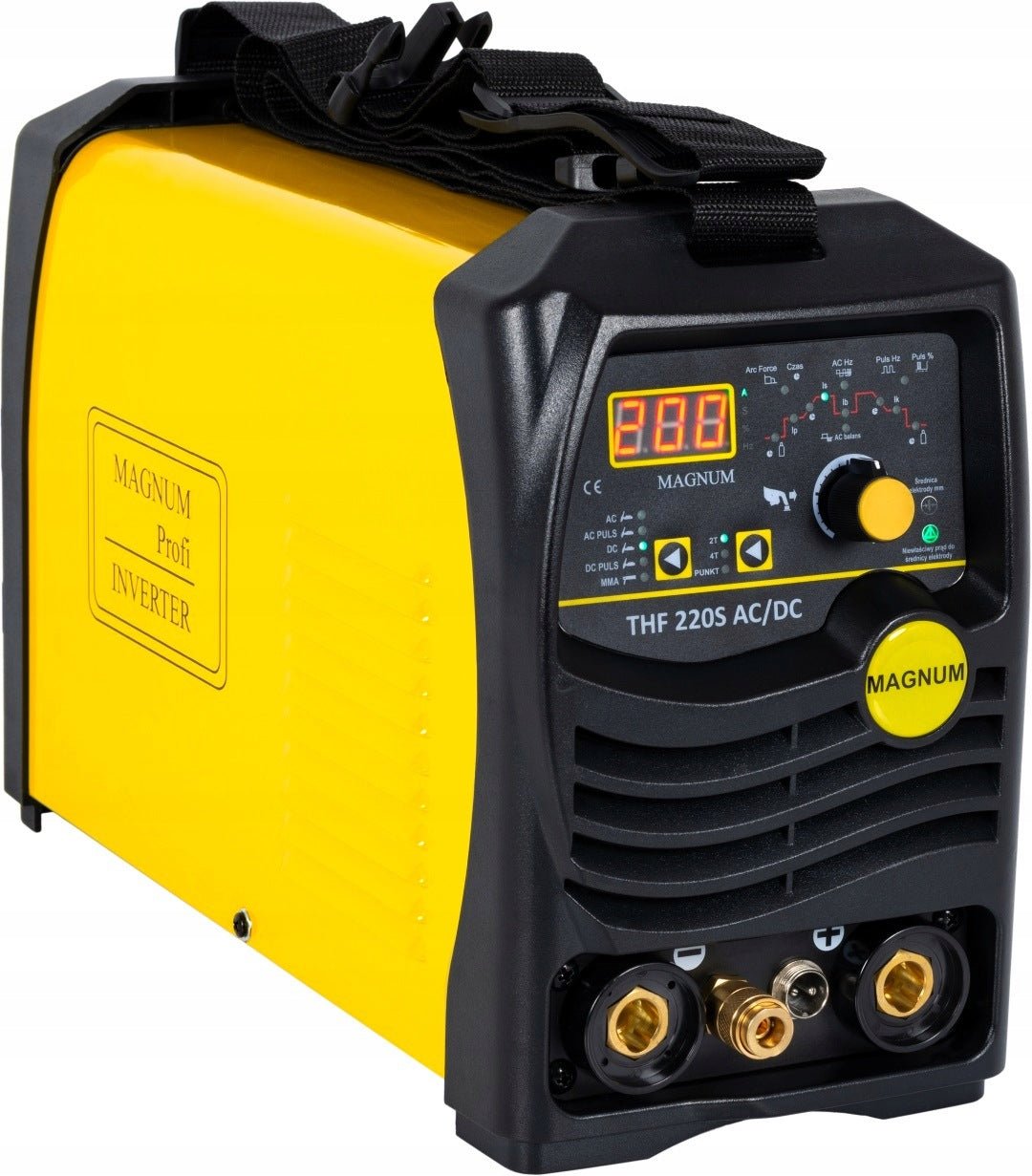

Suvirinimo aparatas aliuminiui MAGNUM THF 220S AC/DC, 200A, 230V, su pulsu, TIG HF invertorius

Trumpai apie prekę

Prekė: Suvirinimo aparatas aliuminiui MAGNUM THF 220S AC/DC, 200A, 230V, su pulsu, TIG HF invertorius. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM THF 220S

MAGNUM THF 220S AC/DC is a professional inverter welding machine with a modern design. Allows welding with current up to 200A. It is powered from a single-phase 230V network. The welder has:

➡ TIG AC/DC - Welding with a non-melting electrode in an inert gas shield with the possibility of determining the arc TIG HF and TIG LIFT with direct current (DC) and variable (AC) a also in the following modes:

• TIG PULS - pulse welding.
• TIG SPOT - spot welding.

➡ MMA - Direct current wrapped electrode (DC) and variable (AC).

THE WELDING MACHINE IS EQUIPPED WITH A PROFESSIONAL TIG 26/4m HANDLE, AS WELL AS AN ELECTRODE AND MASS HANDLE!

MAGNUM THF 220S AC/DC provides excellent welding performance:

✔ aluminium and its alloys,

✔ non-alloy steel,

✔ low alloy steel,

✔ high-alloy steel,

✔ titanium,

✔ other weldable metals and alloys.

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc.

The MAGNUM THF 220S AC/DC welding machine has a clear and easy-to-use function panel, which has m.in.:

• CHOICE OF WELDING METHOD: AC, AC PULSE, DC, DC PULSE, MMA
• SWITCH: 2T/4T/POINT
• PARAMETER SELECTION KNOB
• BACKLIGHT ELECTRIFICATION DIAMETER
• "TREE" OF TIG SETTINGS
• LED DISPLAY

The TIG DC and TIG DC PULS functions are used for welding stainless steel, carbon and low alloy steels, copper and titanium. Welding is carried out in an inert gas shield. .

The TIG AC and TIG AC PULS functions allow welding of aluminium and its alloys and brass.

By adjusting the parameters of pulse welding TIG PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FACTORIES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

✔ TIG WELDING WITH PULSE - thanks to the regulation of pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding very thin materials.

✔ SPOT WELDING - consists in making a small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ ANTI STICK - anti-short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

✔ HOT START - regulation of hot start - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EASE OF USE - the welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and industrial work.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a refrigeration system, which significantly increases its efficiency and protects against overheating of the handle.

⏩ GENERAL PARAMETERS:

• Power supply network protection: C25 A
• Rated supply voltage: 230 V, 50-60 Hz, 1ph

⏩ PARAMERTY TIG:

• Power build-up time (s): 0 - 10
• Power drop time (s): 0 - 10
• Pulse frequency Hz: 0,2 - 200
• Gas after (s): 0,5 - 15
• Gas before (s): 0,1 - 10
• Idle voltage: 67 V
• Final current: 5 - 200 A
• Maximum current: 200 A 60%
• Power at work 100%: 160 A (TIG AC) / 150 A (TIG DC/MMA)
• Power at 60% operation: 200 A (TIG AC) / 160 A (TIG DC/MMA)
• Starting current: 5 - 200 A (TIG AC) / 10 - 170 (TIG DC/MMA)
• Diameter of welding electrode: 1,6 - 4,0 mm
• TIG arc glow: contactless
• Electrode diameter range: 1,6 - 3,25

⏩ OTHER:

• Degree of protection: IP 21
• Weight of the device: 9 kg
• Overall dimensions L x W x H: 400x160x245 mm

• Inverter welding machine MAGNUM THF 220S AC/DC
• Welding torch TIG SR 26 4m - 1 pc.
• Handle electrode 3 m - 1 pc.
• mass cable 3 m - 1 pc.
• Instruction for operating in Polish
• Warranty card

SET OF 15 TIG AC/DC
