Suvirinimo aparatas aliuminiui MAGNUM TIG HF THF 223 Pulse AC/DC MMA

Trumpai apie prekę

Prekė: Suvirinimo aparatas aliuminiui MAGNUM TIG HF THF 223 Pulse AC/DC MMA. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U I THF223P ACDC

⭐MODERN AND EFFICIENT TIG AC/DC ⭐➡ NEW 2026 ⬅

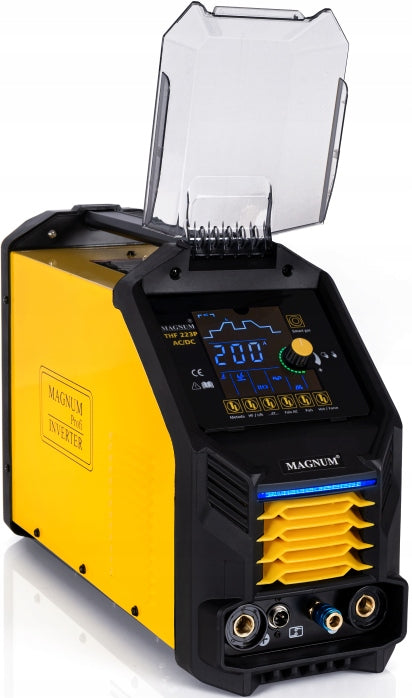

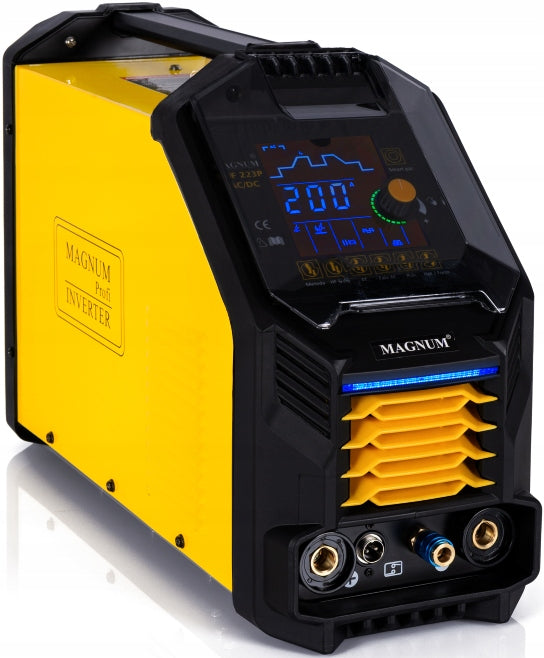

MAGNUM THF 223P AC/DC is a professional inverter welding machine with a modern design. It enables welding with current up to 200A. It is powered from a single-phase 230V network. The welder has:

➡ TIG AC/DC - Welding with a non-melting electrode in an inert gas shield with the possibility of determining the arc TIG HF and TIG LIFT with direct current (DC) and variable (AC) a also in the following modes:

• TIG PULS - Pulse welding.
• TIG MIX - DC welding with alternating AC current. Thanks to this function, you can achieve the cleaning effect characteristic of alternating current and deep melting at direct current.

➡ MMA - Direct current wrapped electrode (DC) and variable (AC).

THE WELDING MACHINE IS EQUIPPED WITH A PROFESSIONAL TIG WP-26 HANDLE WITH A LENGTH OF 4 M, AS WELL AS A MASS AND ELECTRODE HANDLE!

MAGNUM THF 223P AC/DC provides excellent welding performance:

✔ aluminium and its alloys,

✔ non-alloy steel,

✔ low alloy steel,

✔ high-alloy steel,

✔ titanium,

✔ other weldable metals and alloys.

MAGNUM THF 223P AC/DC has a readable and easy to use function panel, which has m.in.:

• Selection of welding method: TIG AC, TIG DC, TIG MIX, MMA,
• Selection of arc ignition method for TIG method: HF, LIFT,
• Selection of options for TIG method: 2T, 4T, BI-LEVEL, SPOT,
• Selection of waveform for TIG method, for AC alternating current: rectangular, triangular, sinusoidal,
• Selection for TIG method, welding with or without current pulsation: welding without current pulsation, welding with current pulsation,
• Selection of functions for MMA welding: HOT START, ARC FORCE,
• Smart gas function: automatic selection of gas outflow time values after welding. Active function when a vertical dash lights up next to the button
• Button and knob in one: allows you to select a given parameter on the current ladder and adjust it.

✔ CHOICE OF AC WAVEFORM SHAPE: waveform adjustment allows for more precise impact on the weld (width, height, depth of melting)

• SQUARE - rectangular waveform of alternating current allows welding aluminum with the addition of magnesium,
• SINUS - sinusoidal waveform is recommended for welding pure aluminum 99,999%,
• TRIANGULAR - setting the triangular shape of the current wave is optimal for welding thin elements, including anodized aluminum.

✔ ADJUSTMENT AC balance, AC current frequency UP TO 250 Hz, balance and MIX frequency,

✔ REGULATION time of descent and increase of current.

The TIG DC and TIG DC PULS functions are used for welding stainless steel, carbon and low alloy steels, copper and titanium. Welding is carried out in an inert gas shield. .

The TIG AC and TIG AC PULS functions allow welding of aluminium and its alloys and brass.

By adjusting the parameters of pulse welding TIG PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FACTORIES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

✔ Bi-LEVEL - the possibility of switching between two welding current values.

✔ TIG WELDING WITH PULSE - thanks to the regulation of pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding very thin materials.

✔ SPOT WELDING - consists in making a small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ TIG MIX - a special TIG welding method, consisting in the combination of direct and alternating current, allows for full melting and effective cleaning during aluminum welding.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ HOT START - regulation of hot start - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EASE OF USE - the welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and industrial work.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a cooling system which significantly increases its efficiency.

• Power supply: 230 [V] – 50/60 [Hz]
• Efficiency: 60 [%]
• TIG AC/DC welding current: 20 ÷ 200 [A]
• MMA welding current: 20 ÷ 160 [A]
• Idle voltage: 70 [V]
• Protection class: IP21S
• Security: 25 [A] (type C)
• Mass: 11,5 [kg]
• Cooling: air
• Power consumption max.: ~ 5 [kW]

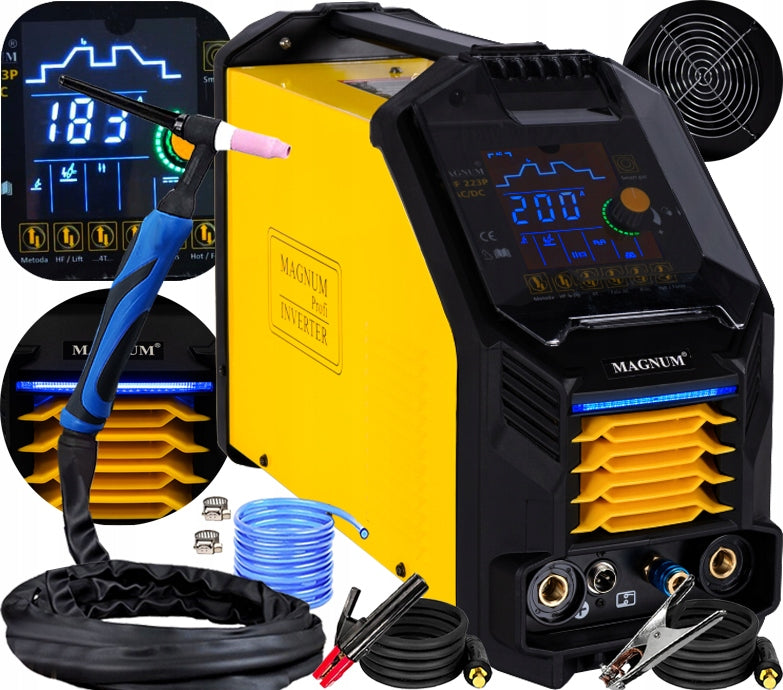

• Inverter welding machine MAGNUM THF 223P AC/DC - 1 pc.
• Handle TIG WP-26 - 4m - 1 pc.
• MMA electrode cable - 1 pc.
• mass cable - 1 pc.
• Instruction for operating in Polish

SET OF 15 TIG AC/DC

M.
