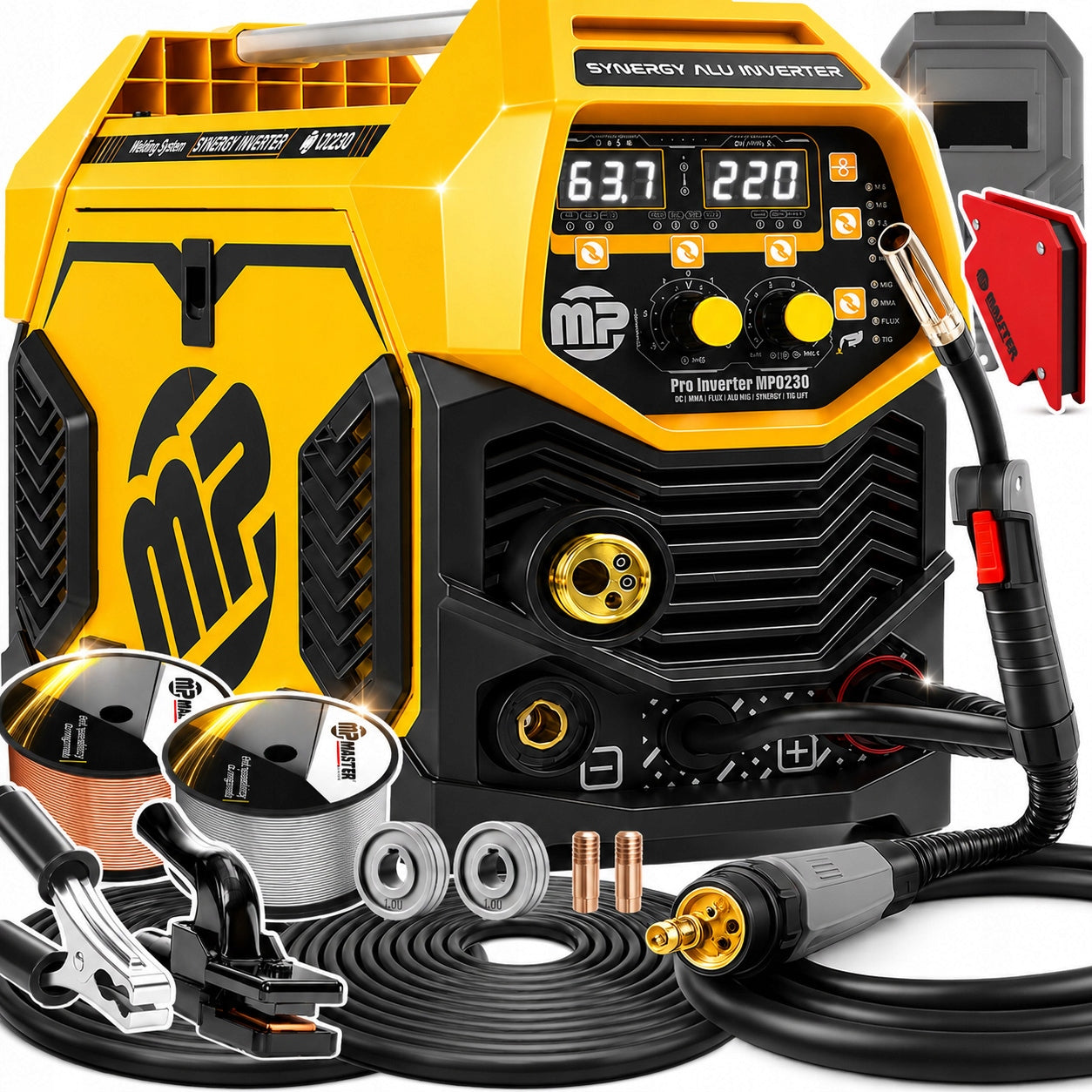

Suvirinimo aparatas aliuminiui Majster PRO Synergy 220A MP0230

Trumpai apie prekę

Prekė: Suvirinimo aparatas aliuminiui Majster PRO Synergy 220A MP0230. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Majster Pro
• Modelis: Aluminium

⚫Majster PRO – Refined, Convenient and Reliable Products

⚫ Service and parts in Poland - every detail, all available in 24h

.

.

.

.

.

🔴MIG

– welding with gas shielded wire, ideal for quick and convenient work with steel.

🔴MIG FLUX

– welding with self-shielding wire without gas cylinder, good for field work.

🔴CO2

– MIG welding using carbon dioxide, an economical solution for steel.

🔴MIX

– welding in a gas mixture, ensures a stable arc and aesthetic weld.

🔴ALU MIG

– MIG welding of aluminium, designed for work with aluminium elements.

🔴MMA

– welding with a wrapped electrode, works well for repairs, constructions and outdoor work.

🔴TIG LIFT

– precise TIG welding with ignition by touch, for thin and accurate welds.

🔴The MIG welding machine has practical functions 2T, 4T and SPOT, which make it easy to adjust the work to the type of welding. Thanks to them, you can comfortably weld short elements, longer sections and perform repetitive welding points.

• 2T mode – convenient for short welding; the welding machine works at the push of a button in the handle.
• 4T mode – ideal for longer welds; you do not have to hold the button all the time, which reduces hand fatigue.
• SPOT mode – enables spot welding, useful for thin sheets and repetitive joints.

🔴ARC FORCE

– automatically stabilizes the welding arc, facilitating welding and improving the quality of the weld.

🔴HOT START

– increases the current at arc ignition, making it easier and faster to start welding.

🔴VRD

– reduces idle voltage, increasing the operator’s safety.

🔴ANTI STICK

– prevents the electrode from sticking to the material, facilitating smooth welding.

The welder is equipped with a robust EURO connector made of high-quality brass components, which provides a durable, stable and secure connection of the MIG handle. The screw-on design guarantees a very good fit of the cable, reduces the risk of looseness and improves the comfort of work even with frequent use of the device.

🔴Advantages:

• Brass components
• Screw-on mount
• Long MIG cable 3 m

🔴The welding machine is equipped with large, solid MMA cable plugs – both a mass cable and an electrode holder. The connectors of the plugs are up to 12 mm in diameter and are made of full material, which proves a strong, professional construction.

• Large diameter of plugs – a solution used in larger, professional welding machines.
• Spinners 12 mm – a solid connection with high strength.
• Made of full material – greater durability and wear resistance.
• Sure wire connection – stable operation during MMA welding.

🔴The welding machine has a solid wire feeder with replaceable rollers on ball bearings, made of very good materials. Provides smooth and stable wire feeding during welding.

• Replaceable rollers – easy to fit into various wires.
• Ball bearings – smooth and light operation of the feeder.
• Stable wire feeding – fewer jams and tugs.
• Solid materials – greater durability and reliability.
• Better working comfort – easier and more accurate welding.

🔴The set with the migomat includes 2 interchangeable guide rollers, which allow you to adjust the feeder to different types of welding wire. This makes the device more versatile and ready to work with steel and aluminum.

• Roll type V 0,8 mm / 1,0 mm – designed for steel wire and MIG/MAG welding wire.
• Roll type U 1,0 mm / 1,2 mm – designed for aluminum wire, provides more gentle handling of soft ALU wire.

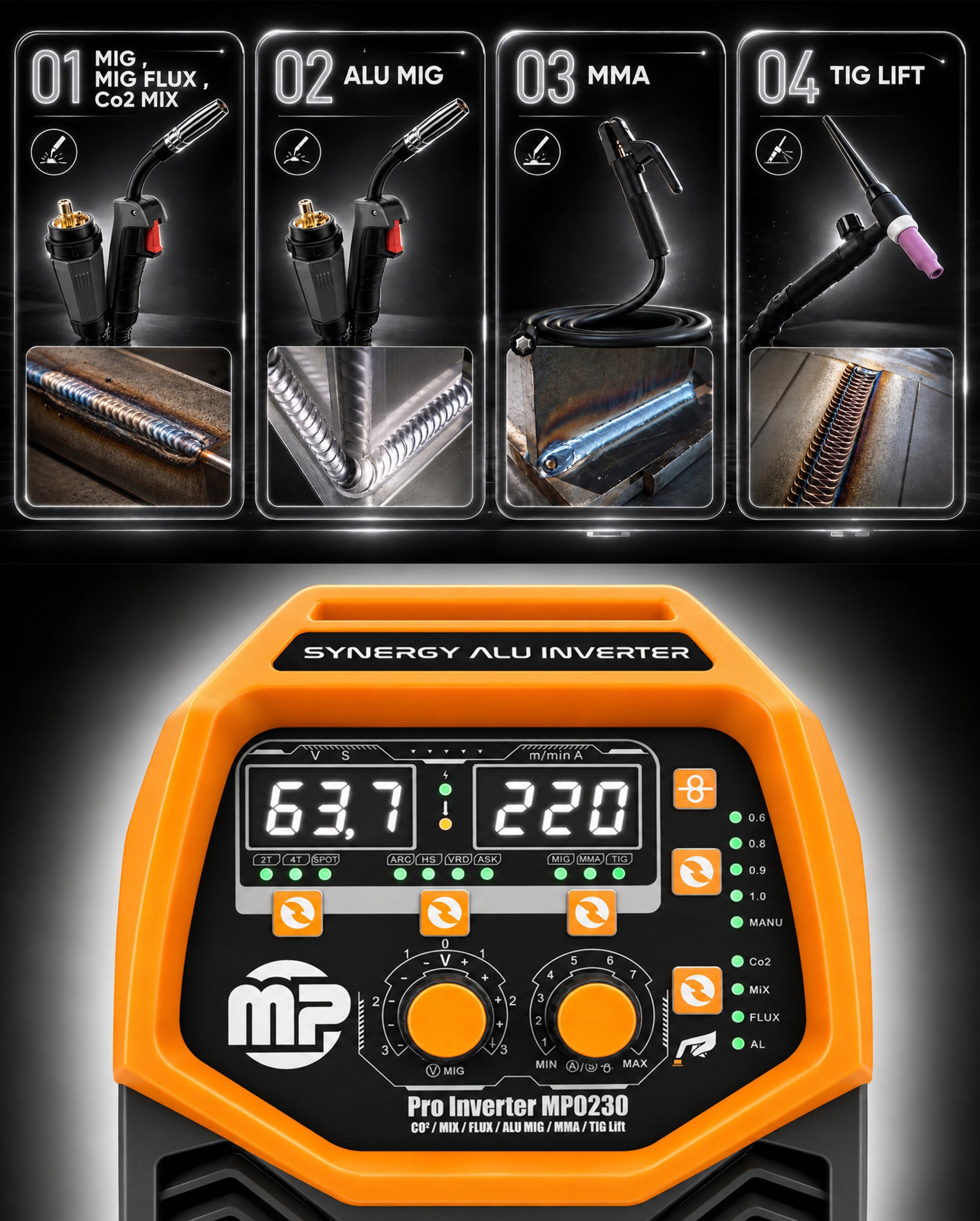

🔴The welding machine has a readable and well-described control panel, making the operation of the device simple and intuitive. Under each button there are function markings, and the selected option is illuminated by a diode. When you turn on the device, you can immediately see which function is active, so setting up the welding machine is quick and convenient.

• 🔴Well described buttons – each function is clearly marked.
• 🔴LED backlight – the active function is immediately visible.
• 🔴Less risk of confusion – everything is designed so that you cannot confuse the function.

🔴MIG / MAG – gas shielded welding

• The MIG holder is connected to the EURO connector.
• Bulk cable is connected to the socket minus (-).
• Such connection is standard when welding with wire in a gas shield.

🔴FLUX – self-shielding wire welding without gas

• The MIG holder is connected to the EURO connector.
• Bulk cable is connected to the socket plus (+).
• With the FLUX method, we replace the poles with the standard MIG/MAG.

🔴MMA – welding with wrapped electrode

• The MMA electrode holder is connected to the socket plus (+).
• Bulk cable is connected to the socket minus (-).
• This is a standard connection for most electrodes.

🔴The welding machine has a solid entrance to the gas cylinder, equipped with a strong connector and filter. This solution ensures reliable connection of the gas pipe, good tightness and durability for many years of use.

Advantages:

• Strong connector – solid and durable connection of the gas pipe.
• Gas filter – helps protect the system from contamination.
• Sure connection to the cylinder – stable gas flow during welding.
• Execution for years – an element resistant to frequent connection and everyday work.

🔴The welding machine supports large spools of welding wire up to 5 kg, which is very convenient for longer work. Thanks to this, you do not need to replace the wire often, and the device works better for larger tasks.

• Spool up to 5 kg – the ability to work on a larger roll of wire.
• Longer welding without interruption – less frequent wire replacement.
• Increased work comfort – the perfect solution for workshops and longer jobs.
• More professional use – the welding machine is ready for more intensive use.

🔴Flux shielding wire 0,9mm 0,45kg

🔴Welding wire 1.0mm 1kg

• Model: MP0230 Majster PRO
• Voltage 230v
• Frequency 50Hz
• Idle current voltage
• Output current 220A
• Electrode diameter 1,6mm-5.0mm
• Wire diameter 0,6mm - 1,2mm
• Efficiency 60%
• Protection class (f)
• Insulation class IP21S
• Net / gross weight 12,5kg , 14kg
• Dimensions 44cm x 21cm x 35cm

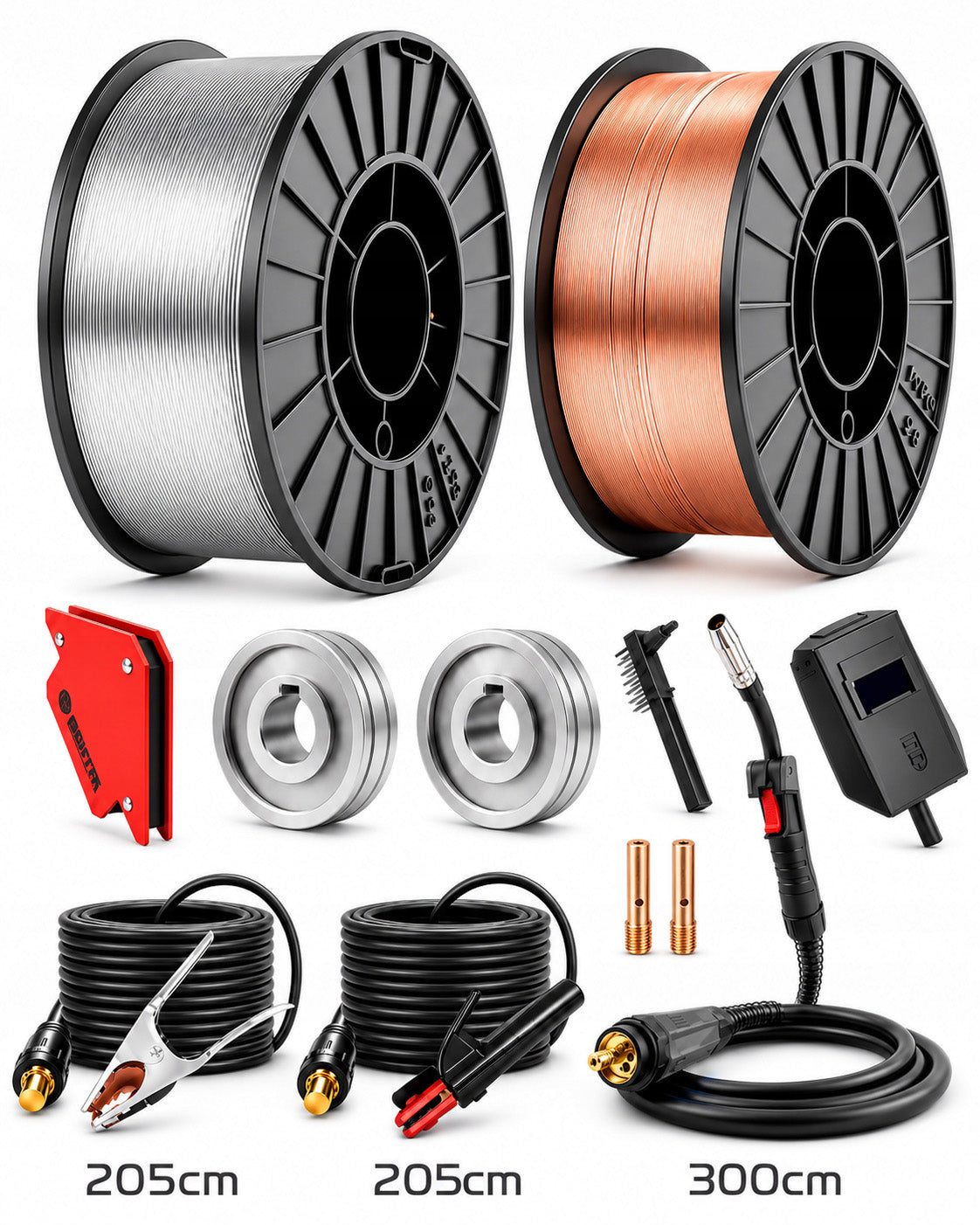

• Alu MP0230 welder
• Euro mig 3m cable
• Cable mma 205cm
• Bulk cable 205cm
• Curtain wire flux 0,9mm
• Welding wire 1.0mm
• Magnetic angle
• Feeder roller 0,8mm / 1,0mm (V)
• Feeder Roll 1,0mm /1.2mm (U) Aluminium
• 2x current tip
• Brush with hammer
• Welding mask

Specifications
