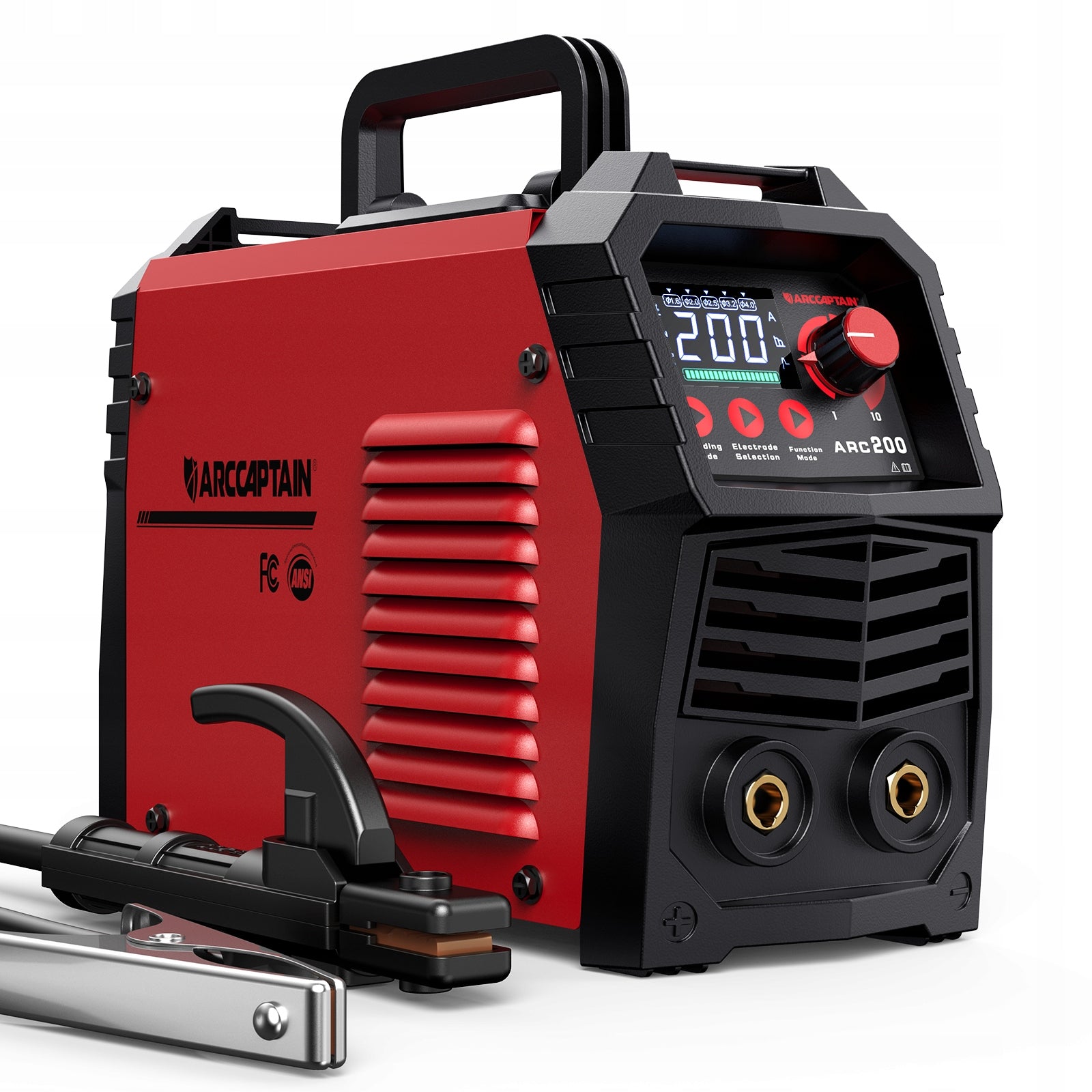

Suvirinimo aparatas ARCCAPTAIN ARC200 MMA/TIG, 200A, 110/220V, IGBT, IP21S

Trumpai apie prekę

Prekė: Suvirinimo aparatas ARCCAPTAIN ARC200 MMA/TIG, 200A, 110/220V, IGBT, IP21S. Kategorija: Sandarikliai.

• Gamintojas: ARCCAPTAIN
• Įtampa: 220 V

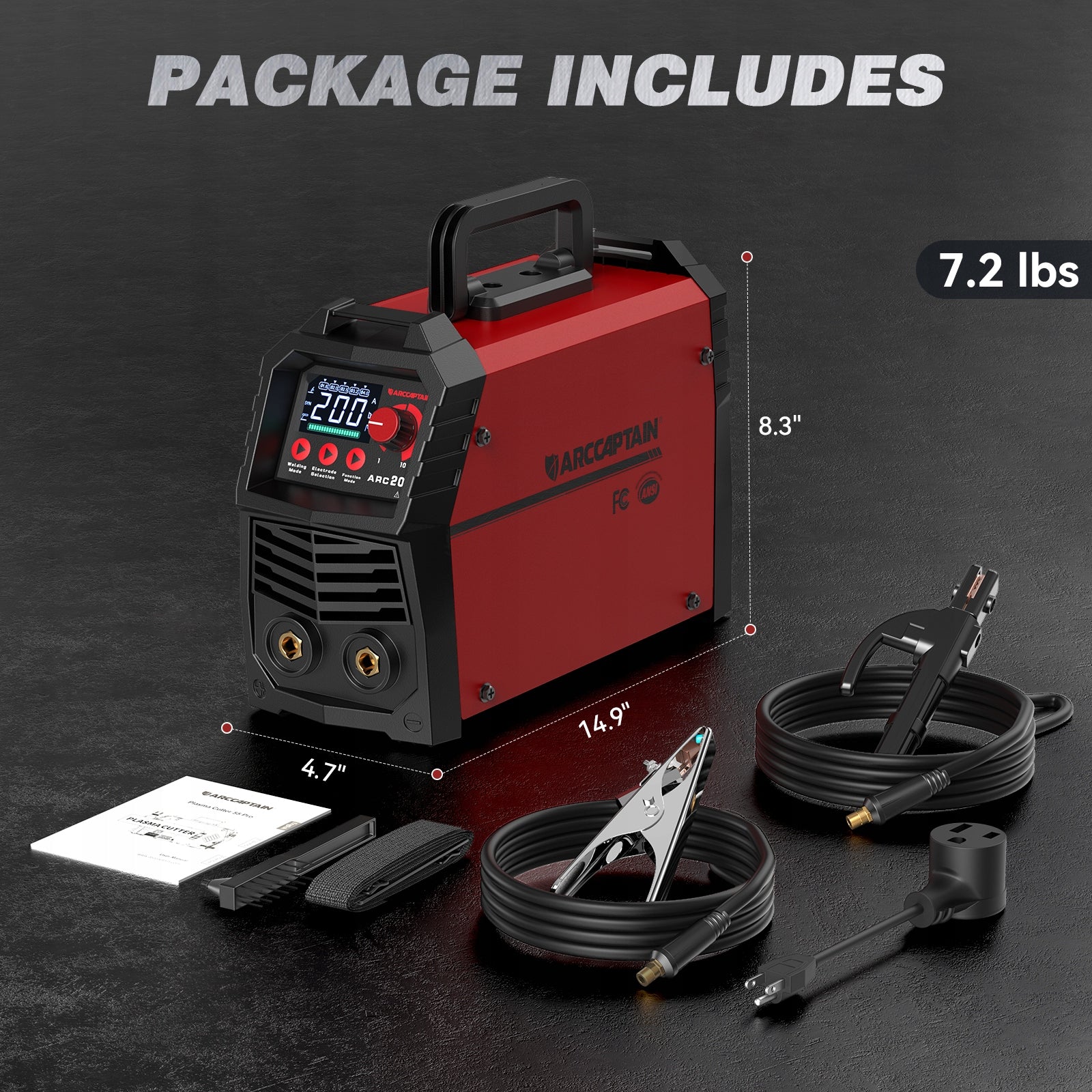

Content of the package

📦 1 * ARC200 welding machine

📦 1 * 3m Ground Clamp (10ft)

📦 1 * 3m (10ft) Electrode Holder

📦 1 * 110/220V Power Adapter

📦 1 * Shoulder strap

📦 1 * User Manual

📦 1 * Wire Brush

Dimensions and weight:

📦 Weight: 7,2 lbs (approx. 3,27 kg)

📦 Dimensions: 14,9" × 4,7" × 8,3" (approx. 37,8 × 11,9 × 21,1 cm)

Safety Features:

Multi-stage protection (current overload / overvoltage / overheating)

Automatic overload shut-off system

Alarm function

Water resistance: IP21S standard

IGBT Technology: The use of IGBT inverter technology increases the efficiency, stability and durability of the device and reduces energy consumption.

Hot Start: The hot start function automatically increases the current at arc ignition, preventing the electrode from sticking to the material and making it easier to start welding.

Arc Force: Push current adjustment automatically compensates for changes in arc length during welding, preventing arc interruption, especially with thin sheets or vertical/overhead welding.

Anti-Stick: The anti-stick feature automatically lowers the current when the electrode accidentally sticks, making it easier to remove quickly and reducing losses.

Inverter welding machine MMA ARC200

I. Basic parameters of the device

Model: ARC200 MMA Inverter Welder

Idle Voltage (U₀): 78 V

Arch ignition voltage (Uᵣ): 14 V

Insulation Class: Class H

Degree of protection: IP21S

II. Welding mode parameters wrapped electrode (MMA)

The device supports AC110V and AC220V dual input voltage, the output specification is the same for both voltages:

Output Current Range: 20A / 20,8V ~ 200A / 28V

With 60% operating factor: maximum output current 200A, output voltage 28V

With an operating factor of 100%: output current of 155A, output voltage of 26,2V

III. Tungsten Inert Gas (TIG) welding mode parameters

Also supports AC110V/AC220V dual input voltage, the output specification is the same for both voltages:

Output Current Range: 20A / 10,8V ~ 200A / 18V

With 60% operating factor: maximum output current 200A, output voltage 18V

With an operating factor of 100%: output current of 155A, output voltage of 16,2V

IV. Power supply parameters

With AC110V power supply: maximum input current (I₁max) 44,6A, effective input current (I₁eff) 19,9A

With AC220V power supply: maximum input current (I₁max) 35,3A, effective input current (I₁eff) 15,8A

Specifications
