Suvirinimo aparatas ARCCAPTAIN MIG140, MIG/MAG, 140A, 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas ARCCAPTAIN MIG140, MIG/MAG, 140A, 230V. Kategorija: Sandarikliai.

• Gamintojas: ARCCAPTAIN
• Modelis: MIG140
• Įtampa: 230 V

Order Information and Package Contents

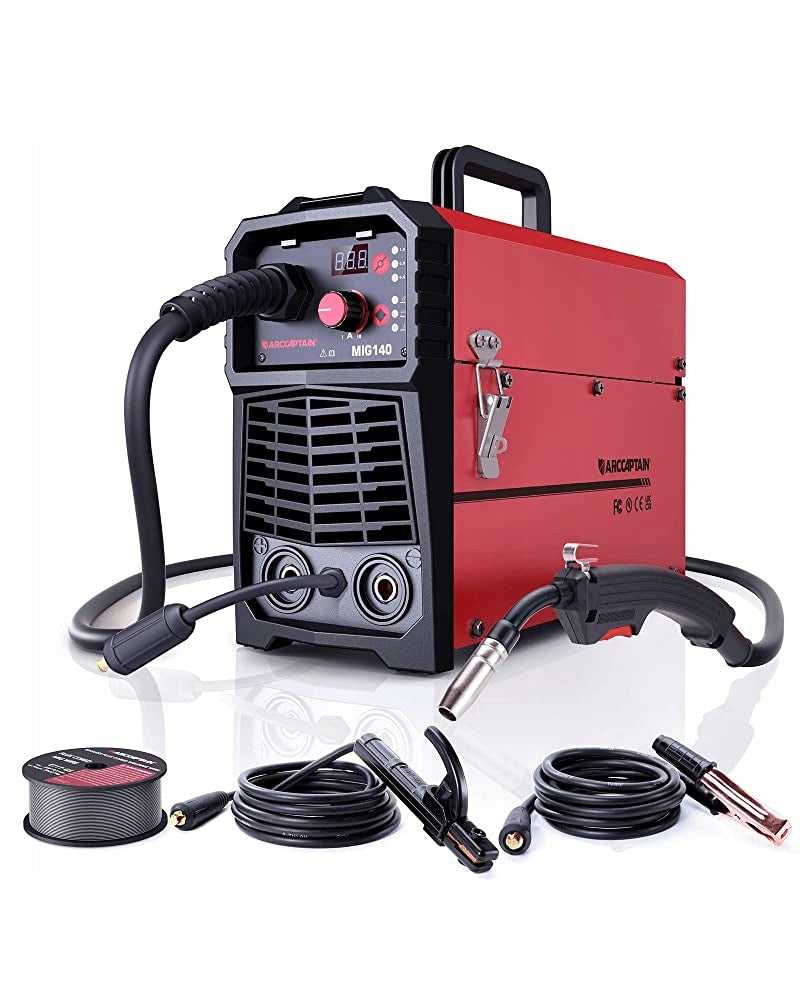

📦 1 pc. ARCCAPTAIN MIG140 Inverter Welder

📦 1 pc. 10ft MIG Welding Gun

📦 1 pc. 10ft Ground Clamp

📦 1 pc. 10ft Electrode Holder

📦 1 pc. .030" / 2lb Flux Core Wire

📦 1 pc. 0.8mm / .030" Contact Tip

📦 1 pc. 0.9mm / .035" Contact Tip

📦 1 pc. Slag Hammer Wire Brush

📦 1 pc. User Manual

📦 1 pc. Carrying Strap

⚙ Description of control panel

⚙ Positive clamp

⚙ Negative clamp

⚙ Button Synergy

⚙ Wire diameter button

⚙ Mode change button

⚙ Digital display

⚙ MIG torch socket

⚙ Power cable socket

⚙ Network switch

⚙ Cooling fan

⚙ LED wire selection

⚙ LED welding modes

Key features of welding machine

✨ Synergic control

✨ MCU technology control

✨ Modern IGBT transistors

✨ Working cycle 60%

✨ Adjustable wire feed speed

✨ Intelligent cooling fan

✨ Multi-level device protection

✨ Light, compact design

Product quality and durability

The welder undergoes a series of quality tests before leaving the factory:

✅ Vibration test

✅ Drop test

✅ Water resistance test

✅ Metal dust resistance test

Technical parameters

📝 Rated Input Voltage: Single Phase AC230V 50Hz/60Hz

📝 Rated Input Power: 5KVA

📝 Welding Current Range(MIG,MMA,TIG): 20-140A

📝 Welding voltage range: MIG 16-20,5V; MMA 20,8-25,2V; TIG 10,8-15,2V

📝 Rated duty cycle: 60%

📝 Voltage without load: 65V

📝 Wire/electrode used: wire 0,8/0,9/1,0mm, electrode 1,6-3,2mm(1/16"-1/8")

📝 Degree of protection: IP21S

📝 Insulation class: H

📝 Power factor(COSφ): 0,68

📝 Cooling method: air cooling

📝 Total efficiency: 85%

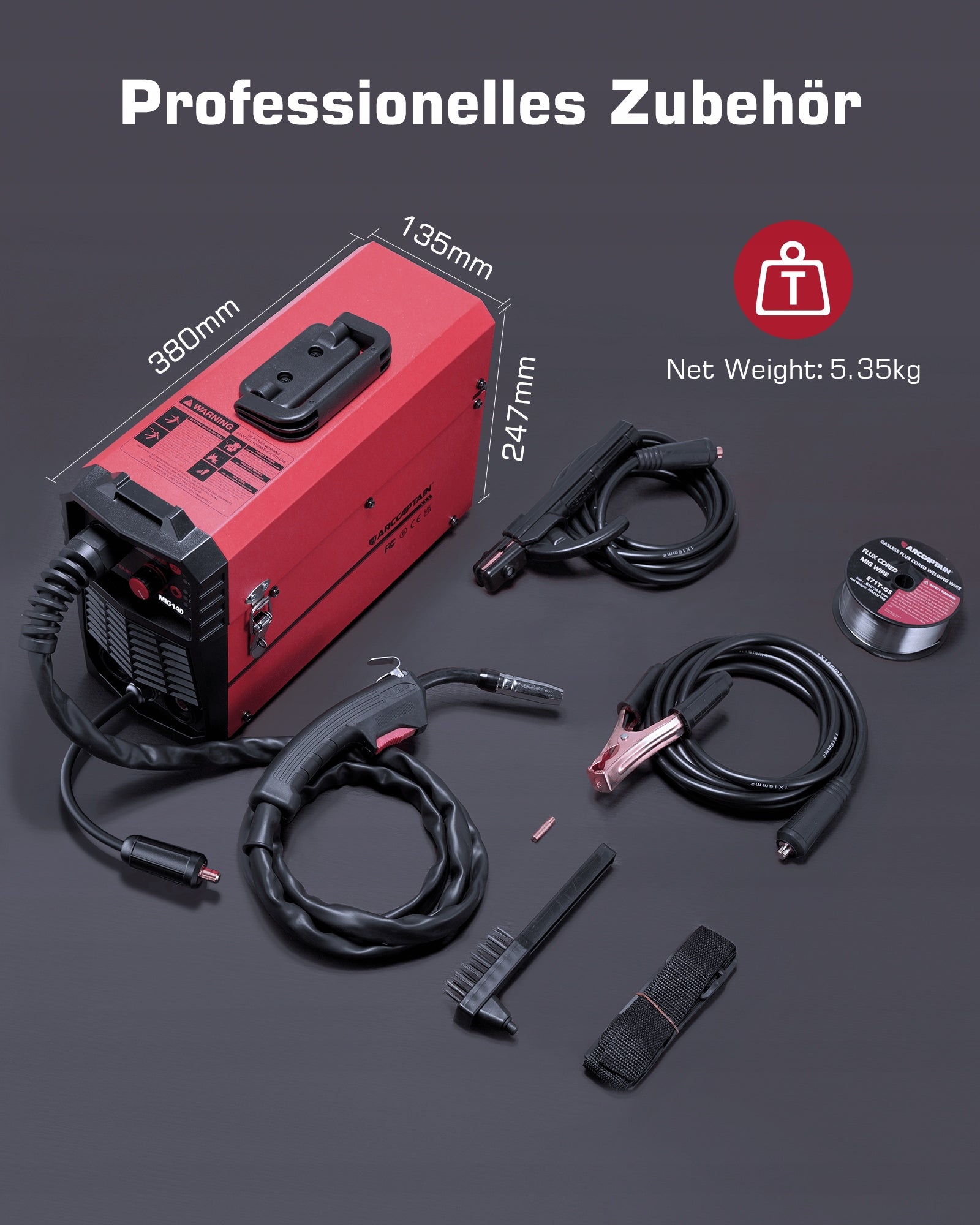

📝 Dimensions:380135247mm /14,95,39,7in

📝 Weight:5,35kg/11,79lb

Overview of functions

✨ Synergistic MIG: automatic adjustment of wire feed voltage and speed after selecting its diameter

✨ 3-in-1: MIG work with/without gas, MMA and Lift TIG

✨ Modern IGBT and MCU technology improves welding quality

✨ Lightweight design with handle and carrying strap

✨ Wire feed speed adjustment

✨ Set includes MIG burner and power cord

✨ Intelligent cooling fan with efficient heat dissipation

✨ VRD function reduces the risk of electric shock

✨ Hot Start facilitates arc ignition during MMA welding

✨ Arc Force improves arc stability during long welding

✨ Anti-stick prevents electrode sticking

✨ Multiple protection: against overheating, overcurrent, overvoltage and overload

Specifications
