Suvirinimo aparatas Delta Elektra Light, elektrinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas Delta Elektra Light, elektrinis. Kategorija: Sandarikliai.

• Gamintojas: Ritmo
• Modelis: brak
• Įtampa: 230 V

ELEKTRA Light

Welder included with scanner, with USB cable

ELEKTRA Light is a lightweight electroresistance welding machine for connecting polyethylene pipes and fittings

used in the transport of gas, water and other pressurized media in diameters of 20-160mm. Welding machine

complies with all current European standards for welding pressure fittings and works in

output voltage range 8-48V. With its universal tips, the Elektra Light welding machine allows

welding of all pressure fittings available on the Polish market without additional adapters.

The device has the option of compensating the welding time against the ambient temperature.

The welding machine allows welding in three modes:

– automatic – reading the barcode of the fitting using a scanner

– semi-automatic – manual introduction of the fitting barcode

– manual – manual introduction of welding parameters, i.e. tension and time.

The welding process is constantly monitored during the cycle. The device will notify the operator of any errors

or anomalies that occurred during the seal.

The memory of the Elektra Light welding machine allows you to store its last 325 welds, which can be transferred to

computer by means of an additional data cable in PDF format or in a format allowing

use the Ritmo software. Elektra Light is very light – only 7kg and comes in a convenient

shoulder bag which significantly facilitates movement on the construction site.

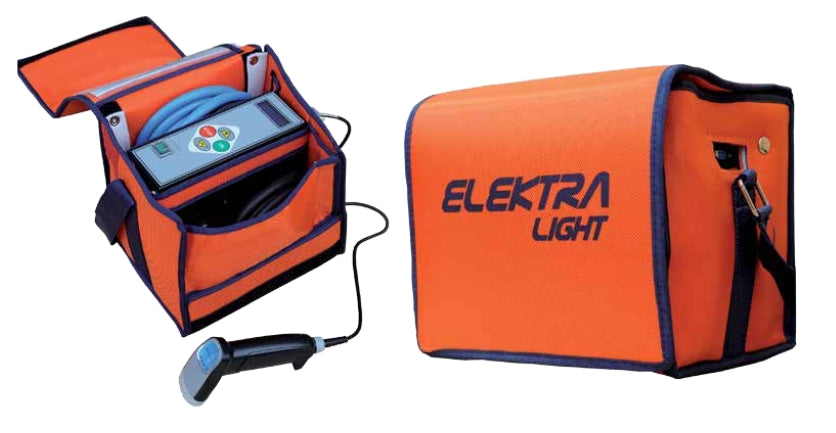

EQUIPMENT:

• barcode scanner
• universal tips (allowing welding of fittings 4,0mm and 4,7mm without application

adapters)

• shoulder carry bag
• hand scraper
• cable for transmission of welds to USB

ADDITIONAL EQUIPMENT (on request)

• thermal printer
• Ritmo Transfer software

SPECIFICATIONS – Elektra Light

• Working Range: 20-160mm

welding diameters of 140mm and 160mm is possible after cooling the welding machine after the previous welding

• Output voltage: 8-48V
• Power supply parameters: 230V 50/60Hz
• Max Power Consumption: 2000W
• Power cord: 4m
• Output cable: 4m
• Welding machine memory: 325 welds
• Degree of protection: IP 54 / class 2
• Operating temperature: -20°C – +50°C
• Dimensions: (welding machines) 200x250x210mm
• Weight: 7kg

Specifications
