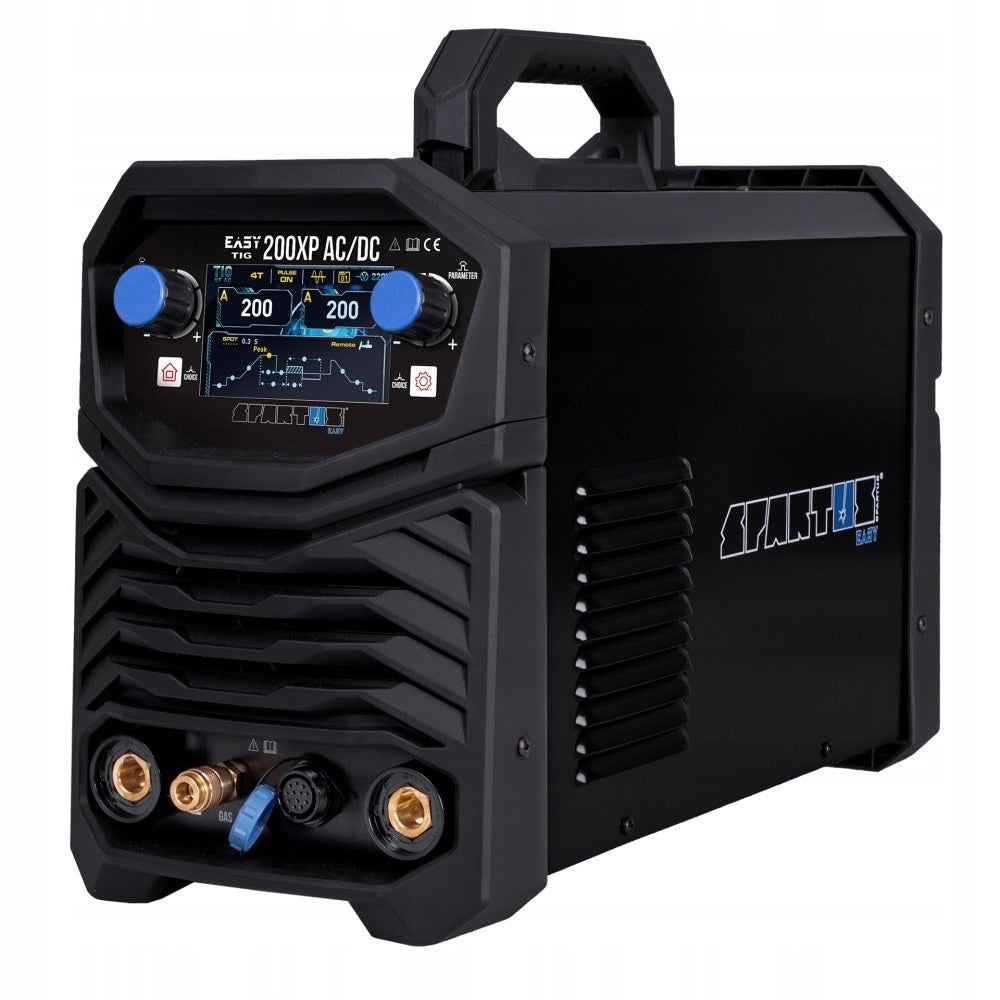

Suvirinimo aparatas EasyTIG 200XP AC/DC su TIG rankena ir aliuminio priedais

Trumpai apie prekę

Prekė: Suvirinimo aparatas EasyTIG 200XP AC/DC su TIG rankena ir aliuminio priedais. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyTIG 200XP AC/DC

One of the best models available on the market for welding. Thousands of units sold, 0 complaints.

The company SPARTUS specializes in welding, which is why the welding machines of this company are characterized by the highest quality that distinguishes them from the competition.

⏩ TIG AC/DC welding machine for aluminium -

Spartus Easytig 200XP AC-DC - with larger LCD panel!!

The iconic model of the Spartus brand. Excellent device for TIG and MMA welding. Portable source designed for professional use - stationary and in the field.

Easymig 200XP AC/DC is an advanced TIG/MMA inverter welding machine designed for demanding welders who expect the highest quality and full control over the process. Thanks to modern IGBT transistors and digital control, the device provides exceptional arc stability and low power consumption.

⏩With this TIG device you weld:

✅aluminum and magnesium alloys,

✅Different types of steel, e.g. black steel, stainless steel, acid resistant steel, etc.

✅other weldable materials.

EXCELLENT TIG AC/DC WELDING MACHINE FOR WELDING VIRTUALLY ALL WELDABLE MATERIALS

Spartus 200 xp ac/dc is designed for manual, electric TIG welding. The device can also be welded using MMA method using hot melt coated electrodes. TIG AC DC welding machine will be used in locksmith workshops, repair workshops, factories, etc.

✅ TIG AC: 10 – 200A | TIG DC: 10 – 200A | MMA: 10 – 160A

✅ Welding current at 60%: TIG 200A – high efficiency even with long cycles

✅ Modern IGBT electronics – stable arc, low energy consumption

✅ Features 2T/4T, TIG PULS, Cold Weld, spot welding

✅ AC frequency control (20 – 250 Hz) – precision with aluminium

✅ Pulse frequency control (0.5-200Hz)

✅ Regulation:

• time of gas outflow before and after welding,
• increase and decrease of current,
• initial and final current,
• peak current (Peak Amp) and base current

✅ MMA welding with VRD, Hot Start, Arc Force, Anti Stick functions

✅ Friendly interface with large LCD screen – quick and easy setup

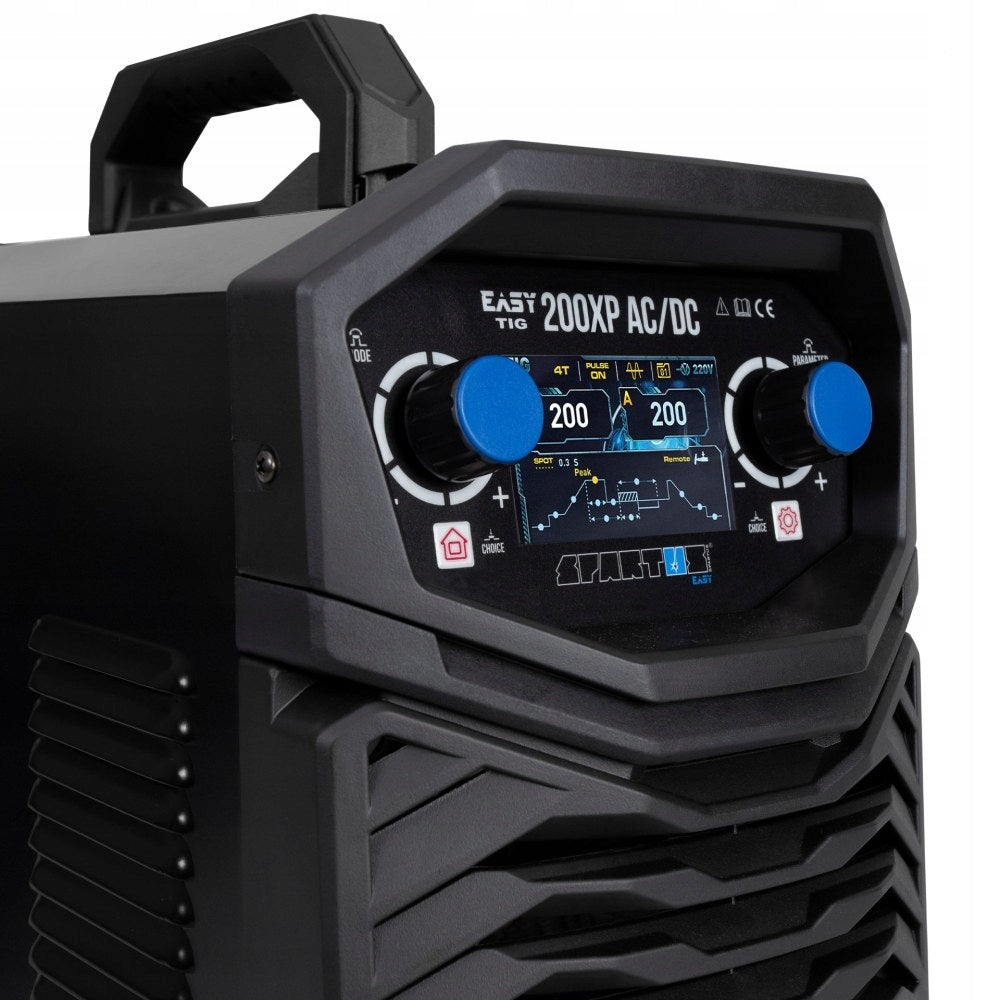

The Spartus Easytig 200XP AC/DC welder is equipped with an readable LCD display and an intuitive button layout and adjustment knob. Thanks to this, all parameters can be quickly set and controlled.

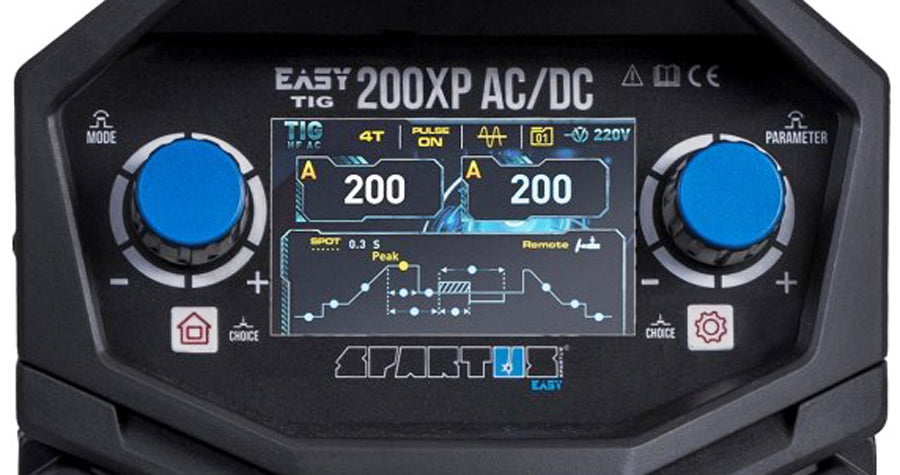

Control panel elements:

✅ MENU button – selection of welding method (TIG DC, TIG AC, TIG Pulse DC, TIG Pulse AC, MMA) and return to the home screen.

✅Knob with button function – adjusting the value of all parameters, selecting functions and approving settings.

✅Parameter button – input to the “parameter ladder” for the TIG method, where detailed values are set.

⏩WELDING TIG WITH PULSE

The TIG PULS function allows you to control the amount of heat supplied to the welding lake. Thanks to the ability to adjust key parameters of pulsating current parameters - the user has full control over the welding process.

TIG welding with pulse is particularly useful when welding elements made of stainless and acid-resistant sheet metal.

⏩SPOT FUNCTION (TIG spot welding)

The SPOT function allows you to automatically make a short, precise “drop” of the weld without having to hold the trigger. Time adjustment range is 0,01 ÷ 9,99 s with an accuracy of 0,01 s

The process proceeds fully automatically: gas outflow (Pre-Gas), arc glow for the set time, and then its extinction with the end of gas outflow (Post-Gas).

It is an ideal solution for quick mounting points, attaching elements or fastening buckles – it reduces material heating, prevents deformation and saves gas, while ensuring repeatable quality of welds.

Automatically reduces idle voltage when the arc is turned off, which increases operator safety and reduces the risk of shock in wet positions or working in protective clothing.

It provides contactless TIG arc ignition by generating high frequency – no need to touch the electrode to the material, which protects the electrode tip and gives a cleaner start.

IGBT (Insulated Gate Bipolar Transistor) is an advanced semiconductor component that combines the control advantages of a MOSFET field transistor with the low conduction losses of a bipolar transistor. In Spartus Easytig 200XP AC/DC IGBTs are responsible for fast current switching in the inverter generator at frequencies of several dozen kHz, which allows to obtain a stable, smooth arc and minimize power losses. Thanks to the high efficiency of IGBT modules, the welding machine generates much less heat than devices based on older thyristor technologies, which reduces the load on the cooling system and improves the service life of the entire device. The compact dimensions and low weight of the IGBT modules enable the design of a lightweight body, and their dynamic switching characteristics ensure precise control of welding parameters, even under demanding duty cycles and variable loads.

The device has been designed in such a way as to combine compact and compact design with high durability. It weighs 16 kg, thanks to which it maintains stability and resistance to intensive use, and at the same time remains handy enough to use it both in the workshop and in the field without any problems. The convenient transport handle also makes it easy to carry the device and quickly prepare for work in various places.

Power supply parameters:

• Power supply: 230 V – 50/60 Hz
• Number of phases: 1 ph
• Efficiency (work cycle): 60%
• Max. power consumption: ~7,2 kVA
• Network security: 25 A (type C)

Welding parameters:

• TIG AC/DC welding current: 10 – 200 A
• MMA welding current: 40 – 160 A
• Idle voltage: 70 V / 7,9 V (with active VRD)

Additional functions:

• HF (High Frequency) – contactless TIG arc glow
• 2T / 4T – choice of handle mode
• Puls TIG – frequency, width and amplitude adjustment
• Spot / Repeat – spot welding and cyclic spot welding
• VRD – lowering idle voltage for safety
• Anti Stick / Hot Start / Arc Force – MMA support functions
• Pre Gas / Post Gas / Up Slope / Down Slope – full adjustment of welding times and parameters

Physical parameters:

• Weight: 16 kg
• Cooling: air (device)
• Protection class: IP21S

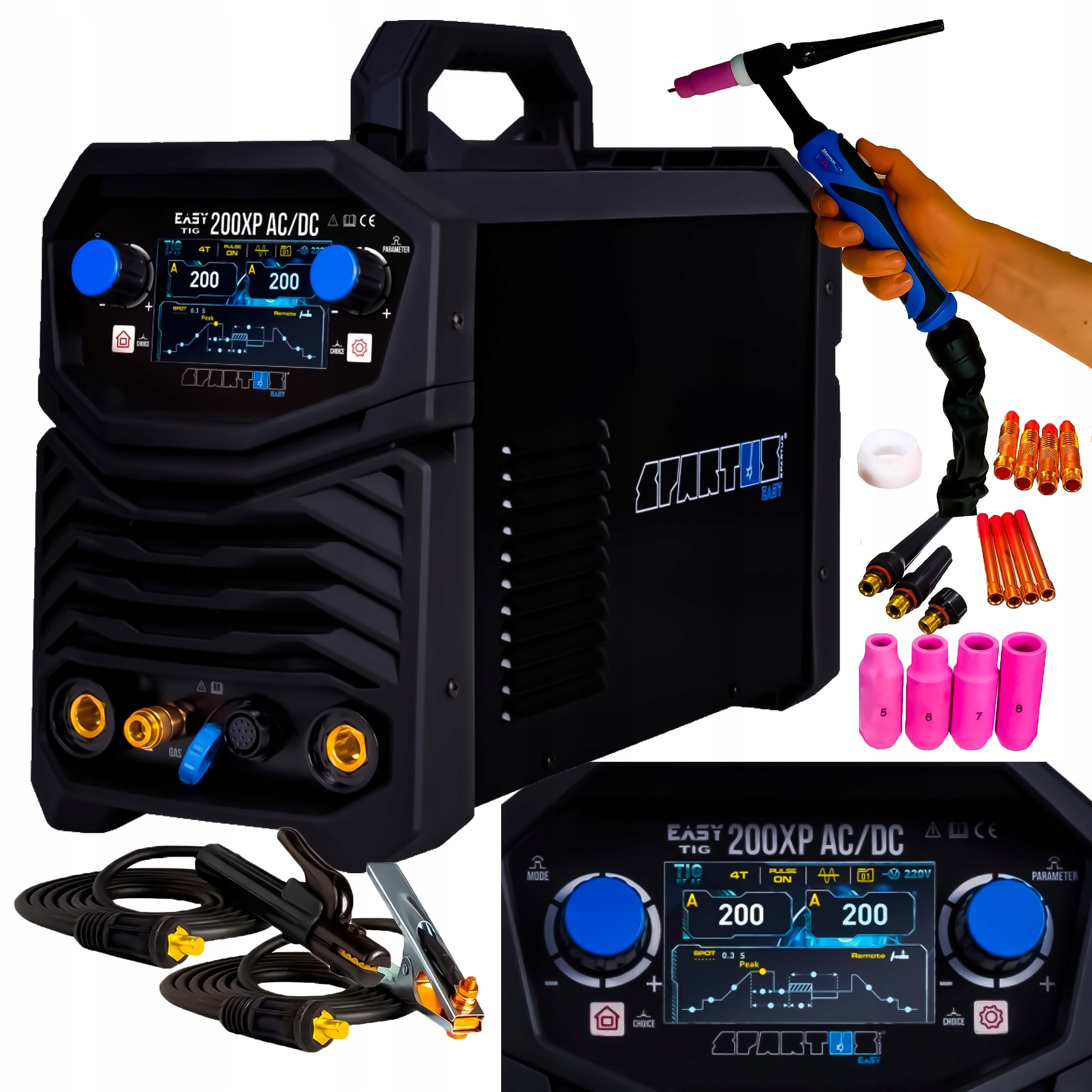

• Welding device Spartus Easytig 200XP AC/DC
• TIG working cable - 4m
• MMA Working Cable
• Cable with mass clamp
• User manual

Specifications
